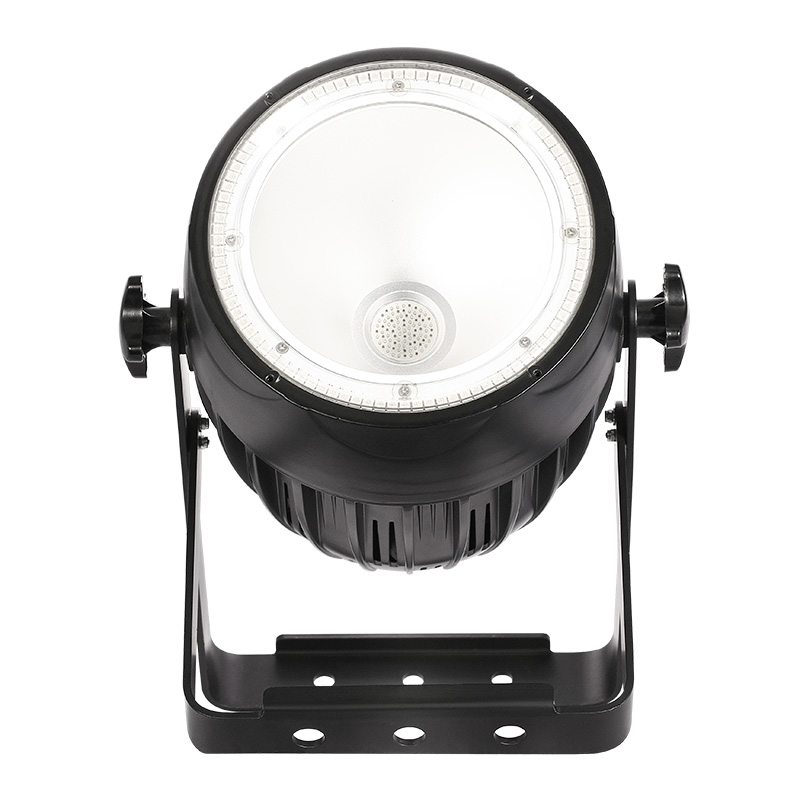

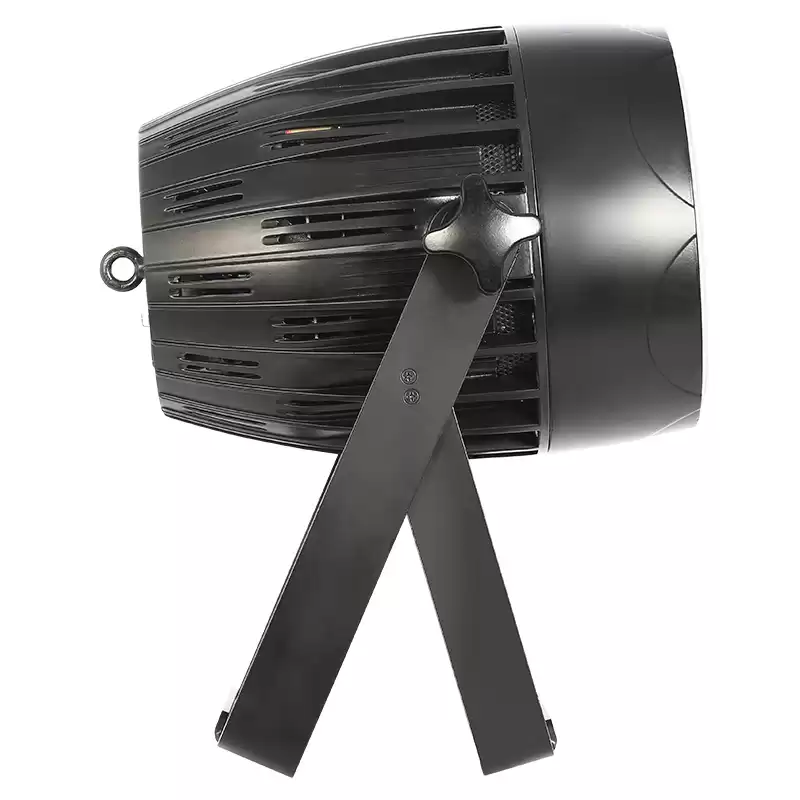

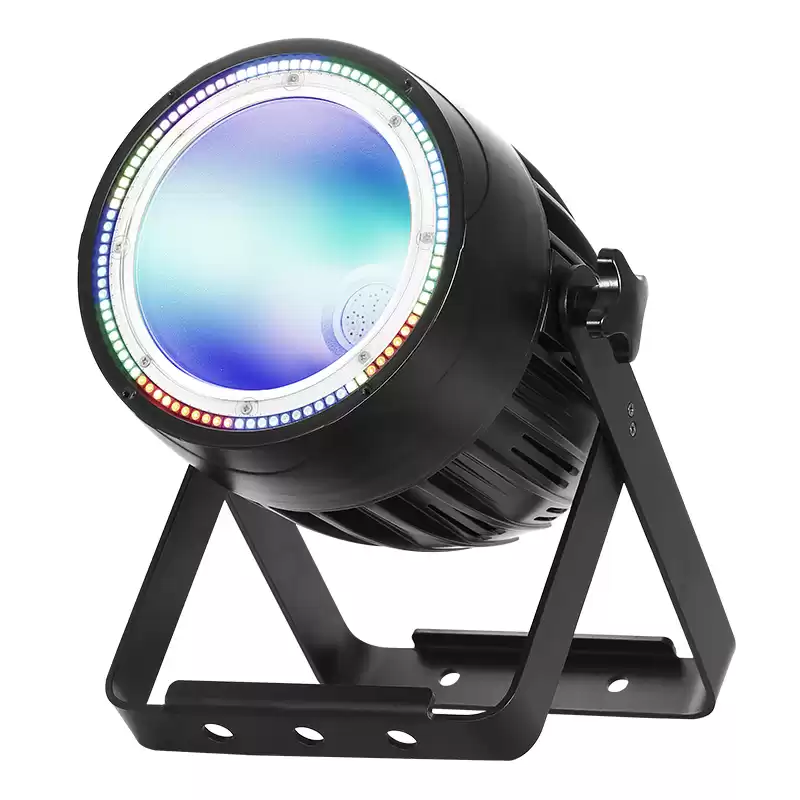

200W COB LED RGBWA Par Light with LED RGB Ring

This equipment is aluminiumstructure. Its look design is very good such as fashion,generous. It is with 1pcs 200W RGBWA COB and 96pcs 0.2W RGB as the light source in order to bring rich dynamic effect. Besides it has special cooling systems. It is suitable for projection lighting, stage, theatre etc due to great function. At the same time, And it is with powerful two-way RDM function besides DMX control.

●  Optics

. LED qty：

※ 1x200W RGBWA LED(Power LED), uniform and delicate color mixing effect

※ 96x0.2W RGB LEDs(LED ring)

. Beam angle：45°

. Lifetime：50000H，low power consumption, energy conservation

and environmental protection

●  Colors

. Uniform RGBWA mixing color system

. Manually adjustable White balance

. RGB LED ring can create more colorful chasing effect.

. Static color set up

●  Specification

. 5 DMX channel modes：5CH/7CH_1/7CH_2/34CH/149CH international standard DMX-512 channel

. 3 control modes::DMX512、Sound、Master-Salve

. Beam angle：45°

. DMX function：Dimmer、Strobe、RGBWA、Macro color、color jumping change、color gradual change 、Sound、dimmer curve selection、function setting

. Stand-alone mode：color jumping change、color gradual change、Auto-program、Sound、slave、Macro color、static color setting

. Strobe effect：0-20HZ strobe、Plus strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。

. Dimmer:0-100% 16bit dimming which can control brightness change and closing of 4colors at the same time

. The LED light ring with 96pcs 0.2w RGB can bring 135kinds of dynamic combinable effect

. Dimming way：LED mode and Halogen lamp mode

●  Display

. LCD screen

●  Software

. Software upgrade：quick software upgrade via DMX cable

. LED refresh rate：3000Hz

. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer

●  Other functions

. Setting and addressing：RDM

. LEDs temperature detection system to protect the LEDs

. Fan cooling(the fan change the speed with the temperature changes）

. Fan running mode：Auto mode and high speed mode

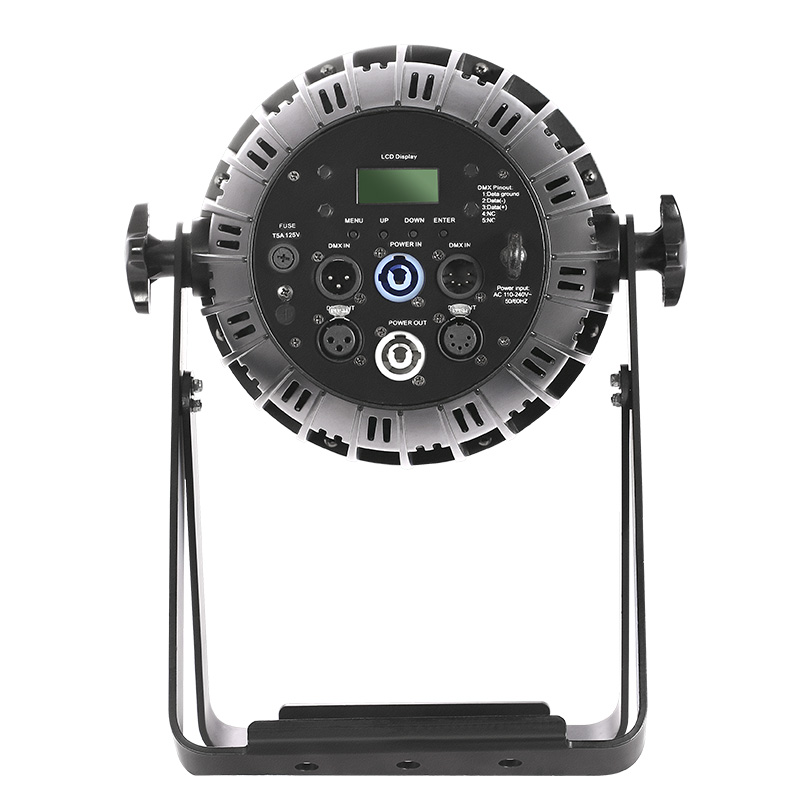

●  Power/Signal connection

. Power connection：PowerCON input/output

. DMX input：3 Pin XLR

. DMX output：3 Pin XLR

●  Power

. AC100-240V 50/60HZ

. Power consumption：210W

●  Protection class

. Housing：Die-cast aluminium

. IP class：IP20

●  Operation environment

. Indoor operation temperature：-20°C～+40°C

●  Size/weight

. Packaging size：465x355x305mm

. Net weight： 5.2KG

. Gross weight:6.0KG

●  Certification：

. CE,ROHS
