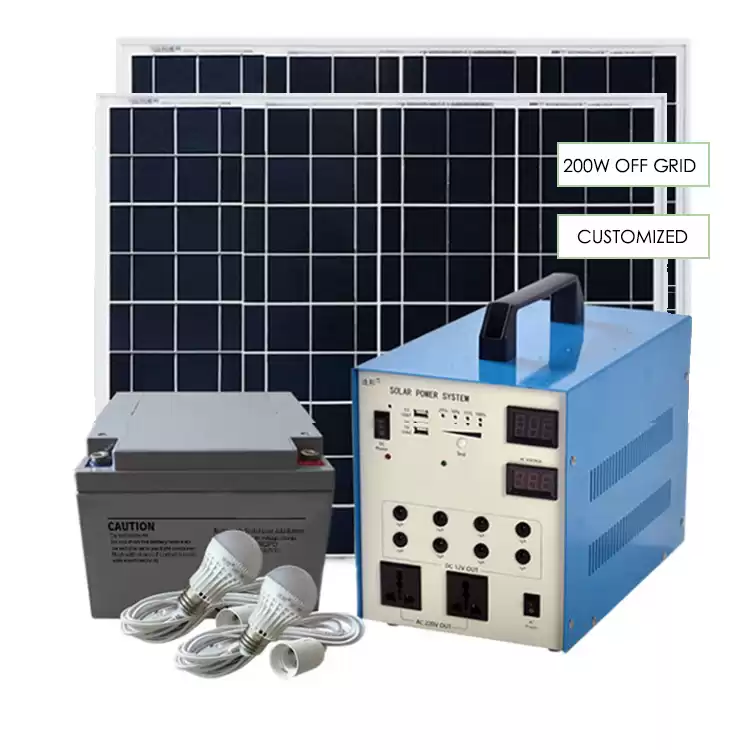

200W DC12V solar power system for homes
This portable household 12V solar power system has load protection, 2 solar panels, with a lifespan of up to 25 years, and can power electrical appliances within 300W, such as a 150W TV set for 6 hours; a 50W fan, power supply for 19 hours; 5W bulb power supply can reach 190 hours. It is definitely a cost-effective home solar power system, outdoor solar power system, easy to carry, it can meet the basic power supply even when the family is camping or performing.
200W Solar Power System Specifications:
|

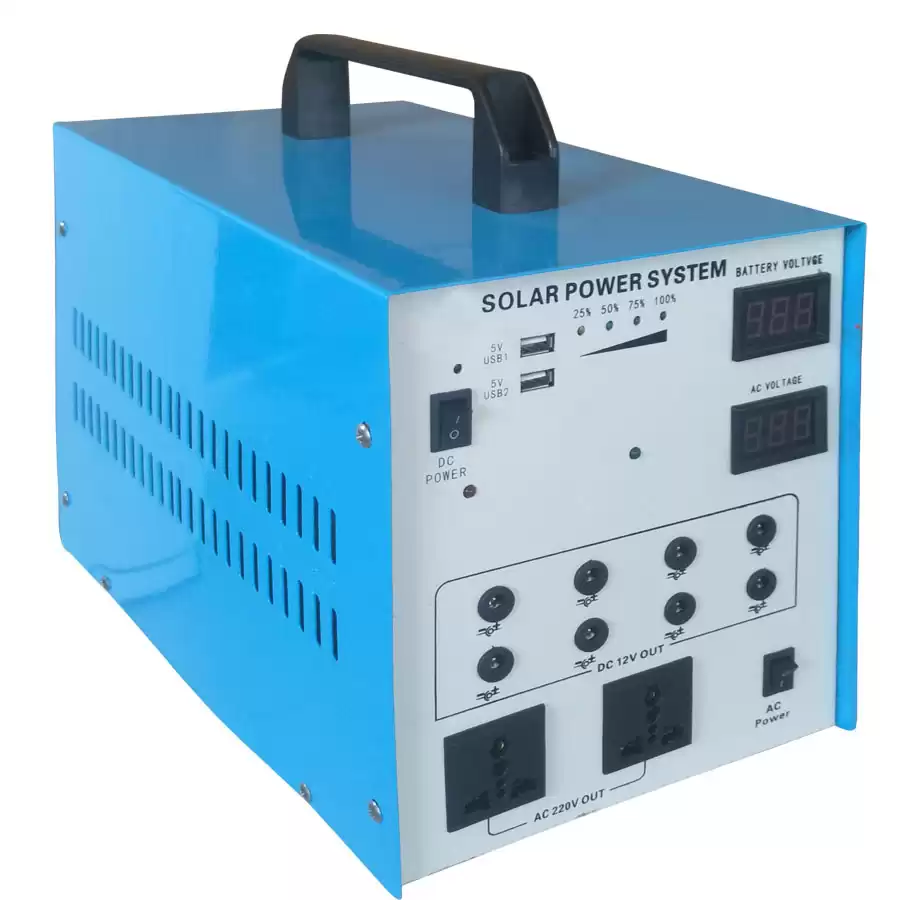

Host *1
|
Input voltage
|
DC12V
|
|
Maximum charging current
|
15A
|
|
Maximum discharge current
|
25A
|
|
USB
|
1A/5V
|
|
LED indicator
|
Switch, battery
|
|
AC220V output interface
|
2PCS
|
|
DC12V output interface
|
8PCS
|
|
Charging control method
|
PWM Controller
|
|
Temperature difference supplement
|
-4MV/0°/2V
|
|
Load protection
|
Overcharge, overdischarge, overload, short circuit
|
|
Size
|
345*210*245mm
|
|
Weight
|
4.03KG
|
|
Built-in inverter
|
300W
|
|

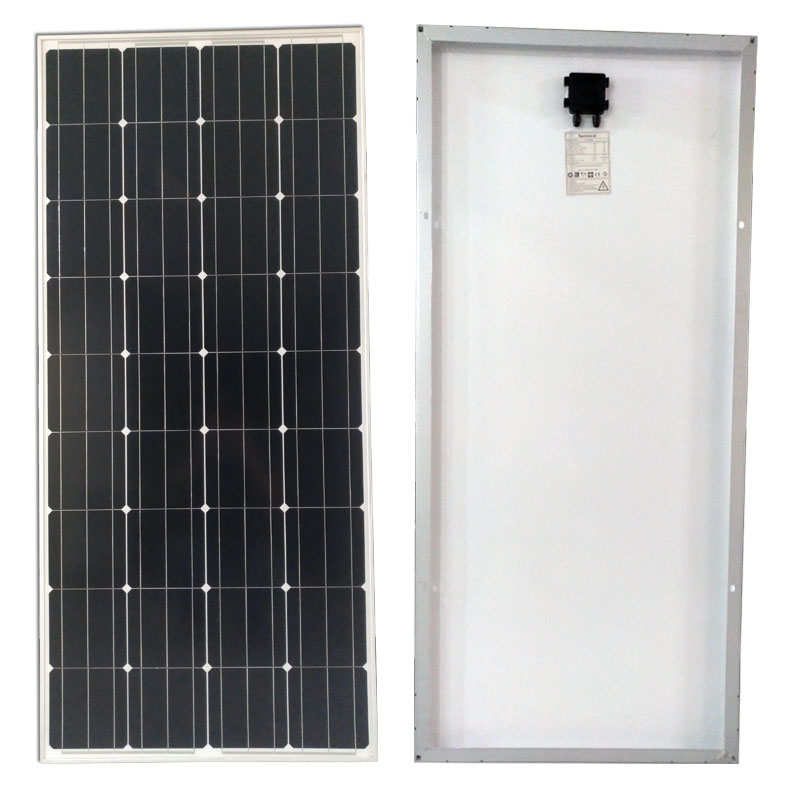

Solar panel *2
|
Maximum output power（Pm）
|
100W
|
|
Optimal power voltage (Vmp)
|
17.6V
|
|
Optimal power current (Imp)
|
5.71A
|
|
Open circuit voltage (Voc)
|
21V
|
|
Short circuit current (Isc)
|
6.4A
|
|
Size
|
1200*540*30mm
|
|
Weight
|
7KG
|
|
Conversion efficiency
|
18%
|
|
Power deviation
|
3%
|
|
Cell
|
Monocrystalline silicon
|
|
Service life
|
More than 25 years
|
|

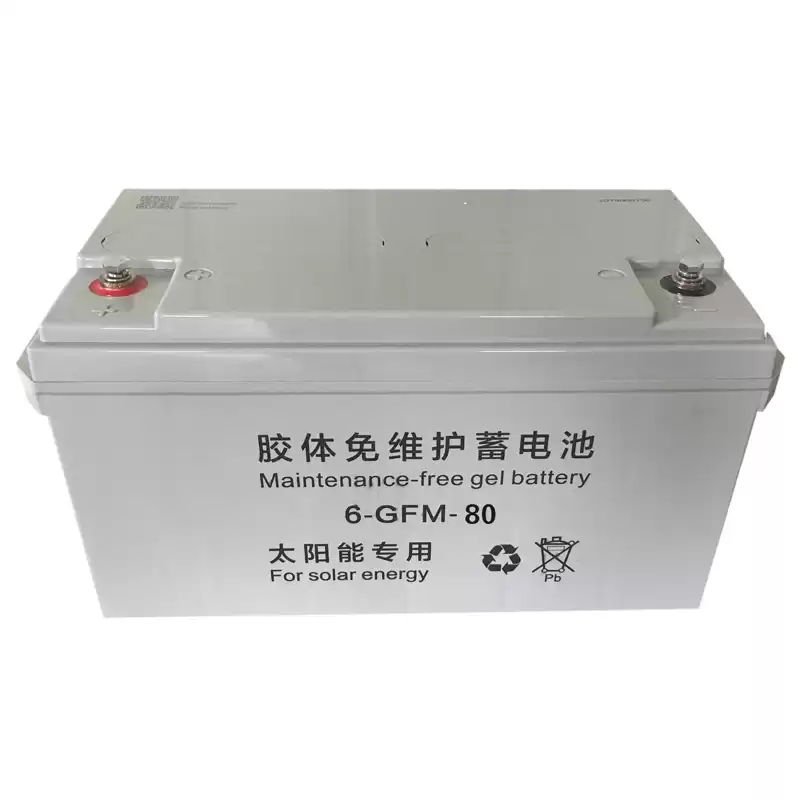

Battery *1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
80AH
|
|
Size
|
324*200*230mm
|
|
Weight
|
24.5KG
|
|
Accessories
|
LED lights *2
|
12V/3W
|
|
LED light wire *2
|
5M
|
|
Data line *1
|
|
|
* All accessories are equipped according to the ordered products and user needs.
* Your requirements can be customized.
|
Advantages of solar power system:
Compared with commonly used thermal power generation systems, the advantages of solar power system are mainly reflected in:
1. No risk of fatigue
2. Safe and reliable, no pollution discharge, clean and tidy (no pollution)
3. It is not restricted by the geographical location of resources, and can take advantage of the geographical location and the roof of the building
4. There is no need to consume fuel, and no need to erect transmission lines to generate electricity
5. High energy quality
6. Short construction period and short energy acquisition time
7. Save money
Applications:
We focus solar system solution for many years, as a professional solar power system manufacturer and supplier, we value user experience, product quality, and customer satisfaction is our pursuit.
If you want to wholesale or customize solar products, you can rest assured to contact us, the price is favorable, and the quality is guaranteed. Contact today!
