It uses imported LED light source with high light efficiency and long lifespan of 50,000 hours. It is a new generation of green and environmentally light source;
high energy efficiency: high power density LED module and efficient aspherical condensing system, high light efficiency, large beam angle, The light spot is uniform, which is 90% more energy-efficient than traditional tungsten halogen spotlights.
No flicker: 16bit dimming technology, truly restore the dimming of traditional tungsten filament imaging lamp;
Ultra-quiet: 8dB ultra-quiet design;
Low temperature: The heat dissipation system adopts heat pipe application technology, and the intelligent mute air-cooled heat dissipation system can be equipped in special environments The surface temperature is always no higher than 65 °,
light weight: the light is made of high-quality aluminum profile and metal plate combined structure, the surface is sprayed with black epoxy high-pressure electrostatic powder, the net weight is 9.8kg, the installation is light and can resist strong External force collision;
high illuminance: uniform light gradation and natural gathering.
● Optics
. LED : 1x200W LED
. Beam angle: 19 ° / 26 ° / 36 ° / 50 ° (optional)
. Life span: 50000H, low power consumption, energy saving and environmental protection
● Colour
. LED color temperature: 3200K, optional 5600K
. Explicit indication: CRI≥90
. High luminous efficiency: 3200K standard luminous flux 23400Im, standard luminous efficacy
117Im / W; 5600K standard luminous flux 25500Im, standard luminous efficiency 127Im / W;
● Specification
. 3 DMX channel mode: 1/2/4CH international standard DMX512 channels
. 2 control modes: DMX512, master-slave
. Light spot angle: 19 ° / 26 ° / 36 ° / 50 ° (optional)
. Strobe effect: 0-30HZ strobe
. Dimming: 0-100% 16bit dimming
● Display
. LCD display control menu
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 800Hz / 1200/2000/3600 / 25000hz optional
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
● Other functions
. Setting and addressing: RDM
. LED temperature detection system to protect the life of lamp beads
. Fan cooling (fan changes speed with temperature change)
. Fan mode: automatic and high-speed mode switching

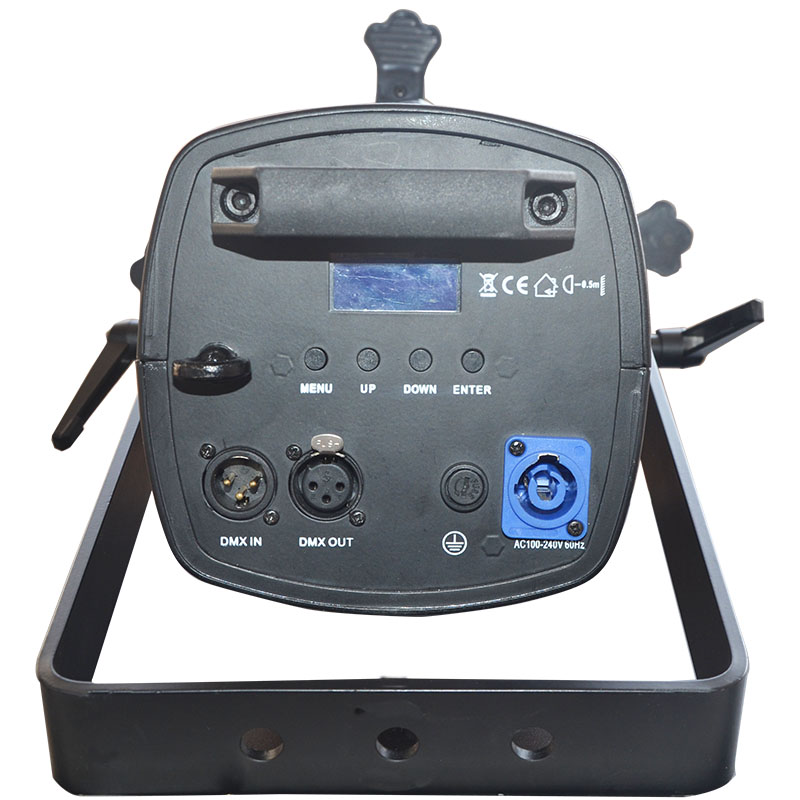

● Power / DMX connection
. Power connection: PowerCON power cable input and output
. DMX XLR socket : 3 Pin XLR socket input, output
● Power supply
. AC100-240V 50 / 60HZ
. Power consumption : 220W
● Protection class
. Housing material: die-cast aluminum
. Waterproof level: IP20
● Working environment
. Working temperature: -20 ° C ～ + 40 ° C
● Size and weight
. Packing size: 700x310x300mm
. Net weight: 6.1KG
. Gross weight: 8.0KG
● Certification
. CE,ROHS
