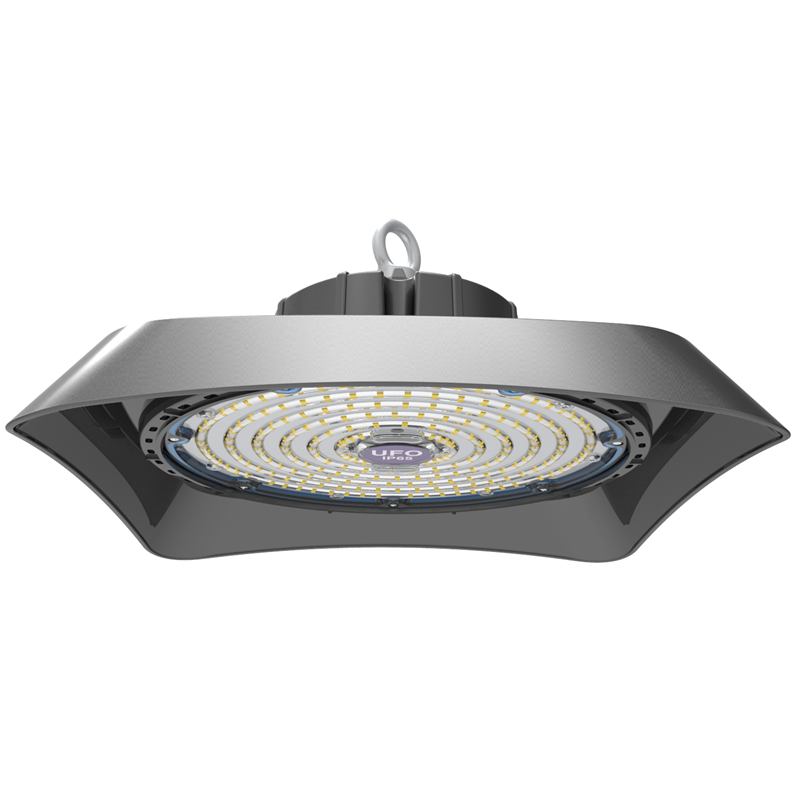

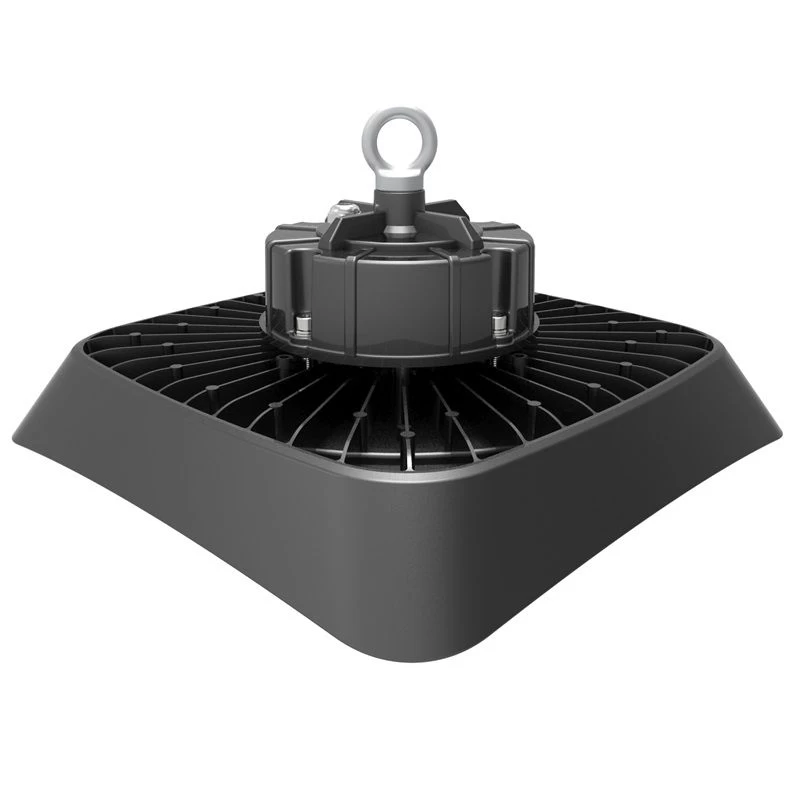

Product Item: 200W UFO Warehouse Luminaires Philips Lumileds LED 400W MH Equivalent
Overview:
This range of industrial grade LED UFO High Bay lighting/Warehouse lighting fixtures offer high efficiency LED industrial fixtures that are long lasting and energy efficient. It’s available in 50 watt, 70 watt, 100 watt, 120 watt, 150 watt, and 200 watt with 60°, 90°, and 120° optics. The slim high bay lighting fixtures can bring significant energy savings and can reduce your operational costs and lower your energy consumption when replacing 150-500W+ MH/HID fixtures or in any new installation.
The slimline LED warehouse high bay light fittings have excellent thermal management lamp body, with attractive structure design. Optimized air convective heat transfer makes the high bay luminaire running at a low temperature, which can maximize the lifespan and minimize the luminous decay.
Luminaire can also be combined with light/motion microwave sensor, 1-10V dimmable driver, and Zigbee wireless lighting control system for further energy saving. It can fit with a microwave motion sensor for 360° detection up to 40m range at 15m mounting height to make it a powerful intelligent microwave sensor high bay light. It is Ideal for supermarket lighting, logistics lighting, industry and manufacturing lighting, and commercial lighting.
Specifications:
Model
|
SR-HBSQ-200W
|
Power
|
200W
|
Lumen Output
|
26,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
Power Supply
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
Colour Rendering Index
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|

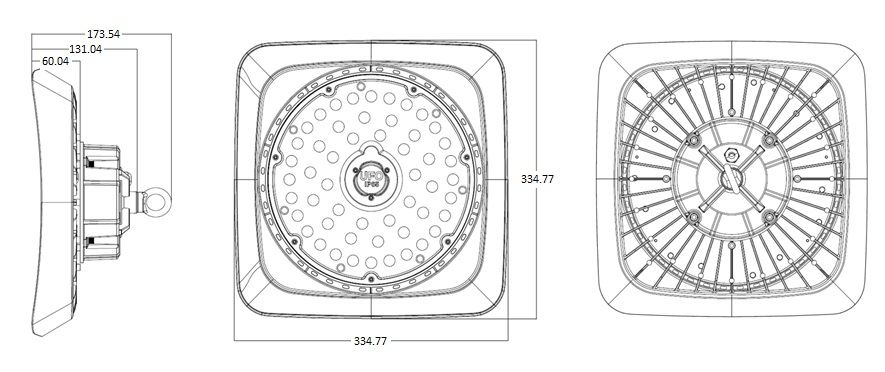

Dimension
|
335x335x174mm
|
Weight
|
2.7KG
|
Warranty
|
5 years warranty
|
Features:
-
Wattage available: 50W, 70W, 100W, 120W, 150W, and 200W, lighting performance equivalent to 150W-500W metal halide lamps or high intensity fixtures.
-

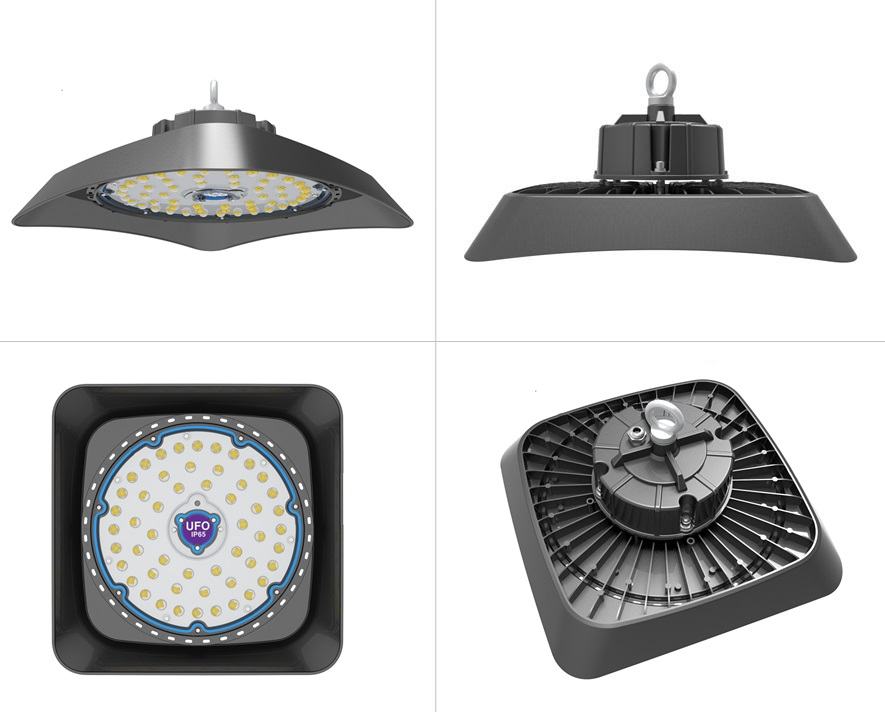

Unique and innovative square design commercial high bay/low bay luminaire with rugged die-cast aluminum lamp body, excellent thermal management in one-piece structure.
-
High brightness Lumileds/Osram LED with high transmission polycarbonate lens ensure high lumen efficacy of the highbays.
-

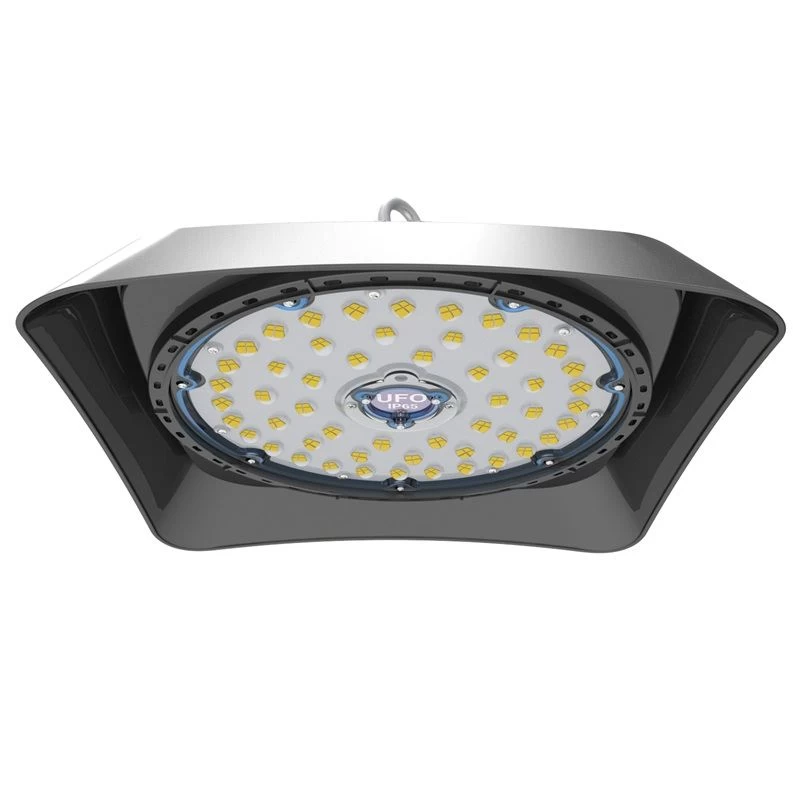

Excellent lighting distribution design: both convex lens or circular Fresnel lens available in medium and wide beams: 60°, 90°, 120°(other customized beam angles available).
-
Superb performance with a high degree of ingress protection, suitable for wet locations, IP65 rated.
-
Green high-bay/low-bay lighting for factory, warehouse, gym, snooker centers, etc. without harmful chemicals, this UFO LED lamp offers an highly efficient and economical solution to various industry interior lighting projects.
-

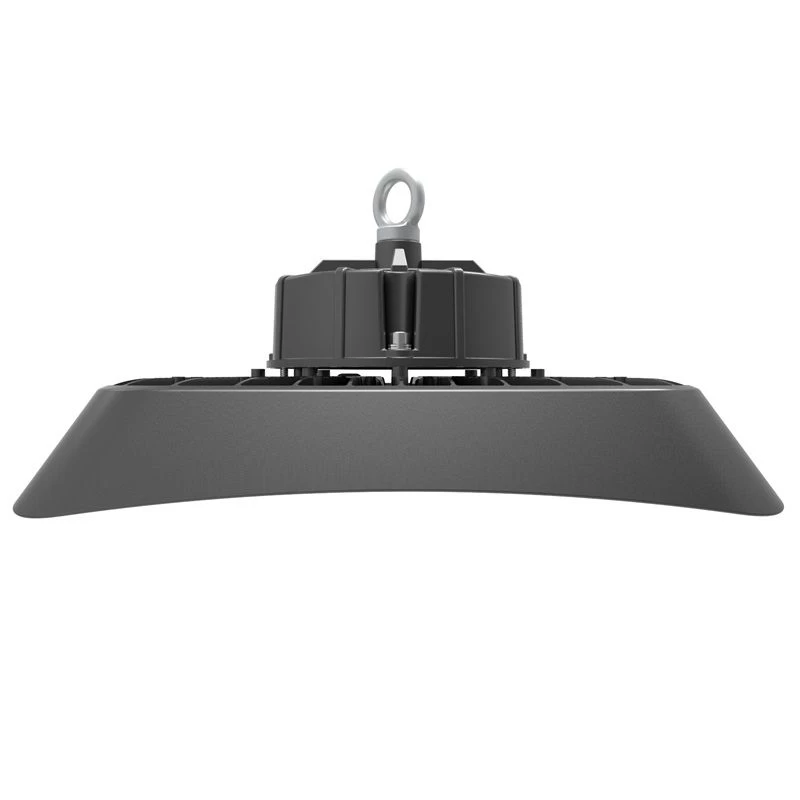

This 200W industrial factory LED lighting fixtures can easily be installed by suspended mounting, bracket mounting, or ceiling mounting with hook, chain or U-bracket, reducing a lot of installation time compared to traditional fixtures consume.
-
Options available: wireless Zigbee lighting control solution highbay light, emergency high bay light, DALI dimmable high bay light, microwave occupancy sensor high bay light.
-

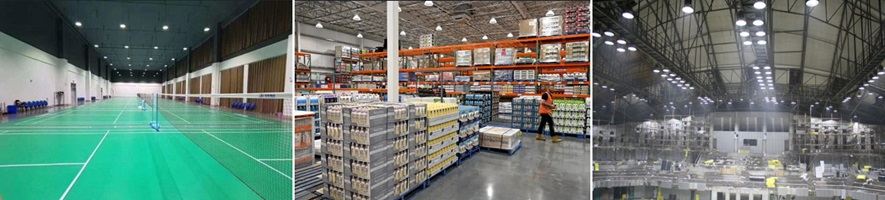

Widely applied for fitness club lighting, workshop lighting, supermarket lighting, shopping centre lighting, airport lighting, gas station lighting, toll station lighting, subway lighting, indoor stadium lighting, and other indoor and outdoor high ceiling applications.
|
|

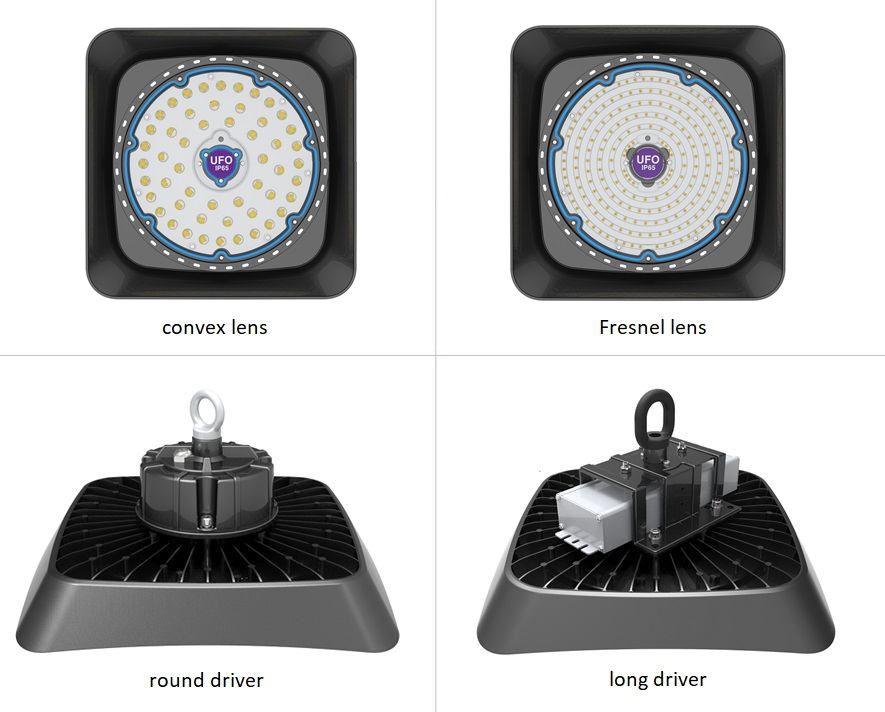

Lens options: convex lens, or circular Fresnel lens for 60°, 90°, or 120°.

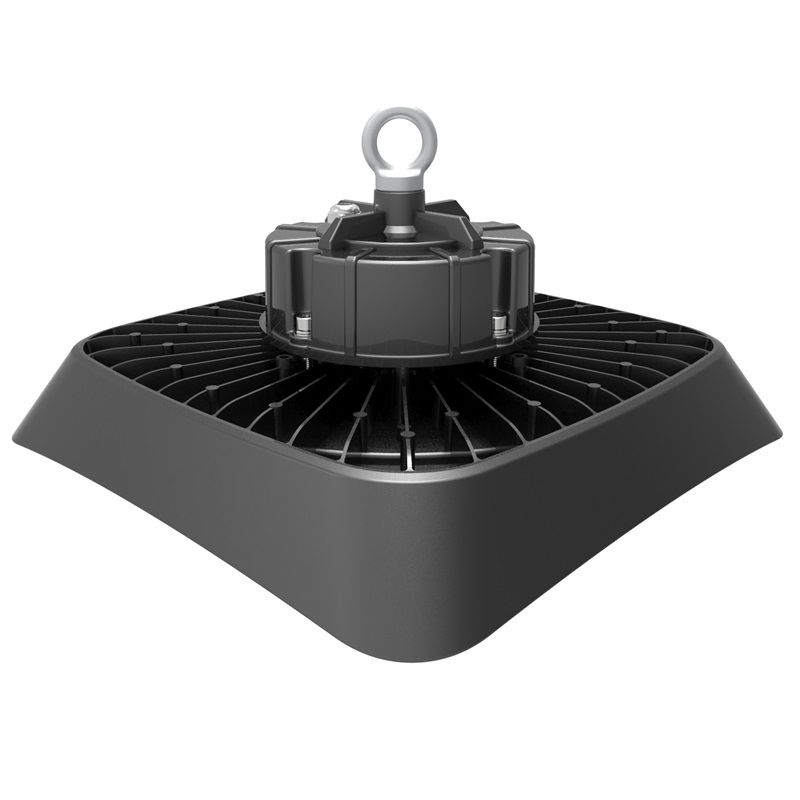

Driver installation options: hook, bracket and yoke available for both round driver and long driver.
Lighting beam angles: 60°, 90°, and 120° for different high bay or low bay lighting requirements, other bespoke beam angles are also available.
Widely applied in exhibition centres, shopping centres, airports, supermarkets, stadiums, toll stations, subways, food preparation & cold store areas, and other indoor and outdoor low/high ceiling applications.
