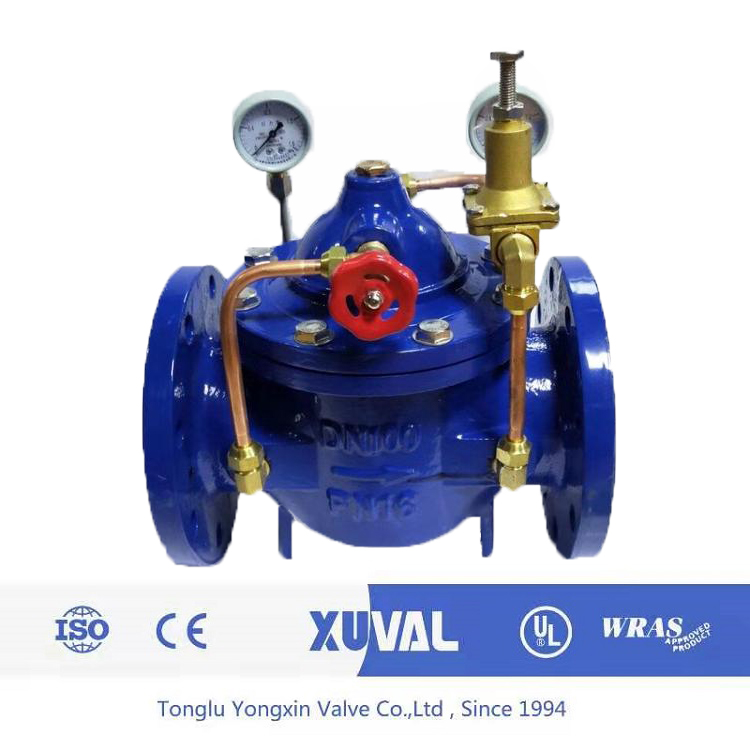

200X Pressure reducing valve
200X pressure reducing valveis a kind of valve used for parallel connection of fire water and domestic water in the water supply system, used to allocate the direction of water supply.
When a fire breaks out, it is in urgent need of a large amount of water for fire fighting. Cut off the domestic water immediately to ensure adequate water for fire fighting;When the water pressure of fire stop decreases, the valve will open automatically and the water supply will resume.The valve makes the system not need to set up a special fire separate water supply network, greatly saving the construction cost and water consumption.Valve control sensitivity is high, safe and reliable, easy debugging, long service life.
Hydraulic control valve is a hydraulic control valve, hydraulic control valve by a main valve and its attached pipe, guide valve, needle valve, ball valve and pressure gauge composition.According to the purpose of use, function and different places can be evolved into remote floating ball valve, pressure reducing valve, slow stop check valve, flow control valve, pressure relief valve, hydraulic electric control valve, water pump control valve.
A strainer shall be installed before the 200X pressure relief valve and shall facilitate drainage requirements.
Water control valve is a kind of water self - moistening valve body, no need to add oil lubrication, in case of damage to the main valve components, please disassemble according to the following instructions.(Note: The commonly consumed damage products in the internal valve are the diaphragm and...)
Produt Introduction
200X pressure reducing valve is a kind of intelligent valve that can adjust the pressure in the pipeline by the medium's own energy. 200X pressure reducing valve is widely used in civil feeding system,fire protection and other industrial feeding system.By adjusting the pressure reducing pilot valve,can adjust the outlet pressure of main valve.The outlet pressure do not changes as the inlet pressure and inlet flow rate change,so can assure the outlet pressure is same as the setting pressure and can adjust the setting pressure to reduce pressure.
Specification
|
|
Work pressure
|
1.0Mpa
|
1.6Mpa
|
2.5Mpa
|
|
Shell test
|
1.5Mpa
|
2.4Mpa
|
3.75Mpa
|
|
Seal test
|
1.1Mpa
|
1.76Mpa
|
2.75Mpa
|
|
Maximum inlet
pressure
|
1.0Mpa
|
1.6Mpa
|
2.5Mpa
|
|
Range of
Outlet pressure
|
0.09~0.8Mpa
|
0.10~1.2Mpa
|
0.15~1.6Mpa
|
|
Temperature
|
≤80℃
|
|
Medium
|
water
|
Main Demisions
|
|
Norminal diameter
|
L
|
A
|
A1
|
H
|
H1
|
F
|
|
50
|
230
|
330
|
155
|
395
|
278
|
170
|
|
65
|
250
|
350
|
165
|
405
|
298
|
180
|
|
80
|
260
|
365
|
175
|
430
|
313
|
210
|
|
100
|
320
|
410
|
195
|
510
|
350
|
275
|
|
125
|
370
|
455
|
220
|
560
|
365
|
310
|
|
150
|
410
|
475
|
230
|
585
|
420
|
355
|
|
200
|
480
|
530
|
255
|
675
|
450
|
460
|
|
250
|
580
|
623
|
300
|
730
|
470
|
500
|
|
300
|
690
|
700
|
340
|
760
|
490
|
580
|
|
400
|
860
|
880
|
430
|
910
|
570
|
715
|
|
500
|
980
|
980
|
490
|
1135
|
665
|
830
|
|
600
|
1100
|
1060
|
530
|
1270
|
725
|
920
|
|
700
|
1650
|
1130
|
560
|
1460
|
865
|
980
|
|
800
|
1850
|
1230
|
610
|
1640
|
975
|
1050
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough
subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
