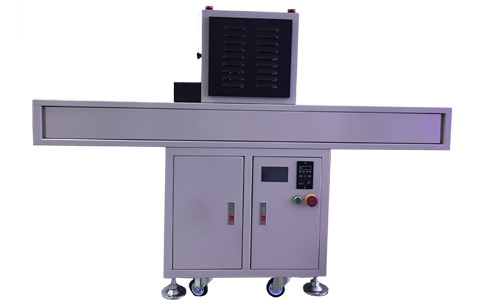

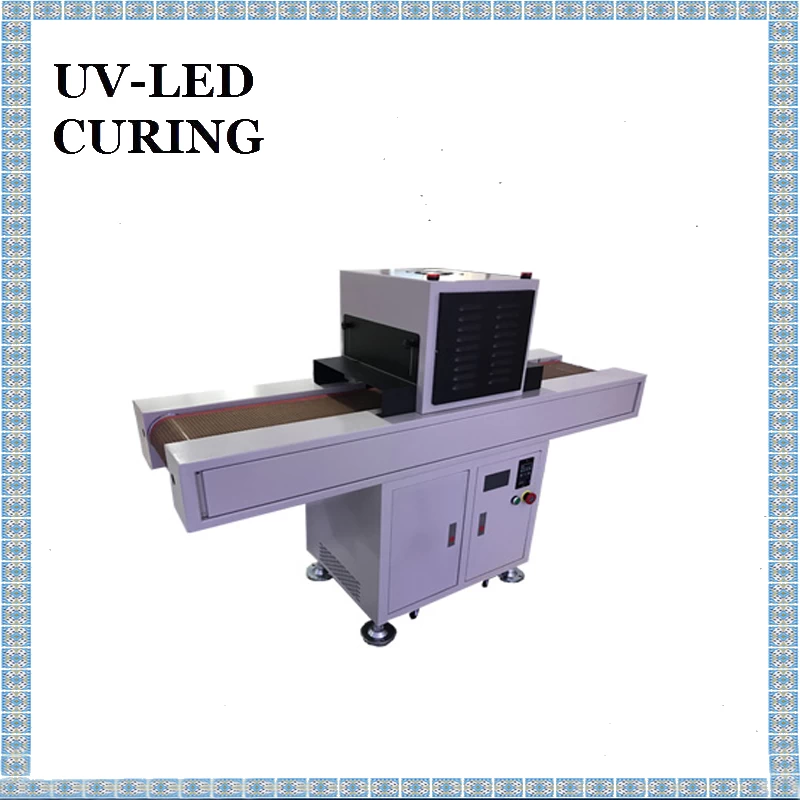

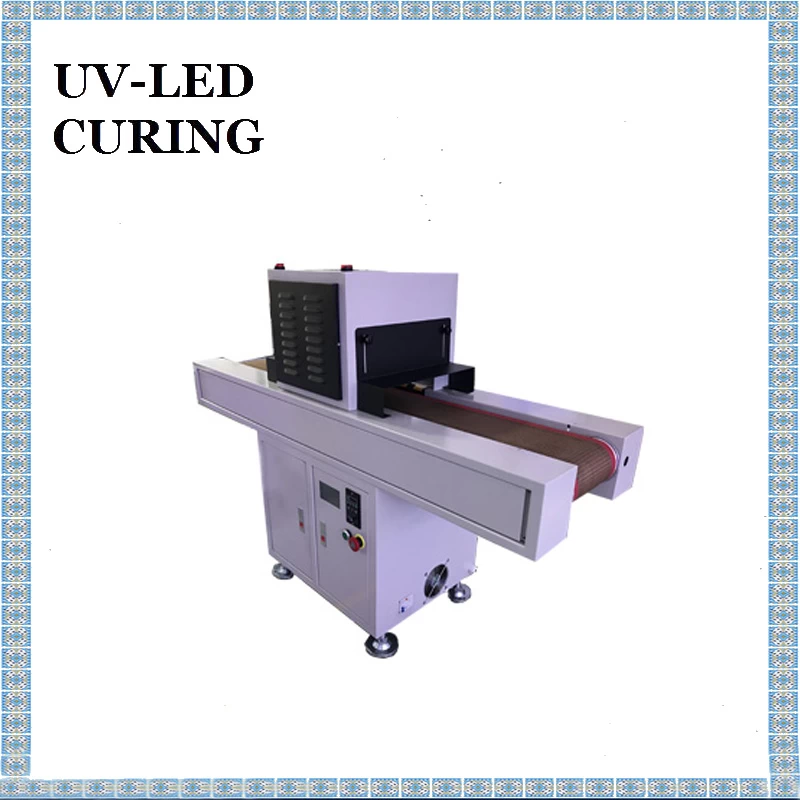

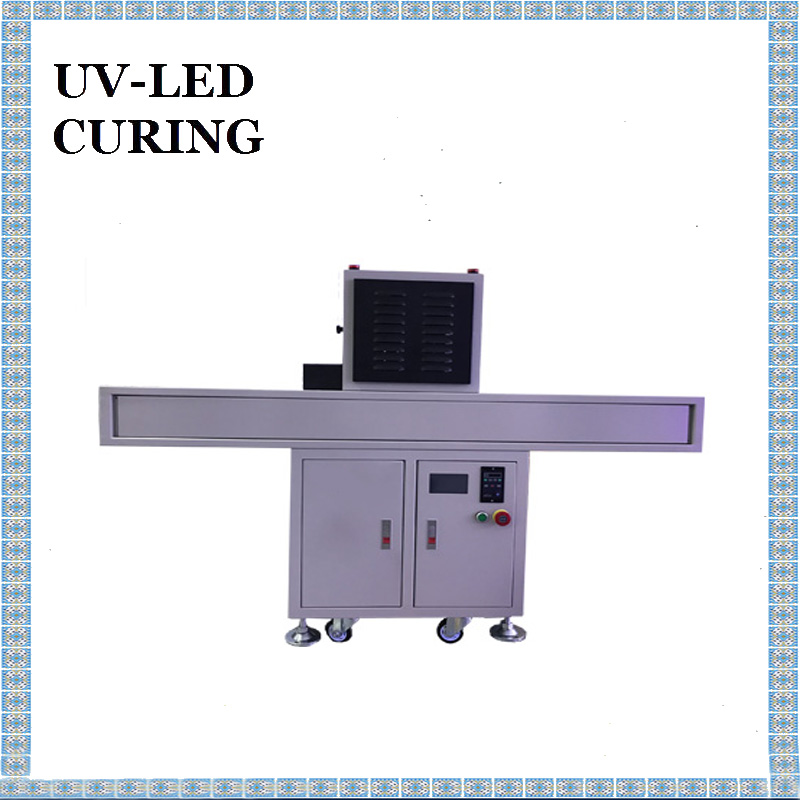

Desktop UV LED Curing Conveyor LED UV curing machine replaces traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep UV, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing various thermal sensitive materials UV glue, infrared sensor intelligent control, start and stop control as required.
Product Overview

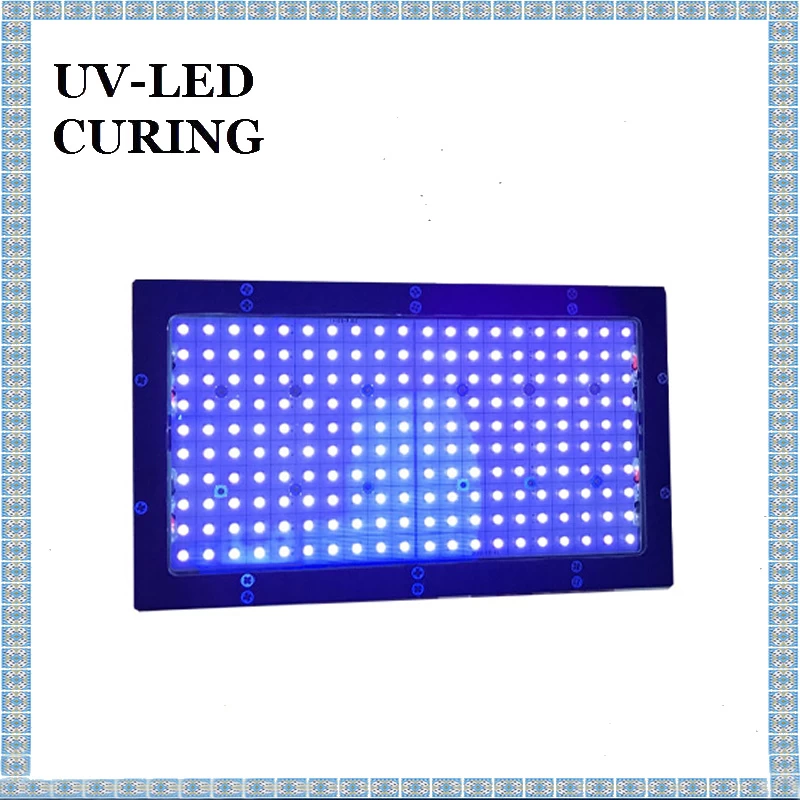

This is a high performance UVLED surface light source curing system designed for UV adhesive curing. The system mainly includes control system, UVLED head and conveyor belt. The UVLED head of the machine is integrated with imported high-intensity UV LED. The UV spectrum wavelength is 395. /405nm, effective curing area of200X50mm supports external signal input and triggering, can be used with semi-automatic or fully automatic production line, the conveyor belt material is Teflon.
Specification Sheet
wavelength: 395/405nm
Model: DSX-S440-200X50-395/405
Electric power: 1320W
Optical power density: 12000MW/CM2
Irradiation area: 200X50mm
Irradiation height: 10mm
Cooling method: Water cooling

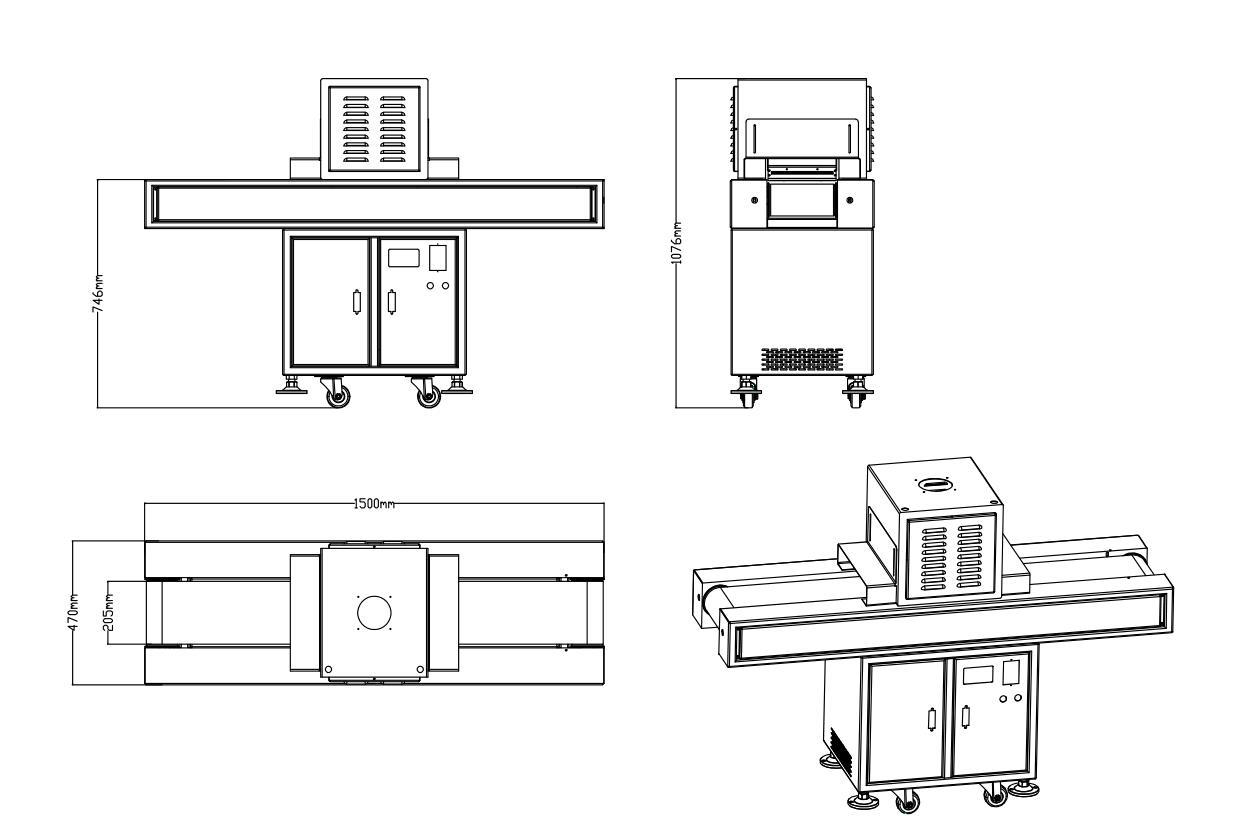

Overall size: L1500mm*W470mm*H1076mm
