2015 new model Beiben concrete mixer truck price
1.High-performance
mixing drum
Beiben transit mixer, The
combination of the large capacity mixing drum and the uniquely-designed double
logarithmic variable pitch helical blade enables the beiben mixer truck get perfect balance between the concrete mixing
quality and discharging speed, it not only meets the requirements of pumping
while discharging at idle speed but also ensures our beiben cement mixer trucks
the uniformity of concrete mixing.
2.World
famous hydraulic transmission parts:
Qualified
hydraulic transmission part is the important guarantee of the reliability of beibentruck-mounted concrete mixer, thus
our products adopts the world famous components.
Hydraulic oil pump: Rexroth, EATON, , ARK
Hydraulic motor: Rexroth, EATON, , ARK
Reducer: AF, SAUER, PMP, TOPUNION
Radiator: AKG, ASA and domestic famous brands
3.Convenient
and flexible operation system in different styles:
Connecting
rod operation mode is applied in driver’ cab and both side at the rear part of
the beiben concrete mixer truck , it
can realize three axle linkage which features convenient and simple in
operation.
The operation mode of controller with soft shaft features more safe and
reliable for north benz mixer truck.
Operation of electric control mode features energy-saving, comfortable and full
of humanness.
4.Water-supply
system:
Electric
water pump and pneumatic types are optional.
mixer drum
capacity: 6 M3 ,8 m3, 10 m3, 14 M3 .
mixer engine :
Cummins, Hino, Weichai
mixer
horse power : 260- 375 HP
Most professional beiben concrete mixer truck workshop .

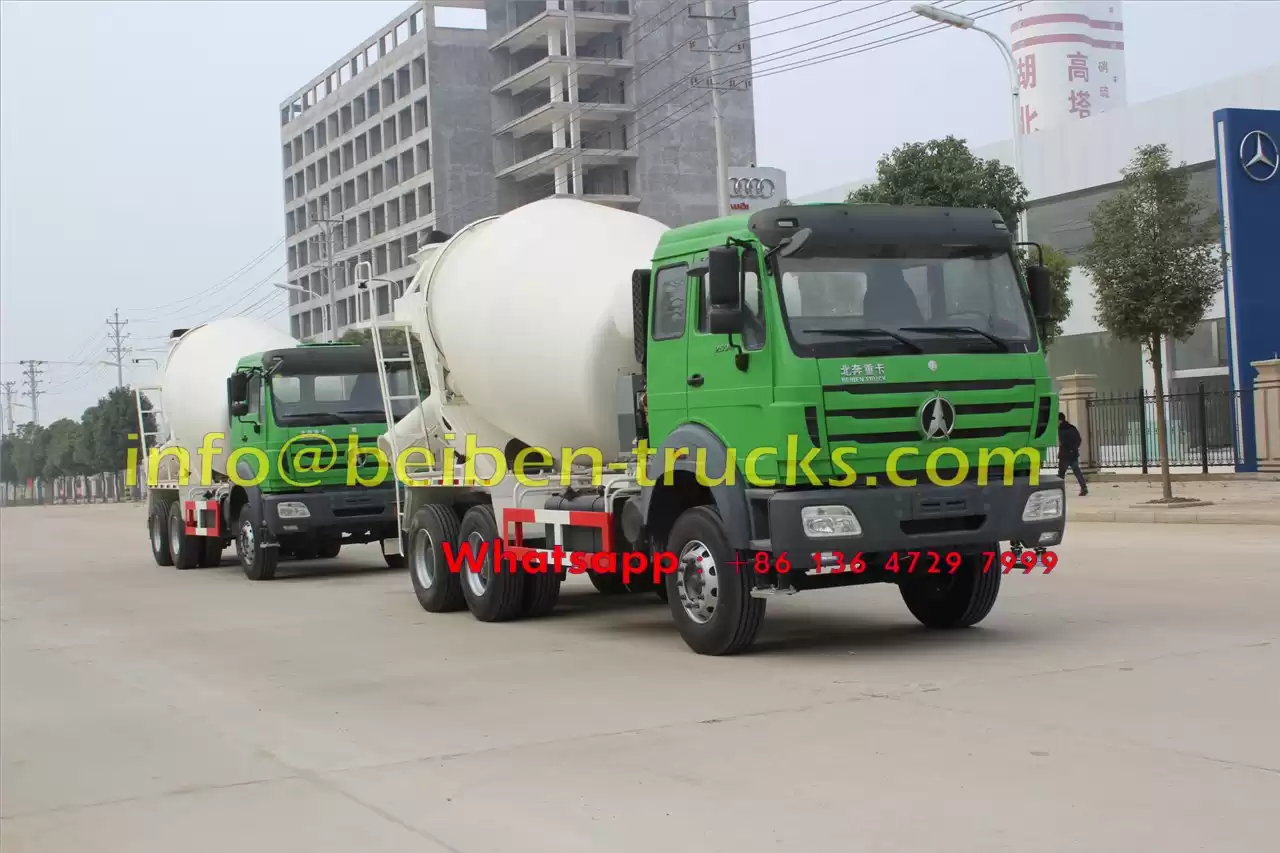

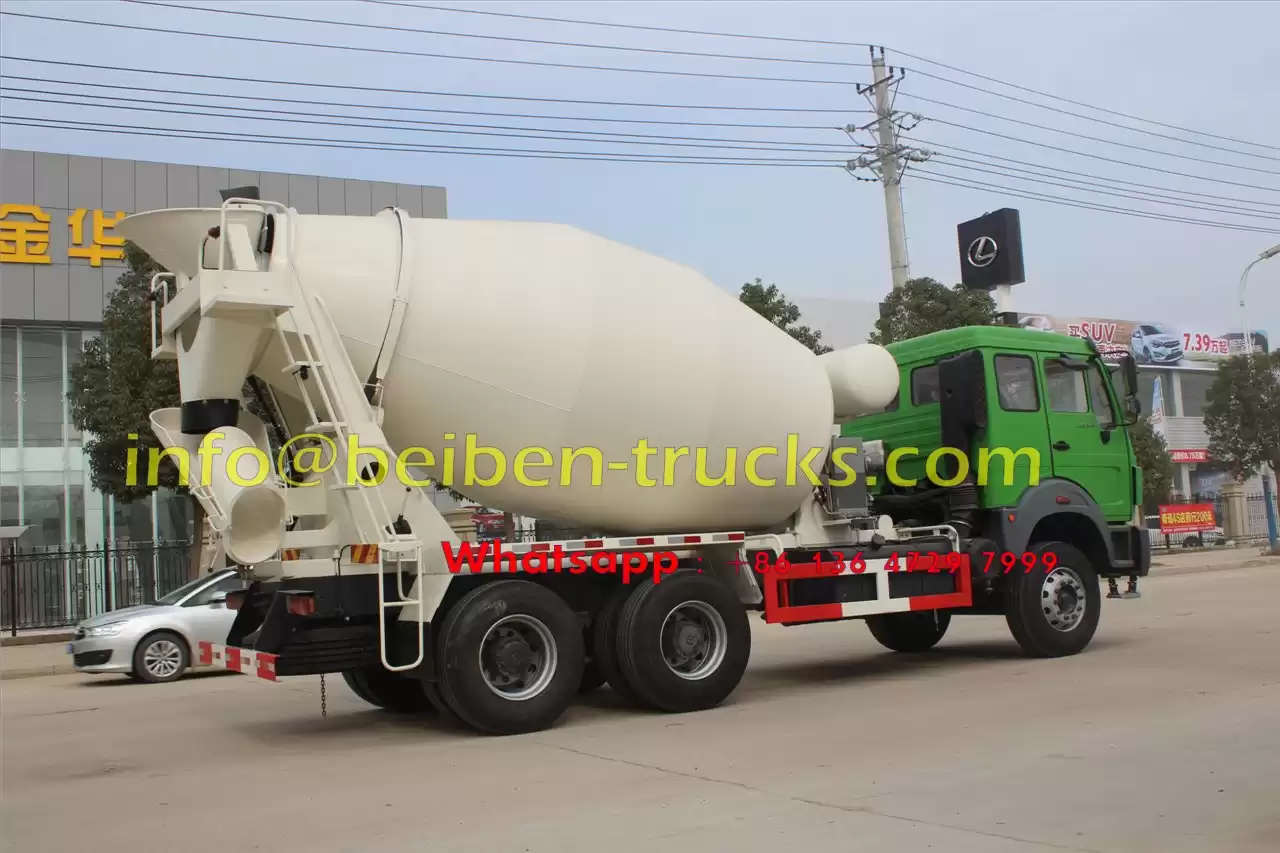

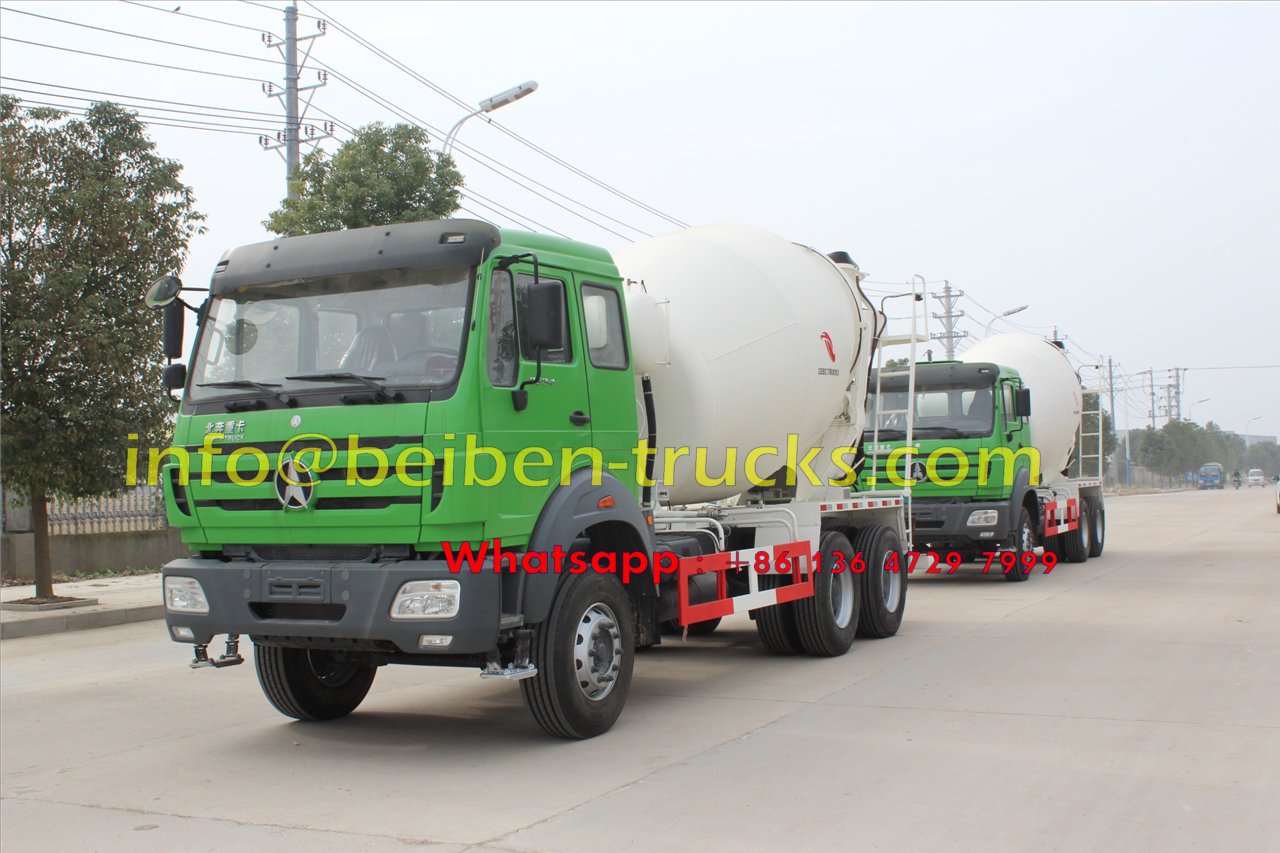

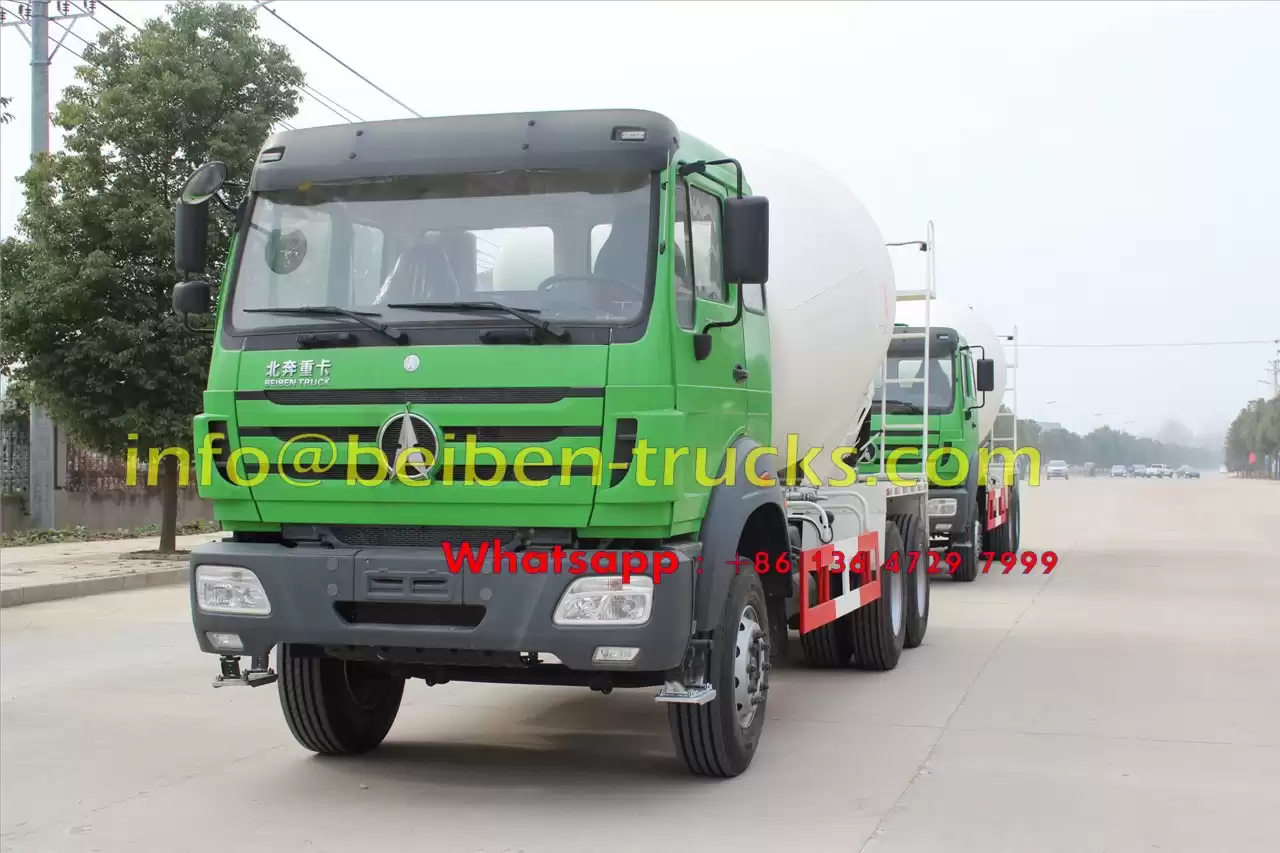

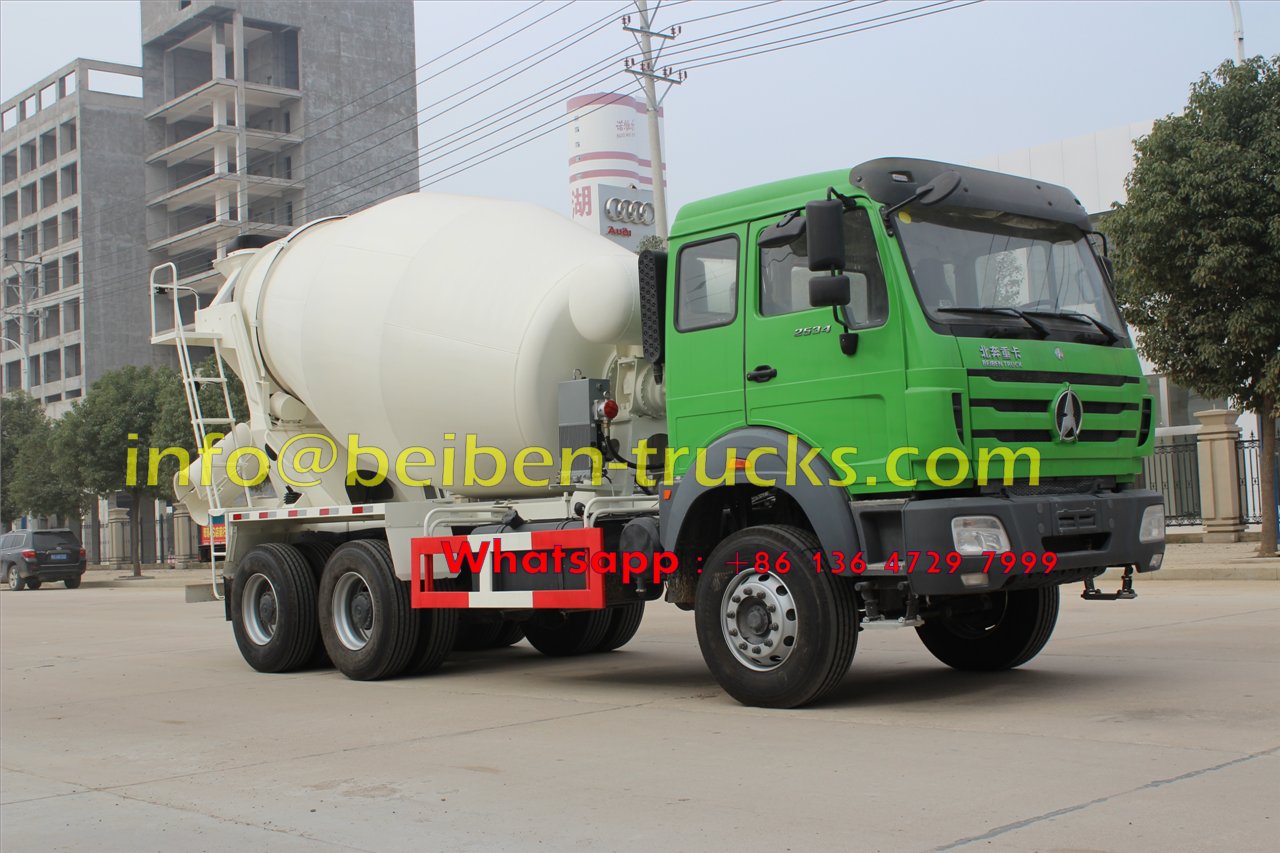

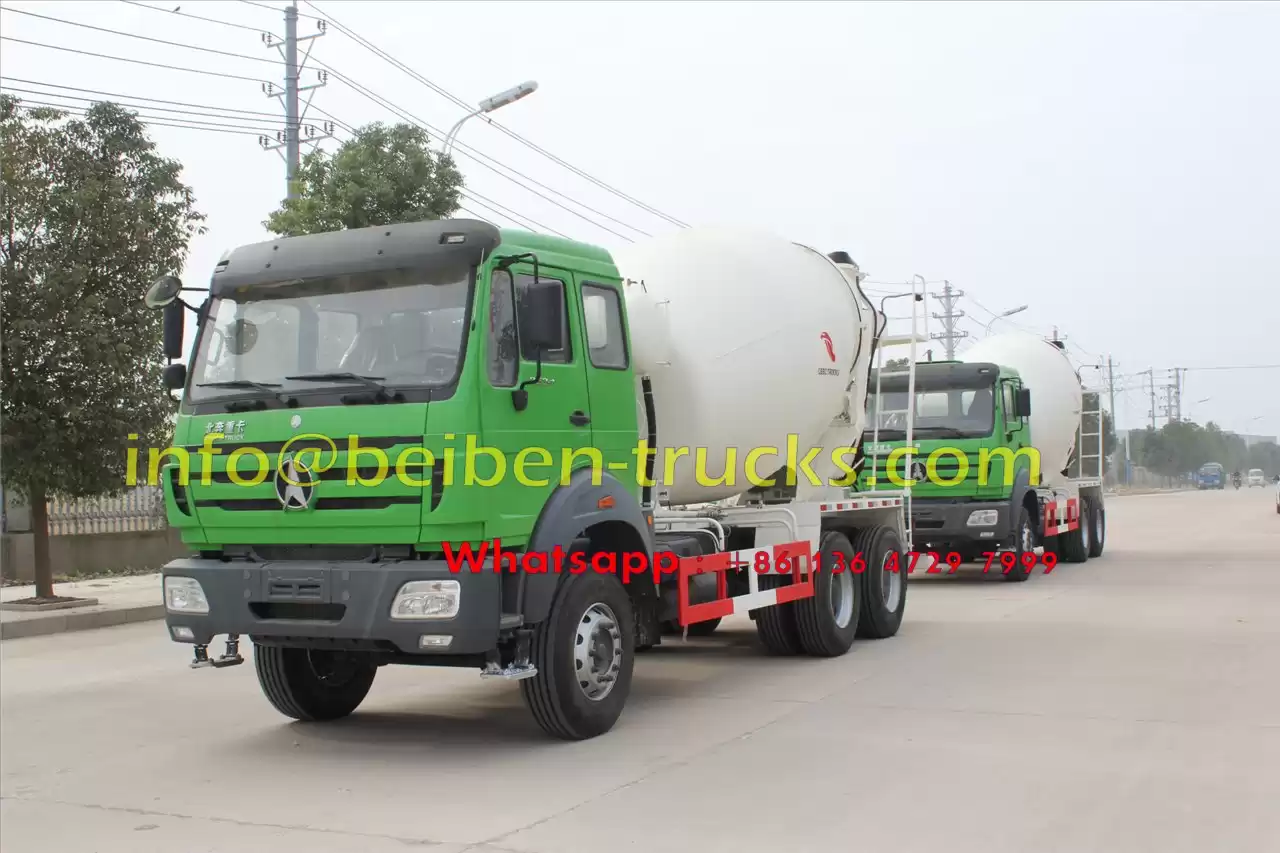

NORTH BENZ 6X4 CONCRETE MIXER Truck
|
Model
|
ND5257GJBZ |
Driving type
|
LHD (Right Hand Drive is optional)
|

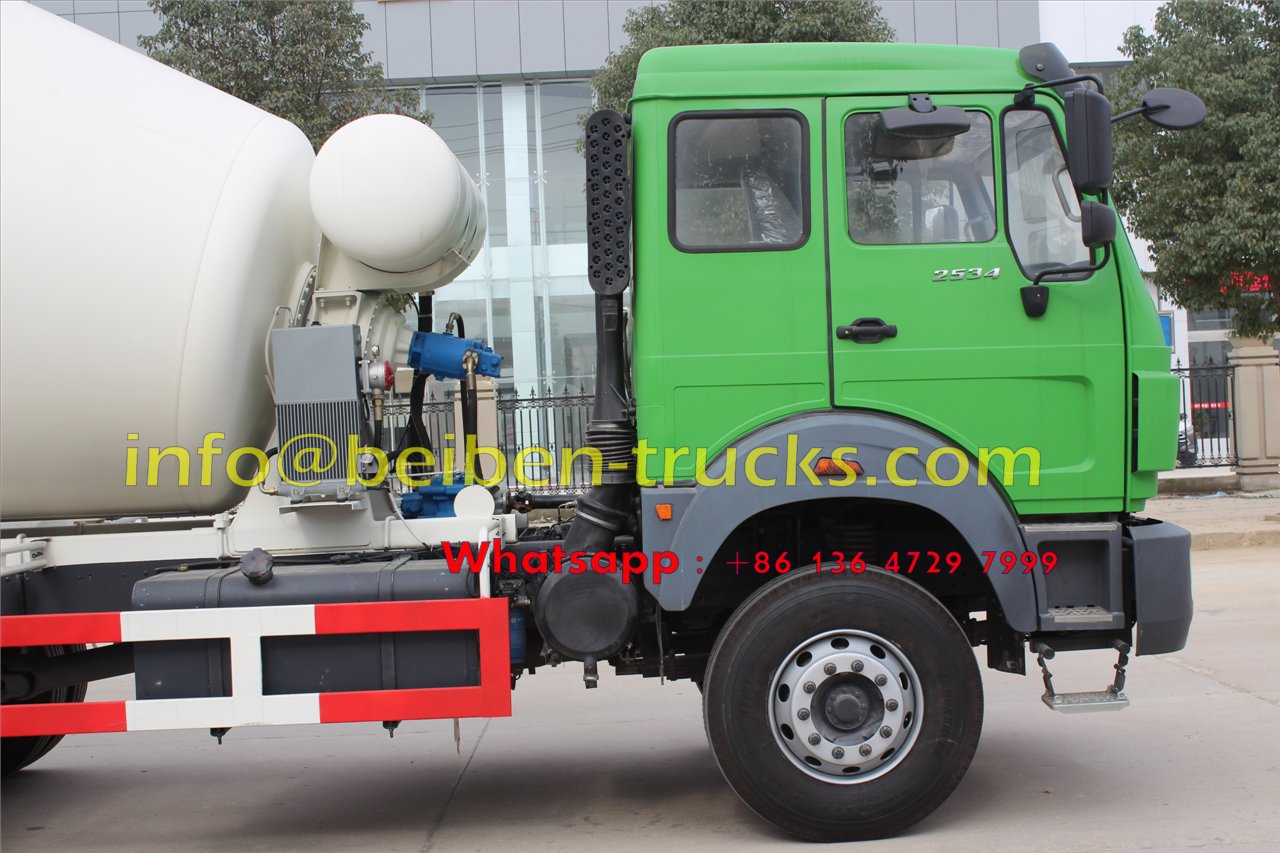

Driver's cab
|
Long cabin, single sleeper
|
Engine
|
Maker: WEICHAI
|
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling
|
Engine model: WP10.340E32
EUROIII emission standard
|
Maximum output: 340HP@2200 rpm
|
Number of cylinder:6
|
Displacement: 9.726L
|
Clutch
|
430mm, hydraulically operating with air assistance
|
Transmission
|
FULLER Brand transmission.
|
Front Axle
|
Using Mercedes Benz technology front axle 7.5 tons
|
Rear Axle
|
Using Mercedes Benz technology 13T double reduction drive axle
|
Steering
|
TAS85
|
Option: ZF8098, hydraulic steering with power assistance
|
Wheel & Types
|
Tyres: 12.00R20
|
Optional: 12R22.5,12R20
|
Radial tire and tubeless tire is optional
|
Electrics
|
Operating voltage: 24V, negative grounded
|
Dimensions in mm
|
Wheel base: 3800+1450
|
Overall size: 8715×2495×4000
|
Weight in kg
|
Kerb weight 8700
|
Permissible trailing capacity 25000
|
Performance
|
Maximum driving speed(km/h) 85
|
Body mm
|

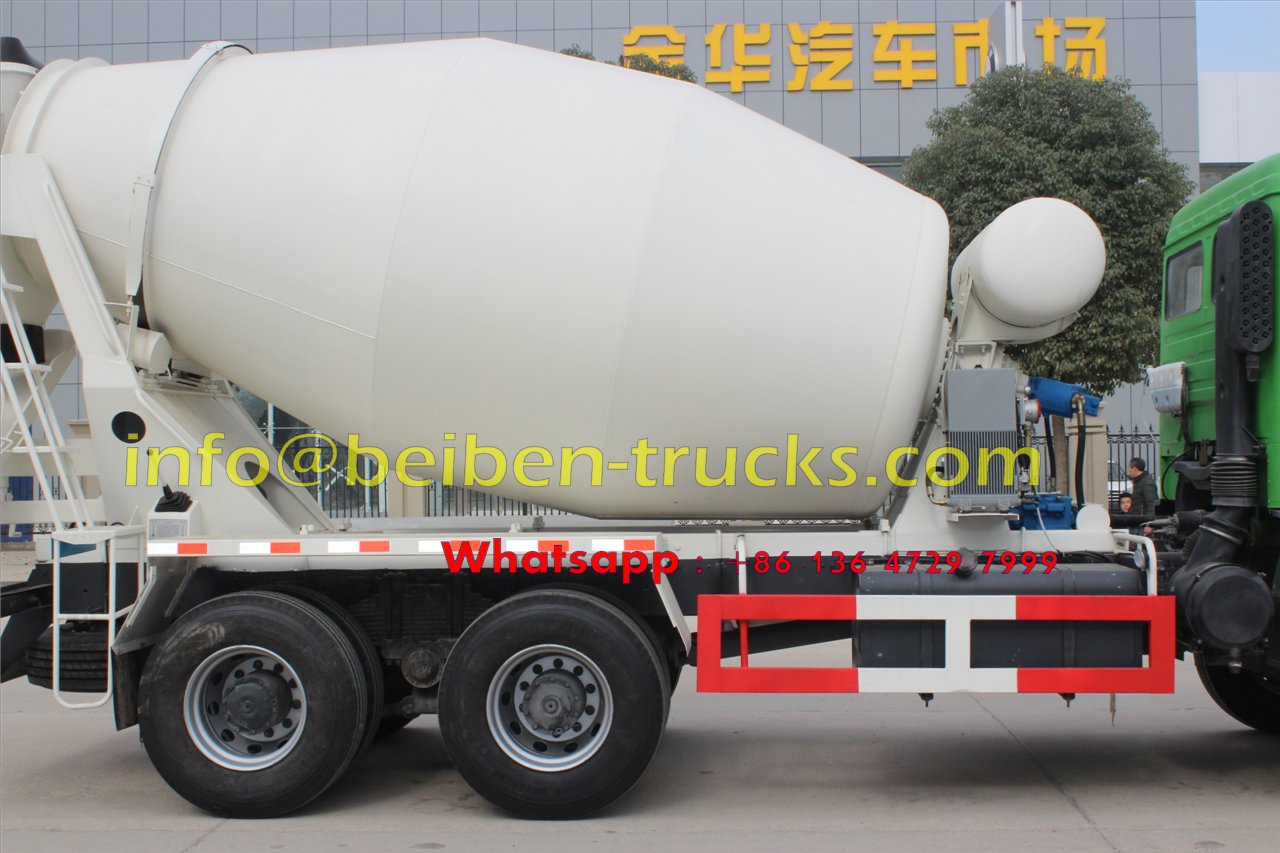

9CBM Mixer body
|
The manufacture reserves the right of technical alteration/change for better improvement prior notice
|
