5.0inch TFT LCD display:
|
Specification
|
|
Item
|
Spec.
|
|
LCD size
|
5.0 inch TFT LCD
|
|
Resolution
|
800 x (RGB) × 480
|
|
LCM (W × H × D )
|
120.7(W) x 75.8(H) x 4.1(D)
|
|
Active Area (W × H)
|
108 (W) x 64.8 (H)
|
|
Viewing Direction
|
12 o’clock
|
|
Color Depth
|
16.7M
|
|
Backlight Type
|
14 LEDs
|
|
Surface Luminance
|
500
|
|
Surface Treatment
|
Anti-Glare
|
|
Interface
|
RGB24-bit
|
|
Driver IC
|
Source: ILI6122 + Gate: ILI5960
|
|
Operating temperature
|
-20 C°~70 C°.
|
|
Storage temperature
|
-30 C°~80 C°.
|
|
Storage Humidity:
|
10RH ~ 40RH
|

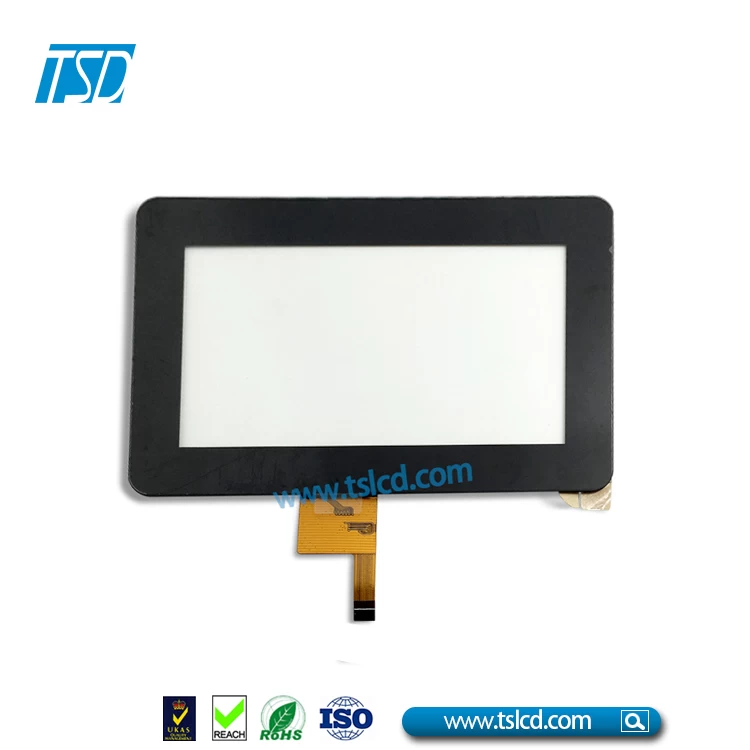

5.0” 800*480 -CTP
|
Outline Dimension(OD)
|
140.7*93.83mm
|
|
Product Thickness
|
1.6mm(max)
|
|
Glass Thickness
|
0.7mm
|
|
Ink View Area
|
109.04*65.55mm
|
|
Sensor Active Area
|
109.04*65.55mm
|
|
Input Method
|
5Fingers
|
|
Activation Force
|
Touch
|
|
Surface Hardness
|
6H( 750gf)
|
|
Interface
|
I2C
|
|
Driver IC
|
FT5336
|
|
CTP PINs
|
10pins
|
1. Touch point： Multi-touch， can up to 10 touch points
2. Bonding: OCA bonding,3M double side bonding, commonly it is optical bonding between the sensor and cover lens.
3. Surface Treatment: AR/AF/AG coating available
