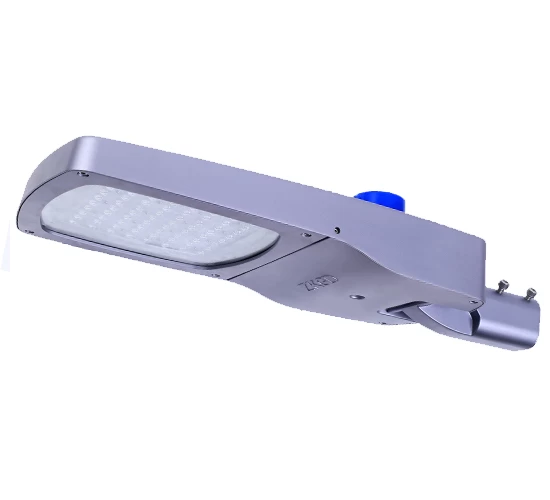

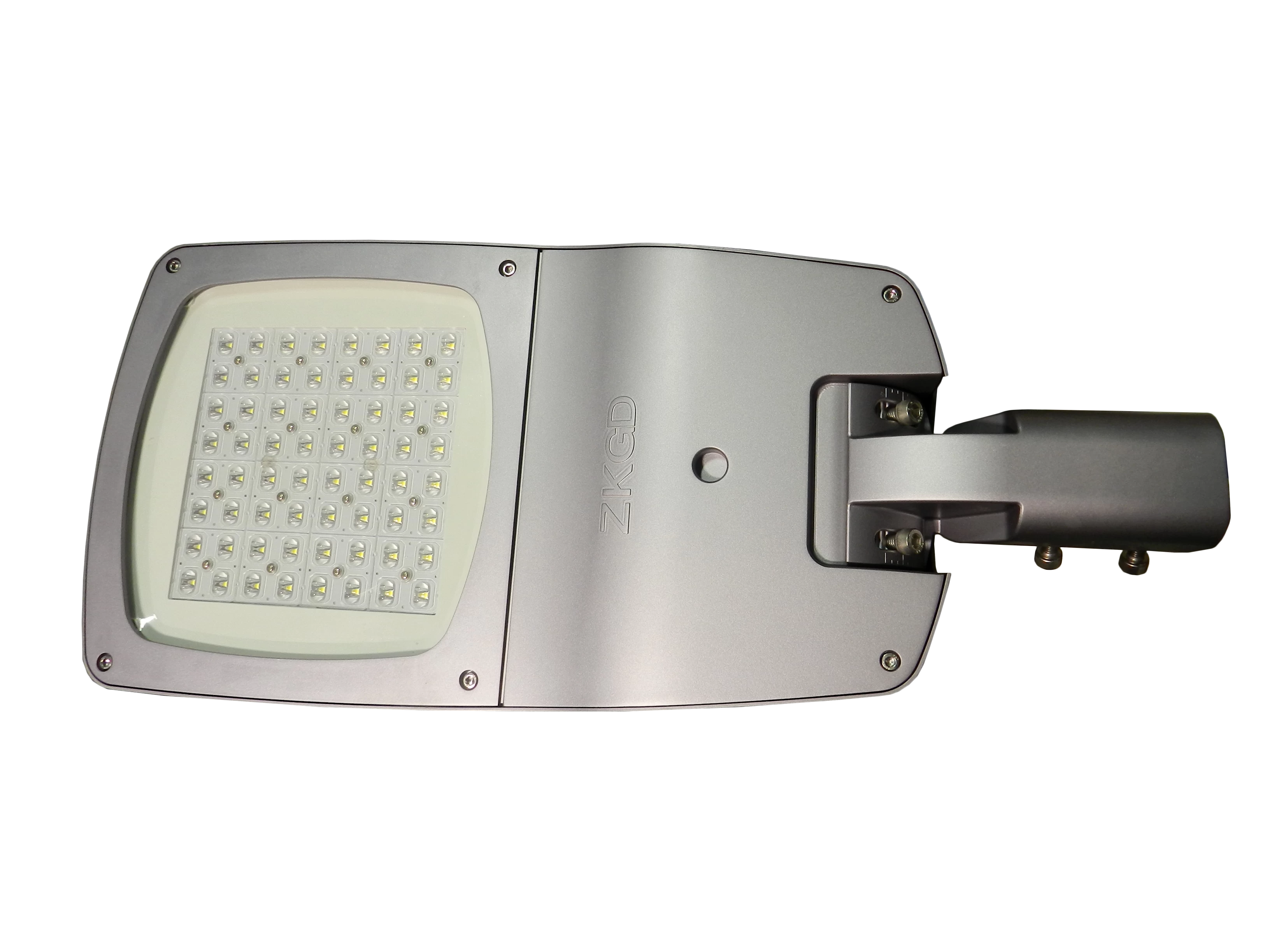

2018 Product Smart Photocell Control 125Lm/w IP65 Led Street Light
Sales Point:
• Welding reflow technology to make sure really low heat resistance and low lighting depreciation;
• Material: ADC12
• Luminaire tilt adjustment side entry: +/-15°
• Luminaire tilt adjustment post top: +/-15°
• CCT: 3000K, 4000K, 5000k, 6000k
• Warranty: 5 years
Optional accessories:

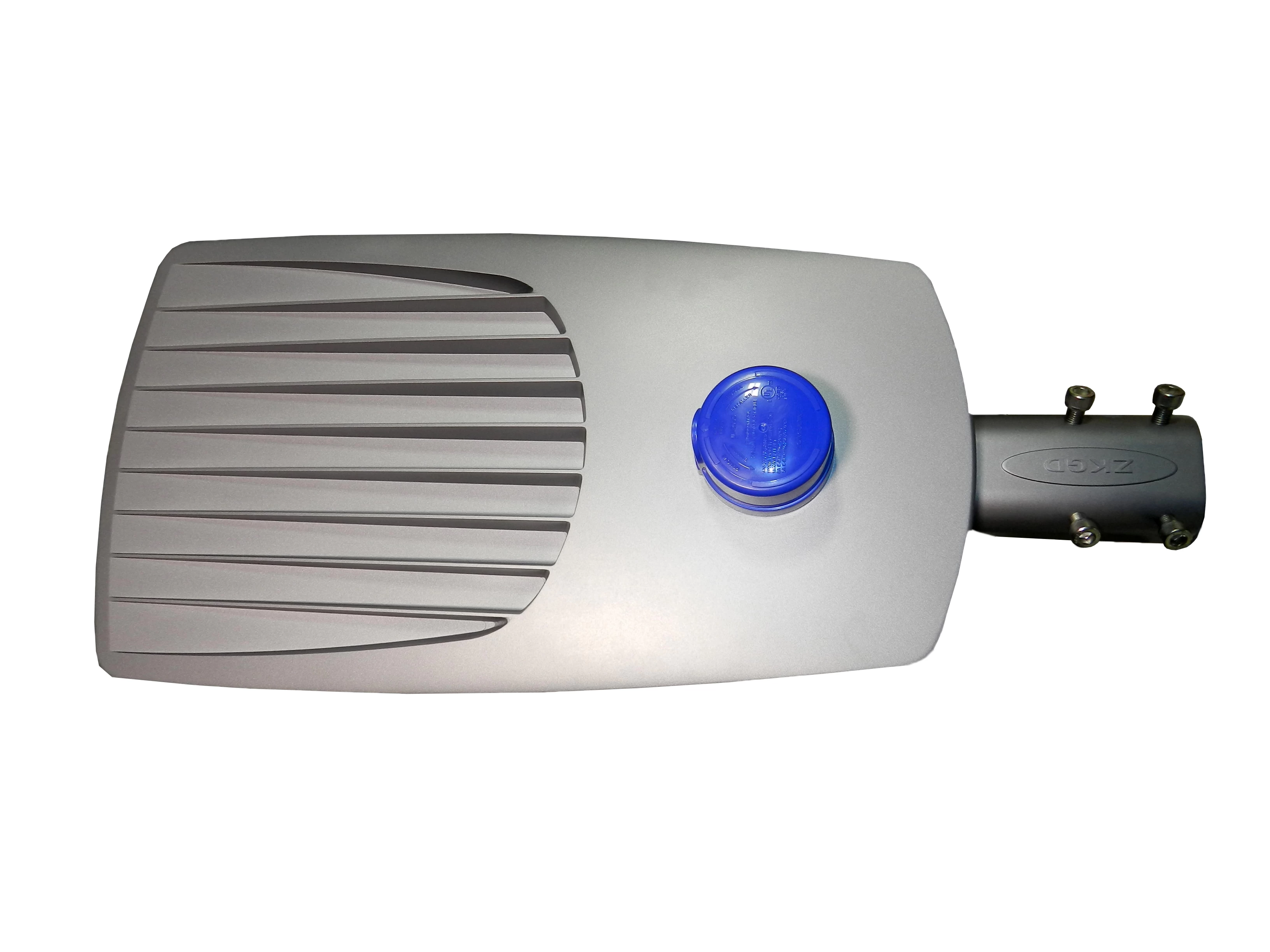

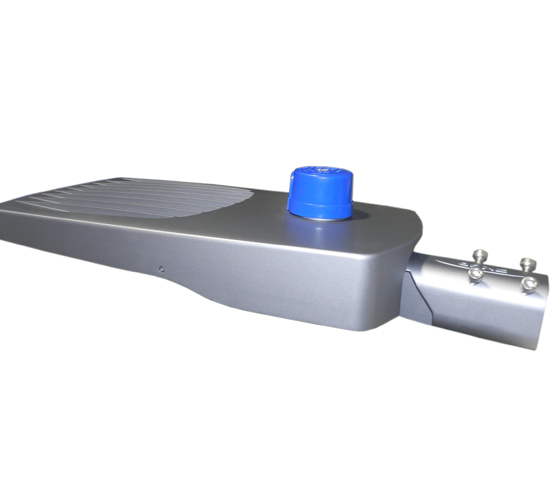

1. PhotoCell: Smart Controller for different height.
2. SPD: It can afford Higher voltage.
3. Dimming function
Datasheet:
|
Model
|
Leds
|
Led Qty
|
Optical
|
Lumens
|
Base
|
Product Size
|
Driver info.
|
|
GD-ZK-30W
|
CREE 3535
|
16
Leds
|
TYPE
I TYPE II TYPE III
TYPE IV TYPE VS
|
3600LM
|
D60mm
|
46*25*7cm
|
MEANWELL
HLG-40H-48
Inventronics
|
|
PHILIPS 5050
|
16
Leds
|
3900LM
|
D60mm
|
|
GD-ZK-40W
|
CREE
3535
|
24Leds
|
4800LM
|
D60mm
|
MEANWELL
HLG-40H-48
Inventronics
|
|
PHILIPS 5050
|
24Leds
|
5200LM
|
D60mm
|
|
GD-ZK-50W
|
CREE 3535
|
24Leds
|
6000LM
|
D60mm
|
MEANWELL
HLG-60H-48
Inventronics
|
|
PHILIPS 5050
|
24Leds
|
6500LM
|
D60mm
|
|
GD-ZK-60W
|
CREE 3535
|
32
Leds
|
TYPE
I TYPE II TYPE III
TYPE IV TYPE VS
|
7776LM
|
D60mm
|
48*29*7cm
|
MEANWELL
HLG-60H-48
ELG-75-48
|
|
PHILIPS 5050
|
32
Leds
|
8204LM
|
D60mm
|
|
GD-ZK-80W
|
CREE
3535
|
32
Leds
|
9828LM
|
D60mm
|
MEANWELL
HLG-80H-48
ELG-100-48
|
|
PHILIPS 5050
|
32
Leds
|
10369LM
|
D60mm
|
|
GD-ZK-100W
|
CREE 3535
|
32
Leds
|
11802LM
|
D60mm
|
MEANWELL
HLG-100H-48
ELG-100-48
|
|
PHILIPS 5050
|
32
Leds
|
12451LM
|
D60mm
|
|
GD-ZK-120W
|
CREE 3535
|
64
Leds
|
TYPE
I TYPE II TYPE III
TYPE IV TYPE VS
|
15870LM
|
D60mm
|
60*33*8cm
|
MEANWELL
HLG-120H-48
ELG-150-48
|
|
PHILIPS 5050
|
64
Leds
|
16742LM
|
D60mm
|
|
GD-ZK-150W
|
CREE 3535
|
64
Leds
|
19060LM
|
D60mm
|
MEANWELL
HLG-150H-48
ELG-150-48
|
|
PHILIPS 5050
|
64
Leds
|
20108LM
|
D60mm
|
|
GD-ZK-180W
|
CREE 3535
|
64
Leds
|
21812LM
|
D60mm
|
MEANWELL
HLG-185H-48
ELG-200-48
|
|
PHILIPS 5050
|
64
Leds
|
23011LM
|
D60mm
|
|
GD-ZK-240W
|
CREE 3535
|
112pcs
|
TYPE
I TYPE II TYPE III
TYPE IV TYPE VS
|
31471LM
|
D60mm
|
80*35*10cm
|
MEANWELL
HLG-240H-48
ELG-240-48
|
|
PHILIPS 5050
|
112pcs
|
33202LM
|
D60mm
|
|
GD-ZK-280W
|
CREE 3535
|
112pcs
|
35058LM
|
D60mm
|
MEANWELL
HLG-320H-48
|
|
PHILIPS 5050
|
112pcs
|
36986LM
|
D60mm
|
|
GD-ZK-320W
|
CREE 3535
|
112pcs
|
38984LM
|
D60mm
|
MEANWELL
HLG-320H-48
|
|
PHILIPS 5050
|
112pcs
|
41128LM
|
D60mm
|
Led Lighting Source: Cree-Xlamp XT-E
Features:
-
Max. Efficacy at binning conditions 178lm/w
-
Max. Light Output 629lm
-
Max. Power: 5W
-
Max. Driving Cuurent up to 1500mA
-
Typical Forward Voltage 2.85V@350mA
-
Binning and characterization in Tj=85
-
Size: 3.45*3.45mm

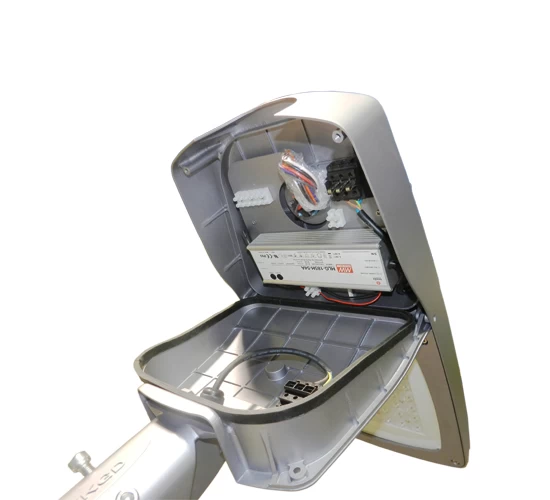

Driver Feature: Meanwell HLG series
-
Constant Voltage + Constant Current mode output
-
Matal housing with Class I design
-
Built-in active PFC function
-
Class 2 power unit
-
IP67 Rating for outdoor installation
-
Function options; output adjustable via potetiometer; 3 in 1 dimming, Timer dimming
-
Typical lifetime >62000 hours
-
7 years warranty
