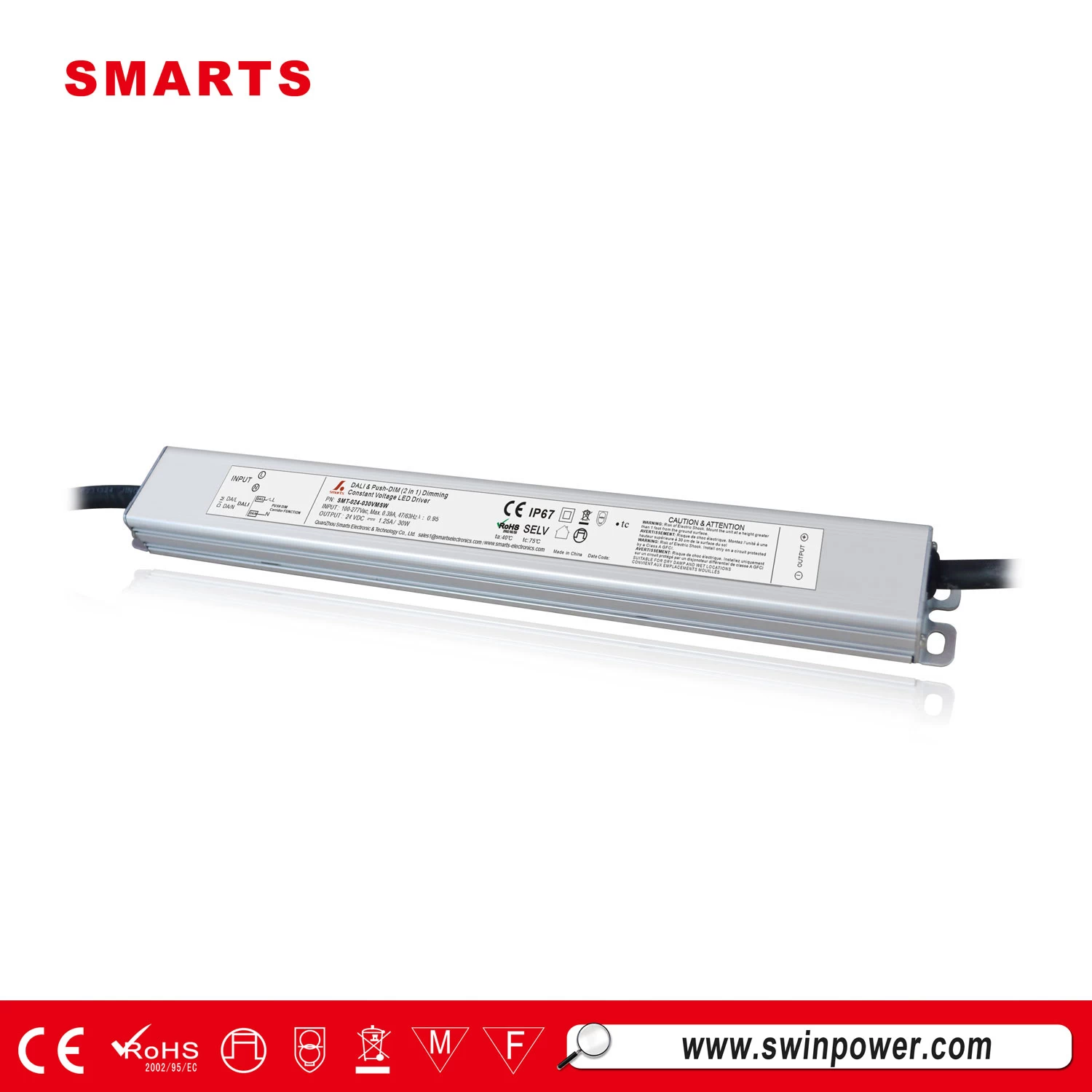

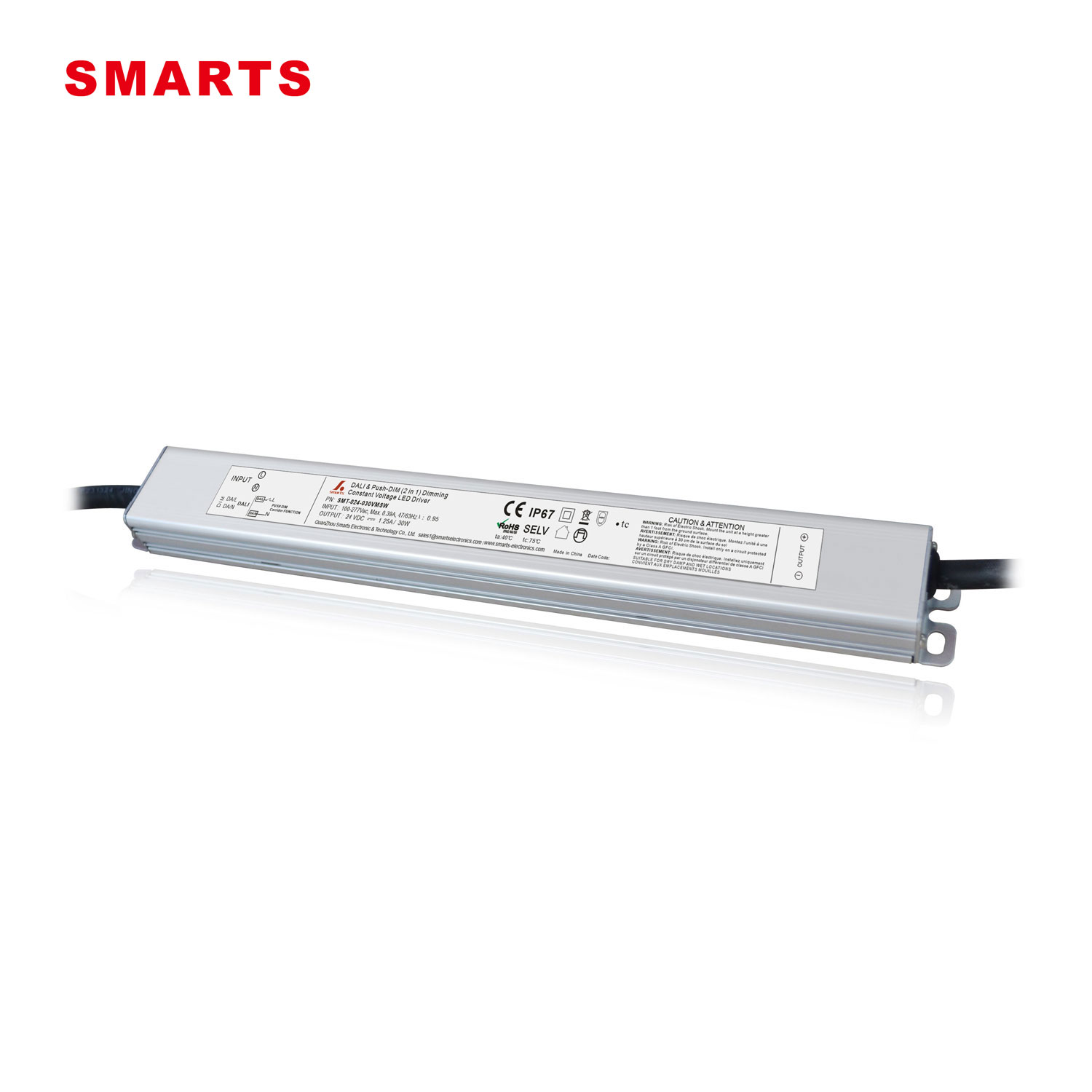

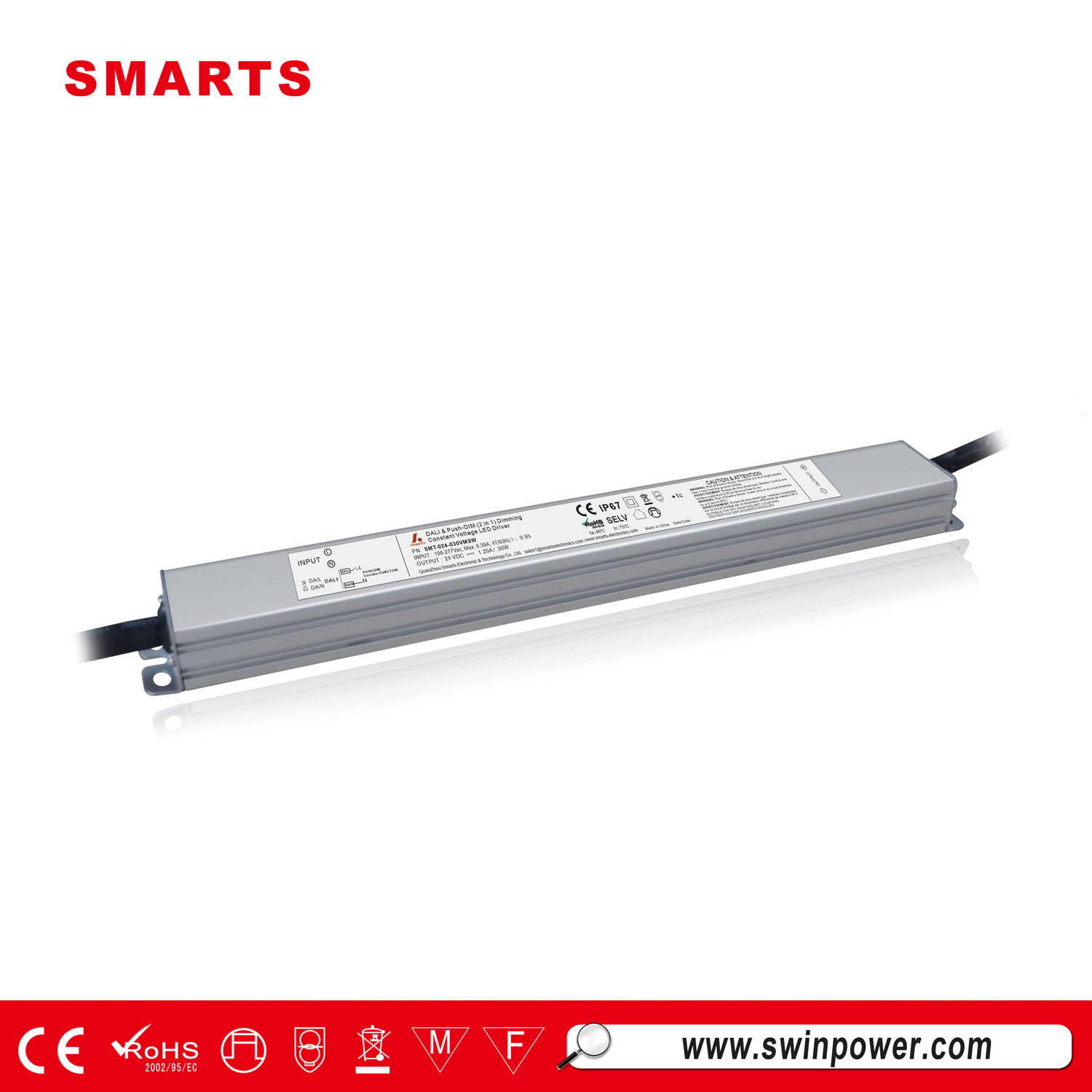

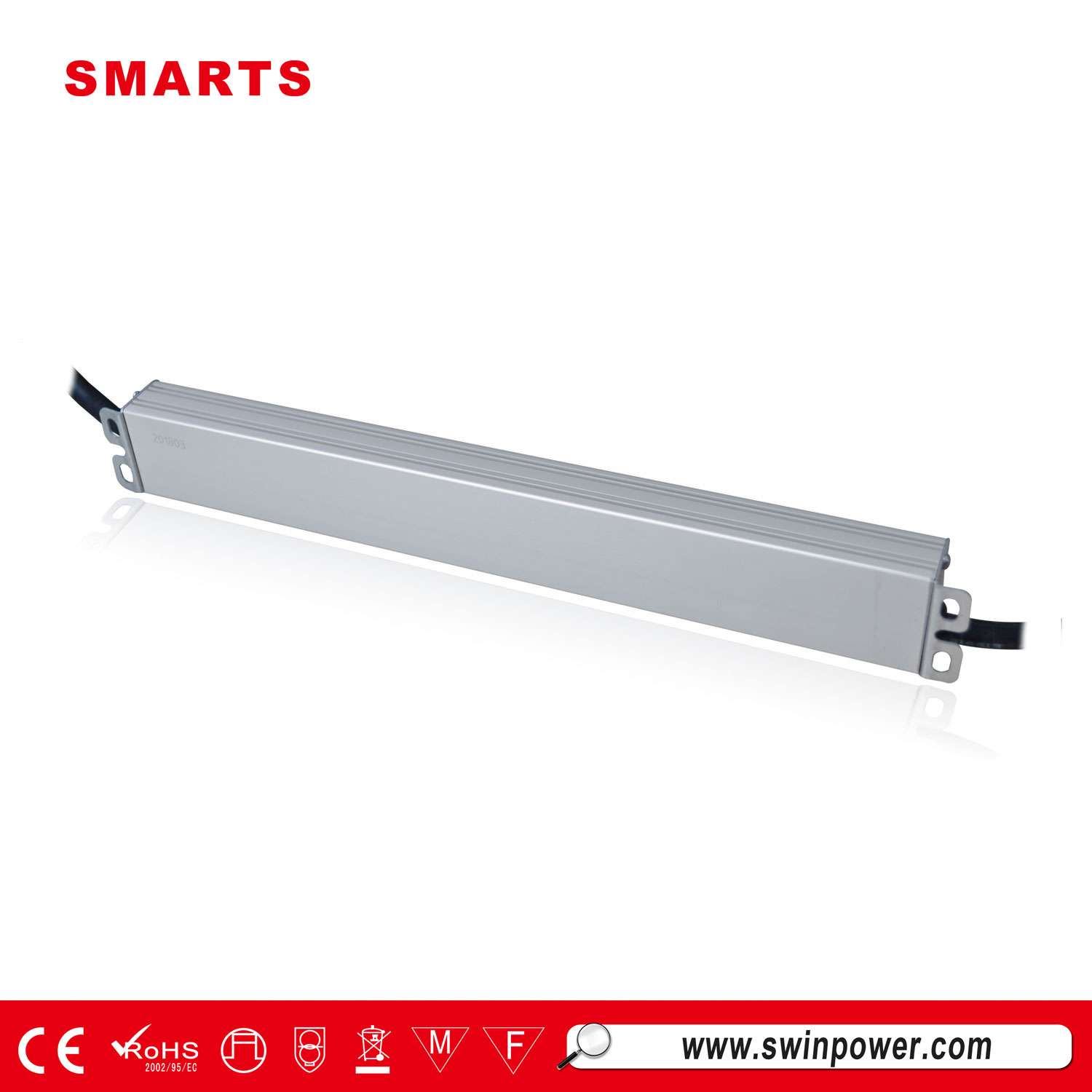

2019 Hot sale Aluminum case IP67 waterproof slim size power supply 24v 1.25A 30w led driver
DALI dimmable slim led driver 24v 30w built-in PFC function / Efficiency > 84% / PF> 0.99,the Dimming range: 0~100%.the Input voltage range 100-277VAC
Specification:
|
model
|
SMT-012-030VMSW
|
SMT-024-030VMSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
|
Rated power
|
30W
|
30W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>84%
|
>85%
|
|
|
AC Current（Typ.）
|
0.5A
|
|
|
Inrush Current（Typ.）
|
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
|
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
|
Size
|
260*32*20mm (L*W*H)
|
|
|
packing
|
290*270*160mm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Analysis problem:
Question:
Can you please advise if your power supplies are meet CEC VI (requirement since 1st July in Canada). All power supply's no load consumption should be below 0.1W.?
Answer:
As far as we know, there seldom have dimmable led power supply could meet CEC VI. The dimmable led power supply in the condition of no load consumption almost impossible below 0.1W.
The dimmable led power supply have more electric circuits than non-dimmable led power supply, especially we should install the dimmer to achieve the dimming.
Hence the dimmable led power supply will have higher power consumption than no-dimmable led power supply ..
That is to say, the dimmable led power supply is hard to meet CEC VI' requirement(power supply's no load consumption should be below 0.1W). Hope you could understand..
Features：
·Output constant voltage
·Input voltage range 100-277VAC
·CE ROHS approval
·Built-in PFC function / Efficiency > 84% / PF> 0.99
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry,wet or damp environment installations
·Cooling by free air convection
·DALI dimmable control
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
