2019 New Aero Road Racing Disc Brake Frame R0X-D

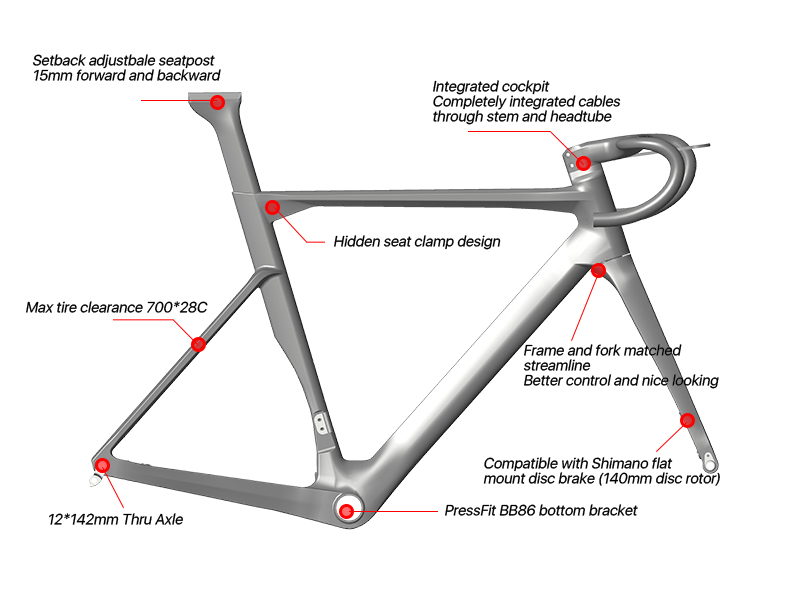

- New aero road disc brake frame
- Flat mount disc brake mount
- 140mm disc rotor

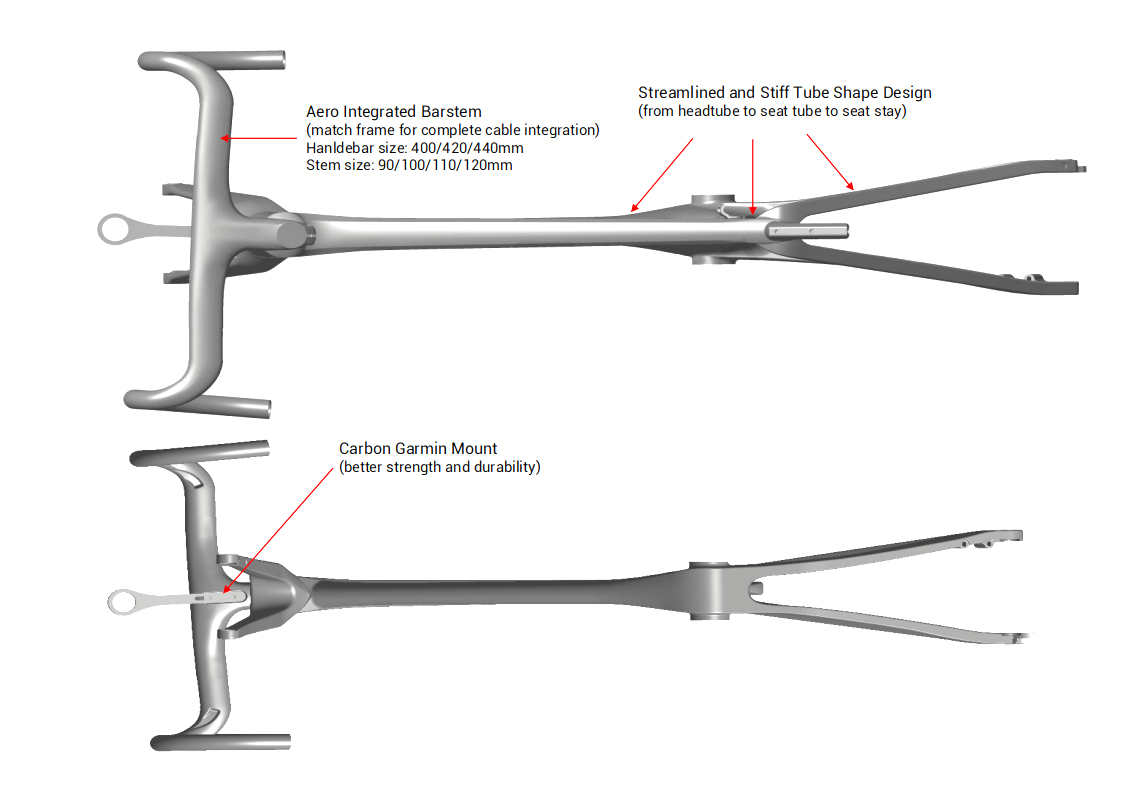

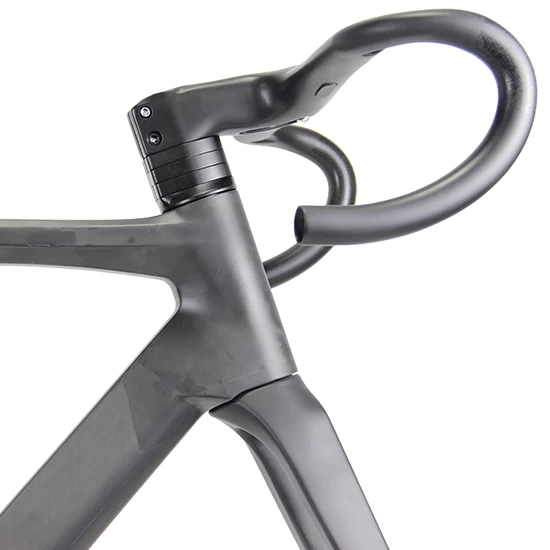

- Integrated handlebar

- Full internal cable routing
- Mechanical and Di2 groupset compatible
- High modulus carbon fiber

Facebook Twitter Pinterest LinkedIn 分享





Frame

2019 New Aero Road Racing Disc Brake Frame LCR0X

Material

High modulus Toray T700  carbon fiber

Size

49, 52, 54, 56, 59

Fork

Specify aero carbon fork

Handlebar width 400/420/440mm
Stem 90/100/110/120mm

Headtube

Straight 1 1/2" head tube

Weight

1160g/54cm

Seatpost  length

specify setback adjustable seatpost

Bottom bracket

PressFit BB86

Max tire clearance

700*28c

Brake mount type

Flat mount Disc brake 140mm

Dropout
 Front 12*100mm thru axle Rear 12*142mm thru axle
Groupset Mechanical and Di2 compatible
Handlebar&stem Integrated handlebar and stem
Test Standard ISO4210
Warranty

2 years

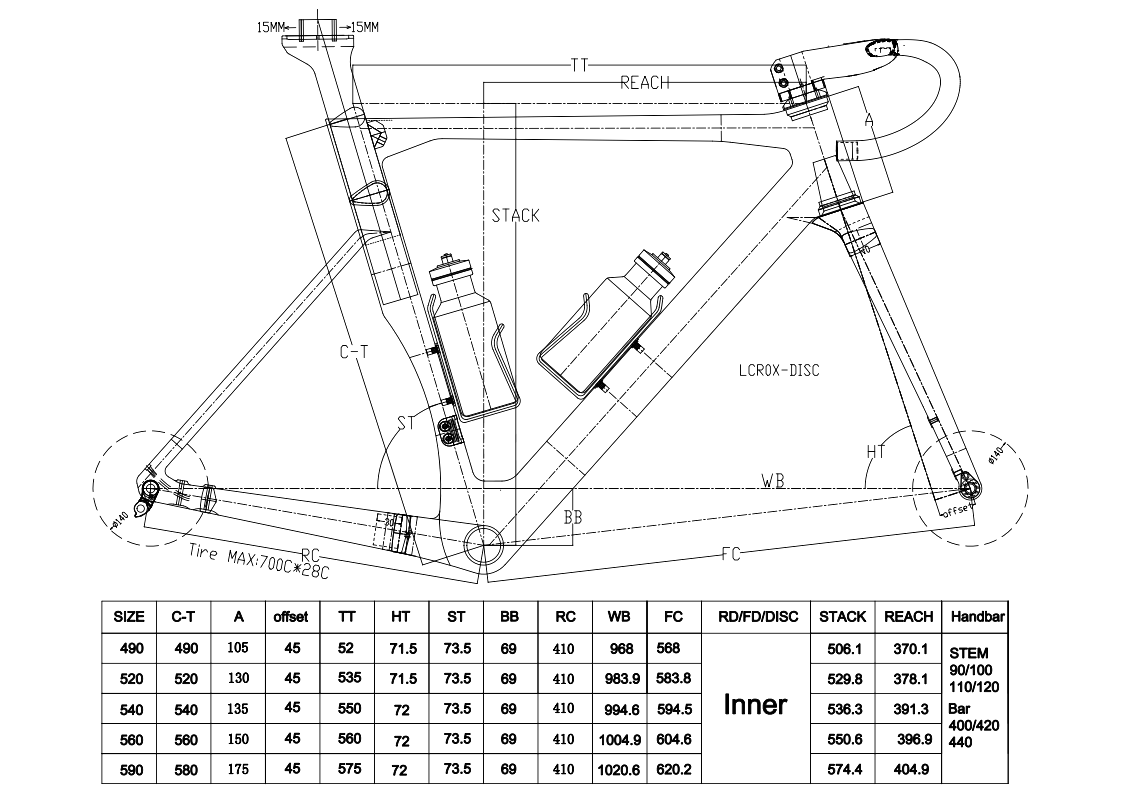

Frame Specification
