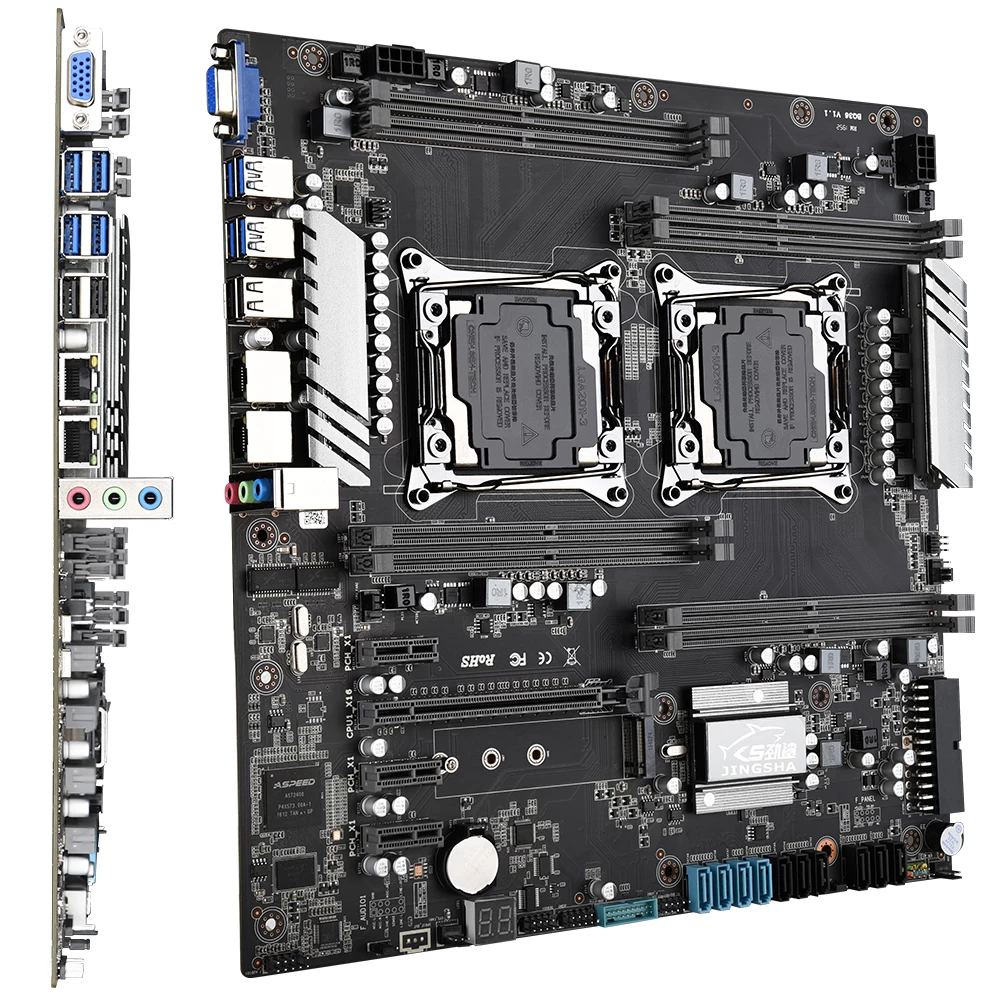

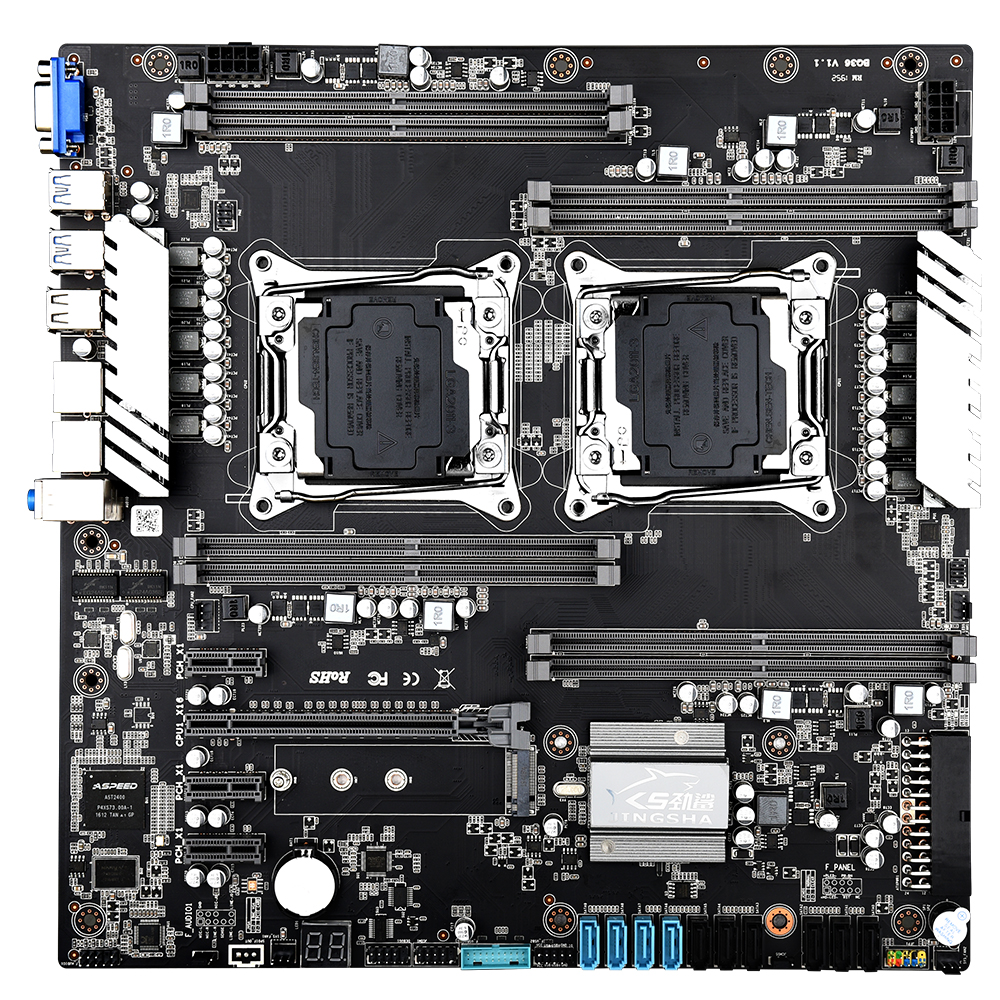

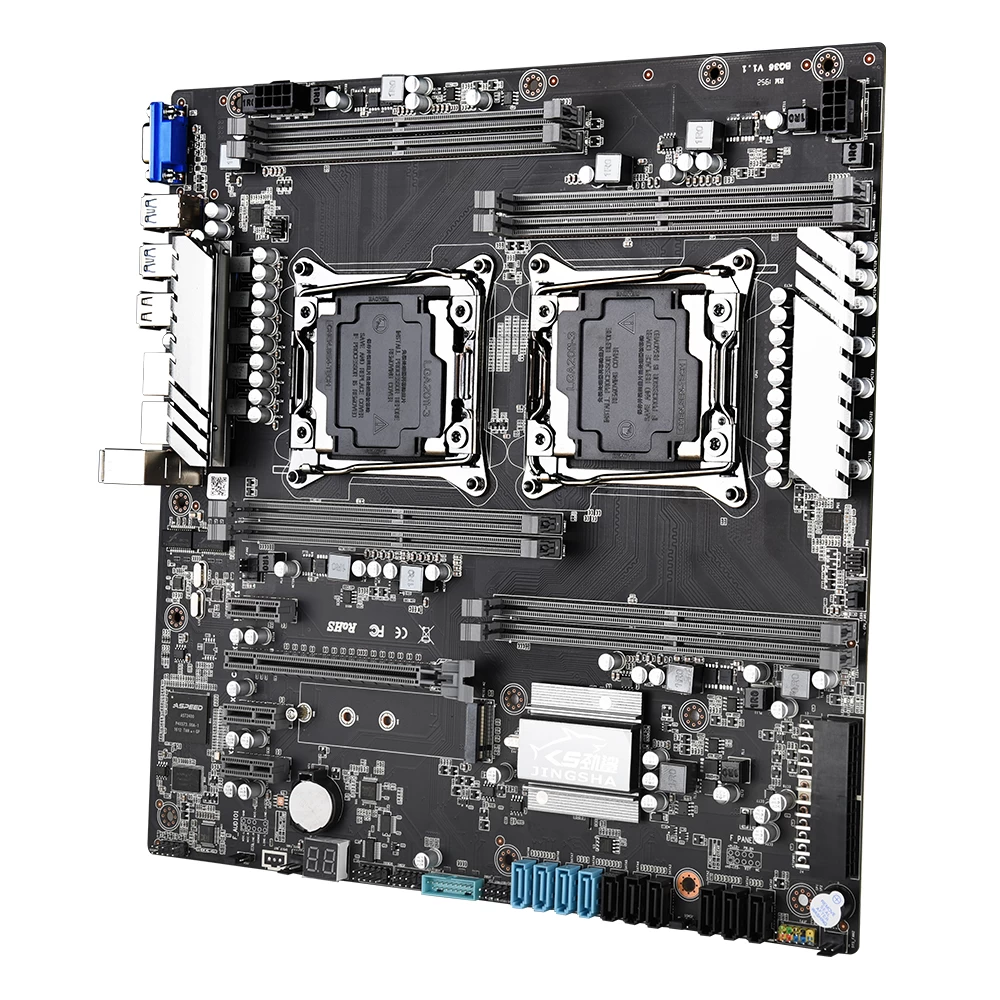

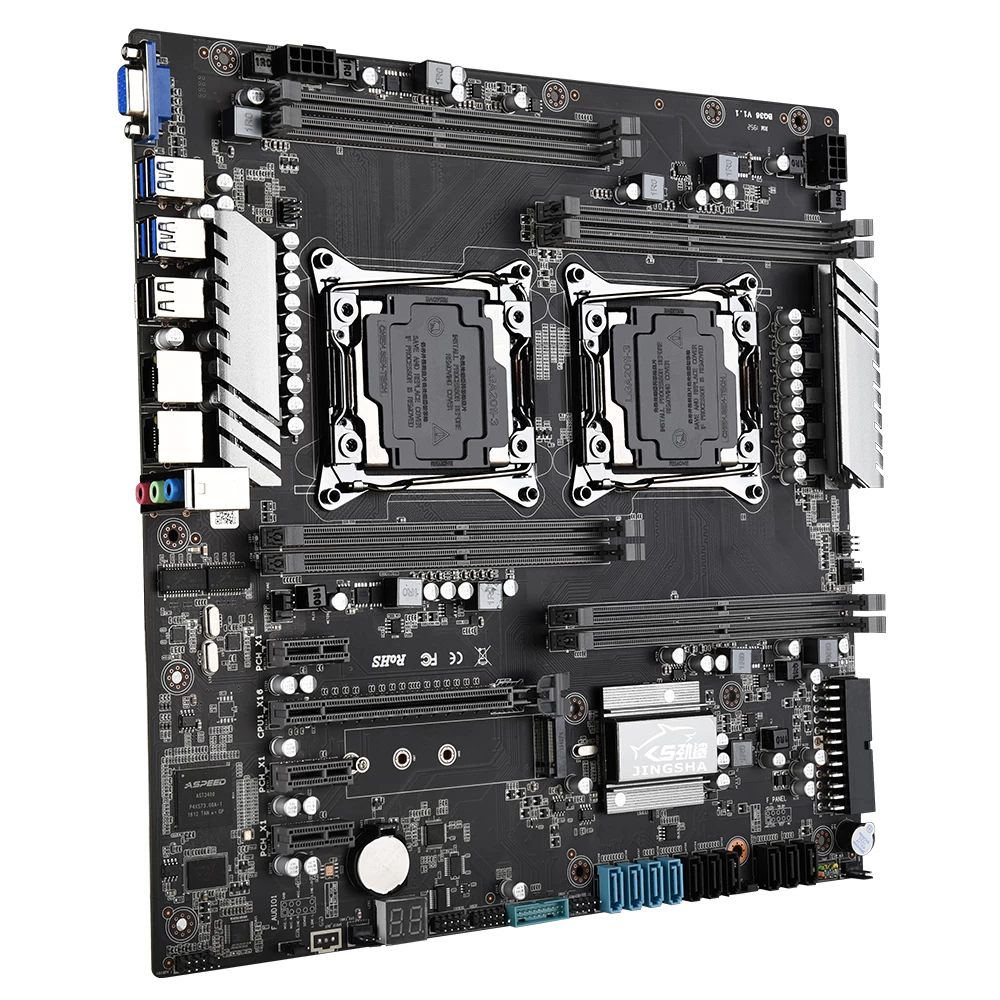

2020 flagship Intel X99 chipset dual LGA2011v3 motherboard with DDR4

  • Extreme gaming Intel X99 chipset, dual LGA2011v3 socket
  • Support Intel Xeon all series v3/v4 processor
  • Quad channel DDR4 up to 256GB, support REG ECC server RAM
  • Support 1066/1333/1600/1866/2133mhz
  • PCIE 3rd Generation x16 3.0 slot
  • NVME 3rd Gen x4 M.2 slot, boot operating system in an instant

  • MemoryOcta channel DDR4 support REG ECC server RAM
  • ChipsetIntel X99 chipset
  • CPU socketDual LGA2011v3 sockets
Facebook Twitter Pinterest LinkedIn 分享

X99Dual

Gaming Rig



Intel x99 Motherboard
LGA 2011-V3 socket support v3/v4 Processors

Superior Performance Details...

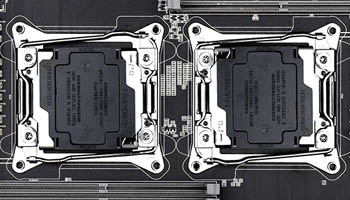

2 x LGA 2011v3

Support Intel all series CPU with LGA2011-V3 package

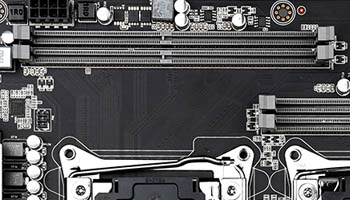

Octa channel DDR4

Octa channel DDR4, run more programs, more faster
Supports 1066/1333/1600/1866/2133 mhz
Support REG ECC server RAM

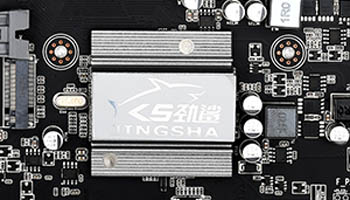

X99

Intel X99 Chipset

PCIE 3.0

PCIE 3.0 16x
Support CrossFire

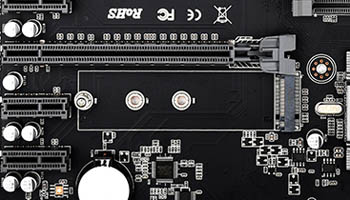

NVME M.2

1 x NVME M.2 slot
High speed boot up OS in an instant

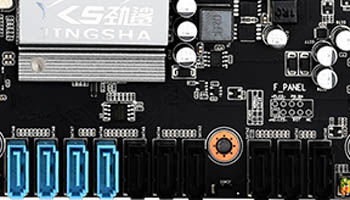

SATA III

10 x SATA 3 slots

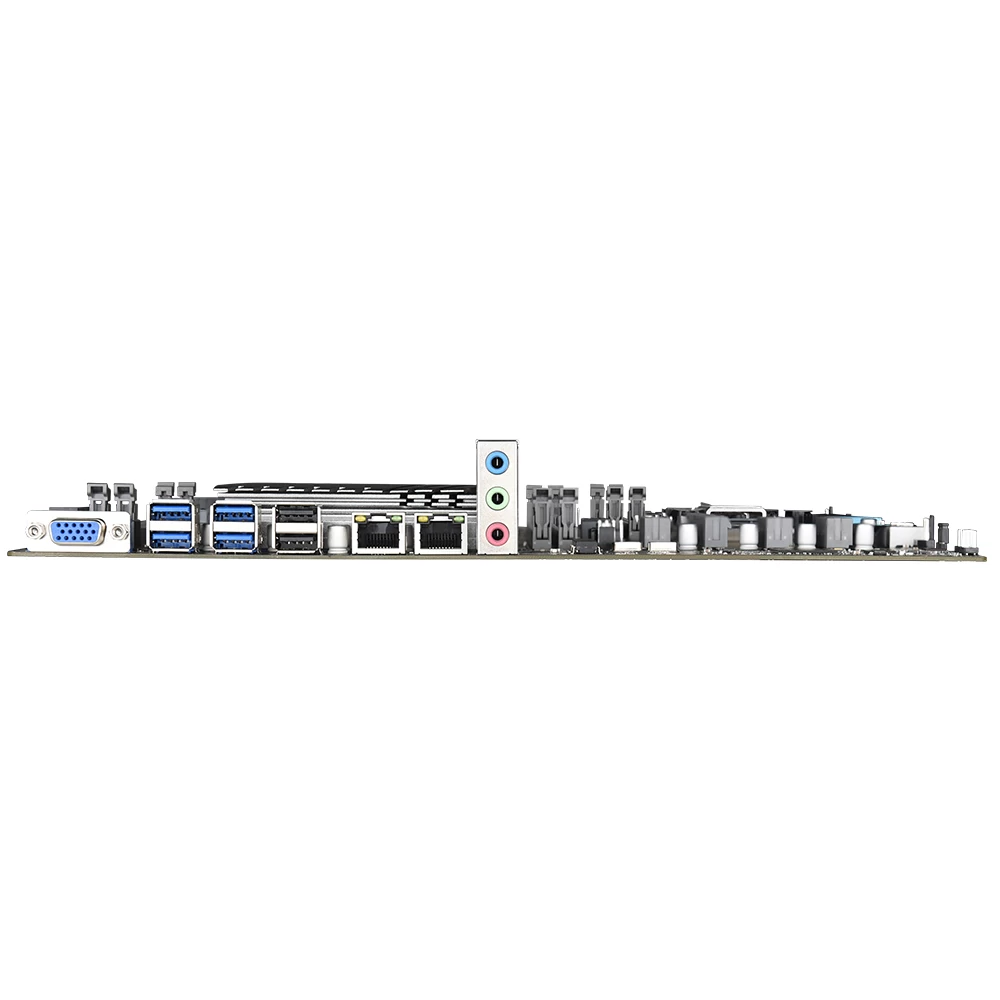

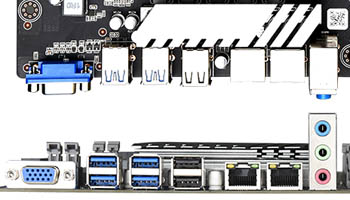

Comletibilies Ports

4 x USB 2.0
4 x USB 3.0
1 x RJ45 port Gigabit LAN
5 x Audio components
Name Socket Cores Threads Frequency Turbo Boost Multiplier L2 cache L3 cache PCIe 2.0 or 3.0 lanes TDP
Haswell-E
Core i7-5820K[37] LGA 2011 v3 6 12 3.3 GHz 3.6 GHz Unlocked 6 x 256 KB 15 MB 28 (PCIe 3.0) 140 W
Core i7-5930K[38] 3.5 GHz 3.7 GHz 40 (PCIe 3.0)
Core i7-5960X Extreme Edition[39] 8 16 3.0 GHz 3.5 GHz 8 × 256 KB 20 MB
Broadwell-E
Core i7-6800K[40] LGA 2011 v3 6 12 3.4 GHz 3.6 GHz Unlocked 6 x 256 KB 15 MB 28 (PCIe 3.0) 140W
Core i7-6850K[41] 3.6 GHz 3.8 GHz 40 (PCIe 3.0)
Core i7-6900K[42] 8 16 3.2 GHz 3.7 GHz 8 x 256 KB 20 MB
Core i7-6950X[43] 10 20 3.0 GHz 3.5 GHz 10 x 256 KB 25 MB

Single socket
Name Cores Threads Frequency Turbo Boost Cache Bus speed TDP DDR4 speed
Xeon E5-1680 v3 8 16 3.2 GHz 3.8 GHz 20 MB 5 GT/s 140 W 1333/1600/1866/2133
Xeon E5-1660 v3 8 16 3 GHz 3.5 GHz 20 MB 5 GT/s 140 W 1333/1600/1866/2133
Xeon E5-1650 v3 6 12 3.5 GHz 3.8 GHz 15 MB 5 GT/s 140 W 1333/1600/1866/2133
Xeon E5-1630 v3 4 8 3.7 GHz 3.8 GHz 10 MB 5 GT/s 140 W 1333/1600/1866/2133
Xeon E5-1620 v3 4 8 3.5 GHz 3.6 GHz 10 MB 5 GT/s 140 W 1333/1600/1866/2133
Xeon E5-1607 v3 4 4 3.1 GHz 10 MB 5 GT/s 140 W 1333/1600/1866
Dual socket – mainstream
Name Cores Threads Frequency Turbo Boost Cache Bus speed TDP DDR4 speed
Xeon E5-2699 v3 18 36 2.3 GHz 3.6 GHz 45 MB 9.6 GT/s 145 W 1600/1866/2133
Xeon E5-2698 v3 16 32 2.3 GHz 3.6 GHz 40 MB 9.6 GT/s 135 W 1600/1866/2133
Xeon E5-2697 v3 14 28 2.6 GHz 3.6 GHz 35 MB 9.6 GT/s 145 W 1600/1866/2133
Xeon E5-2695 v3 14 28 2.3 GHz 3.3 GHz 35MB 9.6 GT/s 120 W 1600/1866/2133
Xeon E5-2690 v3 12 24 2.6 GHz 3.5 GHz 30 MB 9.6 GT/s 135 W 1600/1866/2133
Xeon E5-2683 v3 14 28 2 GHz 3 GHz 35 MB 9.6 GT/s 120 W 1600/1866/2133
Xeon E5-2680 v3 12 24 2.5 GHz 3.3 GHz 30 MB 9.6 GT/s 120 W 1600/1866/2133
Xeon E5-2670 v3 12 24 2.3 GHz 3.1 GHz 30 MB 9.6 GT/s 120 W 1600/1866/2133
Xeon E5-2660 v3 10 20 2.6 GHz 3.3 GHz 25 MB 9.6 GT/s 105 W 1600/1866/2133
Xeon E5-2650 v3 10 20 2.3 GHz 3 GHz 25 MB 9.6 GT/s 105 W 1600/1866/2133
Xeon E5-2640 v3 8 16 2.6 GHz 3.4 GHz 20 MB 8 GT/s 90 W 1600/1866
Xeon E5-2630 v3 8 16 2.4 GHz 3.2 GHz 20 MB 8 GT/s 85 W 1600/1866
Xeon E5-2620 v3 6 12 2.4 GHz 3.2 GHz 15 MB 8 GT/s 85 W 1600/1866
Xeon E5-2609 v3 6 6 1.9 GHz 15 MB 6.4 GT/s 85 W 1600
Xeon E5-2603 v3 6 6 1.6 GHz 15 MB 6.4 GT/s 85 W 1600
Dual socket – frequency-optimised
Name Cores Threads Frequency Turbo Boost Cache Bus speed TDP DDR4 speed
Xeon E5-2667 v3 8 16 3.2 GHz 3.6 GHz 20 MB 9.6 GT/s 135 W 1600/1866/2133
Xeon E5-2643 v3 6 12 3.4 GHz 3.7 GHz 20 MB 9.6 GT/s 135 W 1600/1866/2133
Xeon E5-2637 v3 4 8 3.5 GHz 3.7 GHz 15 MB 9.6 GT/s 135 W 1600/1866/2133
Xeon E5-2623 v3 4 8 3 GHz 3.5 GHz 10 MB 8 GT/s 105 W 1600/1866
Dual socket – low power
Name Cores Threads Frequency Turbo Boost Cache Bus speed TDP DDR4 speed
Xeon E5-2650L v3 12 24 1.8 GHz 2.5 GHz 30 MB 9.6 GT/s 65 W 1600/1866/2133
Xeon E5-2630L v3 8 16 1.8 GHz 2.9 GHz 20 MB 8 GT/s 55 W 1600/1866
Dual socket – workstation
Name Cores Threads Frequency Turbo Boost Cache Bus speed TDP DDR4 speed
Xeon E5-2687W v3 10 20 3.1 GHz 3.5 GHz 25 MB 9.6 GT/s 160 W 1600/1866/2133
Dual socket – storage and communications
Name Cores Threads Frequency Turbo Boost Cache Bus speed TDP DDR4 speed
Xeon E5-2658 v3 12 24 2.2 GHz 2.9 GHz 30 MB 9.6 GT/s 105 W 1600/1866/2133
Xeon E5-2648L v3 12 24 1.8 GHz 2.5 GHz 30 MB 9.6 GT/s 75 W 1600/1866/2133
Xeon E5-2628L v3 10 20 2 GHz 2.5 GHz 25 MB 8 GT/s 75 W 1600/1866
Xeon E5-2618L v3 8 16 2.3 GHz 3.4 GHz 20 MB 8 GT/s 75 W 1600/1866
Xeon E5-2608L v3 6 12 2 GHz 15 MB 6.4 GT/s 52 W 1600/1866
