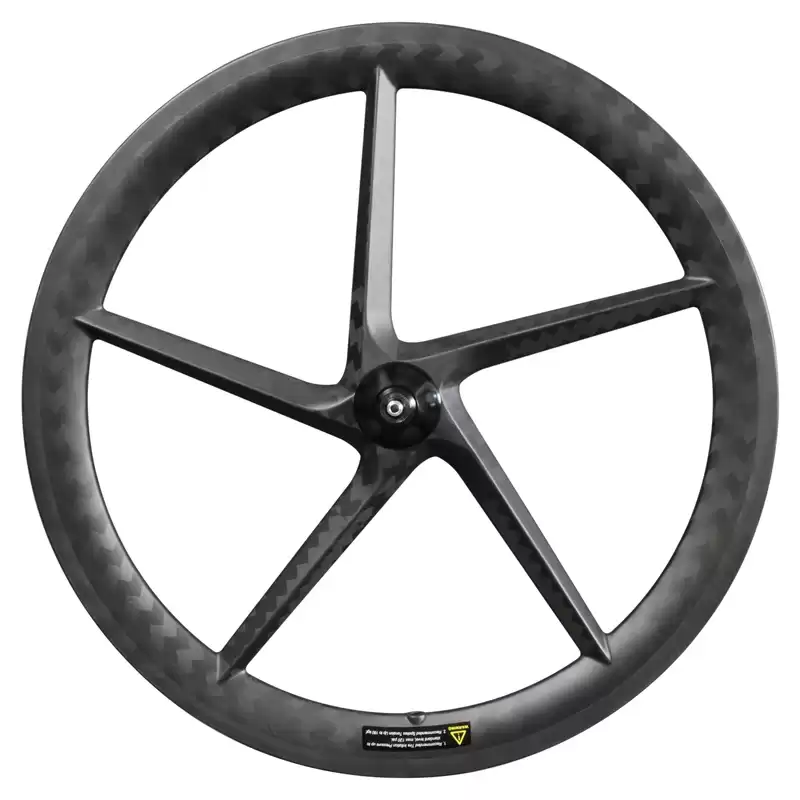

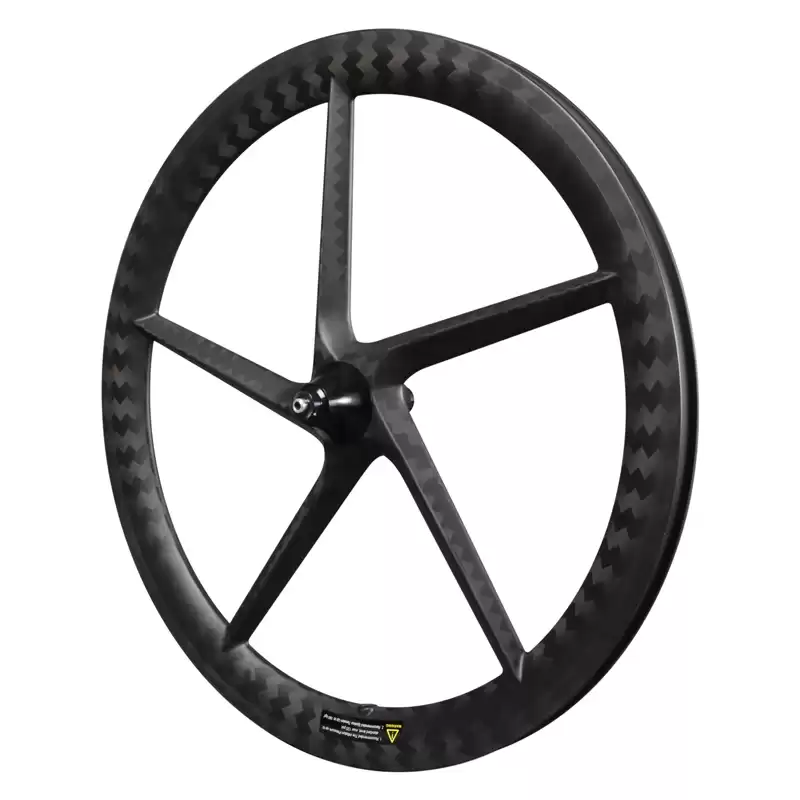

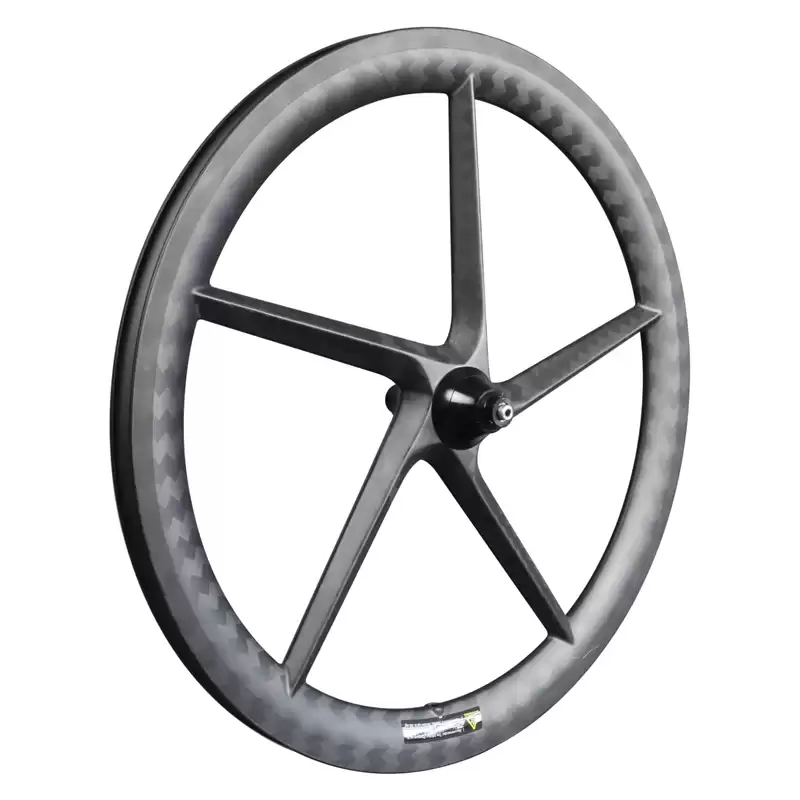

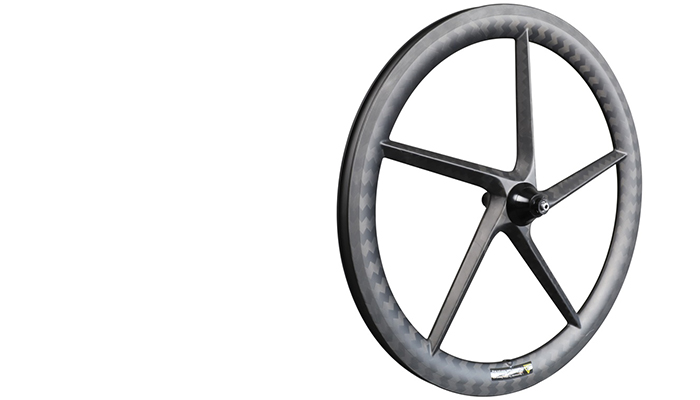

CARBON FIVE SPOKE WHEELS 16 INCH 349
DESCRIPTION
2021 aerodynamic manufacturing cross-section design 16 inche 349 folding riding carbon 5 spoke wheels. Provide disc brake version and rim brake version. Whether you are riding a bicycle to work, ride it around the campground, pack it up in the RV, or take it out for a spirited recreation ride, it can get you to your destination quickly! it was designed to tackle all types of riding and styles.
There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with an air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels.
CARBON WEAVE PICTURE DISPLAY
WHEELSET SPECS
|
Model
|
Orn5-16"-349
|
Orn5-16"-349-D
|

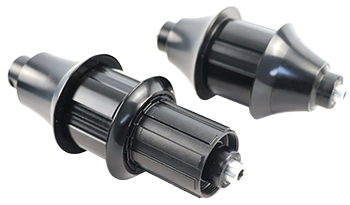

Hub Specifications
|

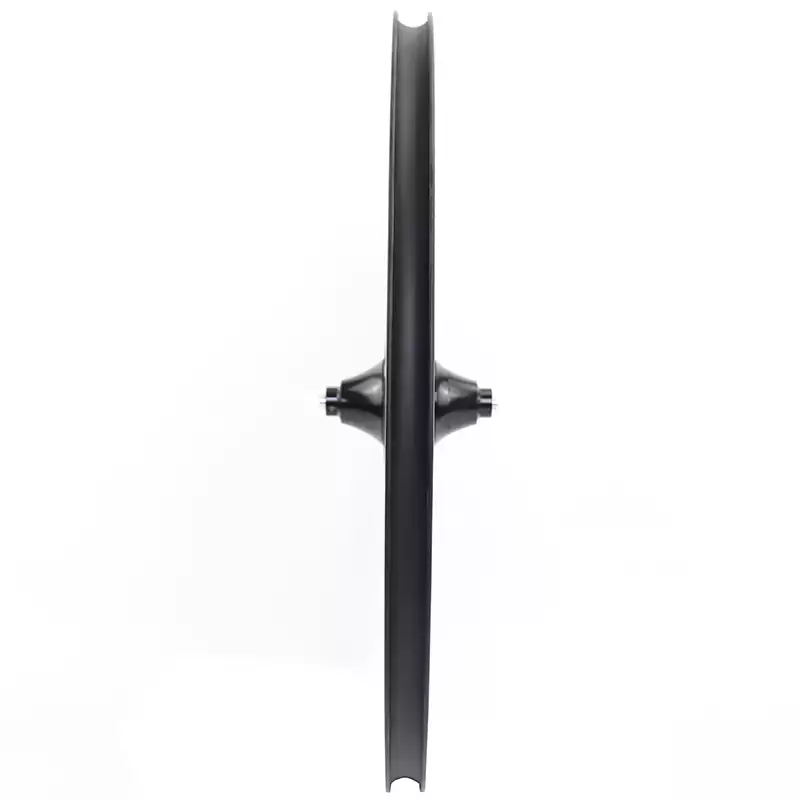

Sectional Drawing
|
|
|
|
|
|
|
Use
|
Folding/Brompton/Road
|
Folding/Brompton/Road
|
Hub
|
Fastace
|
Fastace
|
Fastace
|
|
Type
|
Clincher
|
Clincher
|
Bearing
|
Front: Japan EZO, Rear: Germany FAG
|
Front: Japan EZO, Rear: Germany FAG
|
Front: Japan EZO, Rear: Germany FAG
|
|
Tubeless
|
NO
|
NO
|
Material
|
AL6061
|
AL6061
|
AL6061
|
|
Internal/External Width
|
17mm/23mm
|
17mm/23mm
|
Front Axle
|
12 x 100mm
|
9 x 100mm
|
9 x 100mm
|
|
Depth
|
30mm
|
30mm
|
Rear Axle
|
12 x 142mm
|
10 x 135mm
|
10 x 130mm
|
|
OD
|
360mm
|
360mm
|
Driver Body
|
Shimano 11S or Sram XDR
|
Shimano 11S or Sram XDR
|
Shimano 11S or Sram XDR
|
|
Spoke
|
5S
|
5S
|
Brake System
|
Disc E-Thru Axle
|
Disc 6-Bolt
|
Rim Brake
|
|
Brake Type
|
Rim Brake
|
Disc Brake
|
|
|
|
|
|
Brake Surface
|
Basalt / 3K Twill
|
NO
|
|
|
|
|
|
Weight Limit
|
130kg
|
130kg
|
|
|
|
|
|
Tire Recommended
|
16" x 1-1/4, 1-3/8
|
16" x 1-1/4, 1-3/8
|
|
|
|
|
