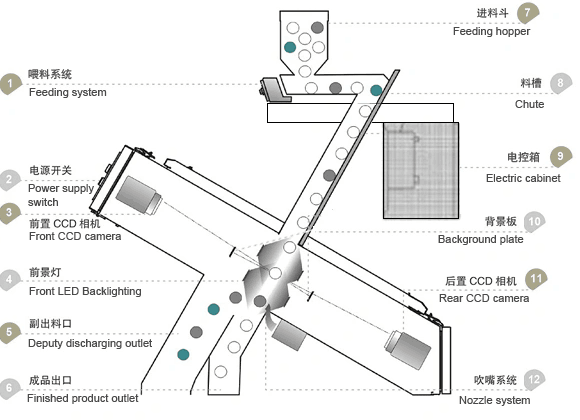

Spice color sorter is based on the fact that different colors have different optical properties. Topsort spice color selector use industry CCD cameras and sensors to detect the color of each grain of rice, and then sorts them into different bins according to their color. The sorting process is done by using an air jet system which separate the grains according to their colors, you can see the follow structure schematic.
At Topsort, we understand the complexities of sorting different spices including whole kernel spices, seed spices and delicate seed spices. We also understand that different spices present different challenges and contaminants such as color defects, seed defects and various types of foreign materials such as plastics, strings and even animal droppings.
Spice Color Sorter Sorting Application
Spice Color Sorter Core Components
Technical Parameters
| Model |
Power(KW) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| MINI-32 |
0.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<0.5 |
420*1100*1820 |
100
|
| R1-64 |
0.8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
300
|
| R2-128 |
1.3 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
400 |
| R3-192 |
1.9 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1650*1504*1760 |
500 |
| R4-256 |
2.4 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
1986*1504*1760 |
650 |
| R5-320 |
3.0 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2322*1504*1760 |
800 |
| R6-384 |
3.6 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2658*1504*1760 |
1000 |
| R7-448 |
4.1 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
2994*1504*1760 |
1200 |
| R8-512 |
4.7 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3330*1504*1760 |
1400 |
| R10-640 |
5.8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
3666*1504*1760 |
1800 |
| BSC-300 |
1.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
2330*960*1630 |
430 |
| BSC-600 |
2.0 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
2330*1260*1630 |
550 |
| BSC-1200 |
3.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
3240*1860*1630 |
1200 |
Choose TOPSORT Color Sorter, Really Rest Assured
* More intelligent software, can distinguish all kinds of atherosclerosis spice easily and totally improved the accuracy of selection.
* Humanization true color screen, visual effect is more clear, operation is more easier.
* Color + shape sorting, can reject different colors and shapes, high net selection rate.
* Full coverage gradual air purification, water, oil, dust full filtration, no omission, zero pollution, comes with ash cleaning system, real-time inductive ash cleaning, zero delay, more clean。
* Integrated anti-collision and non-destructive design, soft landing and flexible discharge, effectively reducing the material broken, food-grade contact materials, the whole process of safety care, health quality is guaranteed
* Intelligent dimming system, using low-temperature concentrated LED light source, intelligent dimming, 16 million kinds of color mixing, energy saving and more durable; matching AI color restoration technology, independent correction of color correction, high restoration, ultra-fidelity.
* Frequency conversion blowing system, equipped with intelligent frequency conversion solenoid valve, 13 billion times long-lasting spraying, no air leakage, low power consumption; application of adaptive spraying technology, 0.05 milliseconds fast response, no tail gas, low take-out.

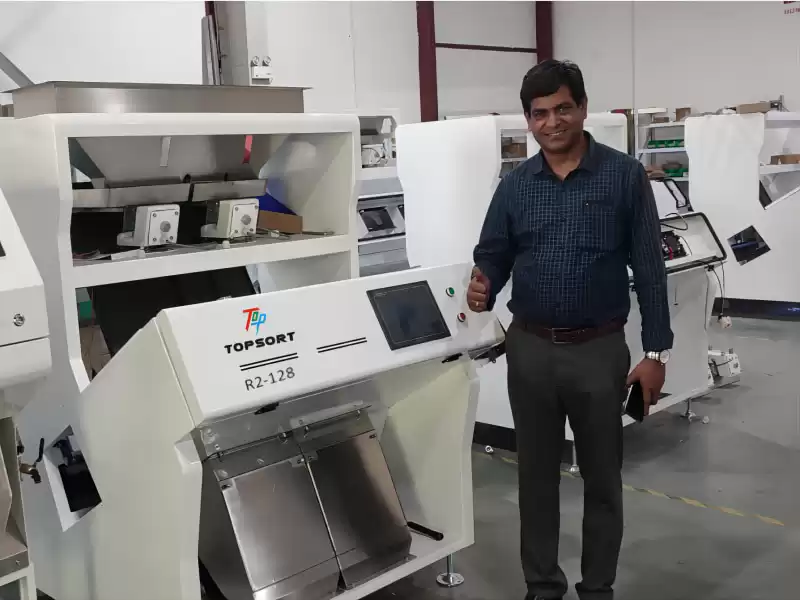

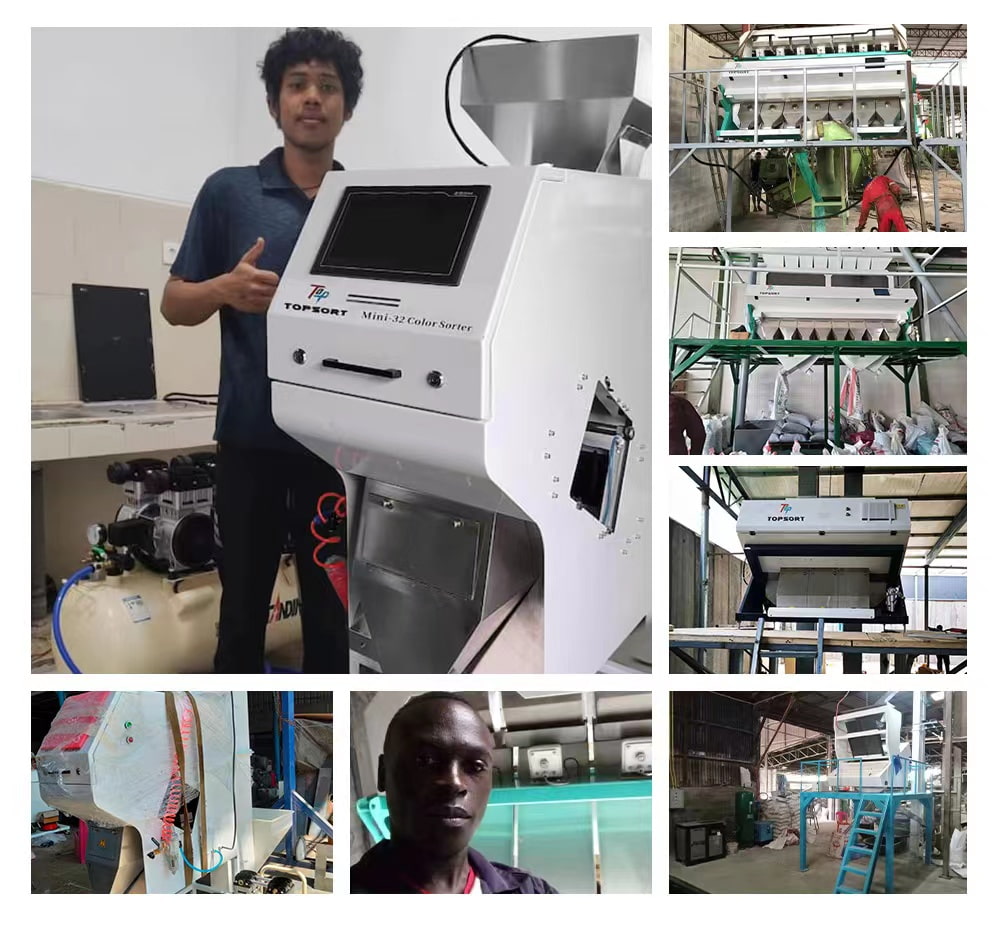

Customer Cases
Package And Delivvery
Package Details

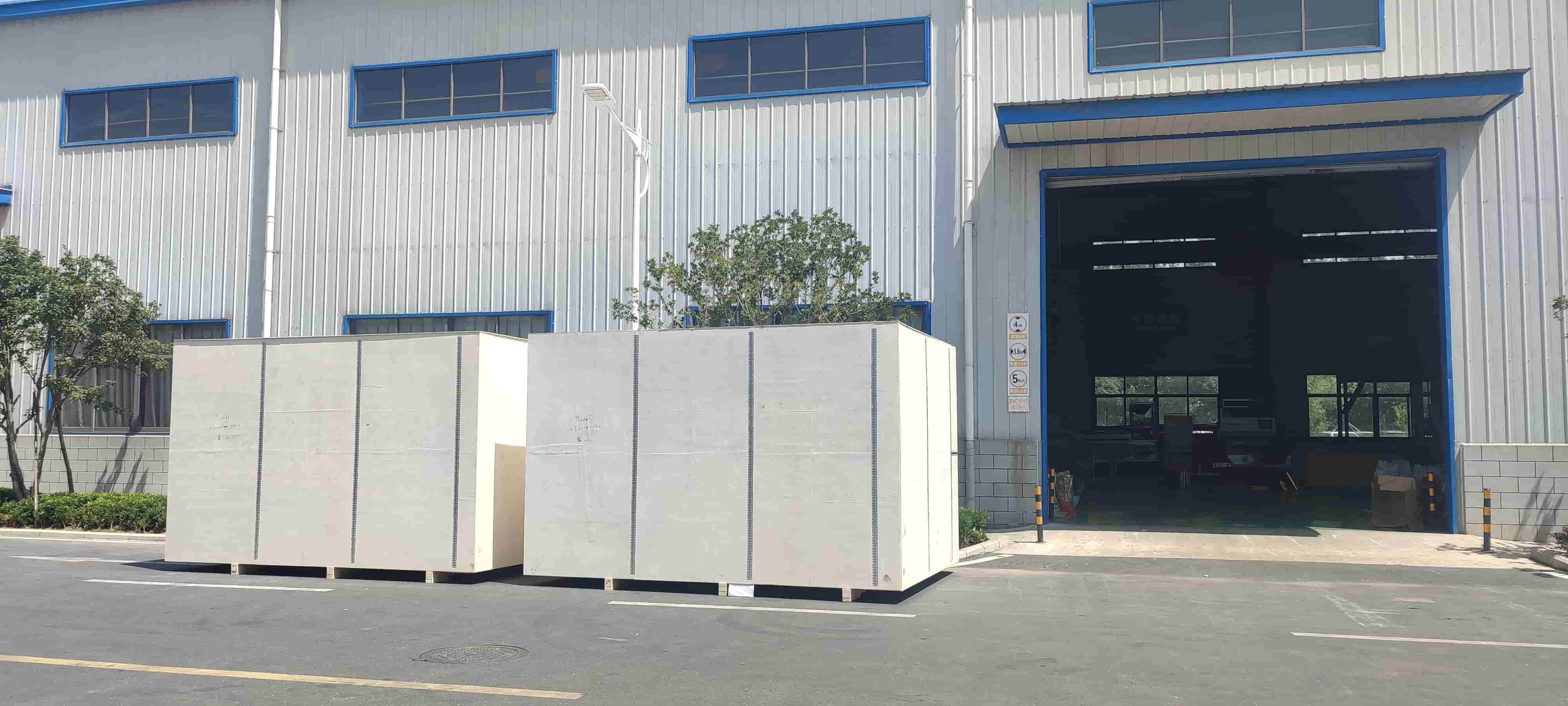

Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details
Within 3-5 working days after received 30% deposit.
Our after-sales service commitment: Professional and Fast
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for two years;
5.Provide 7*24 hours consultation and urgent service for users.
Welcome Inquiry Us For A Discount Now~~
