Digital color separator is a kind of high-tech product which is integrated with optics, machinery and electronics and combines embedded system with digital image technique perfectly. The product adopts high speed digitalized module and digital image processing to get high precision sorting and can detect yellowish and speckle rice effectively. Intelligent Modular Structure is created with creative channel encode and decode technique to improve the stability and reliability of the product greatly. Its powerful way of setting parameter which is achieved with Artificial Intelligence make it very easy for the user to operate system. Innovative techniques used in the product represent the future direction of colour sorting machine.
Nuts Color Separator Machine Features
1.Color selection + shape selection, can eliminate mold, broken nuts, etc.
2. Super brain learning system, AI intelligent identification, deep learning algorithm.Big data calculation, reject plastic, glass, cigarette butts and other vicious impurities.
3. Anti-crushing, the machine anti-crushing patented mechanism to better protect the integrity of the material
4. Application scope: walnut kernel, pistachio kernel, macadamia , pistachio kernel,chestnut kernels, hazelnut kernels, pine nuts and other nuts and kernels.

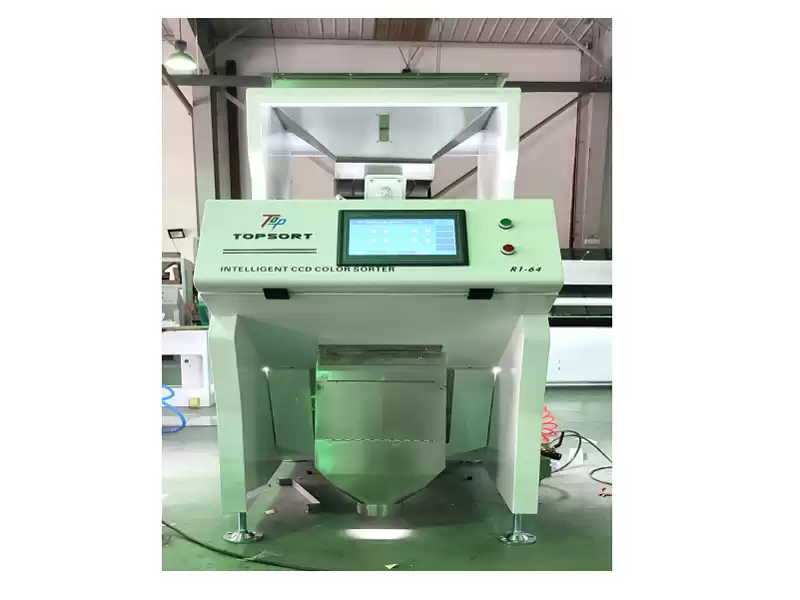

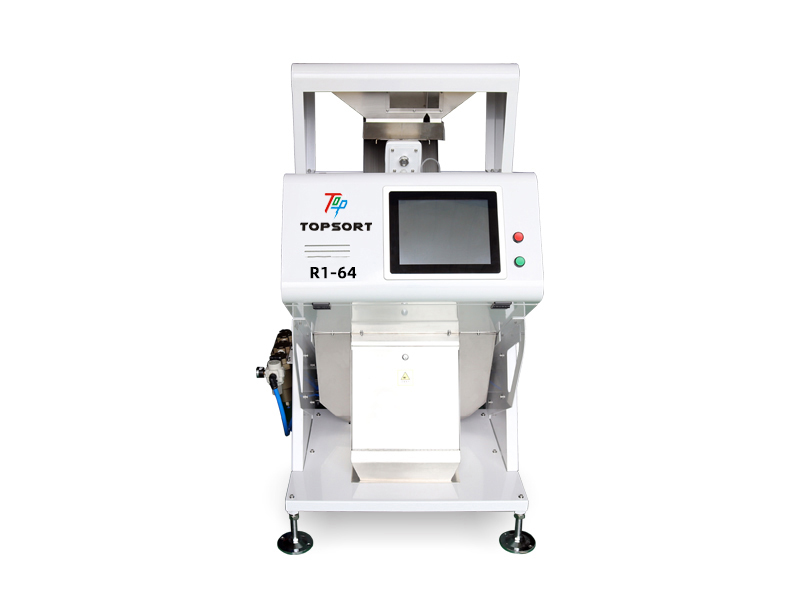

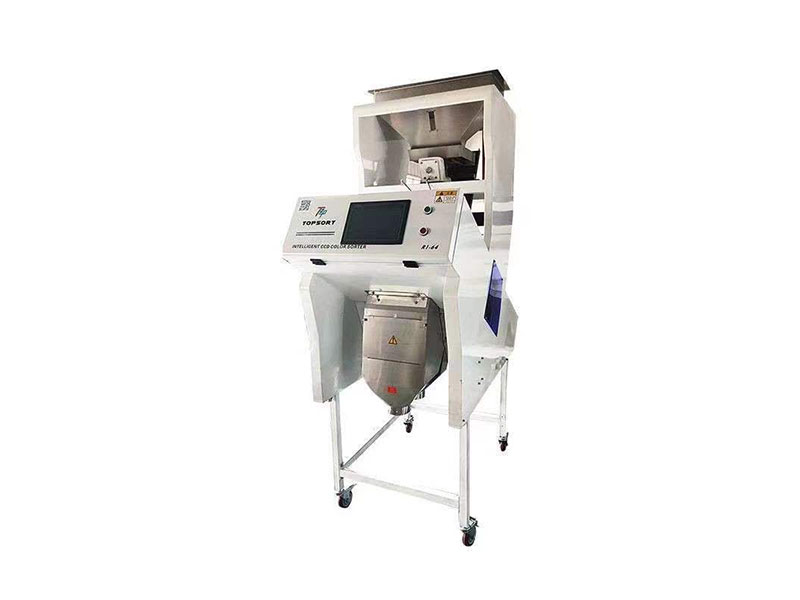

Product Technical Parameters
| Model |
R1-64 |
| Channles |
64 |
| Power |
0.8kw |
| Weight |
300kgs |
| Dimensions |
880*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
500-800kgs/h |
| Air consumption |
<1.0m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Nuts Color Sorting Sulotions
TOPSORT Nuts Color Sorting Machines Core Advantages
TOPSORT Color Sorting Machines In Our Customer Site
Why Choose TOPSORT Colour Sorting Machine
Top technology
1. Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
2. High computing power deep learning platform with 4 times more data processing power；
3. Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials；
4. Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
5. Perfect after-sales service with big data + cloud interconnection. Realize 24-hour engineer online support.
Top quality
1.Equiped with imported famous brand key components to guarantee the reliability.
2.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
Wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

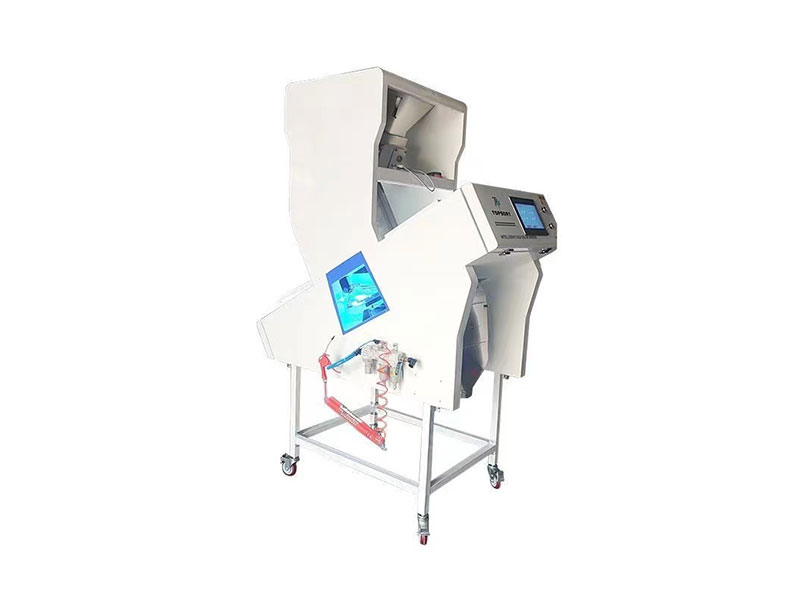

More Models You Can Choose
Technical Paramters
| MODEL |
POWER |
VOLTAGE |
AIR PRESSURE |
AIR CONSUMPTION |
DIMENSIONS MM |
WEIGHT KGS |
| MINI-32 |
0.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
420*1100*1820 |
100 |
| R1-64 |
0.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
880*1504*1760 |
300 |
| R2-128 |
1.3KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
1314*1504*1760 |
400 |
| R3-192 |
1.9KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜3.0m³/min |
1650*1504*1760 |
500 |
| R4-256 |
2.4KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
1986*1504*1760 |
650 |
| R5-320 |
3.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.0m³/min |
2322*1504*1760 |
800 |
| R6-384 |
3.6KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.5m³/min |
2658*1504*1760 |
1000 |
| R7-448 |
4.1KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.0m³/min |
2994*1504*1760 |
1200 |
| R8-512 |
4.7KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
3330*1504*1760 |
1400 |
| R10-640 |
5.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜8.0m³/min |
3666*1504*1760 |
1800 |
| BSC-300 |
1.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
2330*960*1630 |
430 |
| BSC-600 |
2.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
2330*1260*1630 |
550 |
| BSC-1200 |
3.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
3240*1860*1630 |
1200 |
| BSCD-1200 |
7.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
4000*2450*2500 |
2000 |
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
