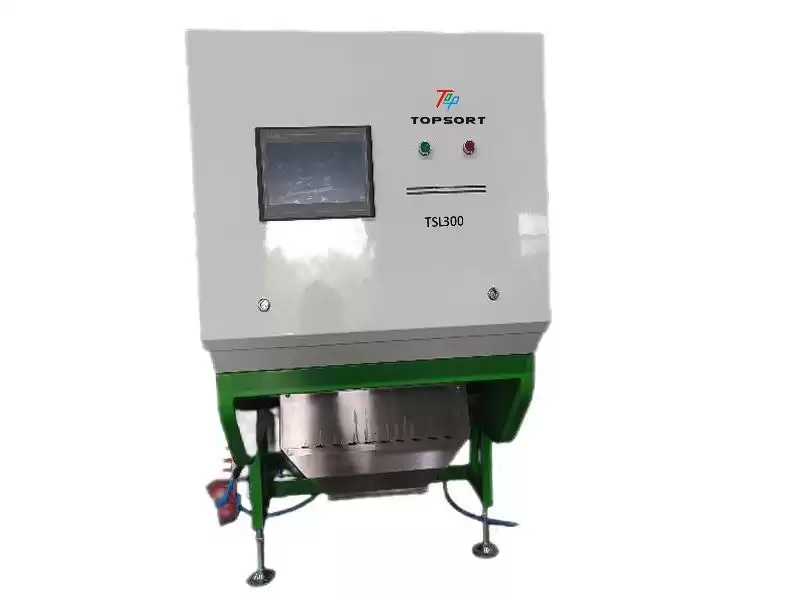

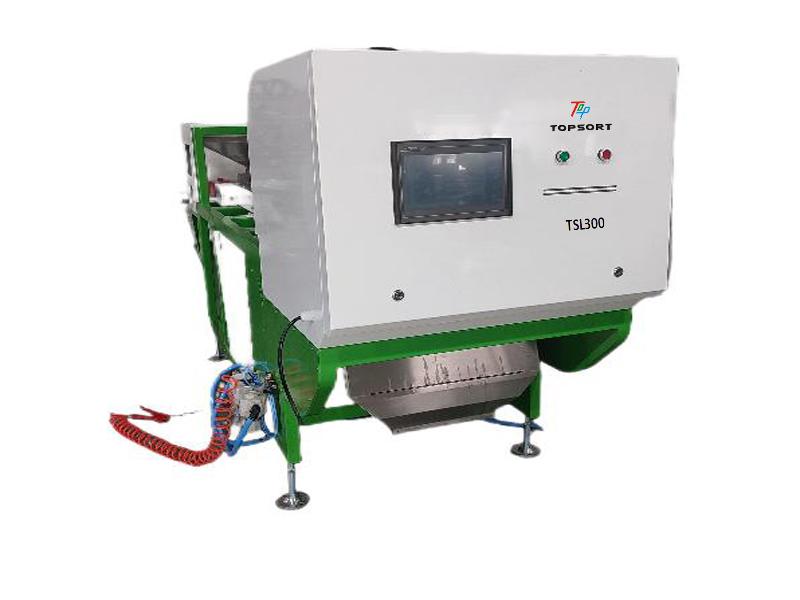

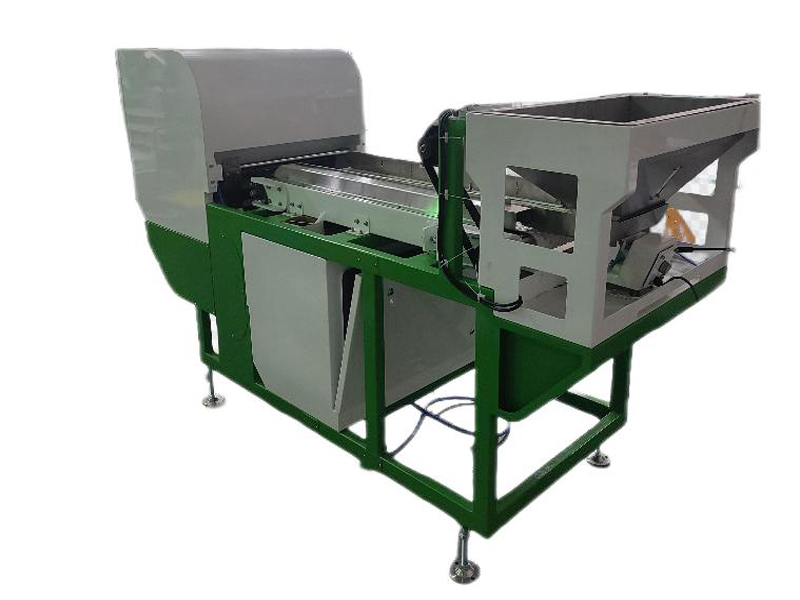

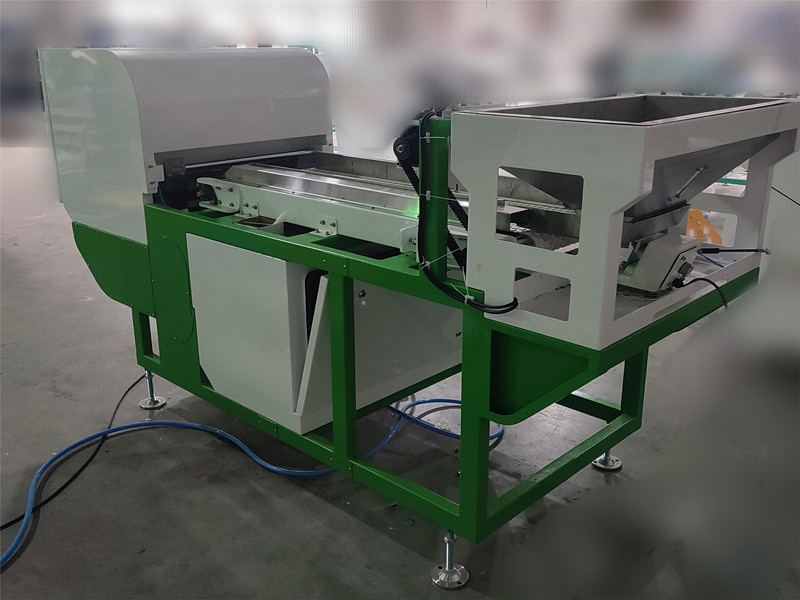

Short Belt Color Sorter Features
1. High quality food grade belt ; Stable sustain structure ; The import of high performance motor,low broken.
2. Increase a design of the drainage tank, with water material in the falling process of water can be effectively discharged, protect the visibility of the camera.
3. Customized unique image algorithm for different materials, reduce the material take-out ratio, reduce waste.
4. The computer screen displays the material image in real time, so you can observe whether the parameter setting is reasonable and adjust in real time.
5. Equipped with a support platform, customer can open and use it directly, saving money and time.
6. Remote control, guidance operation, no worries after the sale.
7. High speed, resolution ratio CCD camera, high speed line scan.
8. High speed, resolution ratio super clear imaging,color reduction well, no distortion.
9. High luminance LED resource, low power consumption, long life, reliable.
10. High frequency solenoid valve , special for color sorting. high sorting accuracy.
Short Belt Type Color Sorter Technical Parameters
| Model |
TSLB300 |
| Channles |
64 |
| Power |
1.5kw |
| Weight |
430kgs |
| Dimensions |
2540*860*1280mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
500-800kg/h |
| Air consumption |
<1.0m3/min |
| Air pressure |
0.6-0.8Mpa |

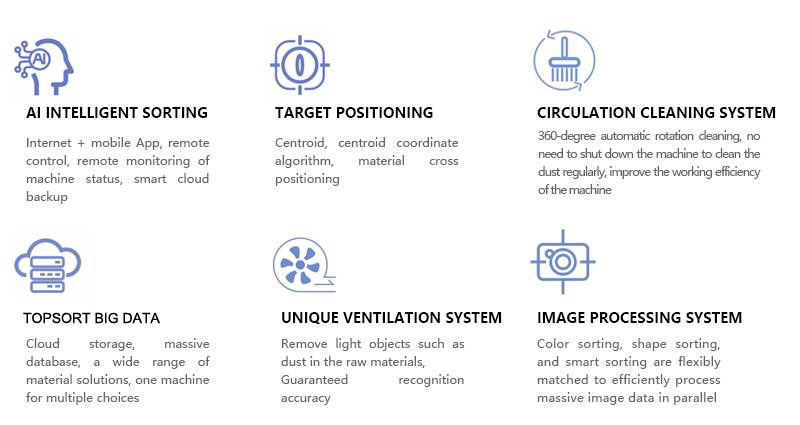

TOPSORT Color Sorter Advantages

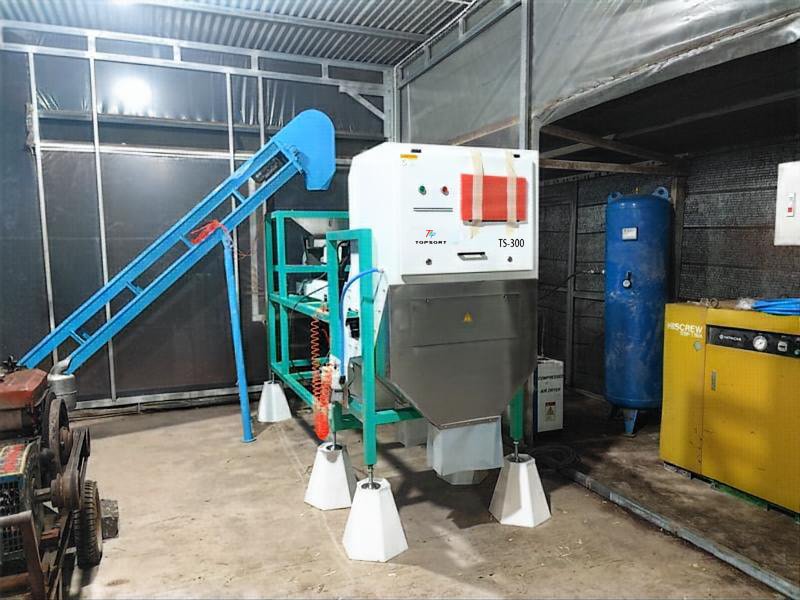

Case Studies
Our Service
Before sale:no matter where you are,no matter when it is,we will provide help you to know our machine service within 7*24h.
After Sale :
1.From the date of use machine, we can provide two years free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
2.Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
3.Field installation,commissioning and training,Overseas service center available,Field maintenance and repair service .
