Part Number/Catalog No.
|
2080-LC20-20QWB
|
|
Product Family:
|
Micro 800
|
|
No. of Inputs:
|
Twelve (12) 24VDC / VAC discrete inputs;
|
|
No. of Outputs:
|
Seven (7) Relay outputs;
|
|
No. of Analog inputs:
|
Four (4) 0-10V (shared with 24V DC)
|
|
No. of Analog outputs
|
One (1) 0-10VDC
|
|
Communication ports:
|
One (1) Ethernet; One (1) RS232; One (1) USB
|
|
Plug-in slots:
|
2
|
|
Program Steps (or instructions):
|
10Ksteps
|
|
Data (bytes):
|
20Kbytes (up to 400bytes non-volatile)
|
|
IEC 61131-3 Languages:
|
Ladder Diagram, Function Block, Structured Text
|
|
Product Type
|
Programmable Controller
|
|
Inputs
|
12(24V DC)
|
|
Outputs
|
7(Relay); 1 (Analog Out)
|
|
Dimensions HxWxD
|
3.54 x 4.09 x 2.95 in.
|
|
Power Input
|
24V DC
|
|
Power Dissipation
|
6 W
|
|
Power Supply Voltage Range
|
20.4-26.4V DC, Class 2
|
|
Enclosure
|
Meets IP20
|
|
Non-Isolated DC Input On-state Voltage Range
|
9.8-26.4V DC
|
|
Relay Output Voltage min.
|
5V DC/ AC
|
|
Relay Output Voltage max.
|
250V AC
|

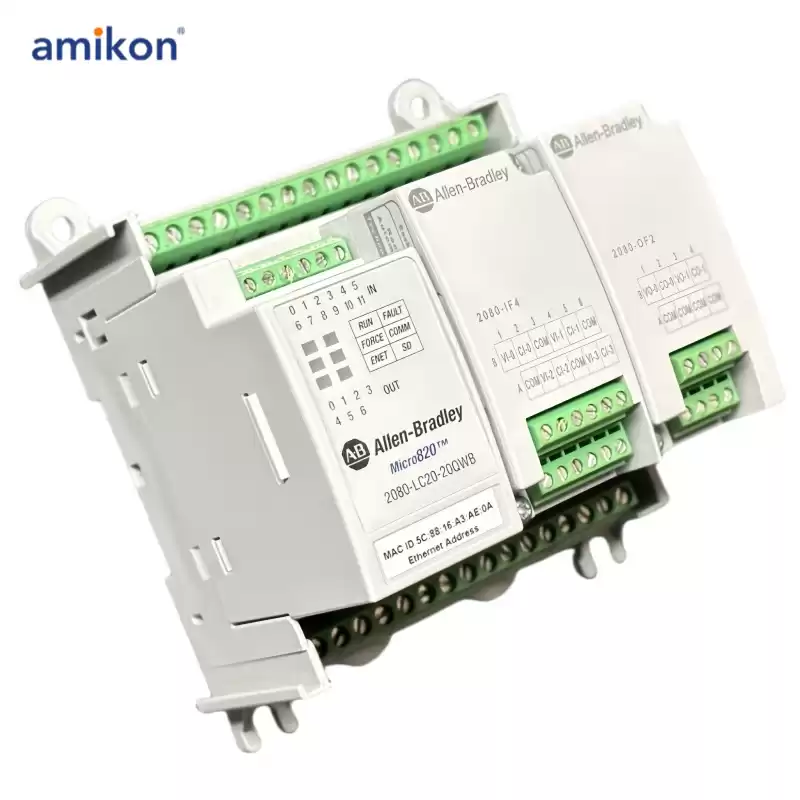

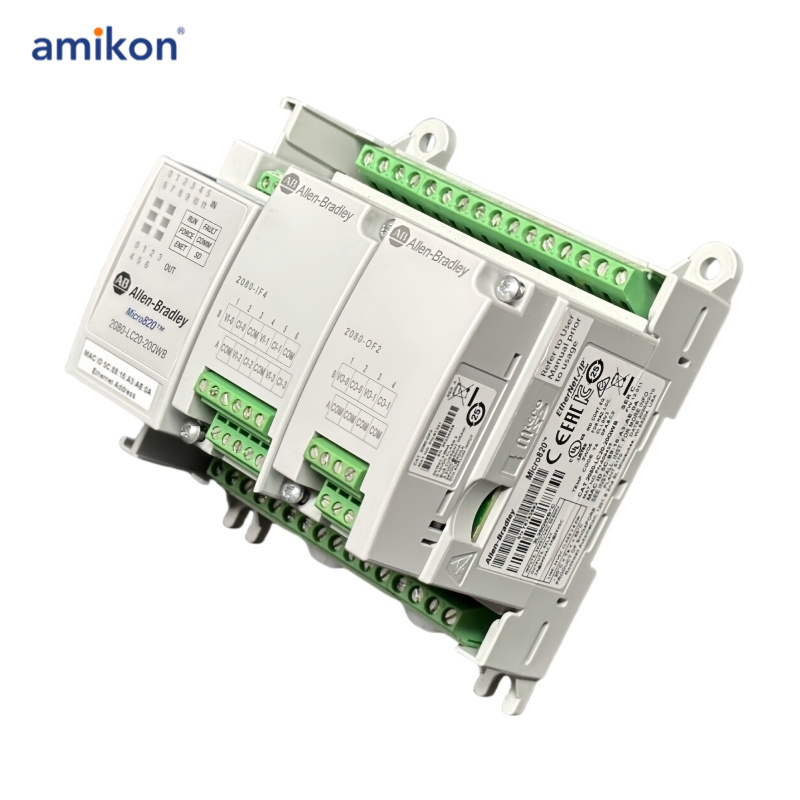

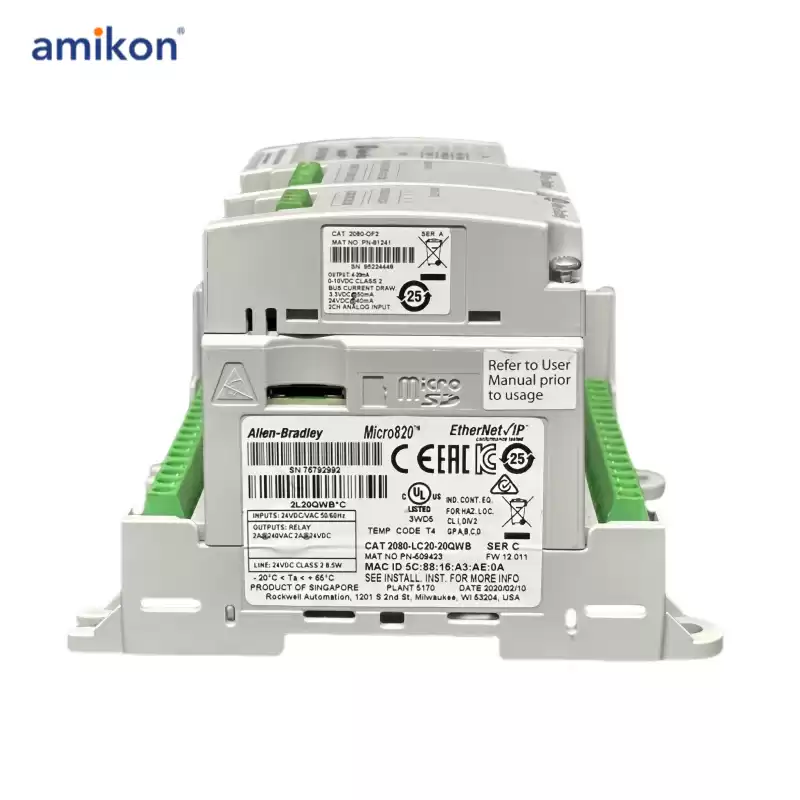

The 2080-LC20-20QWB is a Micro 800 Series Programmable Logic Controller (PLC) designed for micro-automation applications. This model features an integrated 24VDC power supply, which operates when supplied with a 120/240VAC nominal voltage.
This controller offers a range of I/O capabilities, including 12 discrete 24VDC/VAC inputs, 7 relay outputs, 4 analog input channels (0-10V, shared with 24VDC), and a 0-10VDC analog output channel. Additionally, it includes an embedded Ethernet communication interface, as well as one RS232/485 combo port that supports CIP Serial, Modbus RTU, and ASCII communication protocols. A USB port is provided for programming, configuration, and USB-to-serial passthrough functionality. The controller also supports Pulse Width Modulation (PWM) output with a frequency of 5 kHz.
For non-volatile storage, the controller supports a microSD card slot compatible with Class 6 and 10 SDSC and SDHC cards, formatted in FAT32 or FAT16, with a capacity of up to 32GB. Furthermore, the 2080-LC20-20QWB features two available module plug-in slots for expanding I/O capabilities with additional modules.
