Part Number/Catalog No. |
2080-OF2 |
|
Product Type |
Analog Plug-in Module |
|
Number of Single Ended Outputs |
2 |
|
Analog Normal Operating Voltage Range |
10V DC |
|
Analog Normal Operating Current Range |
0-20mA |
|
Resolution max. |
2.5 ms |
|
Step Response to 63% |
5 ms |
|
Current Load In Voltage Output max. |
10 mA |
|
Repeatability |
+/- 0.1% |
|
Input Group to Bus Isolation |
No Isolation |
|
Channel to Channel Isolation |
Non-Isolation |
|
Cable Length max. |
10 m |

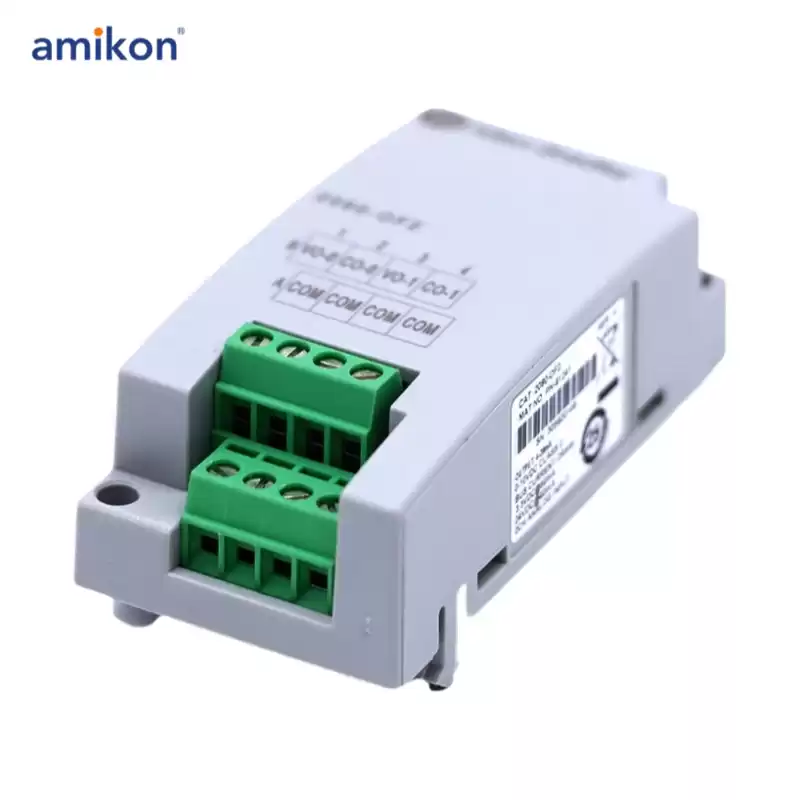

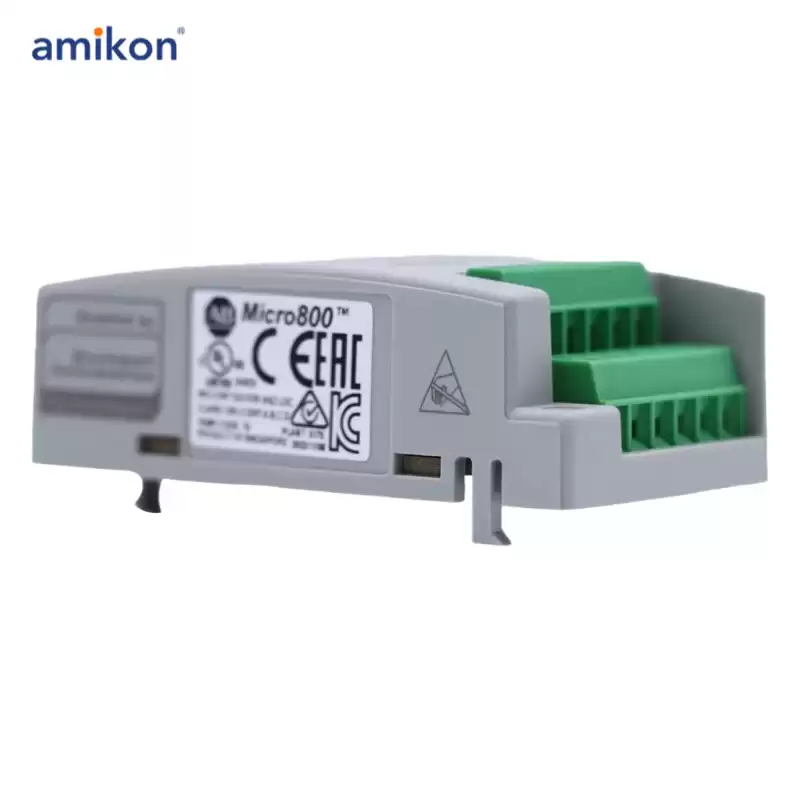

The 2080-OF2 is a non-isolated analog unipolar output module with 2 channels, part of the Micro 800 series programmable controller family. This module features 2 input channels and 4 output channels, all of which are analog and unipolar. It is compatible with the Micro 830 series controller and has compact I/O dimensions of 90 x 40 x 87 mm.
The 2080-OF2 operates with a 0-10V voltage range and an output current of 0-20mA. It has a wide operating temperature range, from -20°C to 65°C. The I/O plugin modules support a 12-bit resolution and utilize 8-pin female terminal blocks for easy connection to the controller. The DA conversion rate on all channels is a maximum of 25ms, and the output count range is from 0 to 65535.

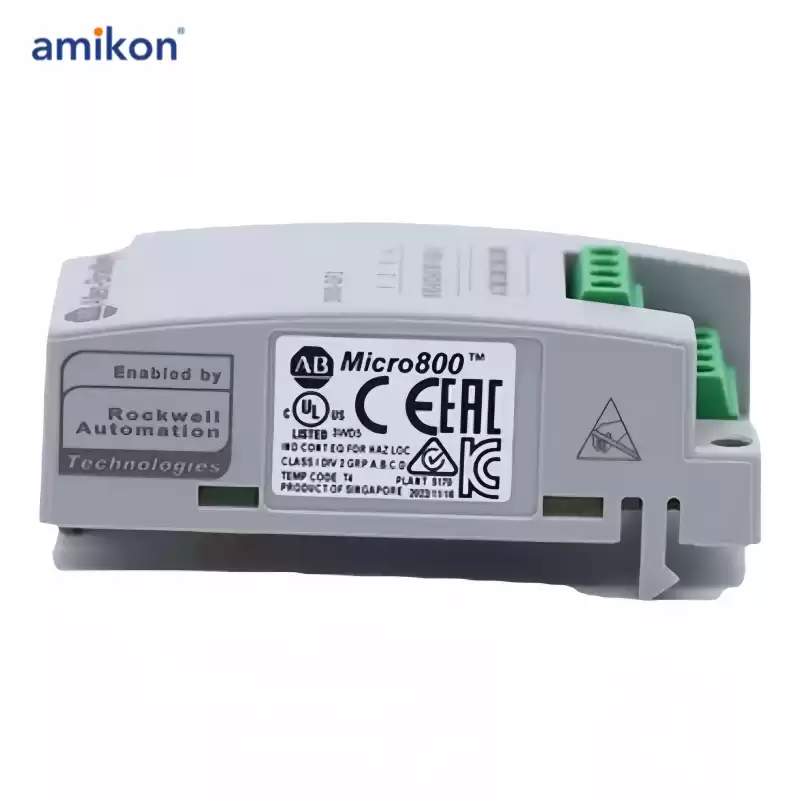

This module does not provide isolation between input groups or between channels. However, it includes protection for output overvoltage, open circuits, and short circuits. The 2080-OF2 is UL listed for Industrial Control Equipment (cUL-s) in the US and Canada, CE certified, and complies with UNSPSC code 32151601 and c-Tick standards for emissions. The module is designed for panel mounting and offers reliable performance in a wide range of industrial applications.
