Technical Specifications for 2093-AM02
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Storage Temperature
|
-40 to 85 C
|
|
Part Number/Catalog No.
|
2093-AM02
|
Output Current
|
8.0A
|
|
Module Type
|
Axis Module
|
Input Voltage range
|
230 VAC
|
|
Manufacture Year
|
2022
|
Flexbus Current
|
40 mA
|
|
Product Package
|
Original Package
|
UPC
|
10612598174068
|

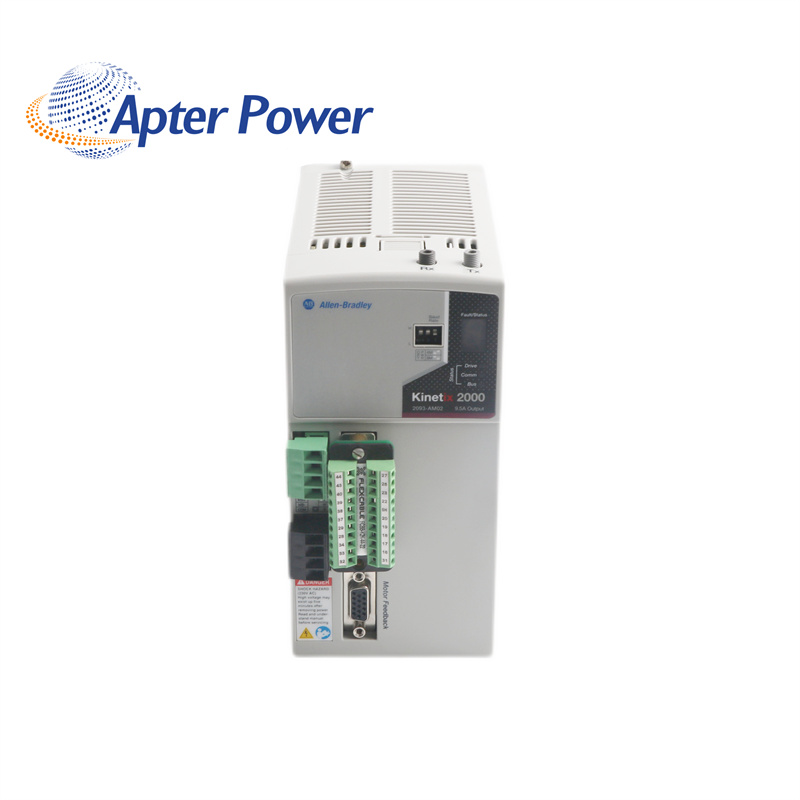

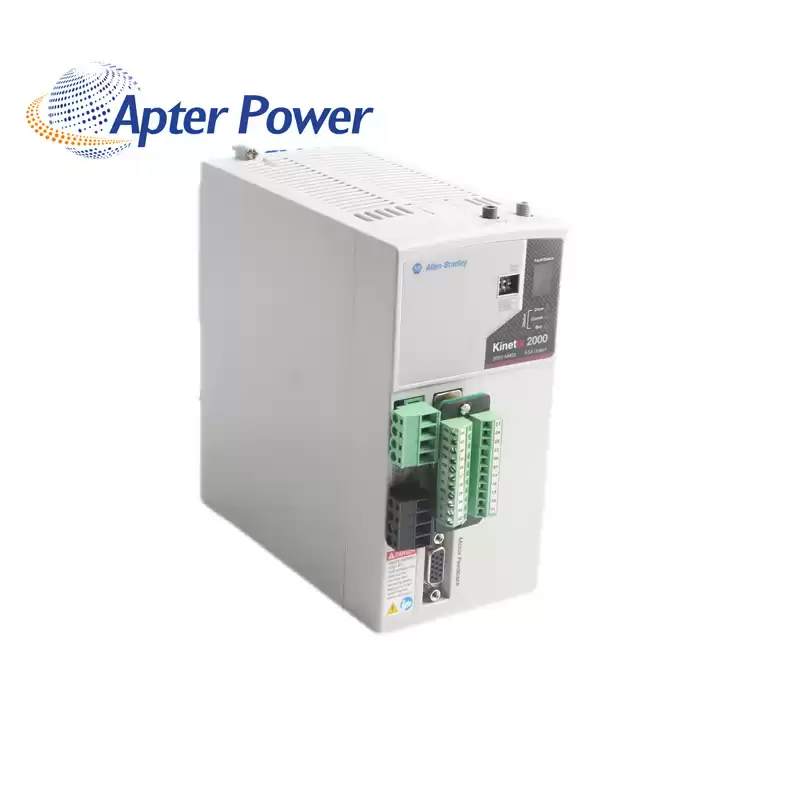

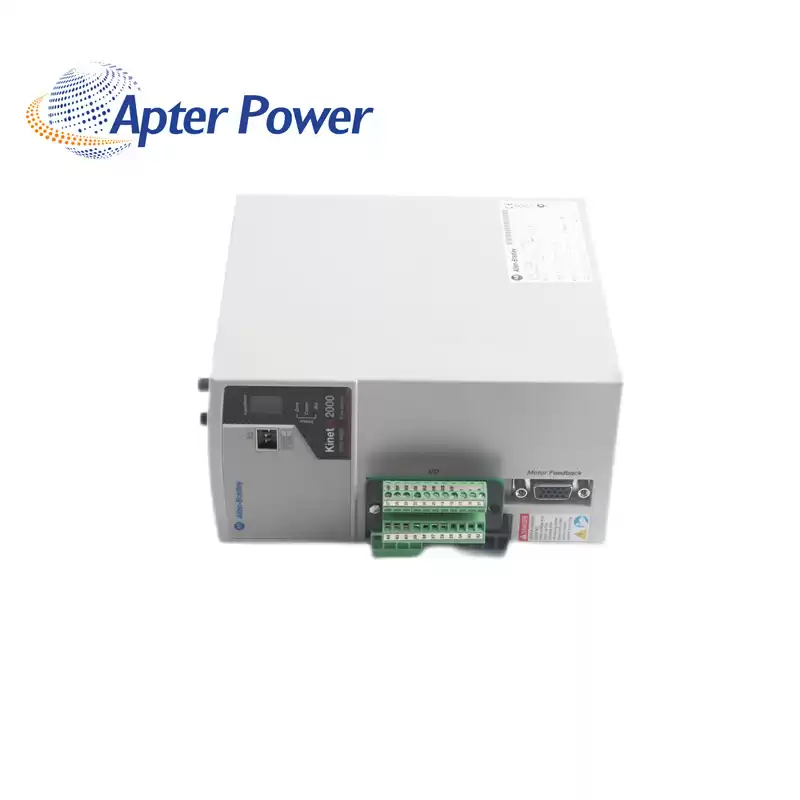

About 2093-AM02
|
The 2093-AM02 like every product in the 2093-M0x series is made up of several components which include; the Axis Module (AM (double width)) which is a shared 230V dc bus power inverter, which mounts on a Kinetix 2000 power rail with cables. However, the cables are of different types and of different function, but the 2093-AM02 cable, which are the motor power, and the feedback and brake cables, which include integrally molded, and bayonet-style quick connect/quick-release connectors at the motor.
The power and feedback cables are made up of flying leads on the drive and straight connectors that allow connection to the servo motors. The 2093-AM02 has an Auxillary Control Power of 0.45 A with Input VA of 148VA, and a Max Inrush of 93A and a Shunt Interix 2000, SM, 230V, 50 W with model number (2093-ASP06).
|
