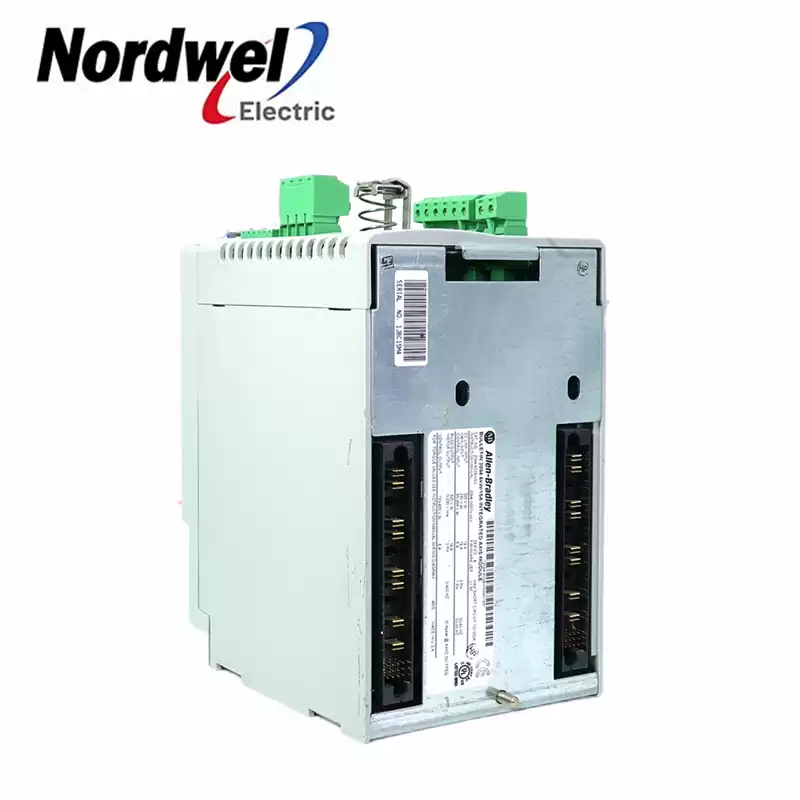

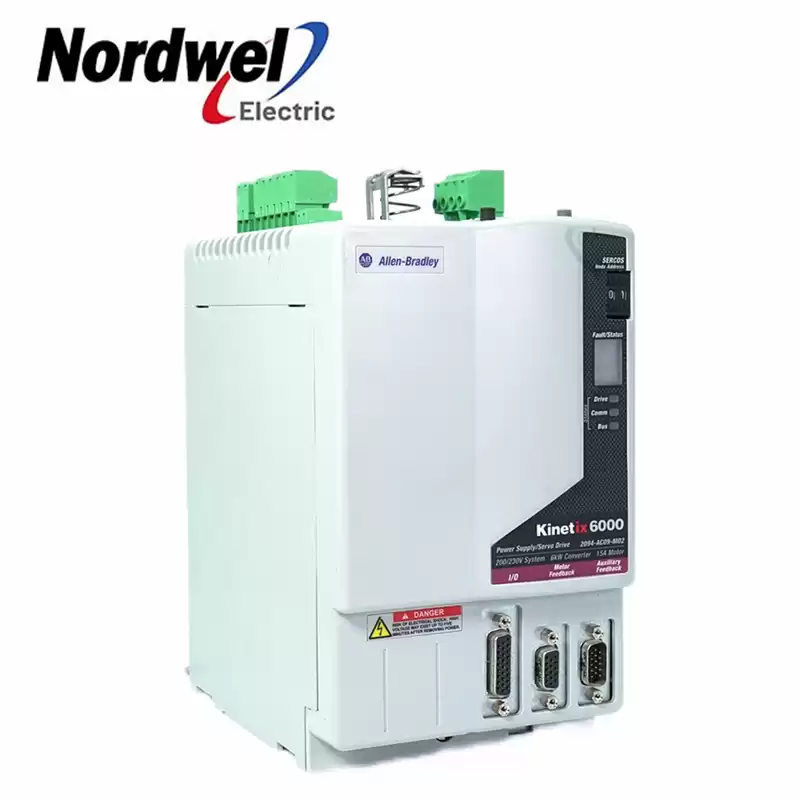

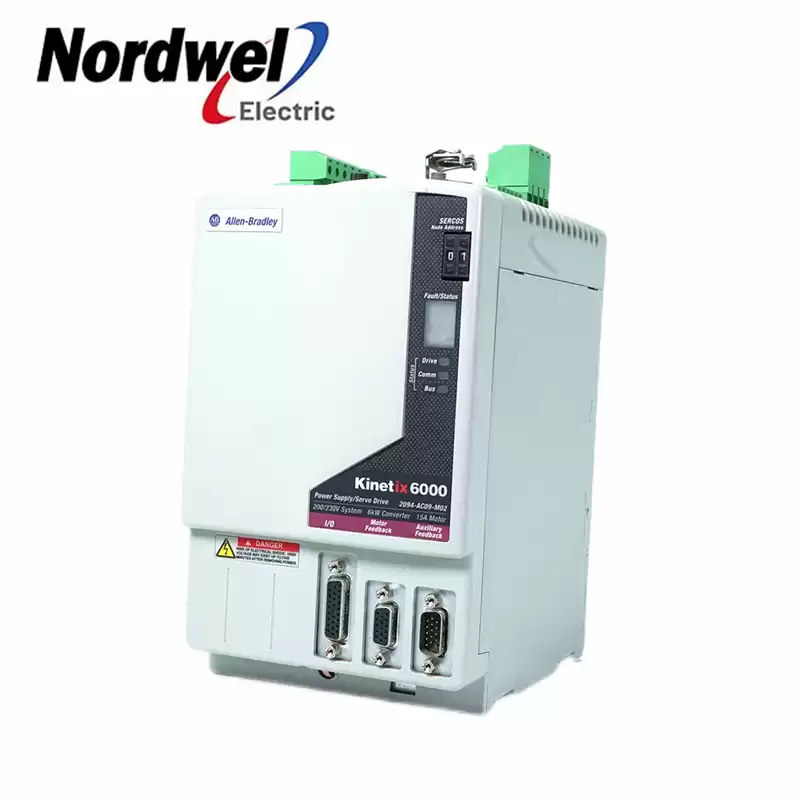

The 2094-AC09-M02 is a 200 Volt class Integrated Axis Module from the Kinetix 6000 Motion control system.
This IAM module operates at an input voltage of 230 Volts AC, 3-Phase. It delivers a continuous output current
to bus of 19 Amperes and continuous output power to bus of 6 Kilowatts. This drive supports common-bus
follower with DC input voltage of 275-375 Volts DC.
Technical Specifications for 2094-AC09-M02
Manufacturer Automation
Bus Overvoltage 425V DC
Part Number/Catalog No. 2094-AC09-M02
Product Description Integrated Axis Module
AC input voltage range 195…264Vrms, 3-Phase
AC input voltage, nominal 230 VAC
DC Input voltage 275-375 VDC
Continuous power output to bus 6 kW
Continuous output current to bus 19 A
Peak power output 12 kW
Bus undervoltage 138V DC
Installation Clearance 50.8 mm (2.0 in.)
Minimum Enclosure Depth 198 mm (7.8 in.)
Mounting location Power Rail
Module Type Axis Module
Series Kinetix 6000
Efficiency 0.95
Continuous Current (RMS) 10.6 Amps
Continuous Current (0 to peak) 15.0 Amps
Line Loss Ride Through 20 milliseconds
AC input voltage 195 to 264 Volts AC
Internal Shunt Continuous Power 50 Watts
Internal Shunt Peak Power 8000 Watts
Shunt On 405 Volts DC
