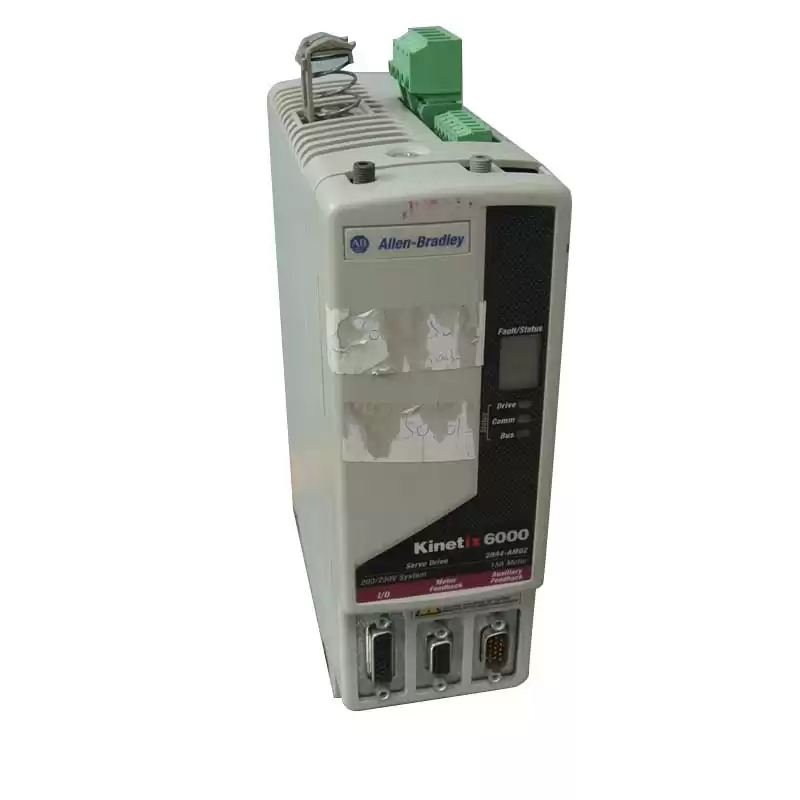

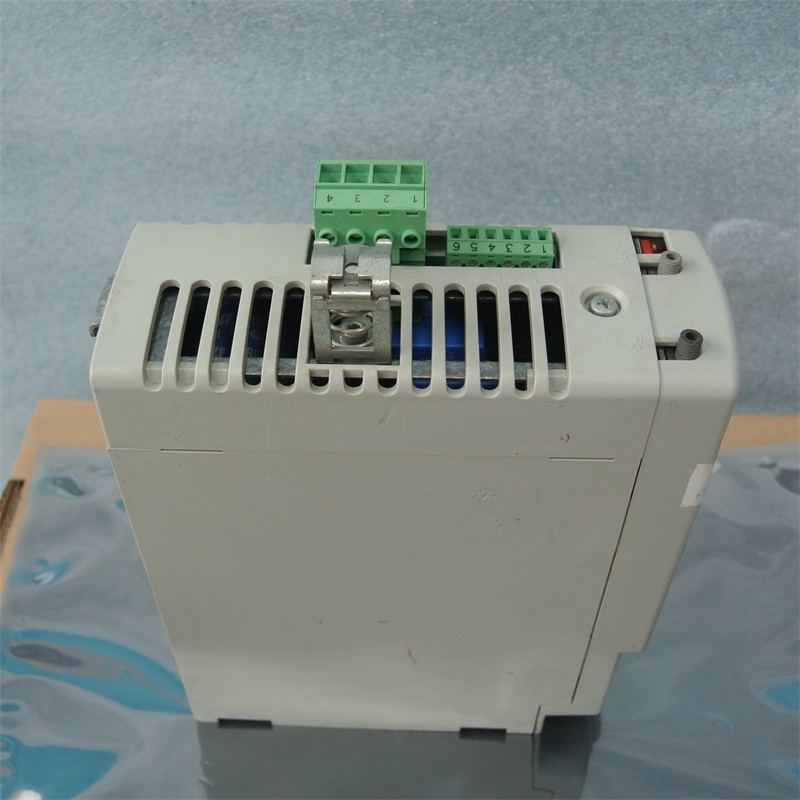

Observe these guidelines when the 2094-AL09 or 2094-BL02 LIM module is used in the Bulletin 2094 system and mounted left of the IAM module:
• The clean zone (C) is to the right and beneath the Bulletin 2094 system (gray wireway).
• The dirty zone (D) is to the left and above the Bulletin 2094 system, and above and below the LIM module (black wireway).
• The very dirty zone (VD) is limited to where the LIM module VAC output jumpers over to the IAM module. Shielded cable is required only if the very dirty cables enter a wireway.
• The Sercos fiber-optic cables are immune to electrical noise, but due to their delicate nature, route them in the clean zone. This layout is preferred due to the reduced size of the very dirty zone.
Observe these guidelines when the 2094-AL09 or 2094-BL02 LIM module is used in the Bulletin 2094 system and mounted above the IAM module:
• The clean zone (C) is to the right and beneath the Bulletin 2094 system (gray wireway).
• The dirty zone (D) is to the left and above the Bulletin 2094 system, and above and below the LIM module (black wireway).
• The LIM VAC output is very dirty (VD). Use shielded cable with a braid clamp attached at both ends of the cable to reduce the rating to dirty (D).
• The Sercos fiber-optic cables are immune to electrical noise, but due to their delicate nature, route them in the clean zone.
