Part Number/Catalog No.
|
2094-AM02-S
|
|
Efficiency
|
98%
|
|
Product Description
|
Axis Module
|
|
Continuous Output Current (rms)
|
10.6 A
|
|
Continuous Output Current (0-pk)
|
15.0 A
|
|
Peak Current (rms)
|
21.2 A
|
|
Peak current (0-pk)
|
30.0 A
|
|
Continuous power out (nom)
|
3.4 kW
|
|
Voltage Class
|
200V
|
|
Nom Drive Voltage
|
200/230VAC (3 Phase)
|
|
Capacitive energy absorption
|
29 J
|
|
Module Type
|
AM 200 Volt Class
|
|
Nom Input Voltage
|
650 Volts DC
|
|
Continuous Current (rms)
|
21.2 Amperes
|
|
Continuous Current (0-peak)
|
15.0 Amperes
|
|
Bandwidth Velocity Loop
|
500 Hertz
|
|
Bandwidth Current Loop
|
1300 Hertz
|
|
Internal Shunt (Continuous Power)
|
N/A
|
|
Internal Shunt (Peak Power)
|
N/A
|
|
Internal Shunt Resistor
|
N/A
|
|
Weight
|
3.4 lbs (1.54 kg)
|

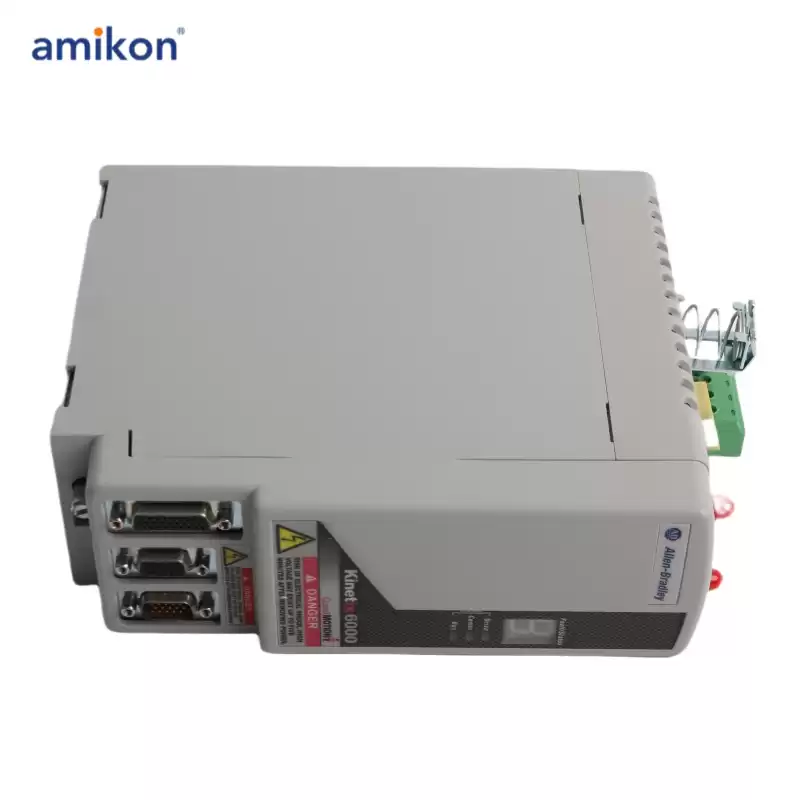

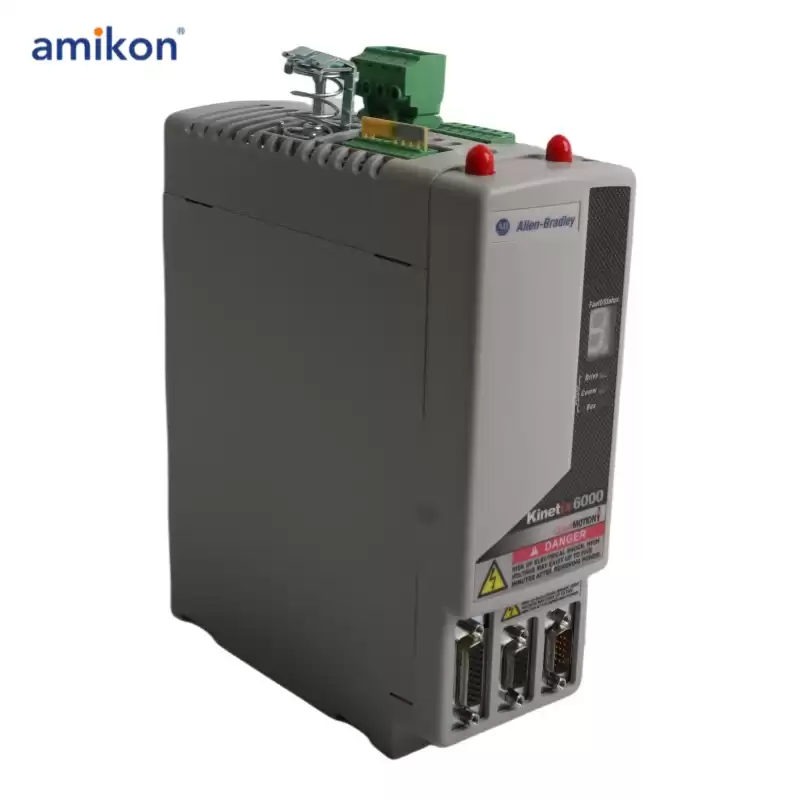

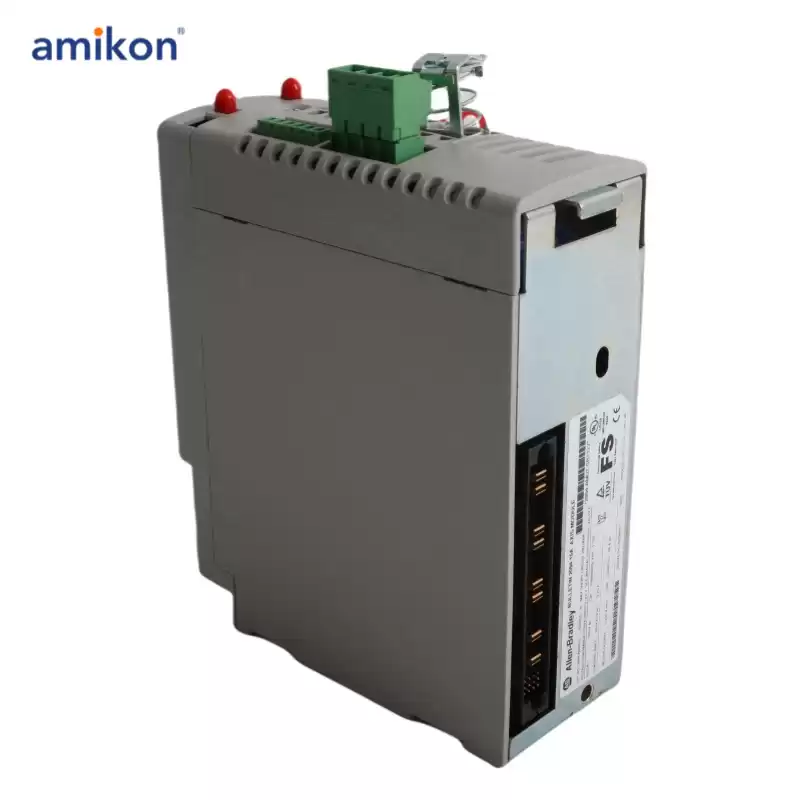

The 2094-AM02-S is a part of a high-performance multi-axis servo drive system with integrated safe torque-off functionality. This safety feature is ISO 13849-1 PLe/SIL3-certified, with a response time of less than 25 milliseconds. When triggered, the drive output is disabled, removing motor torque without shutting down the entire machine. This makes it a flexible and reliable solution for demanding motion control applications.
The 2094-AM02-S axis module is compact yet offers advanced control capabilities. Its modular design simplifies installation and operation, offering fast and easy mounting, configuration, and diagnostics. It is well-suited for applications like material handling, packaging, converting, and assembly processes.
This module operates within the 200 Volt-class range, providing 3.4 kW of continuous power output, a 230 Volts voltage rating, and 15 Amps INV continuous current (RMS). It should not be installed in environments with an ambient temperature exceeding 50°C (122°F).
For installation, up to 7 of the 2094-AM02-S modules can be mounted on a single 8-axis power rail, starting with the IAM module in the leftmost slot. The modules should be arranged in order of continuous power value (kW) or power utilization, from highest to lowest (left to right).
