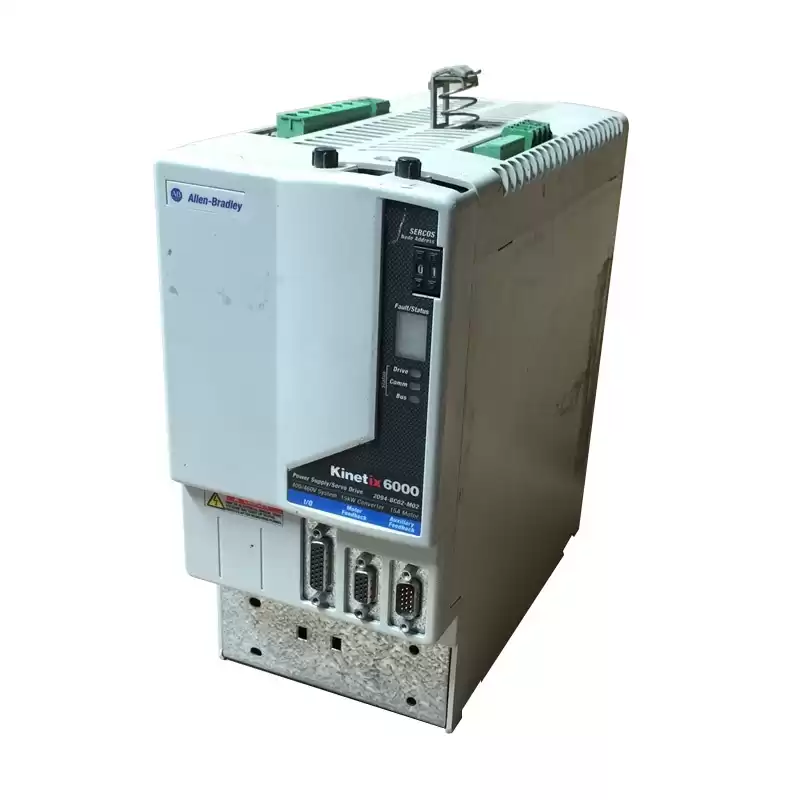

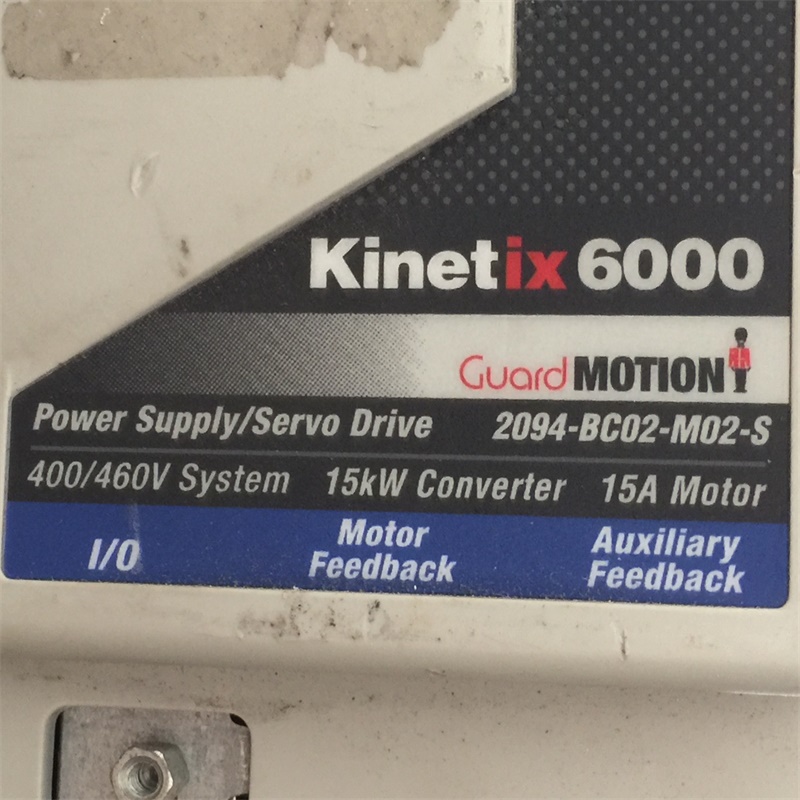

2094-BC02-M02-S Kinetix 6000 Servo Drive

      Description:

• 2094-BC02-M02-S:Bulletin 2094 power rails with Kinetix 6000 (series B and later) or Kinetix 6200 drives are compatible with Kinetix 6000M integrated drive-motor (IDM) systems. The IDM power interface module (IPIM) mounts to the power rail and connects to as many as 16 IDM units.

• To meet CE and UK requirements when your Kinetix 6000 system does not include the LIM module, these requirements apply. • Install 2090-XXLF-xxxx AC line filters for three-phase input power and single-phase control power (for example, Schaffner P/N FN 355-10-05 or Roxburgh P/N RES5F08) as close to the IAM module as possible. • Use Kinetix 2090 motor power cables or use connector kits and terminate the cable shields to the chassis clamp provided. • Combined motor power cable lengths for all Kinetix 6000 axes and hybrid cable lengths for all IDM units on the same DC bus must not exceed 240 m (787 ft) with 400V-class systems or 160 m (525 ft) with 200V-class systems. Drive-to-motor power cables must not exceed 90 m (295.5 ft). • Use Kinetix 2090 motor feedback cables or use connector kits and properly terminate the feedback cable shield. Drive-to-motor feedback cables must not exceed 90 m (295.5 ft). • Install the Kinetix 6000 system inside an enclosure. Run input power wiring in conduit (grounded to the enclosure) outside of the enclosure. Separate signal and power cables.
