Technical Specifications for 2094-BC07-M05-S
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
44.0 Amperes
|
|
Part Number/Catalog No.
|
2094-BC07-M05-S
|
Input Voltage
|
458…747V DC
|
|
Module Type
|
Integrated Axis Module
|
Power Dissipation
|
200 Watts
|
|
Manufacture Year
|
2022
|
Output Current
|
67.7 A
|
|
Product Package
|
Original Package
|
UPC
|
820919595691
|

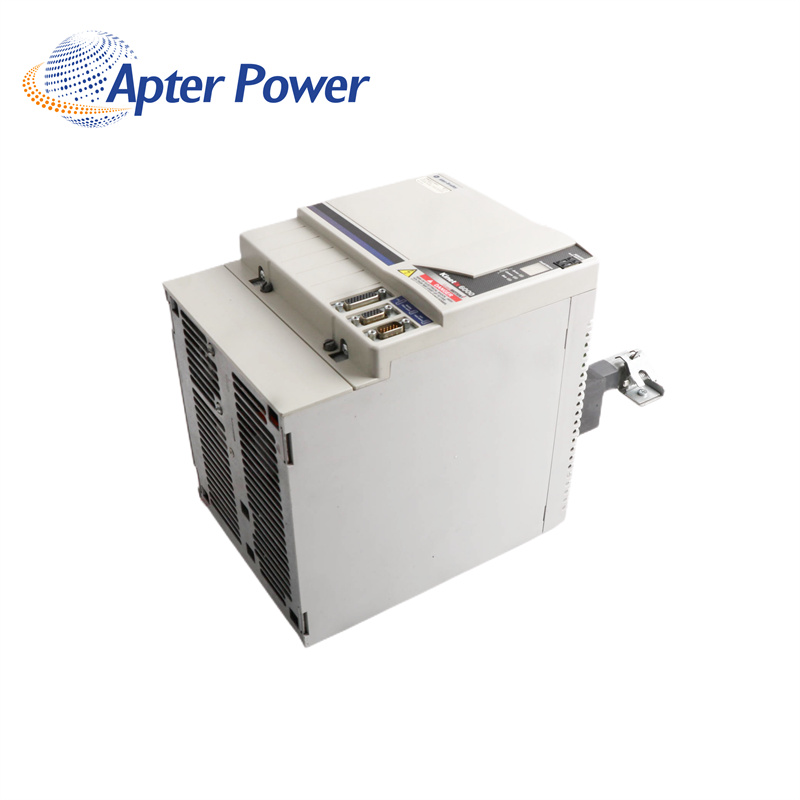

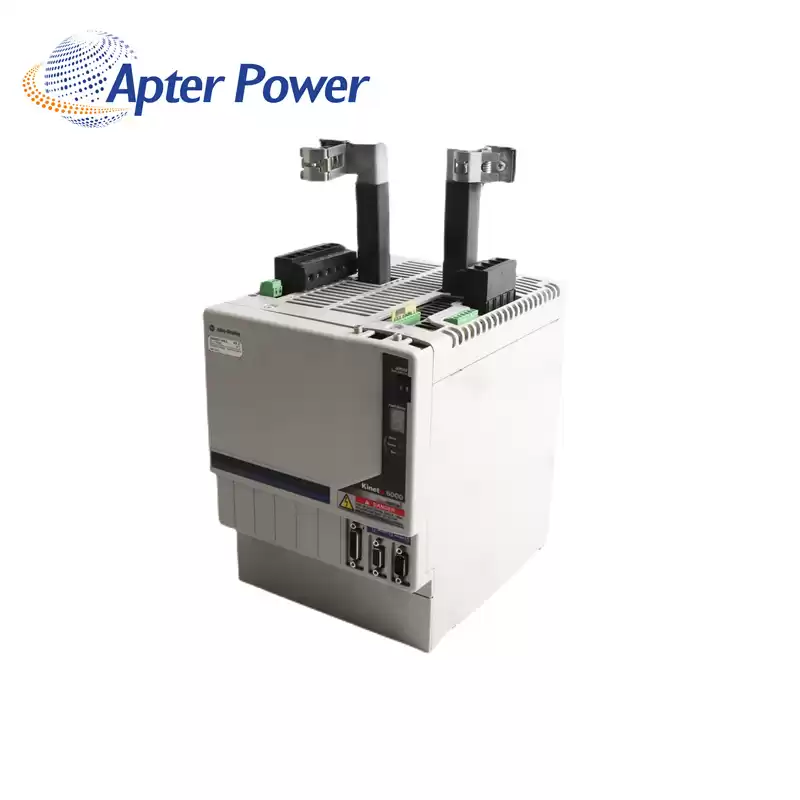

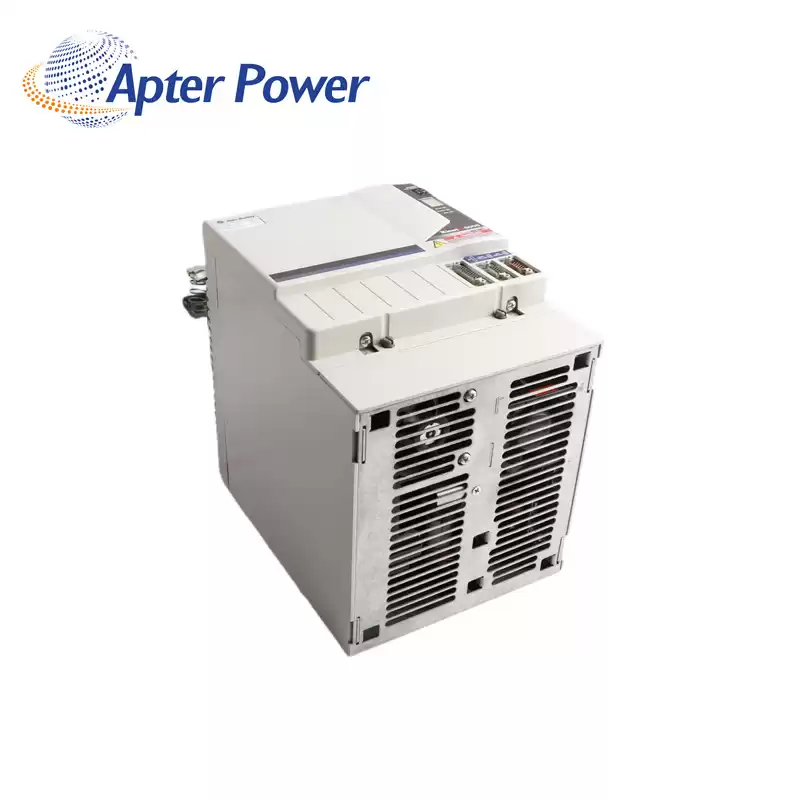

About 2094-BC07-M05-S
|
The 2094-BC07-M05-S is a part of the Drive under Kinetix 6000, 400 Volt class with an Internal Shunt (Continuous Power) of 200 Watts, an Internal Shunt (Peak Power) of 22.5 Kilowatts, and an Internal Shunt Resistor of 28.75 Ohms. This module has 97% efficiency and weighs 10.1 kilograms or 22.3 pounds.
The 2094-BC07-M05-S is integrated with Safe Torque-off feature. This particular catalog number is available in Three (3) series, specifically series A with standard overload support while Series B and C has Standard or Peak Enhanced option. The 2094-BC07-M05-S operates within 324 to 528 Volts RMS. Under a three-phase power system, the 2094-BC07-M05-S has an AC Input Current of 71 Amperes and an AC Input Current (Max Inrush 0-peak) of 62.2 Amperes.
|
