Technical Specifications for 2094-BM02-S
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Efficiency
|
98%
|
|
Part Number/Catalog No.
|
2094-BM02-S
|
Input Voltage
|
460 Volts
|
|
Module Type
|
Digital Output Module
|
Peak Current
|
25.8 A
|
|
Manufacture Year
|
2021
|
Brake Current Value
|
1 or 3 Amps
|
|
Product Package
|
Original Package
|
UPC
|
820919595714
|

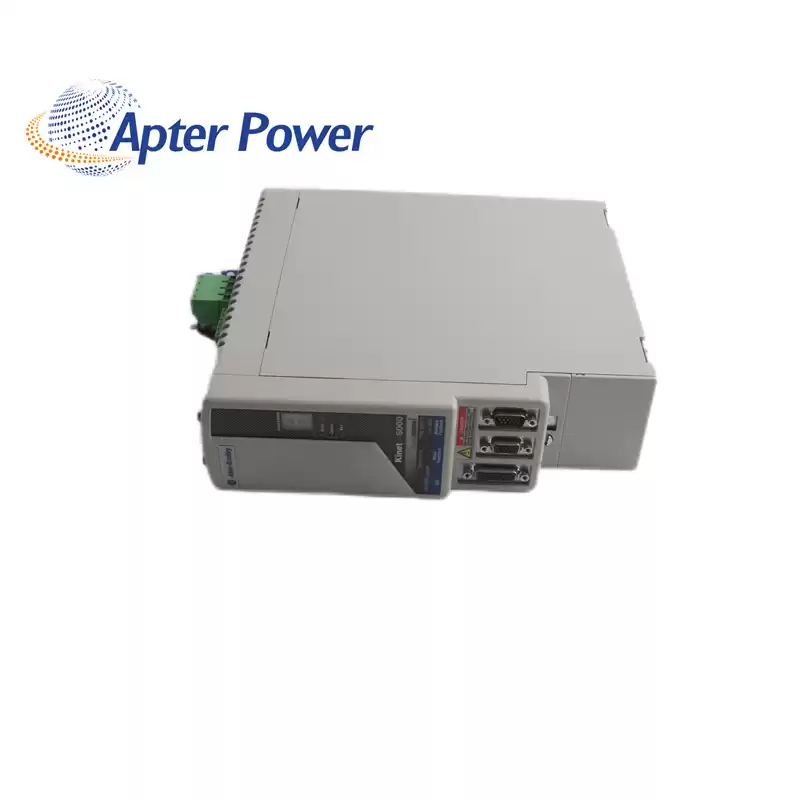

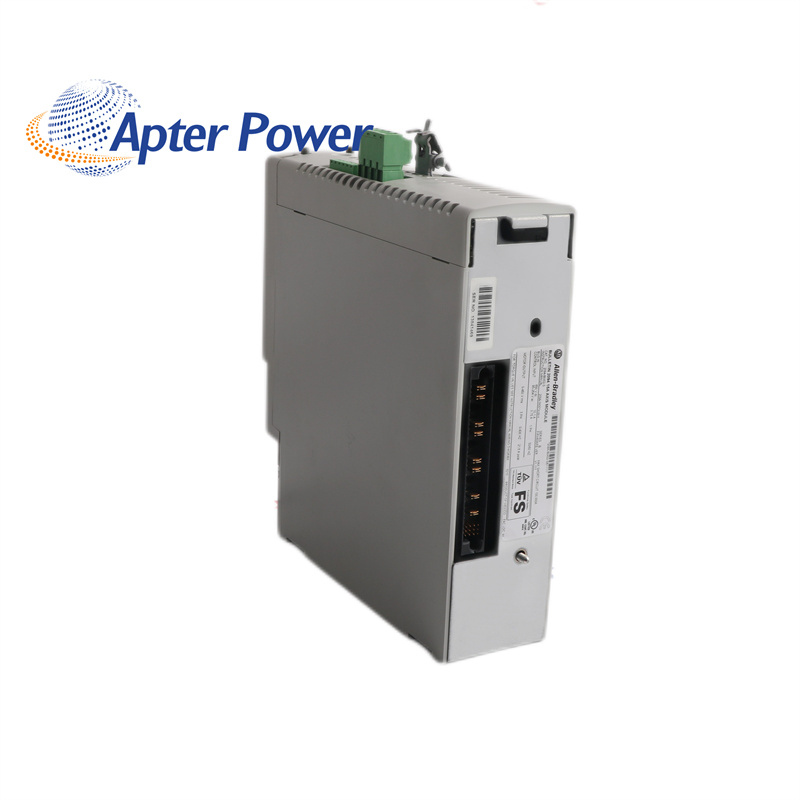

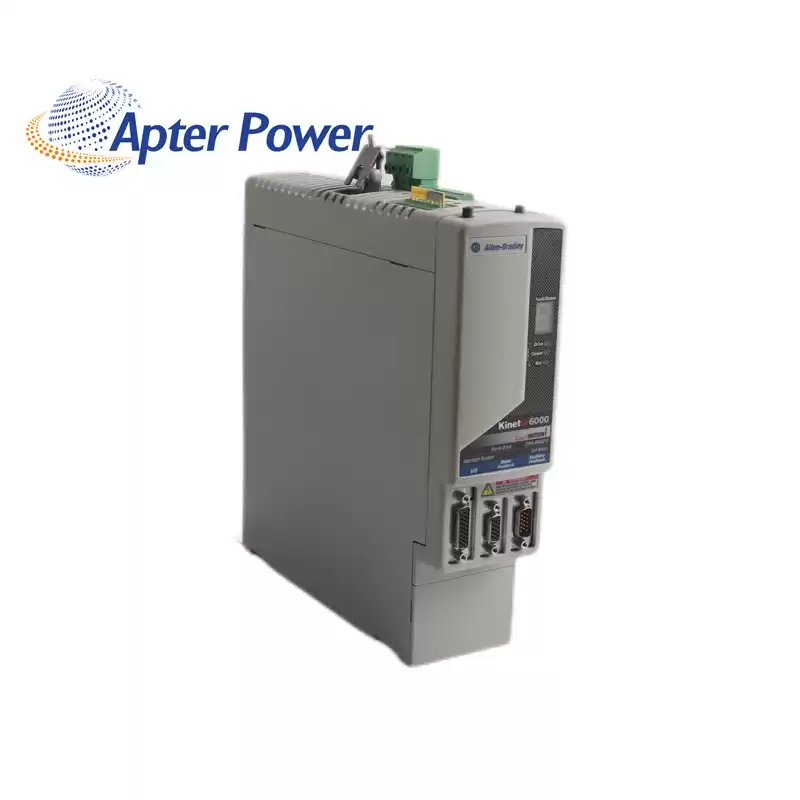

About 2094-BM02-S
|
The 2094-BM02-S supports bandwidth velocity loop frequency of 500 Hz and Current loop frequency of 1300 Hz with Pulse Width Modulation (PWM) frequency of 4 kHz. The nominal input voltage of this axis module is 650VDC with continuous current requirement (rms) of 10.3 Amperes and continuous Current (sine) 0-pk of 14.6 Amperes.
The 2094-BM02-S is a multi-axis module that is a component product of the Kinetix 6000 Multi-Axis Drive Servo system. This module comes with an integrated Safe-Torque Off (STO) safety functionality that can be applied for applications that require up to Safety Integrity Level (SIL) 3 and Performance Level (PLe).
This axis module is a single wide module that supports up to Seven (7) for each 8-axis power rail.The 2094-BM02-S has a continuous current (rms) of 10.3 Amperes and continuous current (sine) 0-pk of 14.6 Amperes with efficiency of 98% and 200,000 Ampere (rms) symmetrical, short circuit current rating. This axis module has a 115 Ohm internal shunt resistor with internal shunt continuous power of 50 Watts and peak power of 5.6 kWatts.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
