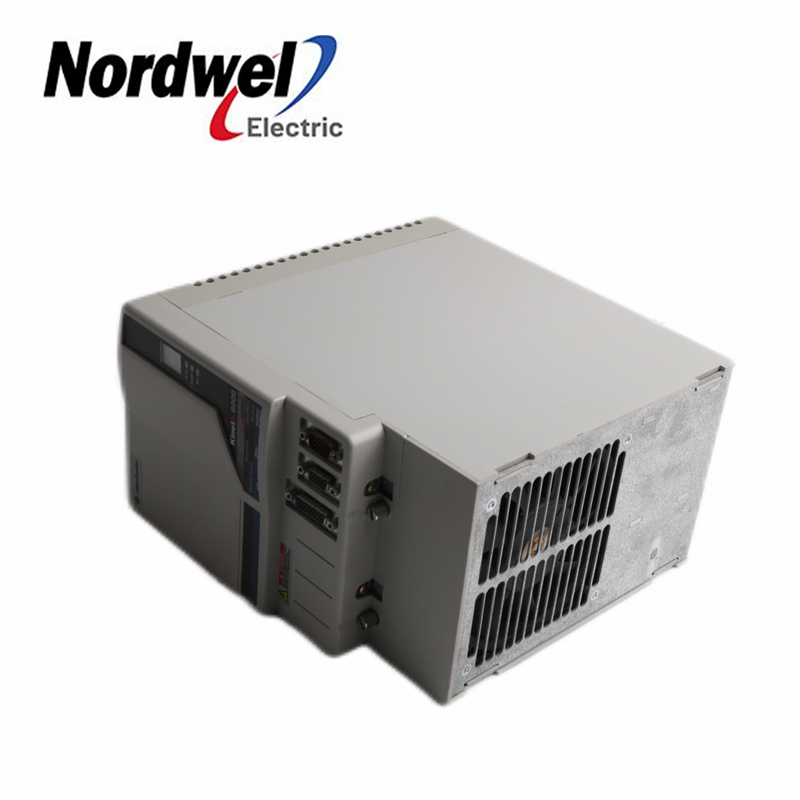

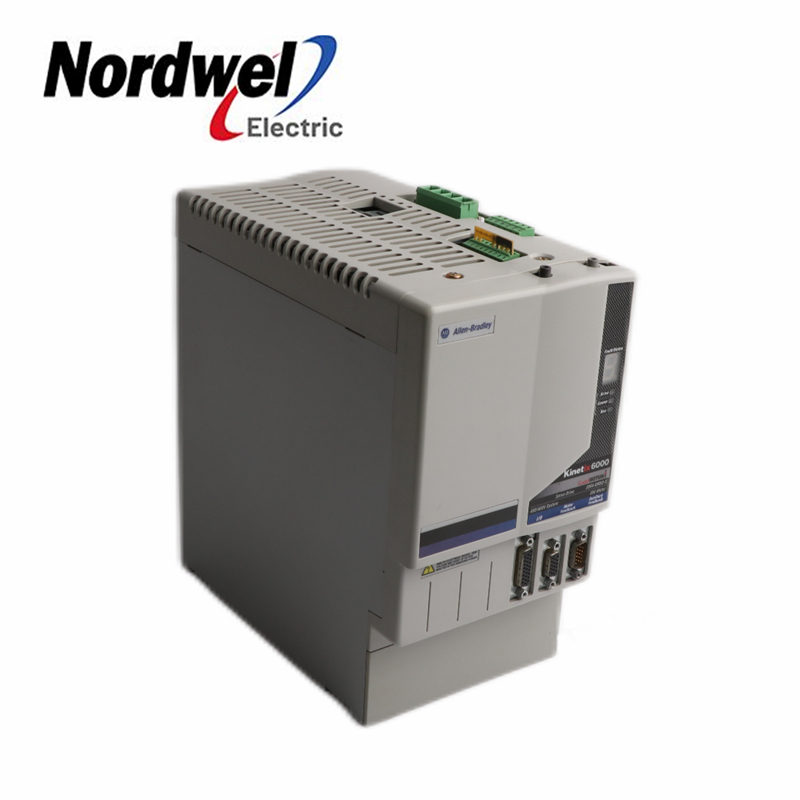

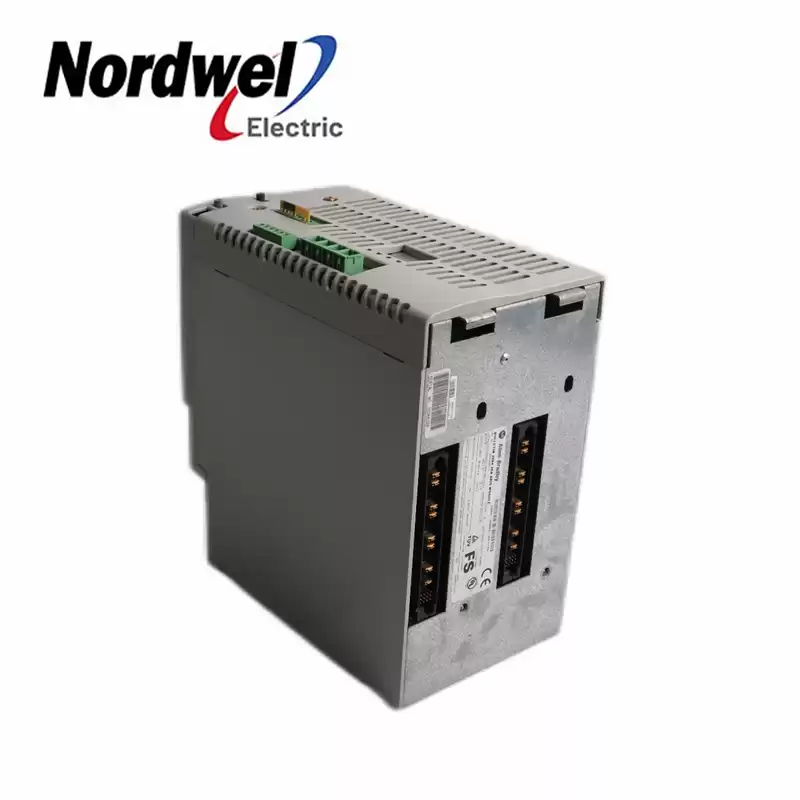

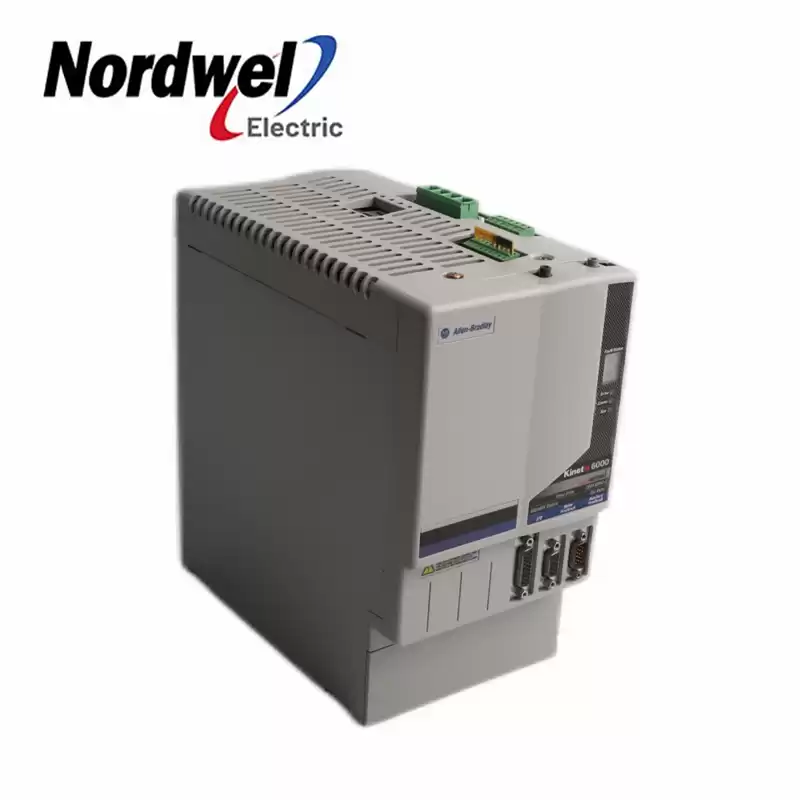

The 2094-BM03-S is a Kinetix 6000 Drive component. This module is a 400VAC class Axis Module
with continuous current of 21.2 A and peak current of 53.0 A. It has an efficiency of 98% and short-circuit current
rating of 200,000 A (rms) symmetrical and integrated Safe Torque-off feature.
Technical Specifications for 2094-BM03-S
Part Number/Catalog No. 2094-BM03-S
Efficiency 98%
Manufacturer Automation
Product Description Integrated Axis Module
Continuous Output Current 21.2 A
Continuous Output Current (sine) 30.0 A
Peak Current 53.0 A
Continuous power out (nom) 13.5 kW
Rated Output Power Range 94-255 Watts
Voltage Class 400V
Nom Drive Voltage 360-480 Volts (3 Phase)
Internal Shunt continuous power 200W
Internal shunt peak power 22.5 kW
Module Type AM 400 Volt Class
Nom Input Voltage 650 Volts DC
Continuous Current (rms) 21.2 Amperes
Continuous Current (sine, 0-peak) 30.0 Amperes
Bandwidth Velocity Loop 500 Hertz
Bandwidth Current Loop 1300 Hertz
Internal Shunt (Continuous Power) 200 Watts
Internal Shunt (Peak Power) 22.5 Kilowatts
Internal Shunt Resistor 115 Ohms
