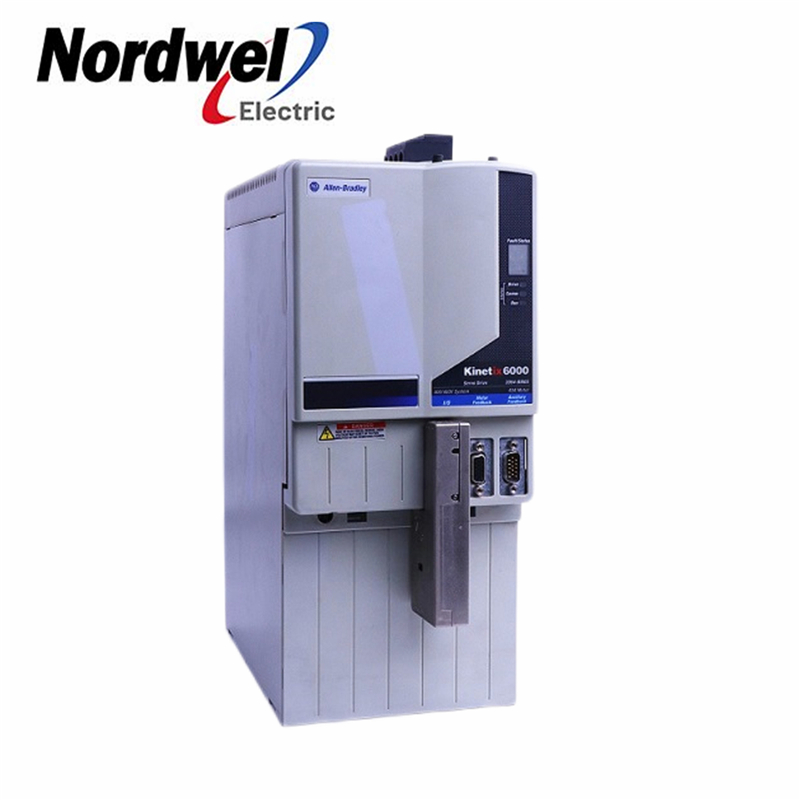

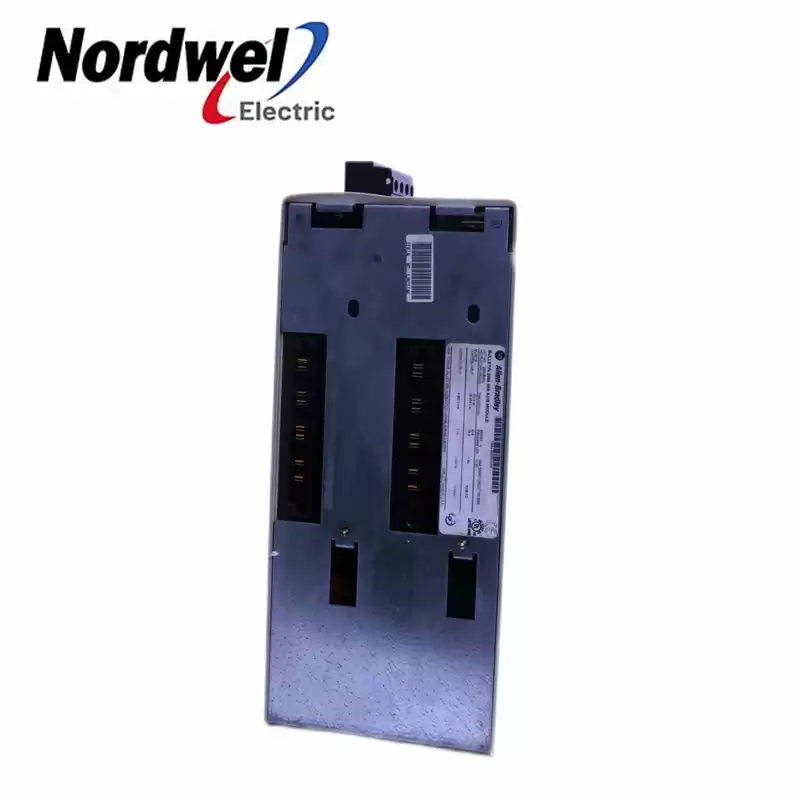

The 2094-BM05 Kinetix 6000 module is an AM (Axis Module) inverter has a 500 Hertz velocity loop Bandwidth and a 1300 Hertz current loop Bandwidth. This module has a 755 Volt DC shunt OFF and an 805 Volt DC shunt ON. It is rated as 97% efficiency.
Technical Specifications for 2094-BM05
Manufacturer Automation
Brand
Part Number/Catalog No. 2094-BM05
Module Type Axis Module
Series Kinetix 6000
Efficiency 0.97
Continuous Current (rms) 34.6 Amps
Continuous Current (0-peak) 48.9 Amps
PWM frequency 4 kHz
Bandwidth Velocity loop 500 Hertz
Internal Shunt Continuous Power 200 Watts
Internal Shunt Peak Power 22,300 Watts
Nominal Input Voltage 650 Volts DC
Shunt On 805 Volts DC
