Parameter
|
Details
|
|
Part Number/Catalog No.
|
2097-V34PR5
|
|
Input Voltage
|
480 VAC, 3-Phase
|
|
Power Dissipation
|
58 Watts
|
|
Product Description
|
2097 Kinetix 350 Ethernet I/P Single Drives
|
|
Input Frequency
|
48…62 Hz
|
|
Output Current
|
5.7 A
|
|
Output Power
|
2.0 kW
|
|
Communication Port
|
One (1) Ethernet port
|
|
Safe Torque Off (STO)
|
Integrated
|
|
Mounting
|
Panel Mount
|
|
Drive Voltage
|
480 Volts (Three Phase)
|
|
Continuous Output Current (0-peak)
|
5.7 Amperes
|
|
Torque Value
|
5.0-7.0 lbin (0.56-0.79 Nm)
|
|
Safe Torque-Off
|
Yes
|
The 2097-V34PR5 is a single-axis servo drive designed for applications requiring Ethernet I/P connectivity. As part of the Kinetix 300 Ethernet I/P indexing servo drive family, it offers a cost-effective solution for systems with fewer control axes. Its integrated Ethernet I/P interface simplifies network integration, allowing for seamless communication within modern Ethernet I/P networks.
This drive operates with an external AC input voltage of 480VAC, 3-phase, and features an integrated Safe Torque-Off (STO) function. It delivers a continuous output current of 5.7 A and a power output of 2.0 kW. Proper installation requires a minimum side clearance of 3 mm (0.12 inches) and a top and bottom clearance of 25 mm (1.0 inch) for adequate airflow. Additionally, when installed near noise-sensitive devices, an extra clearance of 150 mm (6.0 inches) is necessary. Further space may be needed depending on any additional accessories used with the drive.

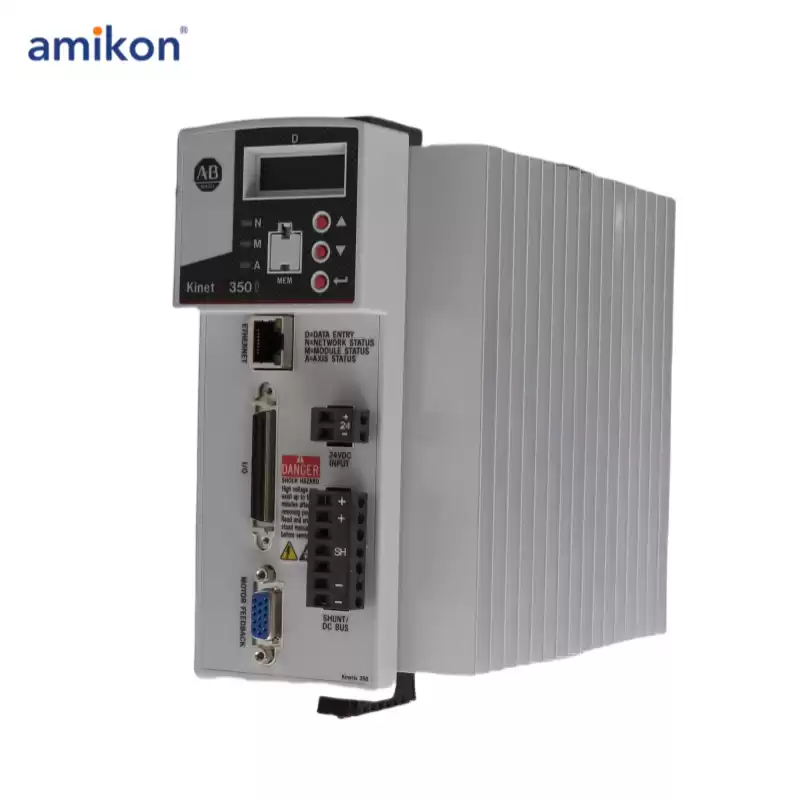

The front panel of the servo drive includes multiple embedded interfaces: an Ethernet communication port, shunt resistor and DC bus (BC) connector, motor feedback (MF) connector, I/O (IOD) connector, and backup power (BP) connector.
