To meet CE requirements, these requirements apply:
• Install an AC line filter (Kinetix 2090 or 2097) as close to the drive as possible.
• Use Kinetix 2090 motor power cables or use connector kits and terminate the cable shields to the subpanel with the clamp provided.
• Use Kinetix 2090 motor feedback cables or use connector kits and properly terminate the feedback cable shield. Drive-to-motor power and feedback cables must not exceed 20 m (65.6 ft).

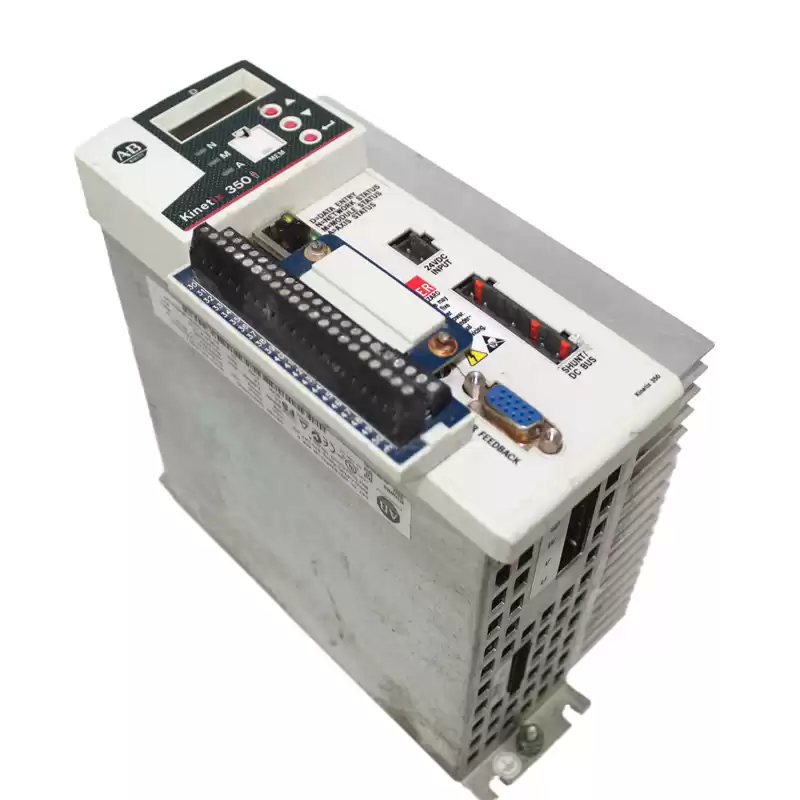

• Install the Kinetix 350 system inside an enclosure. Run input power wiring in conduit (grounded to the enclosure) outside of the enclosure.
Separate signal and power cables.
• Isolate input power wiring and motor power cables from control wiring and motor feedback cables. Use shielded cable for power wiring and provide a grounded 360° clamp termination.
