Part Number/Catalog No.
|
2097-V34PR6
|
|
Input Voltage
|
320-528V rms three-phase (480V nom)
|
|
Integrated AC Line Filter
|
No
|
|
Product Bulletin
|
2097 Kinetix 300 Drives
|
|
Product Description
|
2097 Kinetix 300 Ethernet I/P Indexing Drives
|
|
Input Frequency
|
48…62 Hz
|
|
Main AC input current, Nom (rms)
|
7.9 A
|
|
Max inrush
|
22.6 A
|
|
Control power back-up input voltage
|
20…26V DC
|
|
Control power back-up input current, nominal
|
500 mA
|
|
Control power back-up input current, max. inrush
|
30 A
|
|
Continuous output current (rms)
|
6.0 A
|
|
Continuous output current (0-pk)
|
8.5 A
|
|
Peak output current (rms)
|
18.0 A
|
|
Peak output current (0-pk)
|
25.5 A
|
|
Continuous power output
|
3.00 kW
|
|
Drive Voltage
|
480 Volts (Three Phase)
|
|
Continuous Output Current (0-peak)
|
8.5 Amperes
|
|
Power Dissipation
|
99 Watts
|

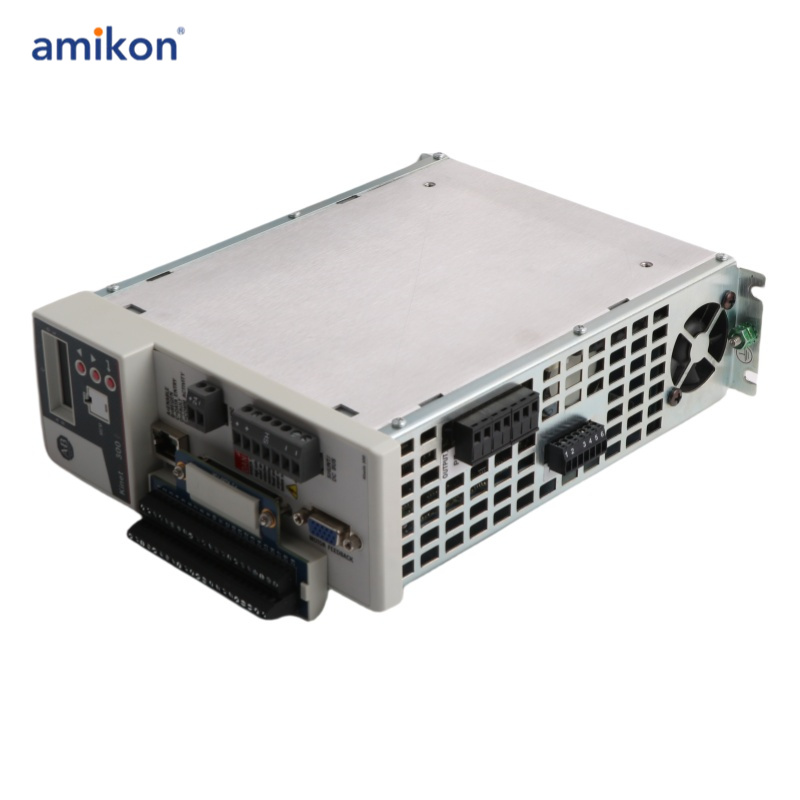

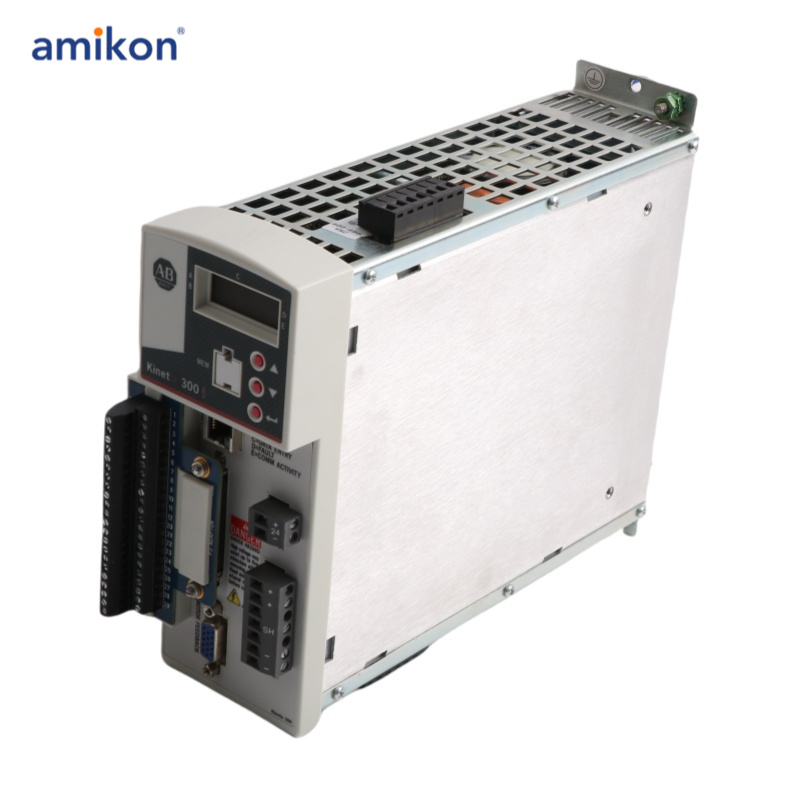

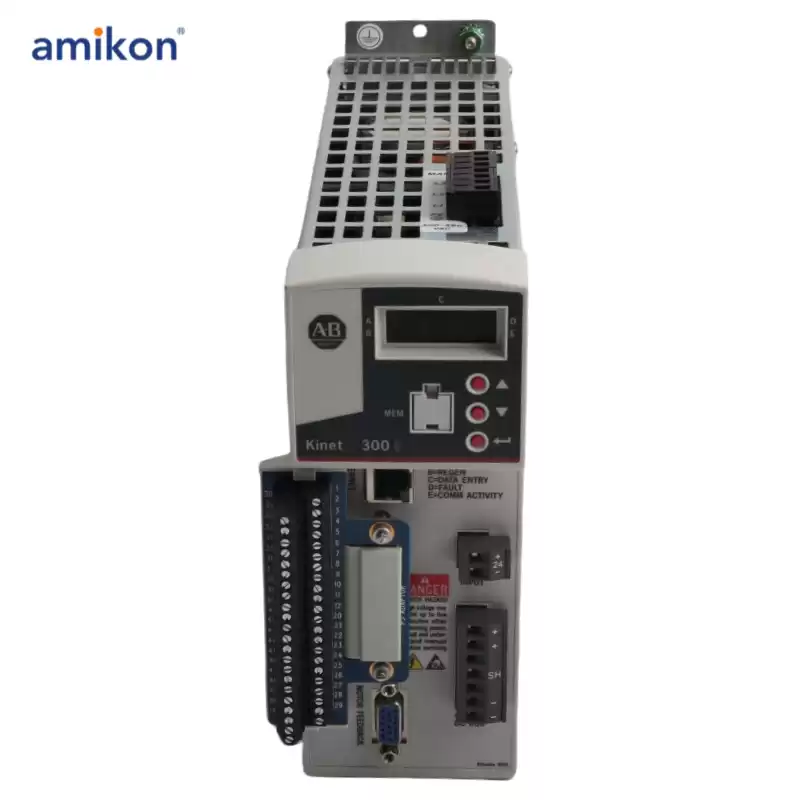

The 2097-V34PR6 is a servo drive from the Kinetix 300 family designed for motion control applications over an Ethernet I/P network. This drive is highly compatible with various controllers, including the MicroLogix 1400 and other Logix-based systems such as ControlLogix. It supports seamless integration with a range of compatible linear and rotary actuators, including the Kinetix MP and TLY Rotary Motors, Kinetix MPAI Heavy-duty Electric Cylinders, Kinetix MPAR Electric Cylinders, LDAT-Series Linear Thrusters, LDC-Series™ Linear Motors, LDL-Series™ Linear Motors, and Kinetix MPAS Integrated Linear Stages.
The 2097-V34PR6 operates on a 3-phase AC input voltage range of 320-528V rms, with a nominal supply voltage of 480V. It is equipped with Safe Torque-Off functionality for enhanced safety. The drive offers output capabilities of 8.5 A current and 3.0 kW power. Additionally, it integrates well within systems using advanced control architectures.
