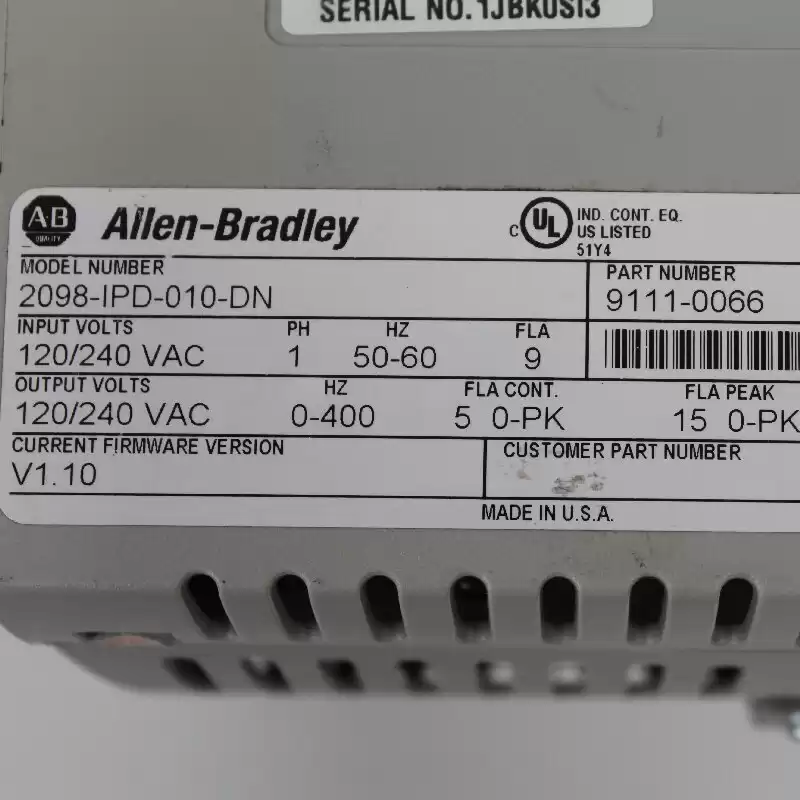

The 2098-IPD-010-DN is an Allen-Bradley Ultra 5000 Drive. This unit has an input Current of 9 amperes. It offers an output current of 5 amperes.

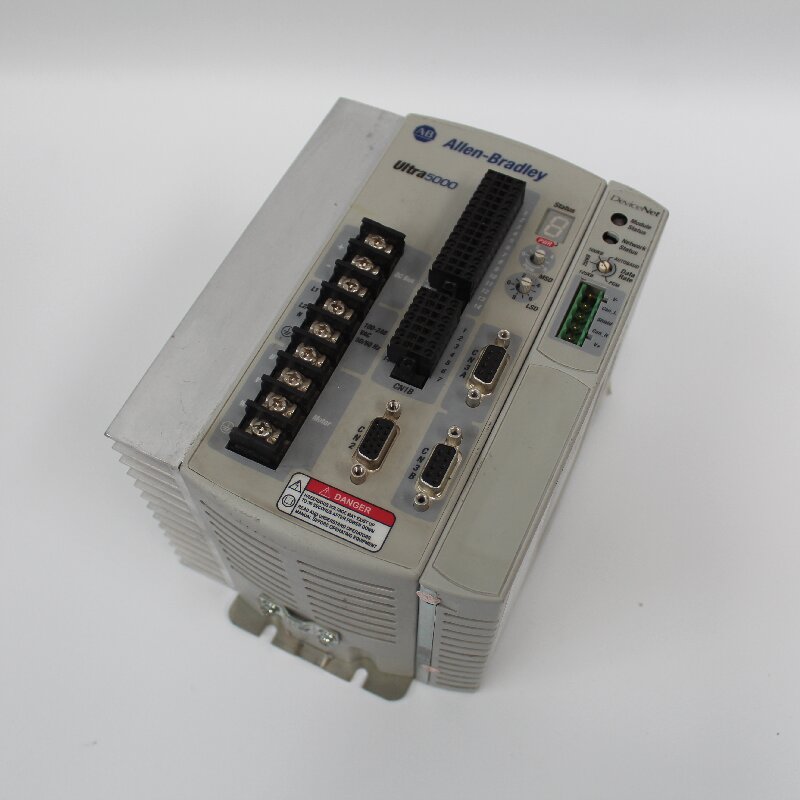

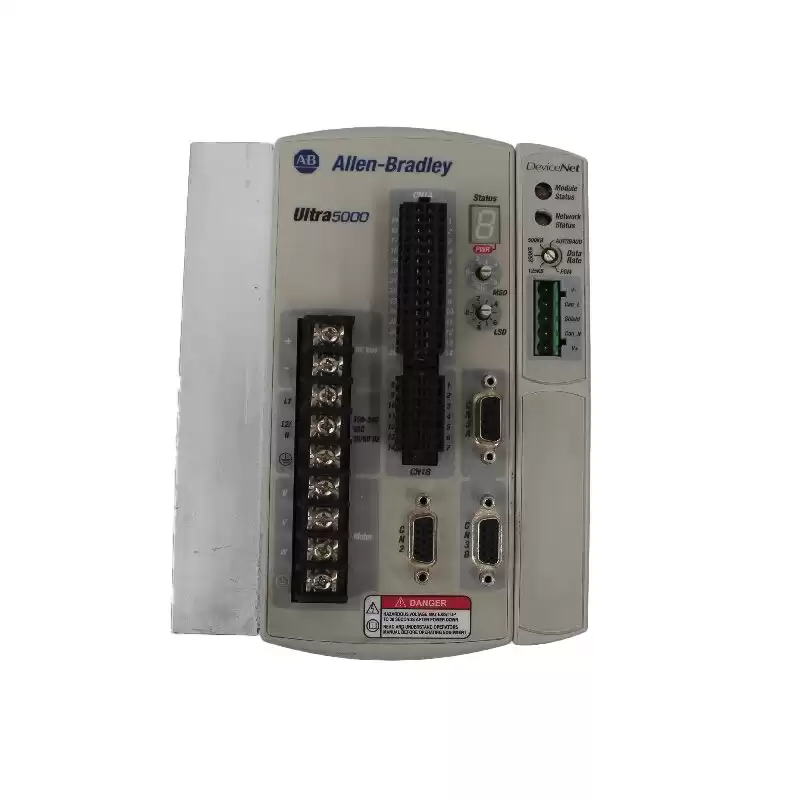

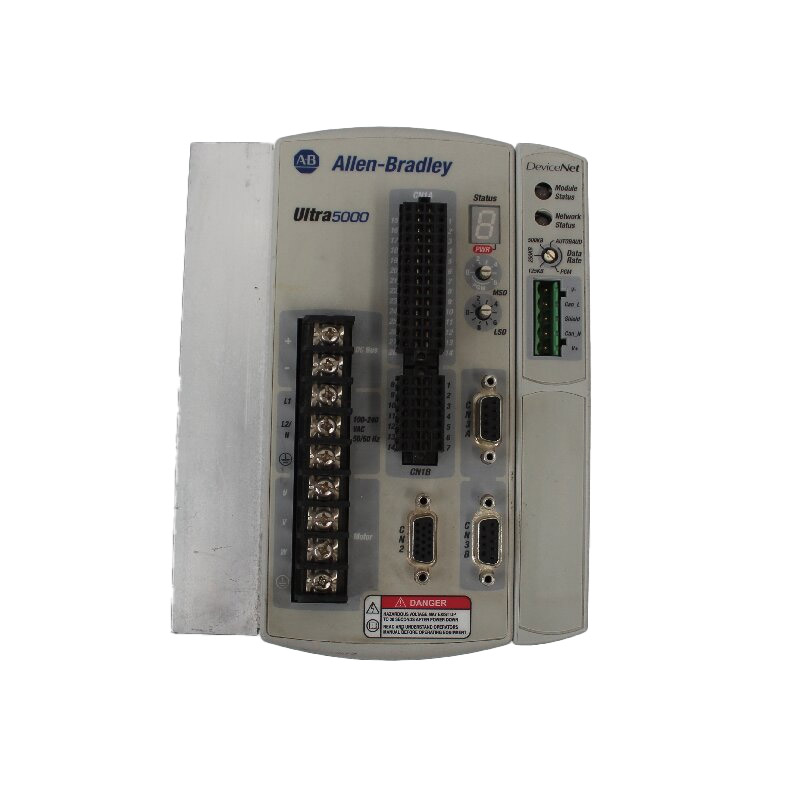

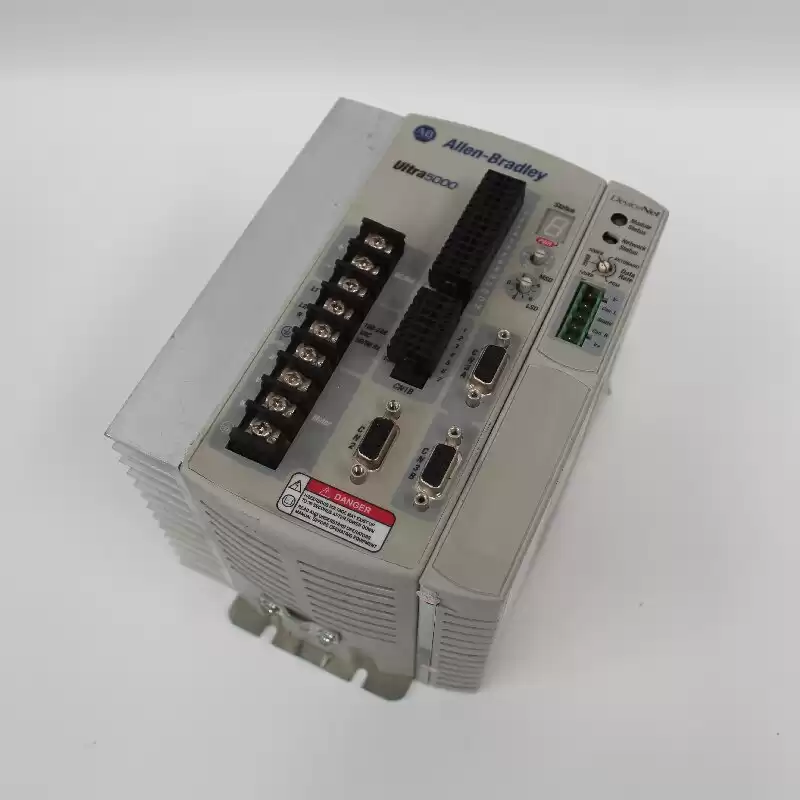

The Allen-Bradley 2098-IPD-010-DN Ultra5000 Intelligent Positioning Drive is a high-performance digital signal processing (DSP) servo drive. It has a built-in DeviceNet-compatible network communication system. The Allen-Bradley 2098-IPD-010-DN Ultra5000 Intelligent Positioning Drive is a fully programmable, high-performance positioning servo drive with modern DSP (Digital Signal Processing) control system. It also has a very effective power section, supported by its Integrated Power Module or IPM. This unit can be programmed with the desired motion commands using an ANSI C format. This Allen-Bradley 2098-IPD-010-DN Ultra5000 Intelligent Positioning Drive supports high-speed position capture with latencies of no more than 1 microsecond. The Allen-Bradley 2098-IPD-010-DN Ultra5000 Intelligent Positioning Drive has a continuous rated power output of 1 kilowatt. This unit weighs 4.55 pounds or around 2.06 kilograms, and it possesses overall dimensions of 5.50 inches by 5.69 inches by 8.08 inches. This machine has 16 inputs which are optically isolated, as well as 7 outputs, which are also optically isolated. There is a single relay output which defaults to open position.
The Allen-Bradley 2098-IPD-010-DN Ultra5000 Intelligent Positioning Drive requires single-phase AC input power at 100 Volts to 240 Volts. The AC input frequency must be in the range of 47 to 63 Hertz. This unit has a nominal AC input current of only 9 Amperes. The Allen-Bradley 2098-IPD-010-DN Ultra5000 Intelligent Positioning Drive has rated output currents amounting to 3.5 Amperes (continuous) and 10.6 Amperes (peak). The bus capacitance is 1880 microfarads. This unit features power dissipation which tops out at a total of 48 Watts.
