20A/5mA Micro Precision High Current Transformers
High precision current transformer mainly used in current measurements, power meter, current control circuit. Materials UL94V-0. Insulation Rating Class F (155OC). Lsolated withstand voltage:3000V. Built-in busbar.
New designing electronic20A/5mA precision current transformer from Hefei Mycoil Technology Co., LTD. High quality and factory price, all materials are environmental protected, we accept small order, we can make tooling to meet customer's different specifications.
Quick Details
|
Part No: MCT13A055APrecision Current Transformer |
|
Brand name: MCT |
|
Operating temperature：-40°C~50°C |
|
Custom made: Available |
|
Storage temperature:-40°C~70°C |
|
Logo: Can be customized |
|
Relative humidity:10~95% |
|
Packing: Carton, can custom |
|
Rated input current:5A,20A |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name: 20A/5mA Micro Precision High Current Transformers
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay
protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner
packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
|
MCT PN |
Rated IN/OUT |
Accuracy |
Linearity Range |
Phase shift |
Load resistance |
Isolated withstand voltage |
Threading aperture, Unit:mm |
|
MCT13A05 |
5A/5mA |
0.5 |
0~20A |
≤15’ |
≤50Ω |
3000V |
Φ5 |
|
MCT13A20 |
20A/5mA |
0.5 |
0~30A |
≤15’ |
≤500Ω |
3000V |
Φ5 |

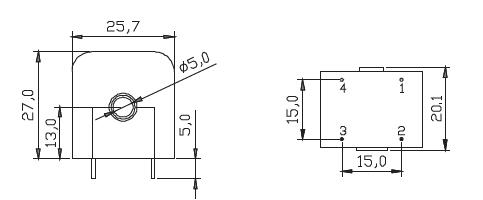

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
