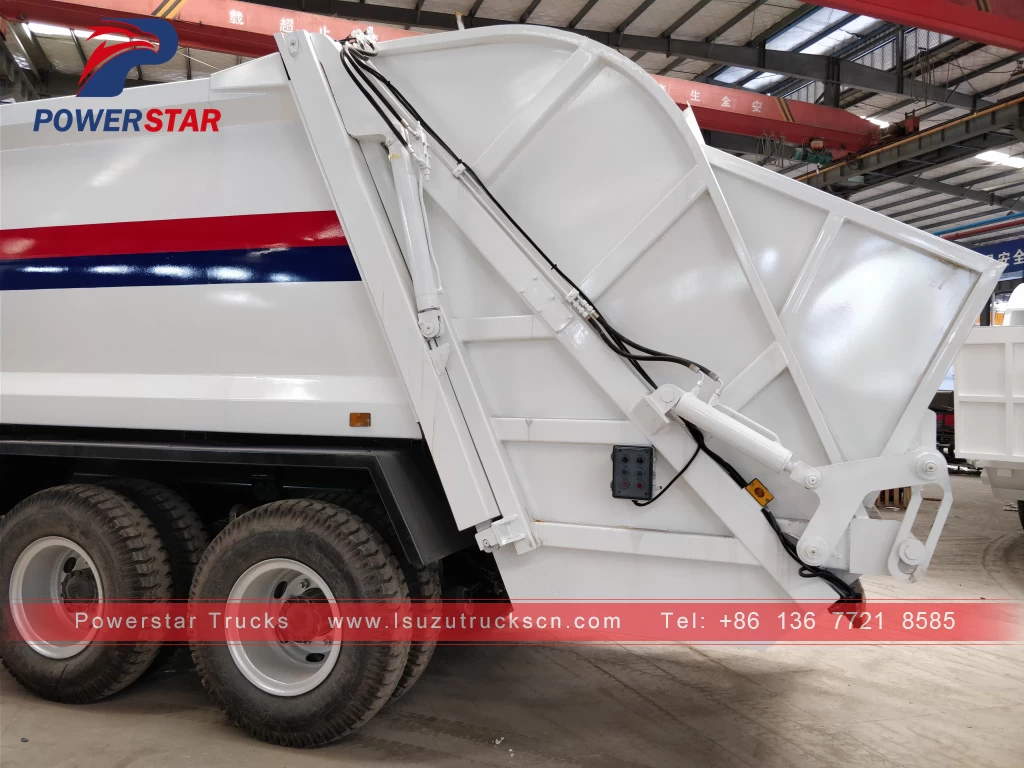

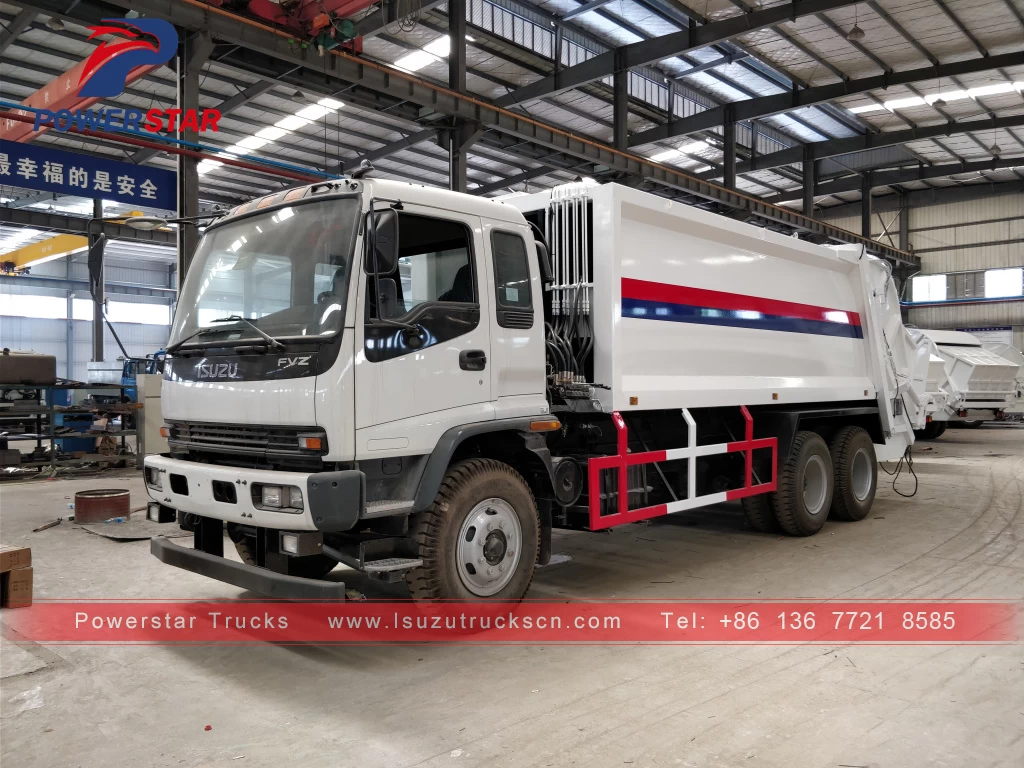

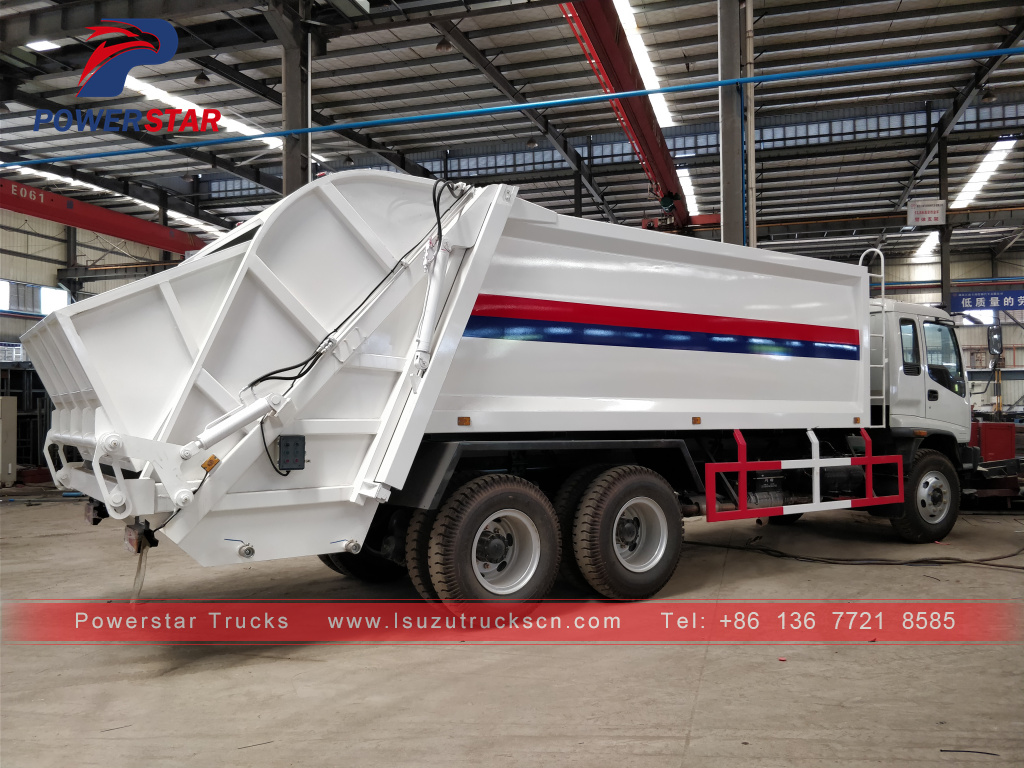

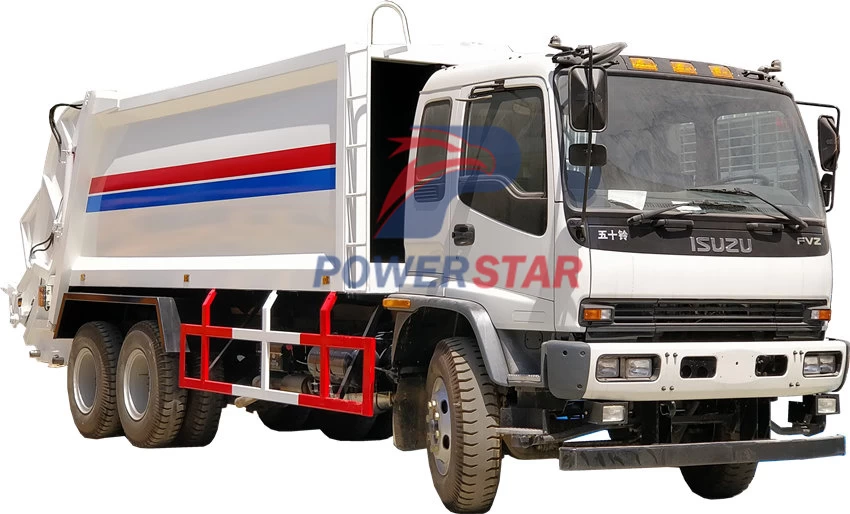

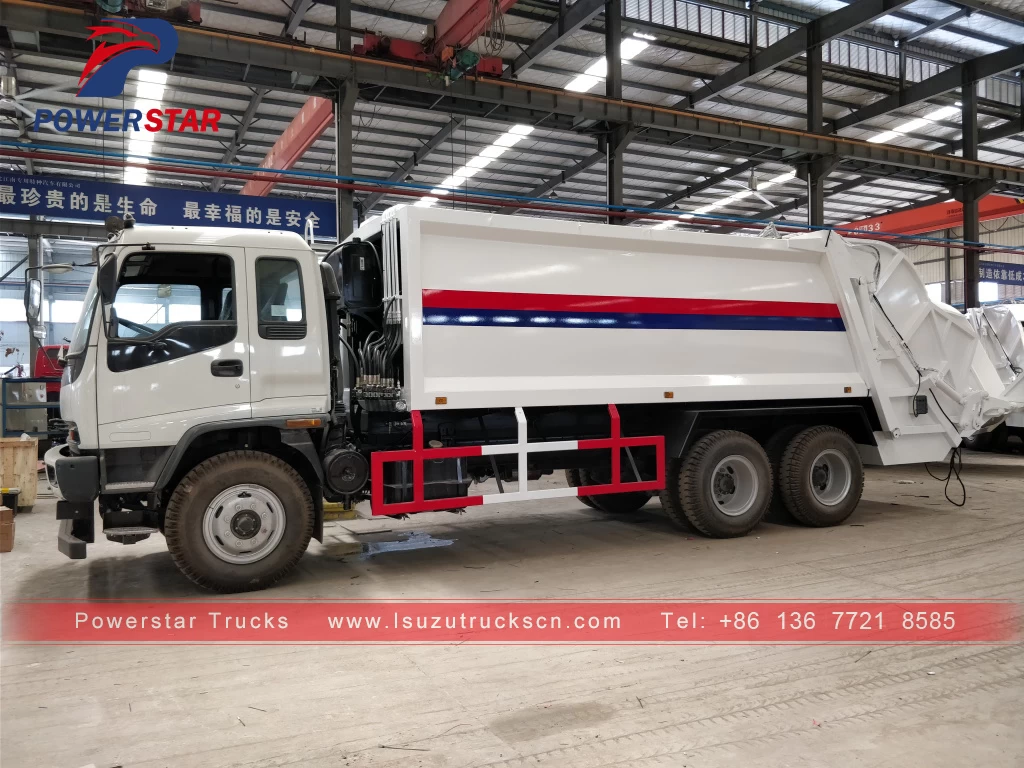

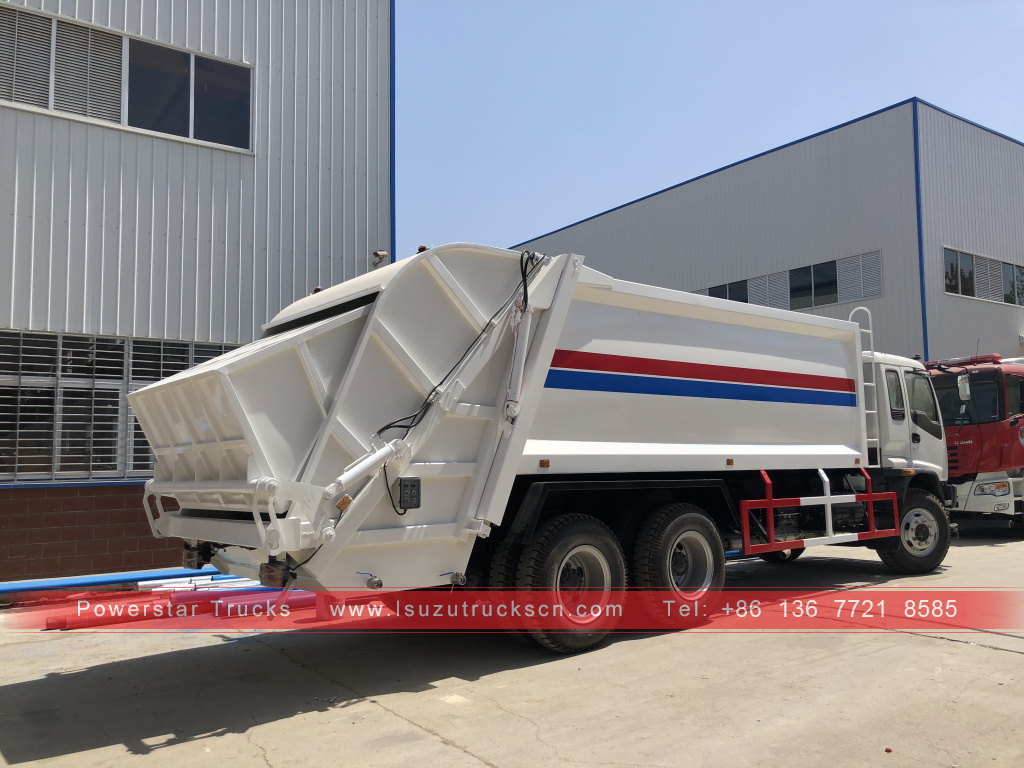

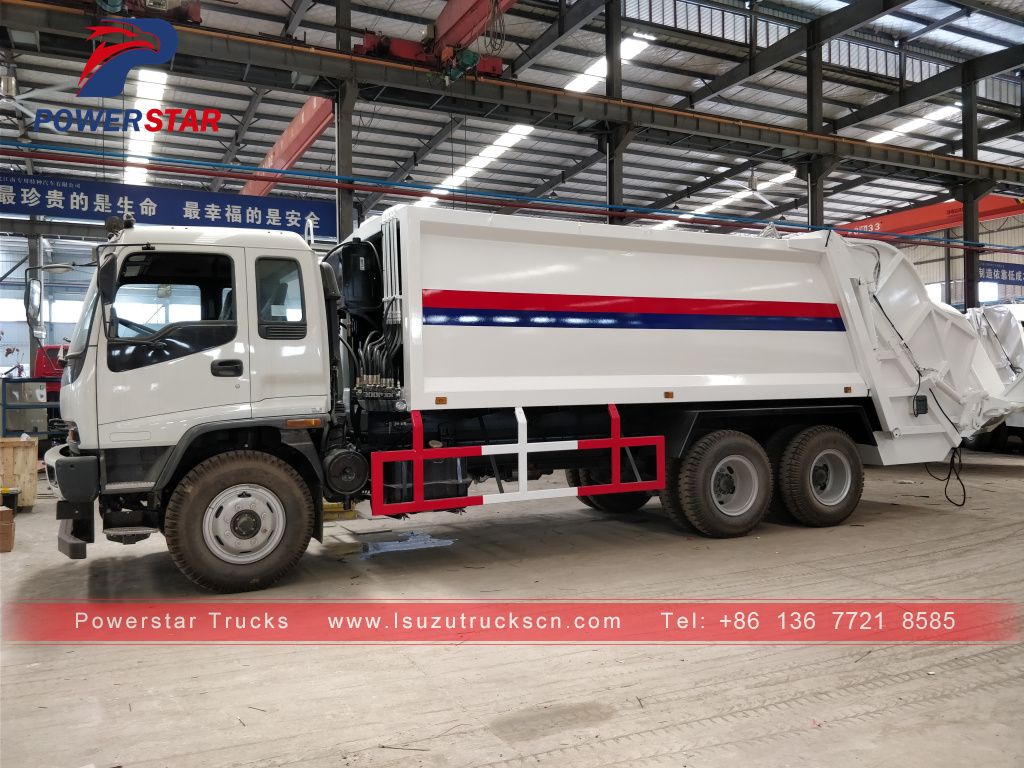

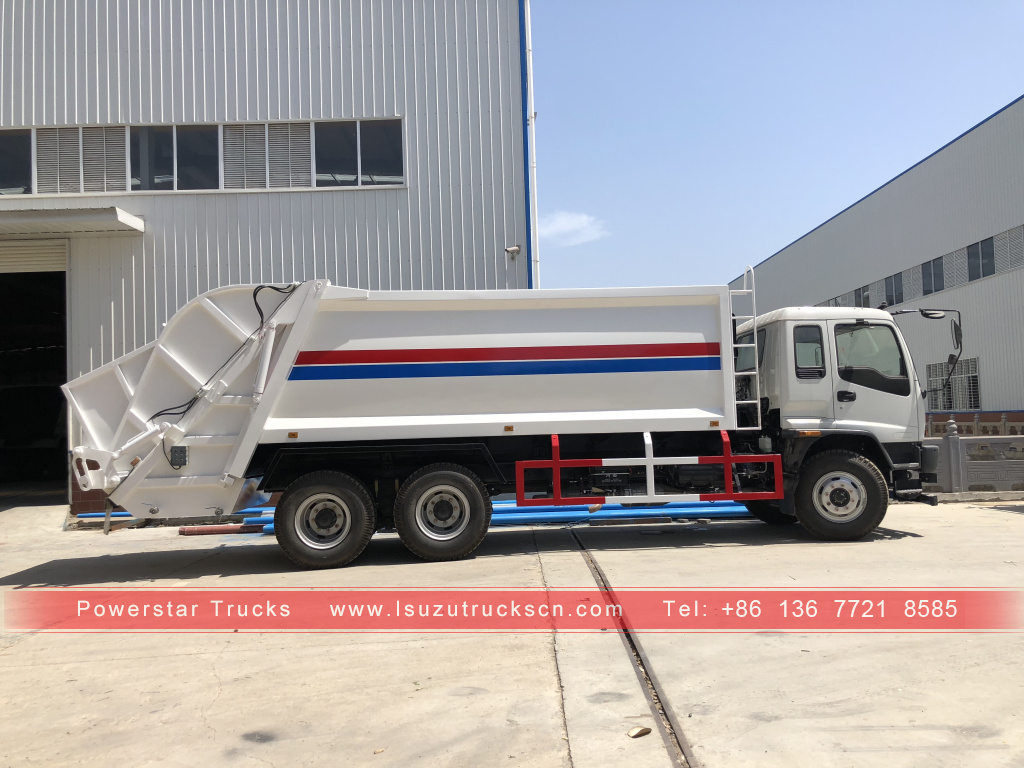

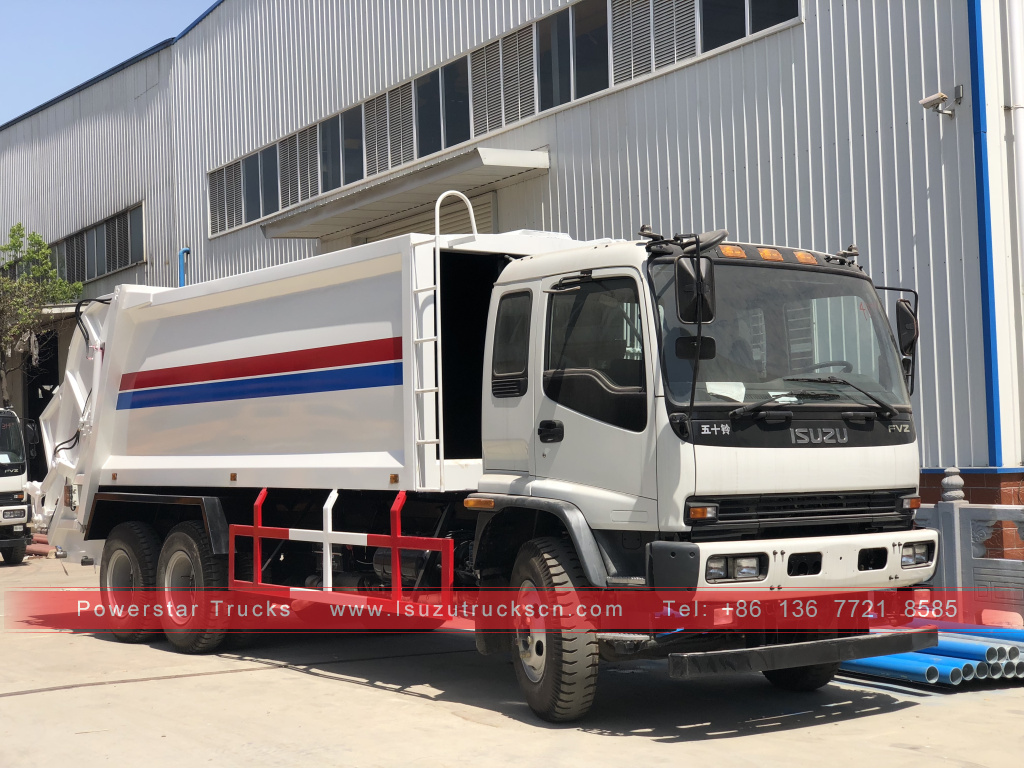

Japan FVZ Rear loaded garbage truck Isuzu 20 cbm
Applications:
Rear loader garbage compactor FVZ Isuzu (also called Compactor garbage truck, Hydraulic pressed garbage truck, waste collector compactor, Rear loading garbage compactor truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.
Powerstar compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|

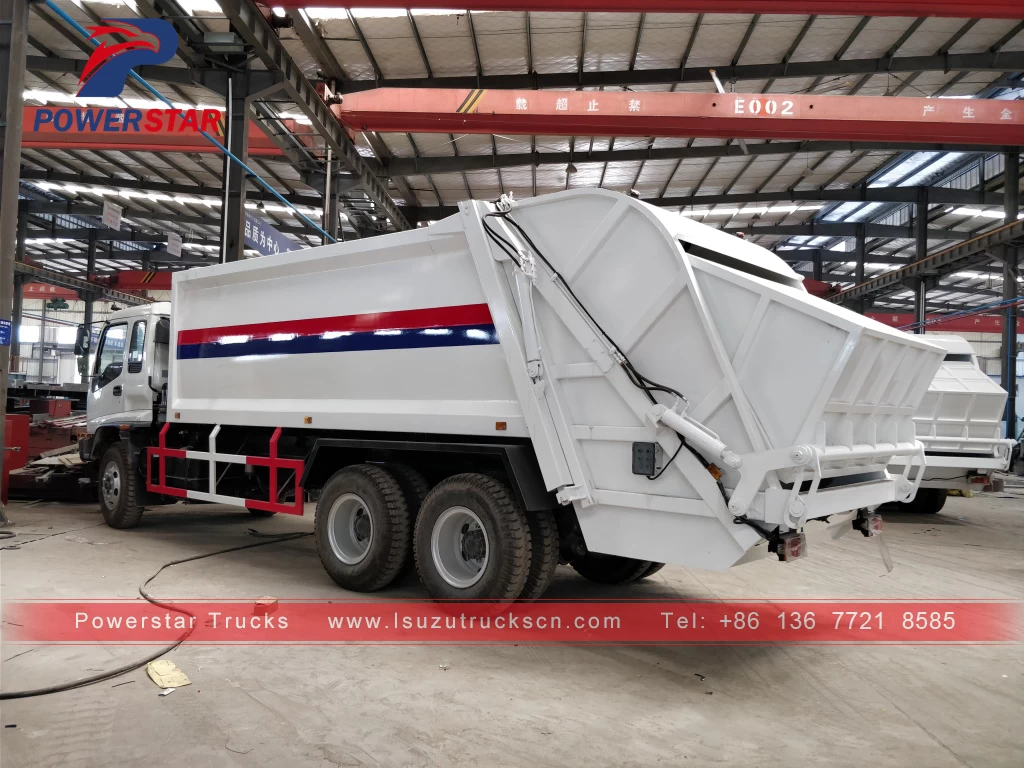

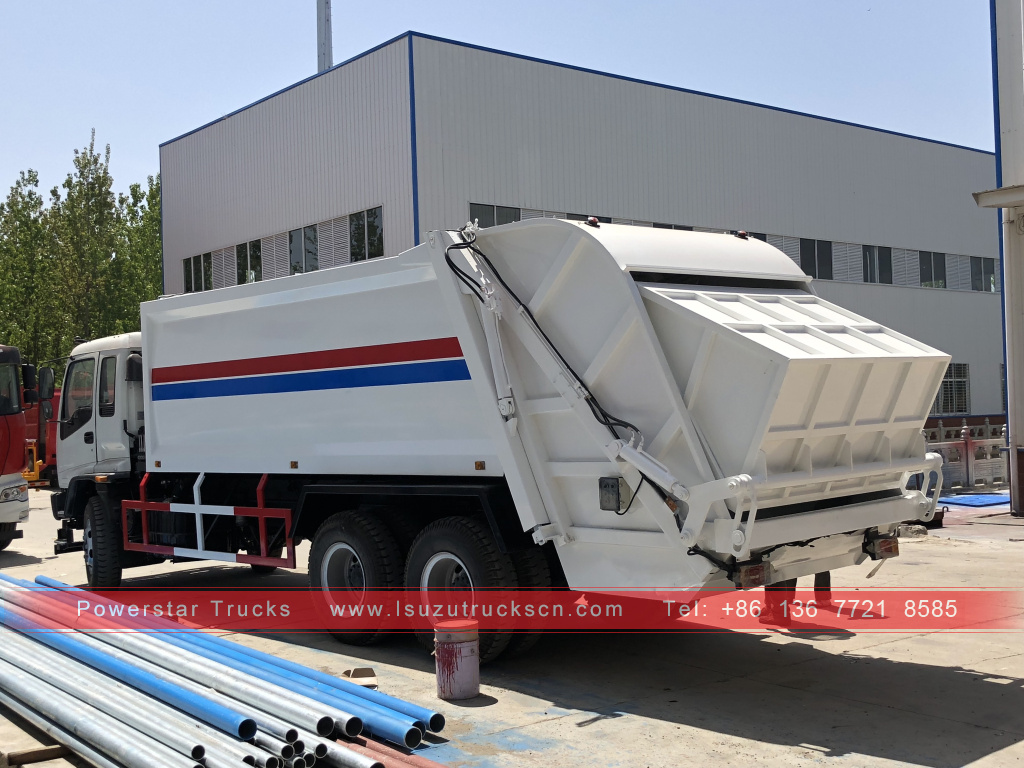

Heavy rubbish compactor trucks Isuzu (20 cbm)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
10860 * 2500 * 2960 mm
|
|
GVW / Kerb Weight
|
25,000kg / 10,750kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
300 HP (220 KW)
|
|
Displacement
|
7900ml
|
|
Emission Standard
|
Euro IV or V
|
|
Chassis
|
Drive Type
|
6X4, (left hand drive)
|
|
Transmission
|
ISUZU 9 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
5100+1300 mm / 2
|
|
Tire Specification
|
12.00-20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
20 cbm
|
|
Fill Hopper capacity
|
1.7 cbm
|
|
Sewage tank
|
200 liters
|
|
Filling work cycly time
|
20~25 s
|
|
Discharge model
|
Horizontal Ejection
|
|
Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.

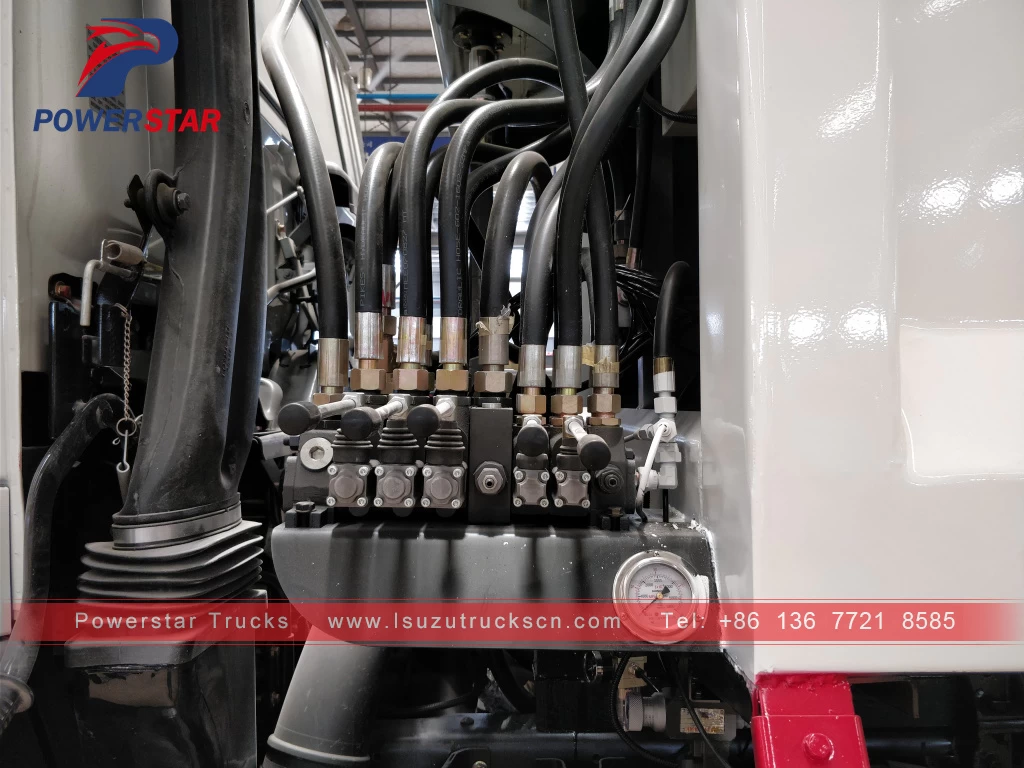

** Italy mulit-valve can be choose.

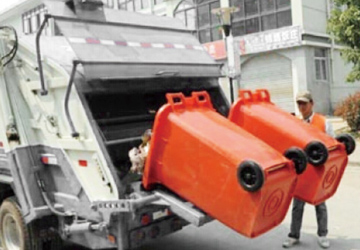

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|

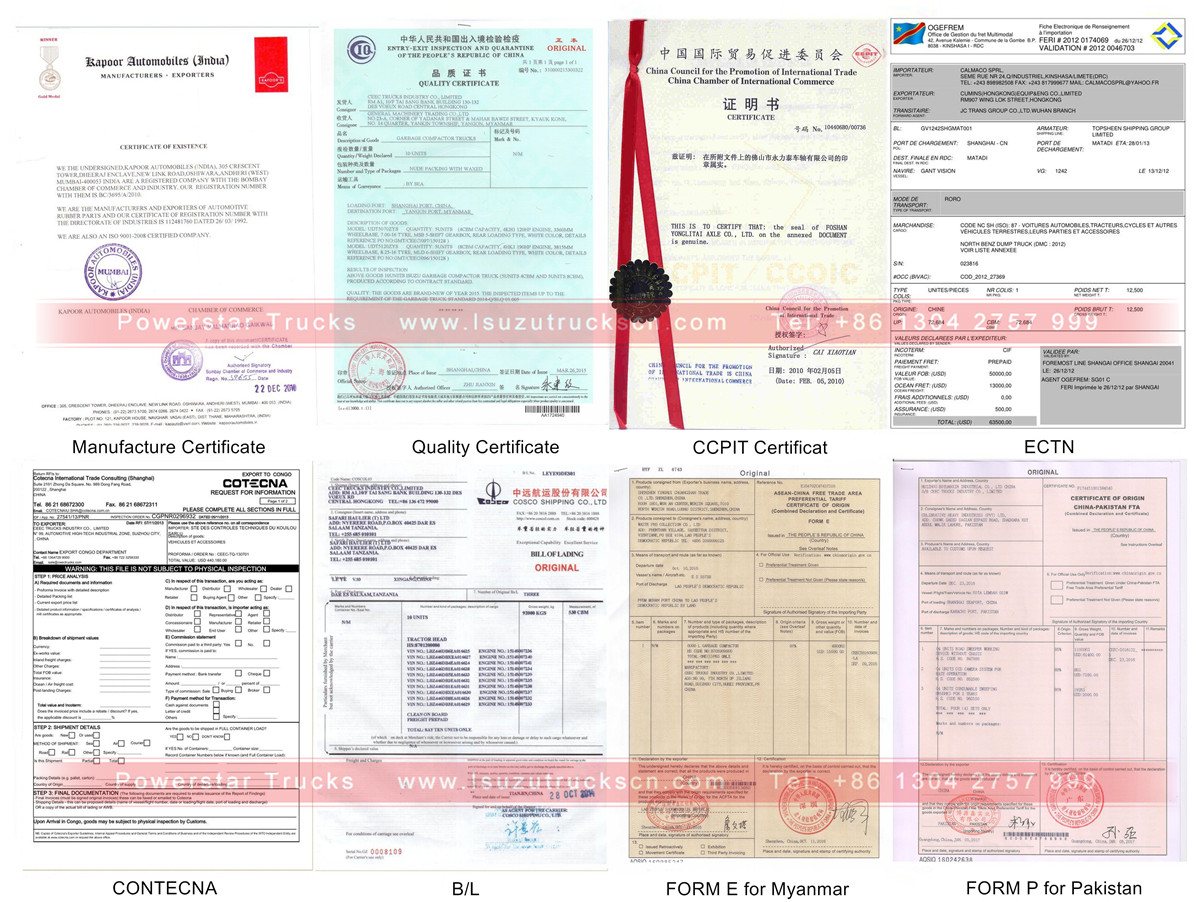

---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.

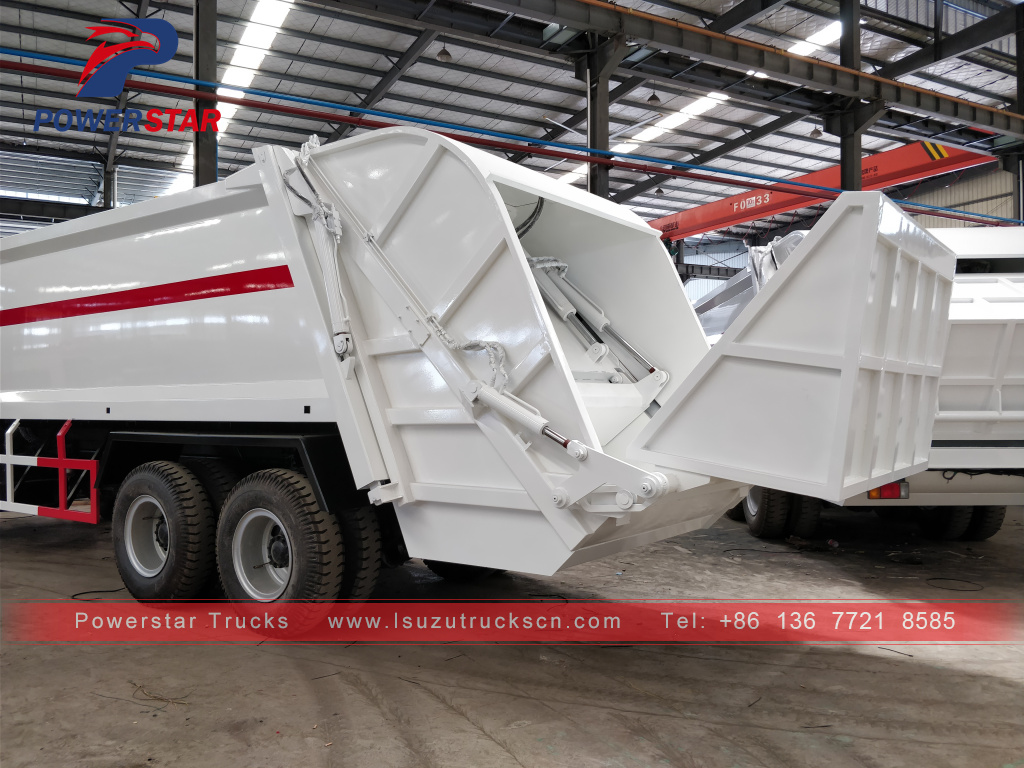

Working Principles of Garbage Compactor

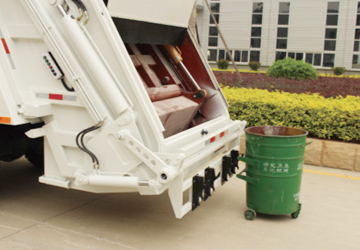

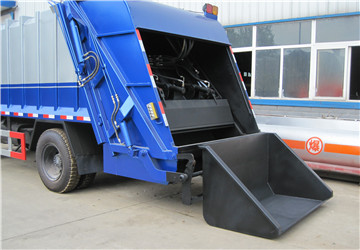

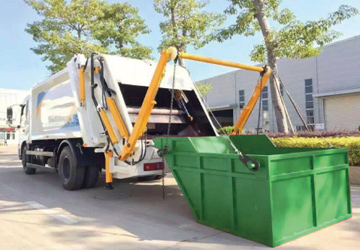

Different bin optional:
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |

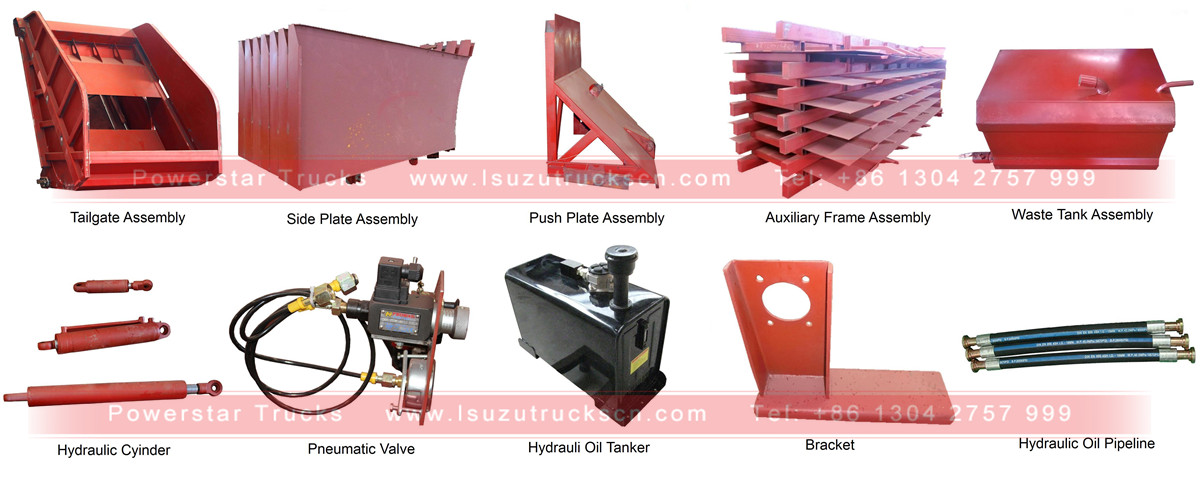

Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.

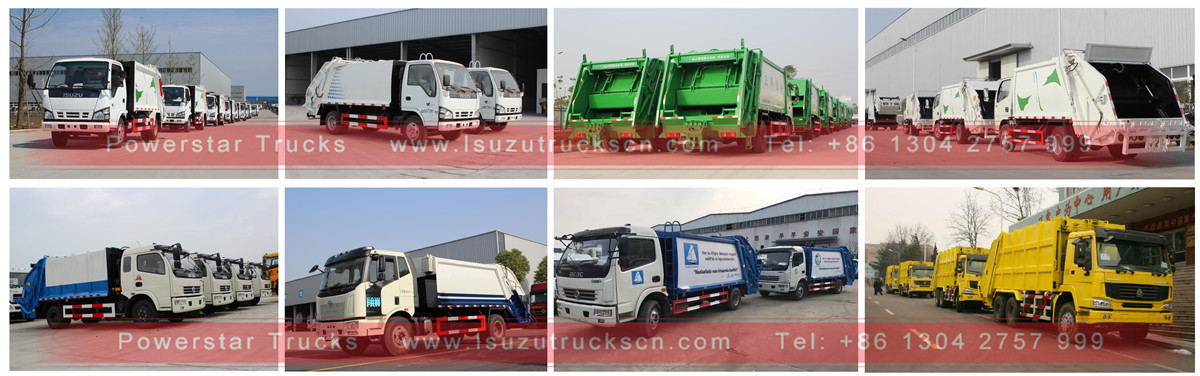

---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
