Applications:

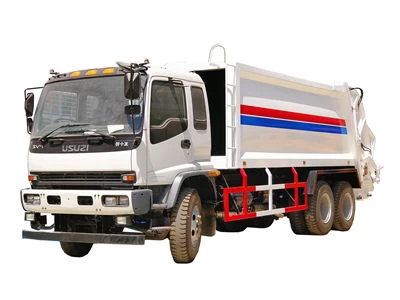

Rear loader compactor vehicle Isuzu (also called Rubbish compactor trucks, Hydraulic pressed garbage truck, Trash compactor truck, Rear loader trucks) is designed
for daily rubbish transport in such living areas as all kinds of
cities, large station, port and wharf, airpot, and densely-populated
areas like industrial and mineral enterprises and military units.
CEEC TRUCKS compactor
garbage truck reduces back-and-forth transport times and prevents
rubbish and stinks from spreading and avoids second-time pollution
produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|

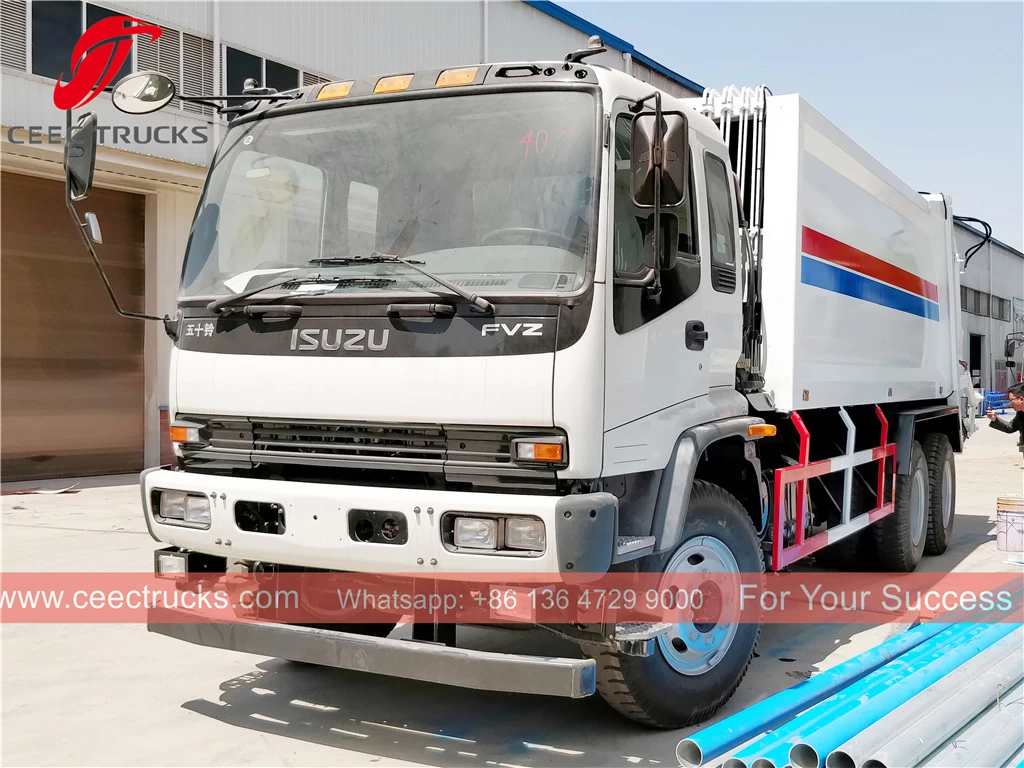

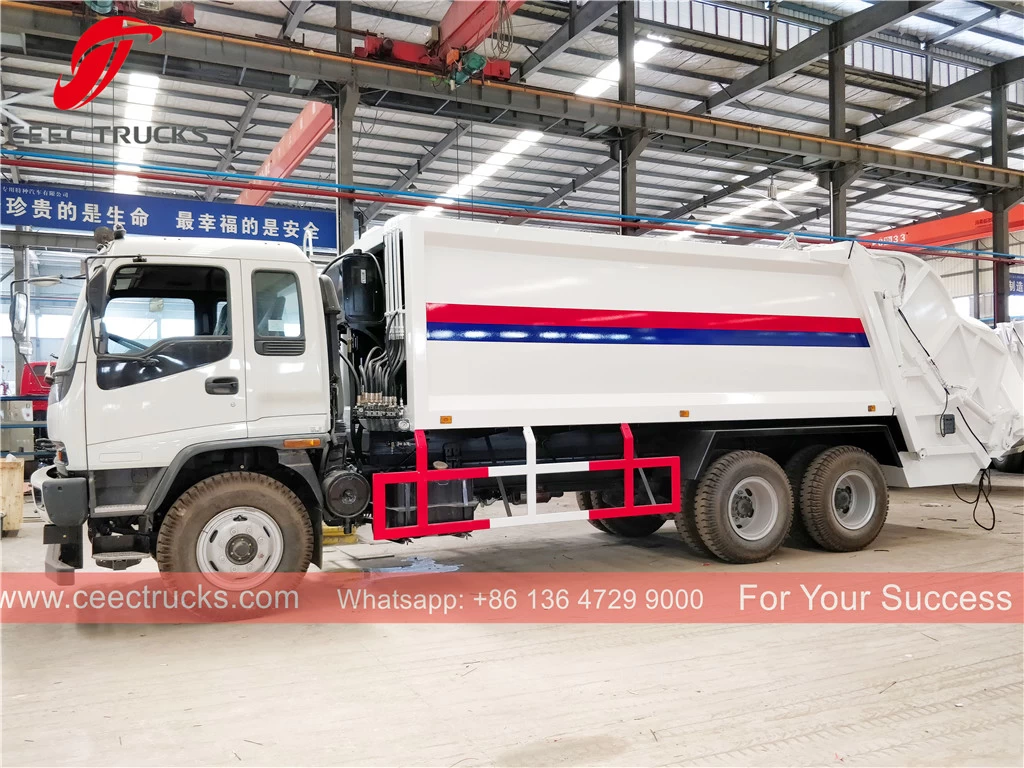

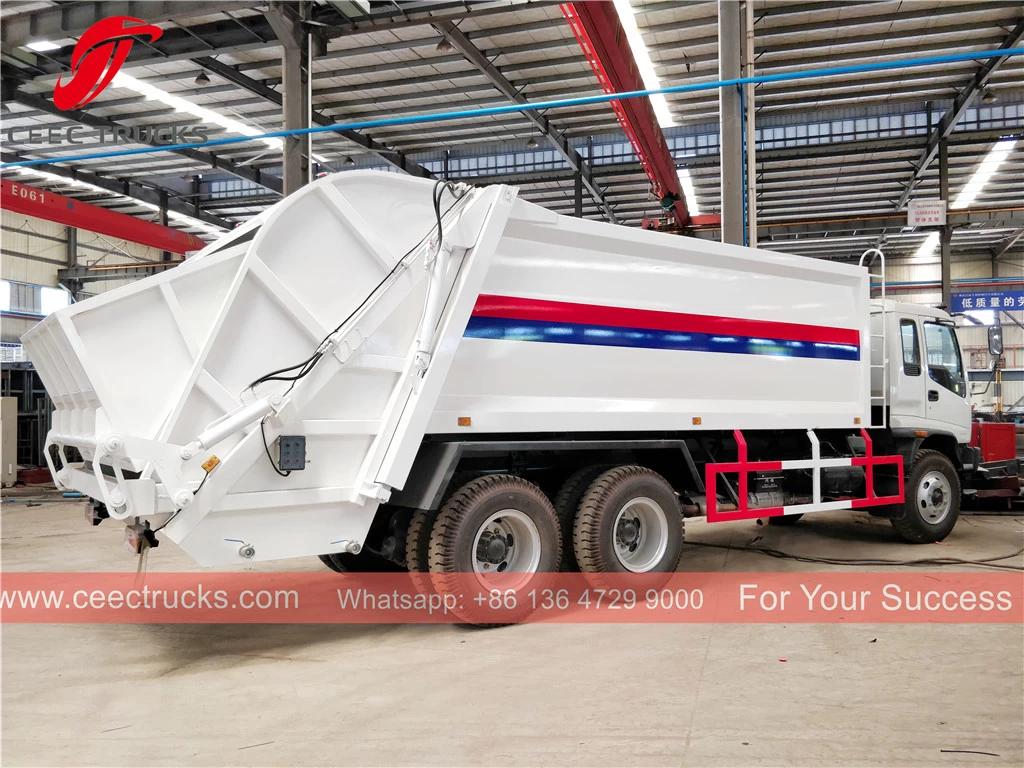

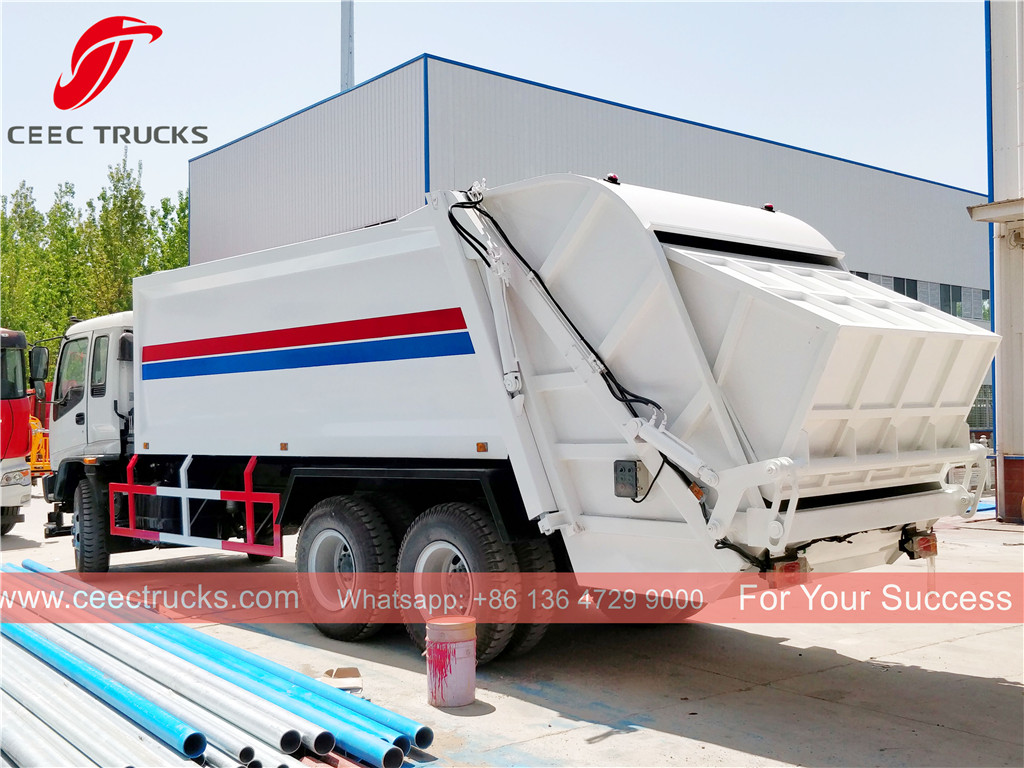

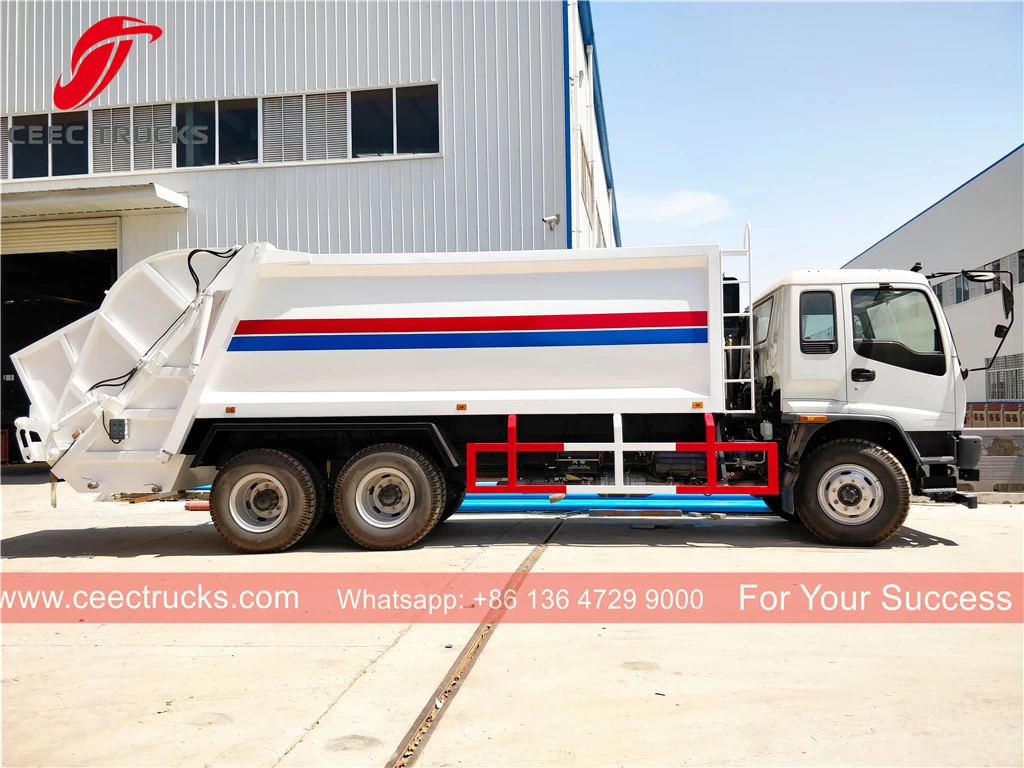

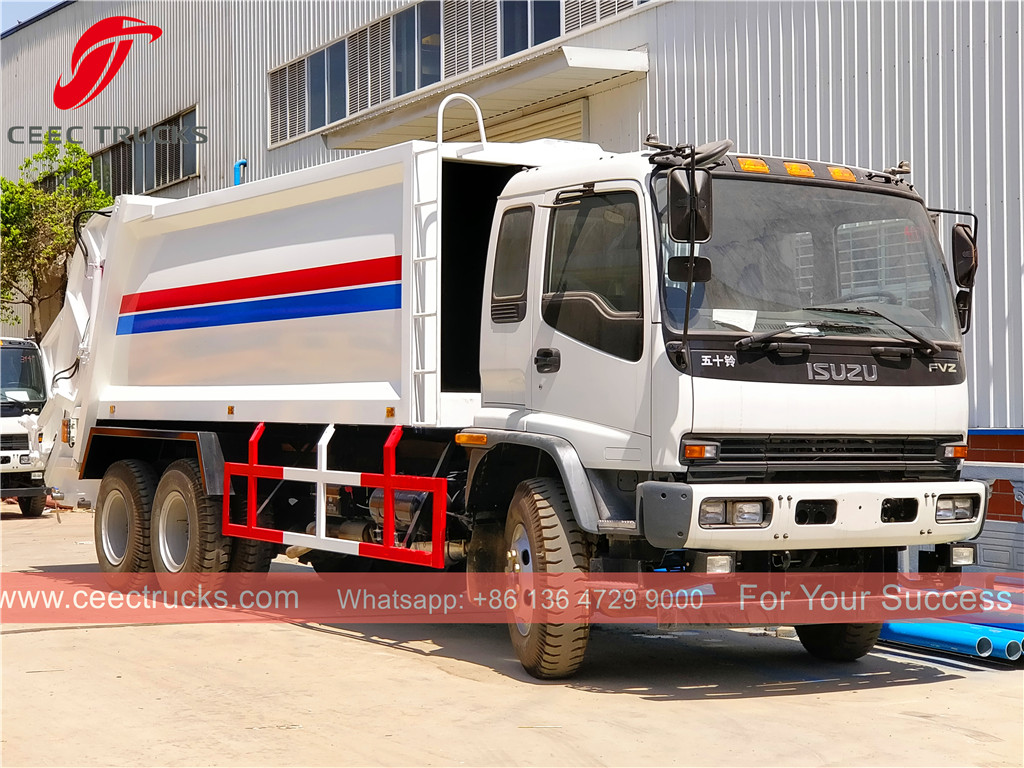

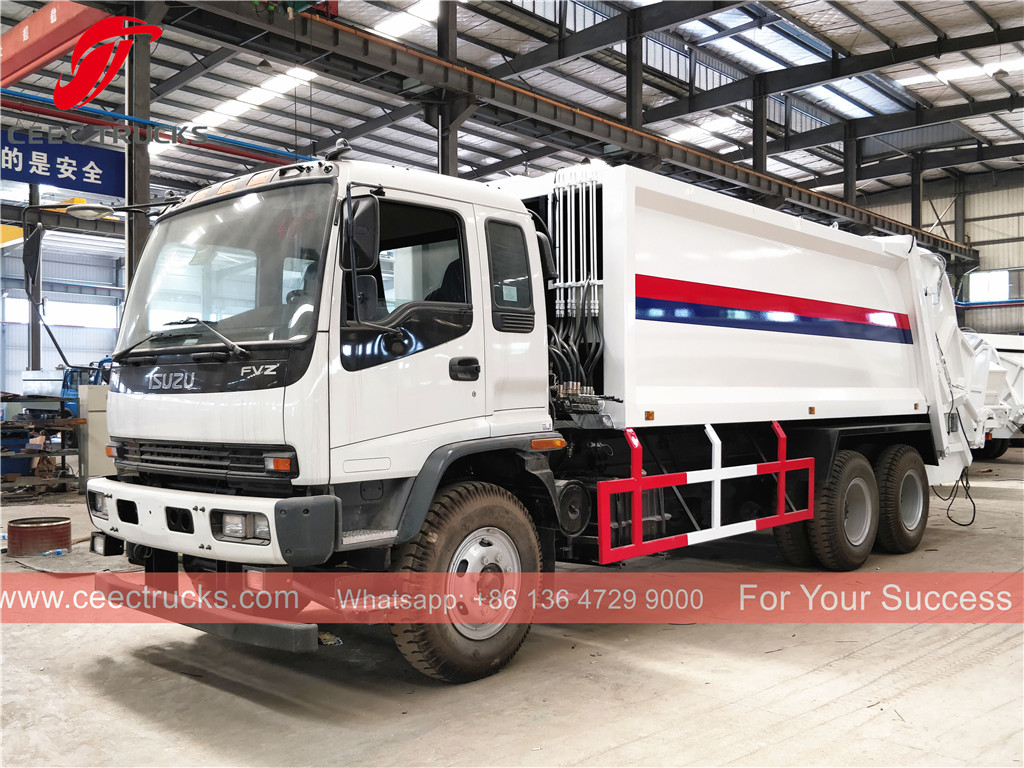

Rear loader vehicle Isuzu (20 cbm)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
9900 * 2500 * 3180 mm
|
|
GVW / Kerb Weight
|
25,000kg / 10,120kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
280 HP (206 KW)
|
|
Displacement
|
7199 ml
|
|
Emission Standard
|
Euro IV or V
|
|
Chassis
|
Drive Type
|
6X4 (left hand drive)
|
|
Transmission
|
ISUZU 9 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
5100+1300 mm / 3
|
|
Tire Specification
|
12.00-20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|

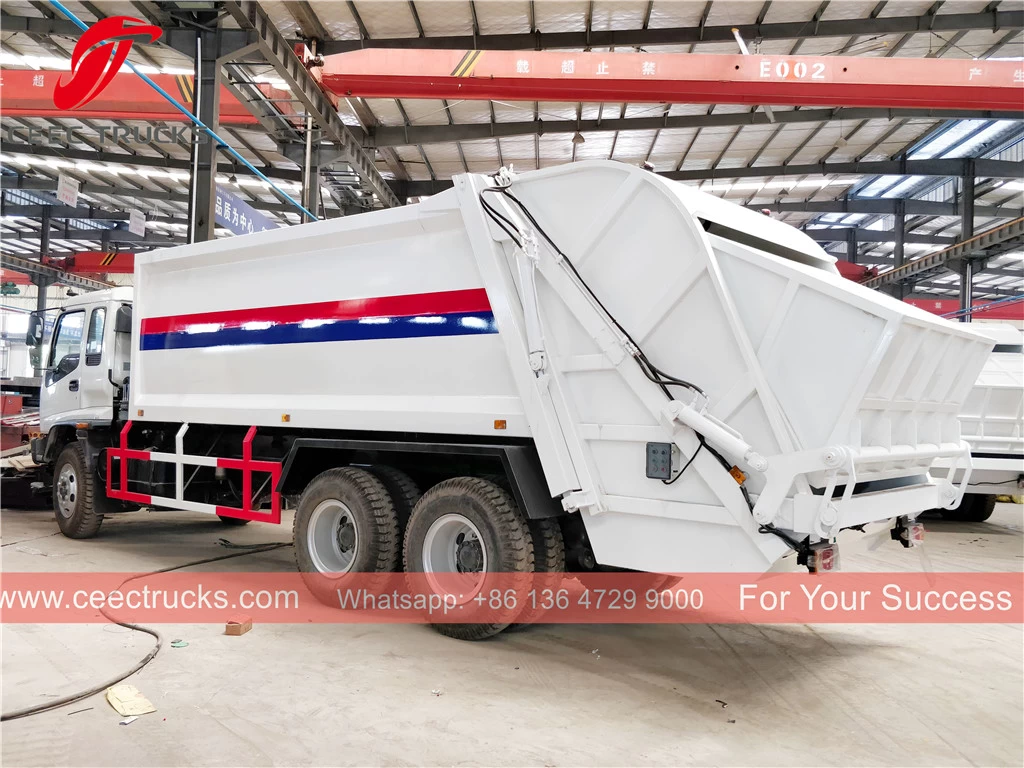

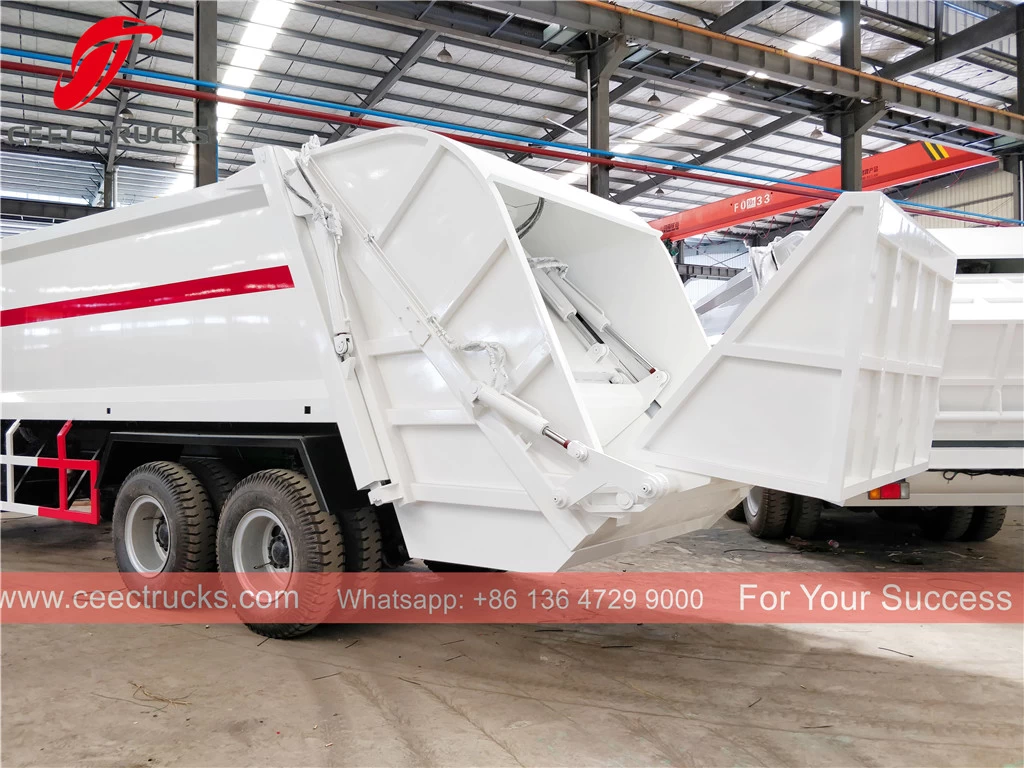

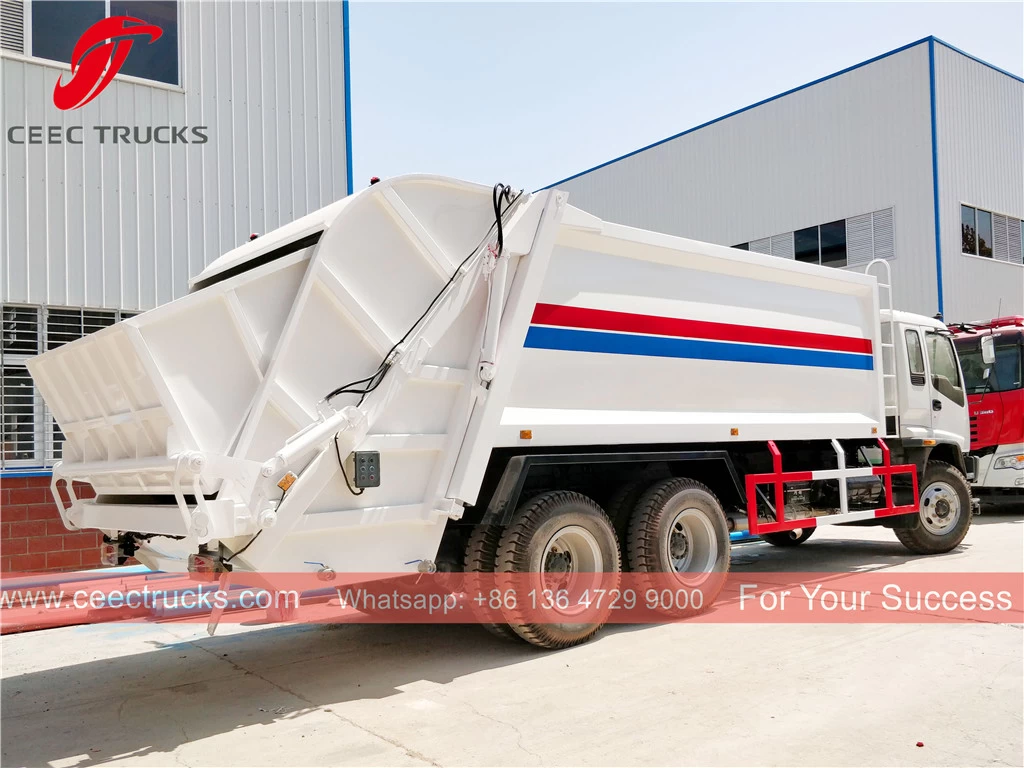

Superstructure
|
Body capacity
|
20 cbm
|
|

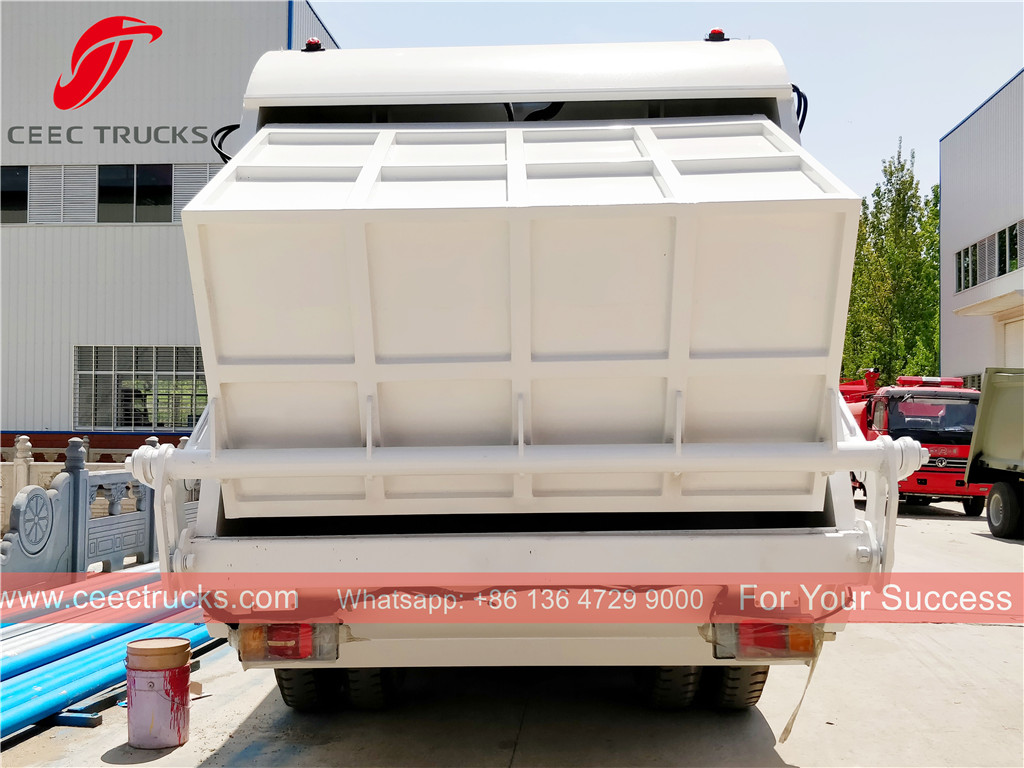

Fill Hopper capacity
|
2.4 cbm
|
|
Sewage tank
|
200 liters
|
|
Filling work cycly time
|
20~25 s
|
|
Discharge model
|
Horizontal Ejection
|
|

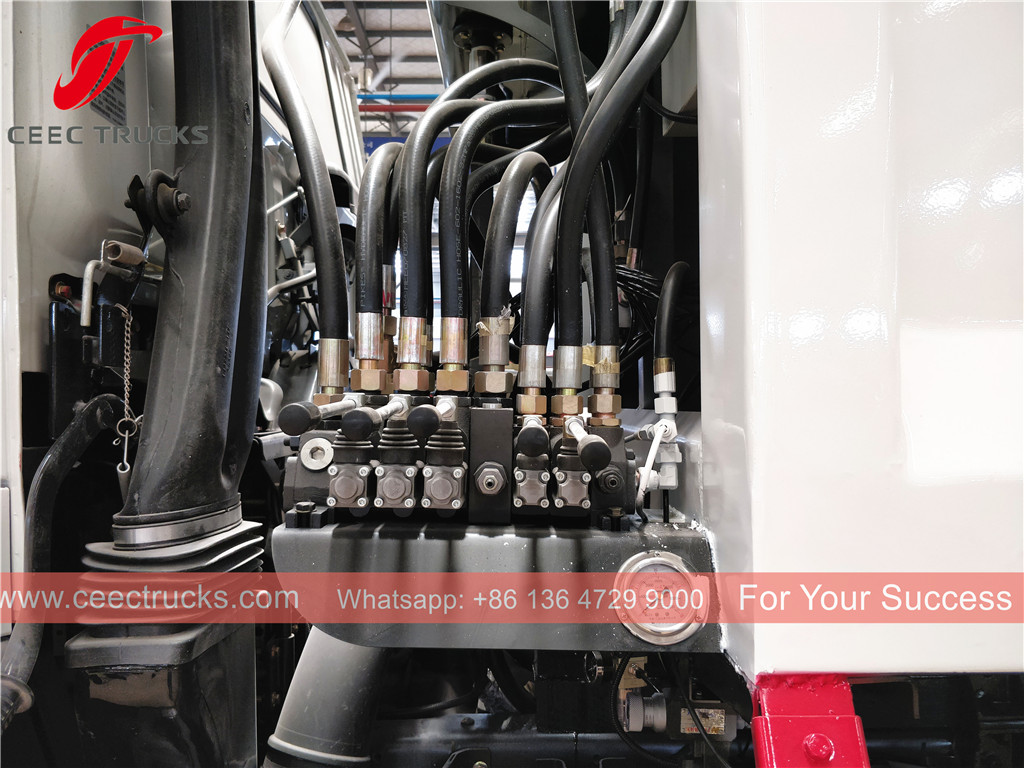

Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|

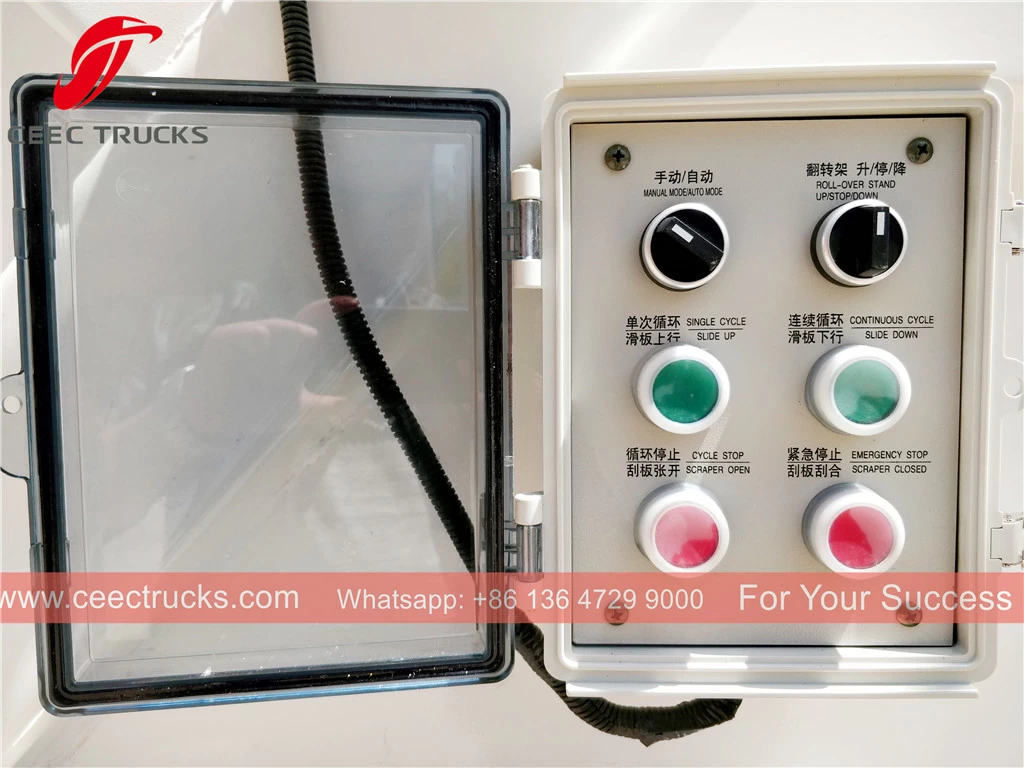

Control panel
|
English or Your language
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.

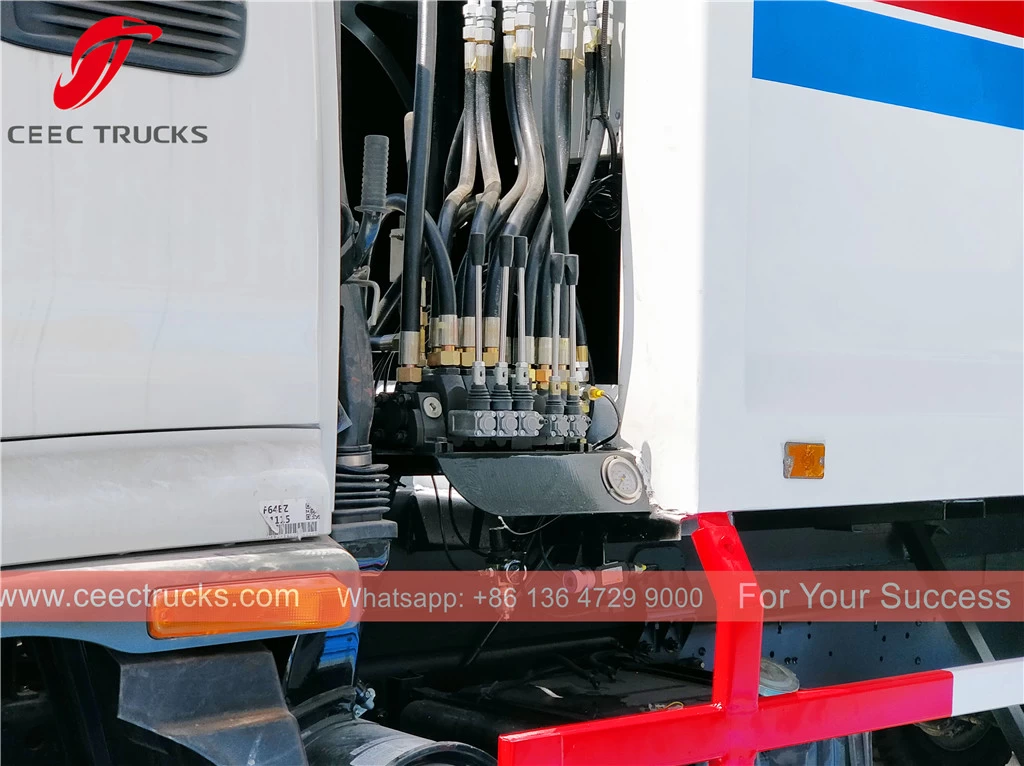

** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|
