Product Description
The magnets consist of a magnet housing and a DC-excited coil. The magnetic circuit which is open in the switched-on state allows for holding ferromagnetic workpieces. If the supply voltage is switched off, the workpiece to be held falls off. These holding systems always work with very low operating current and are maintenance-free.
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H1003017 square electromagnet
|
|
Model
|
H1003017
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
5-9w
|
Force
|
180-220N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.32kg
|
|

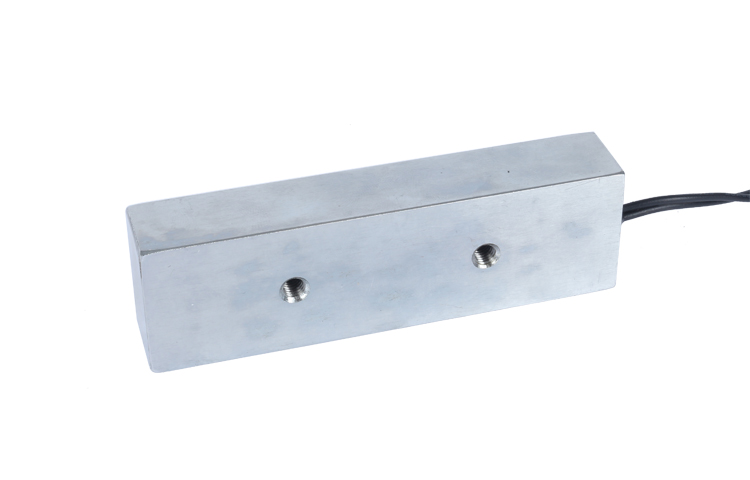

Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M5,10
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
L100*W30*H17(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature

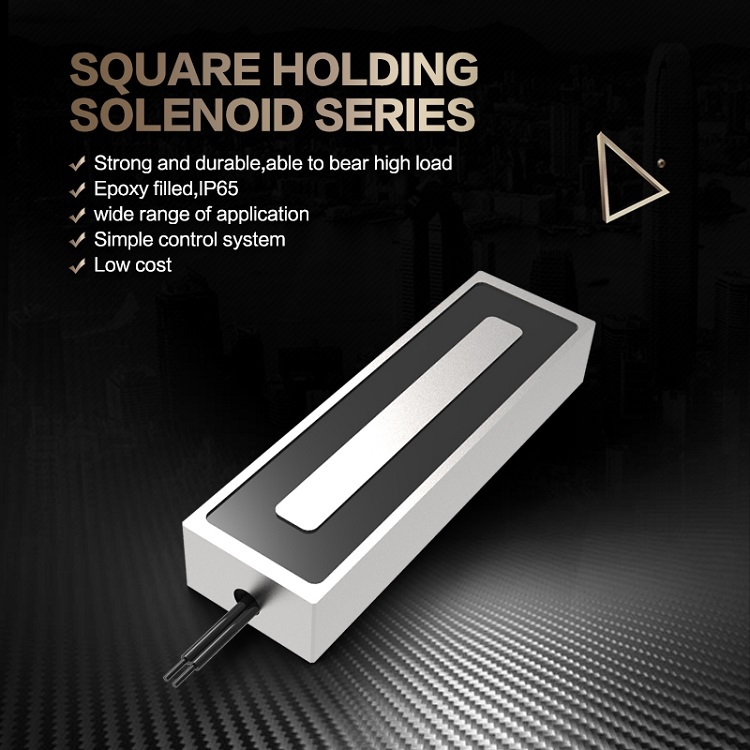

square holding electromagnet
1. Holding type, square shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2. The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3. Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4. Also offer custom shape and energise to release circular electromagnet

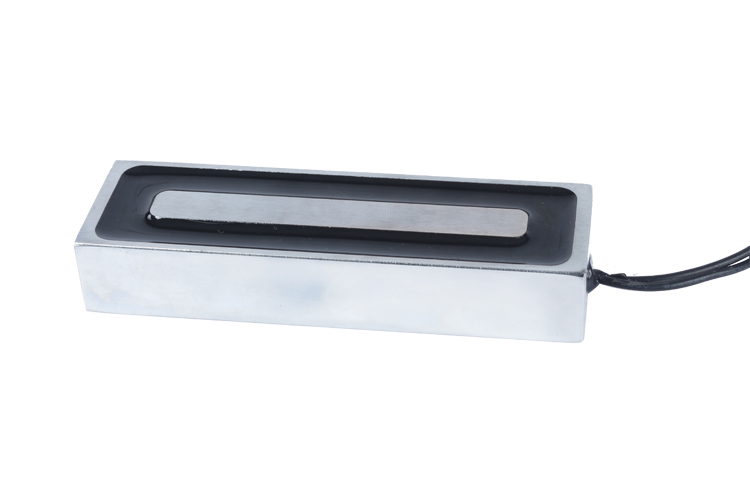

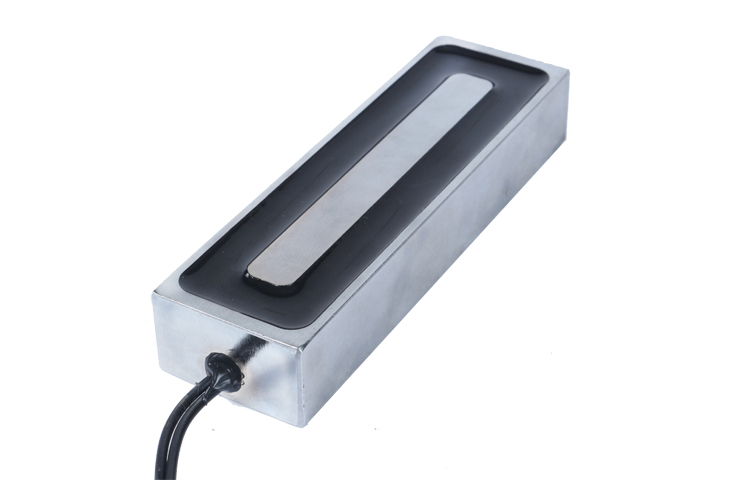

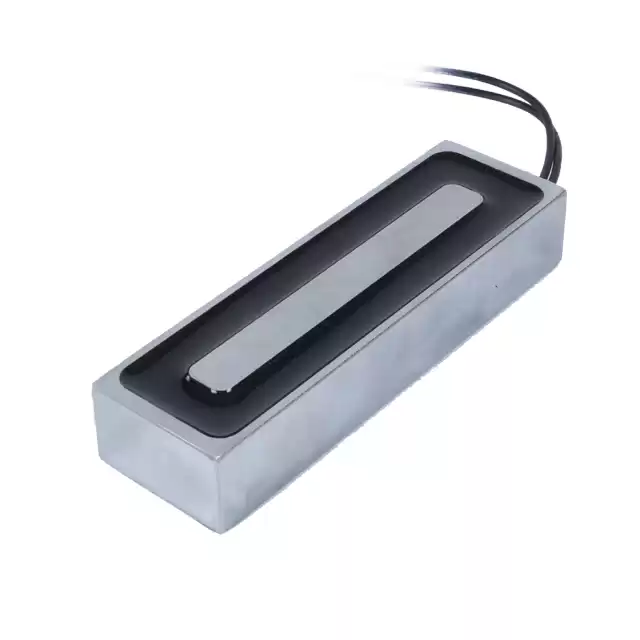

Detailed Images
20Kg 200N Force Dc Low Voltage Square Holding Electromagnet
