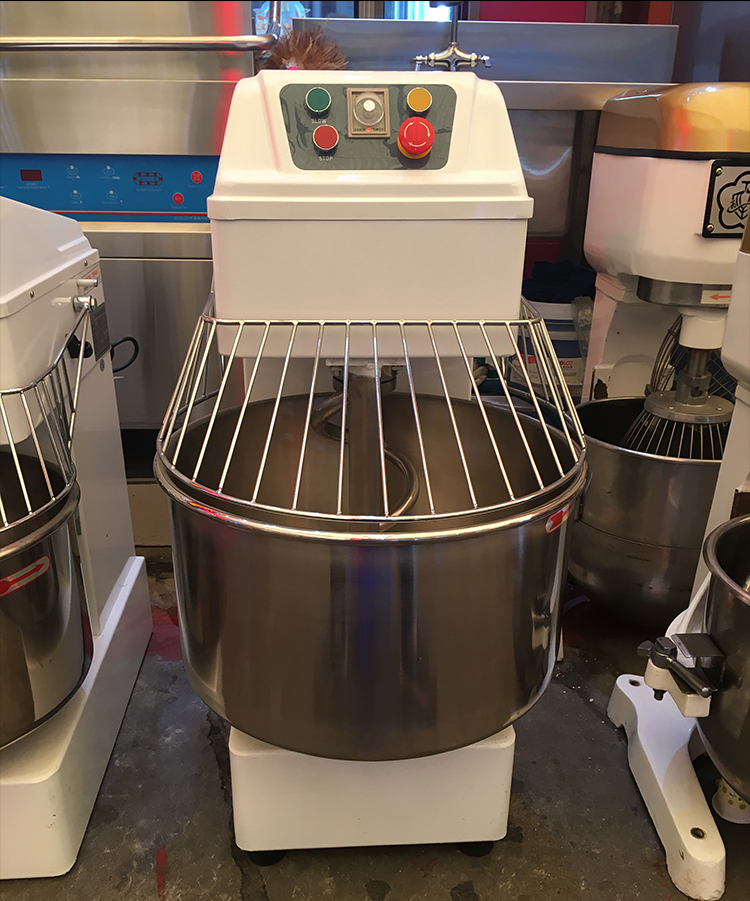

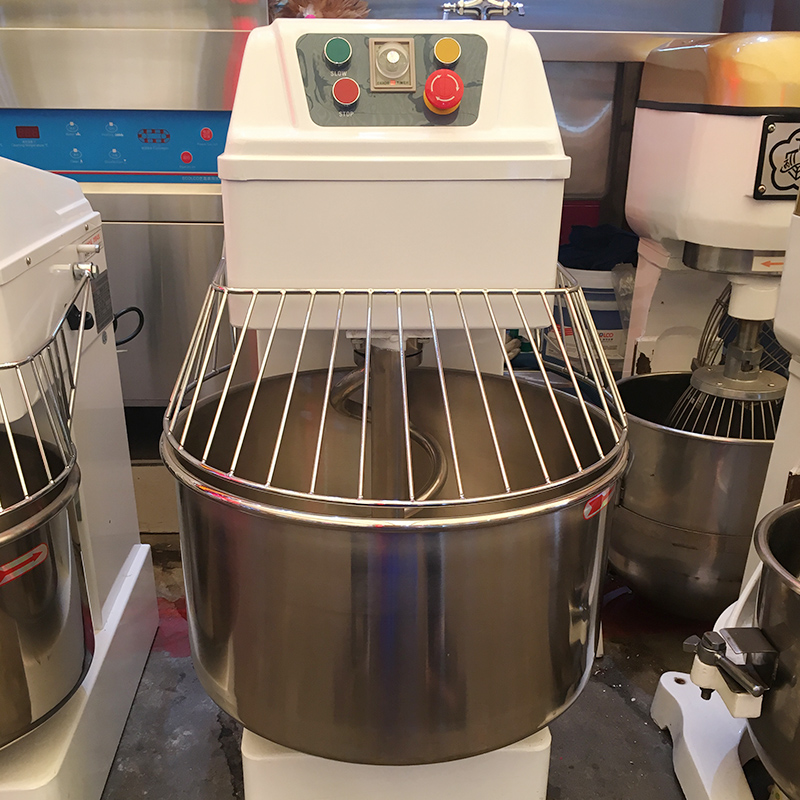

20KG Commercial Two-Speed spiral dough mixer
Specially designed for hard dough. Commercial dough mixers specially designed for hard dough (pizza, bread, etc.)
1.Safety cover to protect operators.
2.Electrical machinery over-load protection.
3.Big power,low noise(less than 30db),high efficiency.
4.Highly efficient and requiring very little maintenance.
5.Heavy duty construction with cast iron body.
6.Adopt high strength synchronous belt, triangle belt and chain for transmission.

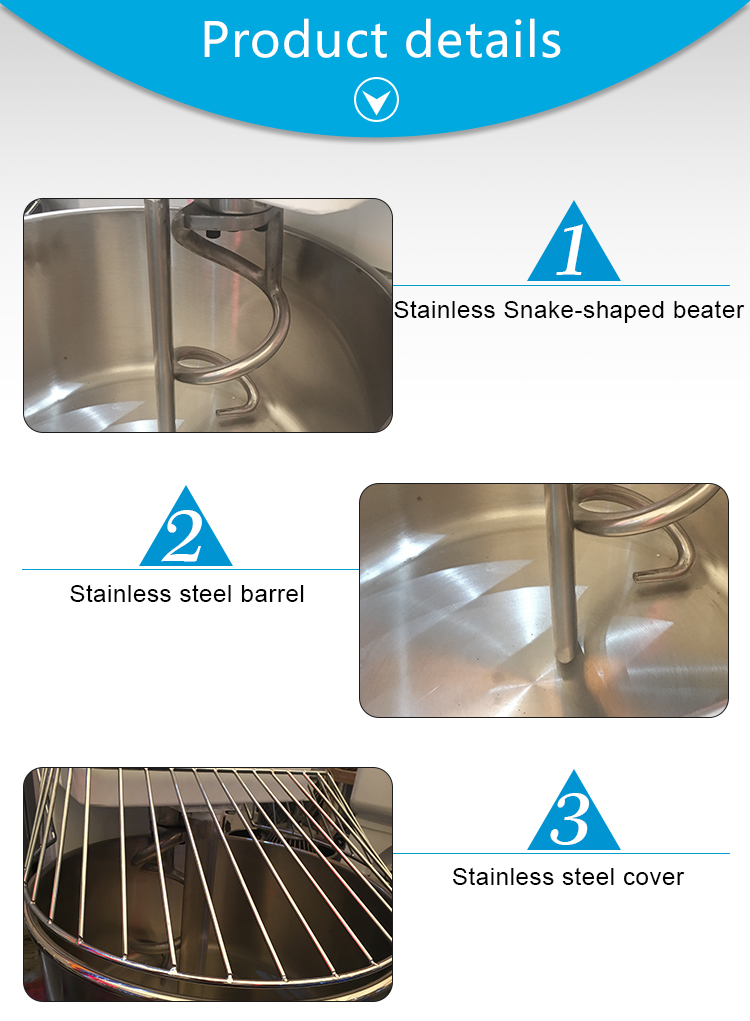

7.Our spiral mixers are built to last. The body of the mixer is all steel. The spiral arm and the bowl
are stainless steel.
Various specifications, please choose according to the demand!
|
Model:
|
SS20
|
SS30
|
SS40
|
SS50
|
|
Bowl volume:
|
21L
|
35L
|
40L
|
54L
|
|
Max.kneading capacity:
|
8kg
|
12.5kg
|
16kg
|
20kg
|
|
Voltage:
|
110V/220V/380V
|
110V/220V/380V
|
110V/220V/380V
|
110V/220V/380V
|
|
Power:
|
1.5kw
|
1.5kw
|
3kw
|
3kw
|
|
Mixing speed(r/min):
|
112/198r/min
|
112/198r/min
|
112/198r/min
|
112/198r/min
|
|
Bowl speed(r/min):
|
12/20r/min
|
12/20r/min
|
12/20r/min
|
12/20r/min
|
|
Dimensions(mm):
|
730*390*900mm
|
750*435*900mm
|
840*500*1000mm
|
840*520*1000mm
|
|
Net Weight:
|
90kg
|
100kg
|
155kg
|
170kg
|
|
Model:
|
SS60
|
SS80
|
SS100
|
SS130
|
|
Bowl volume:
|
60L
|
80L
|
100L
|
130L
|
|
Max.kneading capacity:
|
25kg
|
32kg
|
40kg
|
50kg
|
|
Voltage:
|
110V/220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Power:
|
3kw
|
2.4kw
|
4.5kw
|
5.5kw
|
|
Mixing speed(r/min):
|
112/198r/min
|
100/200r/min
|
100/200r/min
|
100/200r/min
|
|
Bowl speed(r/min):
|
12/20r/min
|
12r/min
|
12r/min
|
12r/min
|
|
Dimensions(mm):
|
840*550*1000mm
|
1000*560*1380mm
|
1080*650*1380mm
|
1160*730*1380mm
|
|
Net Weight:
|
180kg
|
250kg
|
340kg
|
370kg
|
|
Model:
|
SS160
|
SS200
|
SS260
|
|
Bowl volume:
|
160L
|
200L
|
260L
|
|
Max.kneading capacity:
|
65kg
|
75kg
|
100kg
|
|
Voltage:
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Power:
|
5.5kw
|
7.5kw
|
7.5kw
|
|
Mixing speed(r/min):
|
100/200r/min
|
100/200r/min
|
100/200r/min
|
|
Bowl speed(r/min):
|
12r/min
|
12r/min
|
12r/min
|
|
Dimensions(mm):
|
1160*730*1380mm
|
1380*840*1560mm
|
1380*840*1560mm
|
|
Net Weight:
|
390kg
|
410kg
|
450kg
|
