20kva 30kva 40kva Industrial Home Use Deutz Generator Diesel 3 Phases BFM3G2
Ai power Deutz brand generator set adopts Deutz engine as the power source. Deutz is one of the world’s leading manufacturers of innovative drive systems. Its core competences are the development, production, distribution and servicing of diesel, gas and electric drivetrains for professional applications. Deutz engine has covered 20kva to 750kva generator set.
Deutz 30kva generator set specification
|
Engine manufacturer
|
Deutz (Dalian) Engine Co., Ltd.
|
|
Engine brand
|
Deutz
|
|
Engine model
|
BFM3 G2
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kWm)
|
|
|
|
Standby Power
|
32
|
|
|
Prime Power
|
29
|
|
|
Continuous Power
|
26
|
|
No. of Cylinder
|
4 in line
|
|
Aspiration
|
Natural
|
|
Bore * Stroke (mm)
|
98 * 105
|
|
Displacment (litre)
|
3.168
|
|
Compression Ratio
|
18.5:1
|
|
Mean effective pressure (bar)
|
8.3
|
|
Piston speed (m/s)
|
5.25
|
30KVA Stamford AC Generator Specification
|
Alternator manufacturer
|
Cummins Generator Technologies(China) Co. Ltd
|
|
Alternator brand
|
Stamford
|
|
Alternator model
|
S0L2-P1
|
|
Control system
|
SELF EXCITED
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
12
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
30/24
|
|
----------------Standby-27°C
|
33/26.4
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

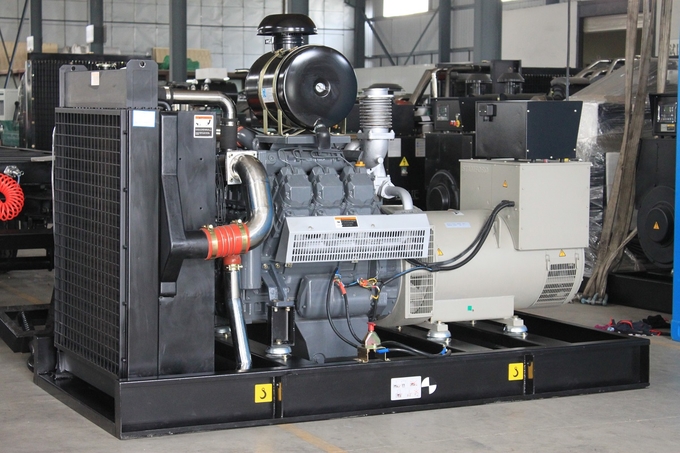

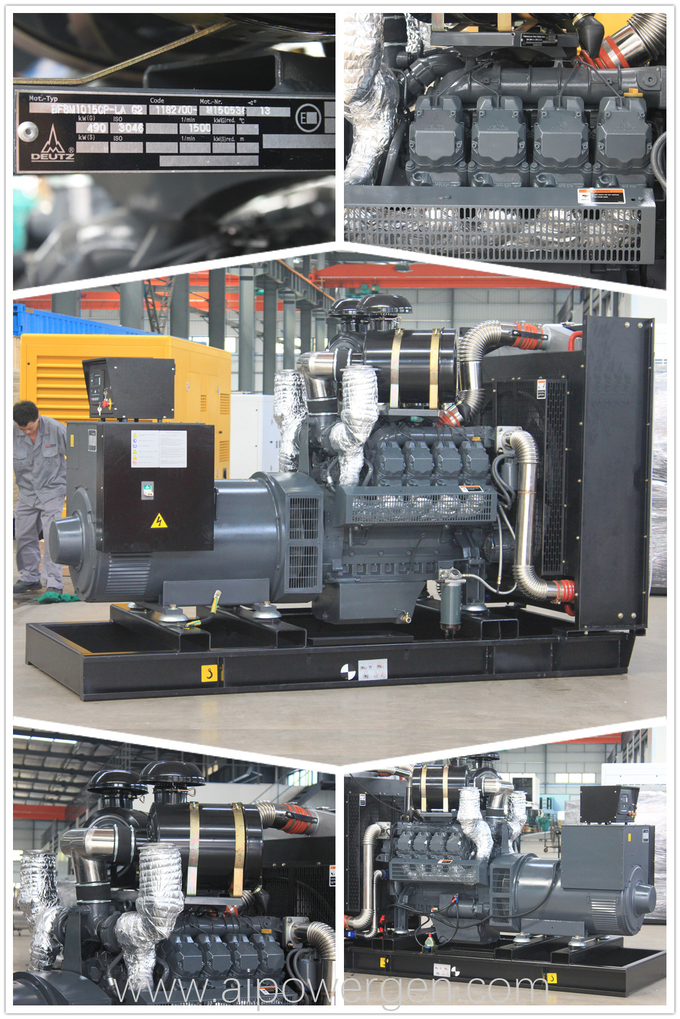

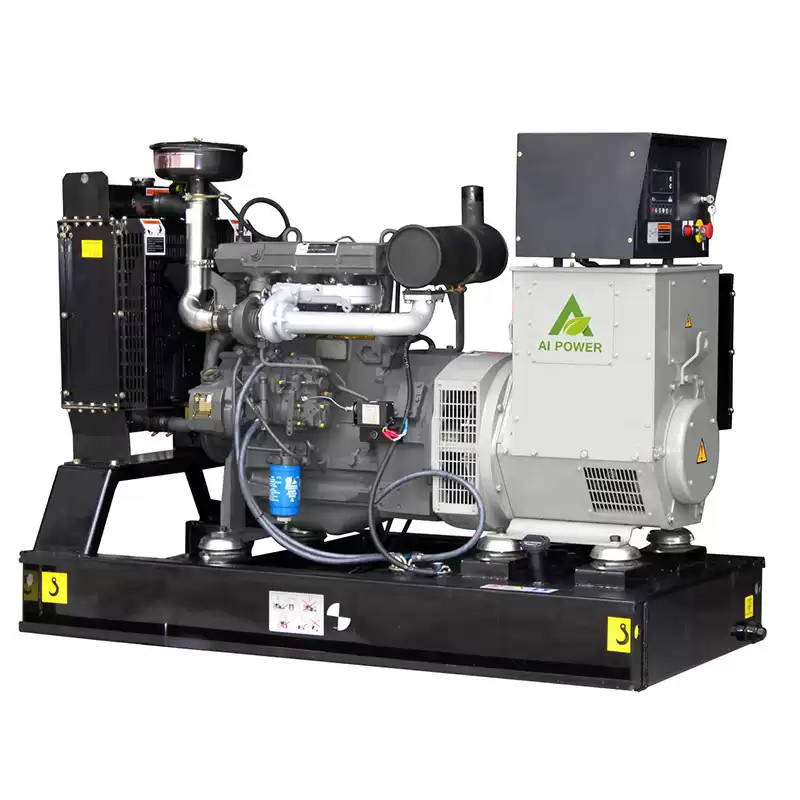

Deutz Open Diesel Generator Photos

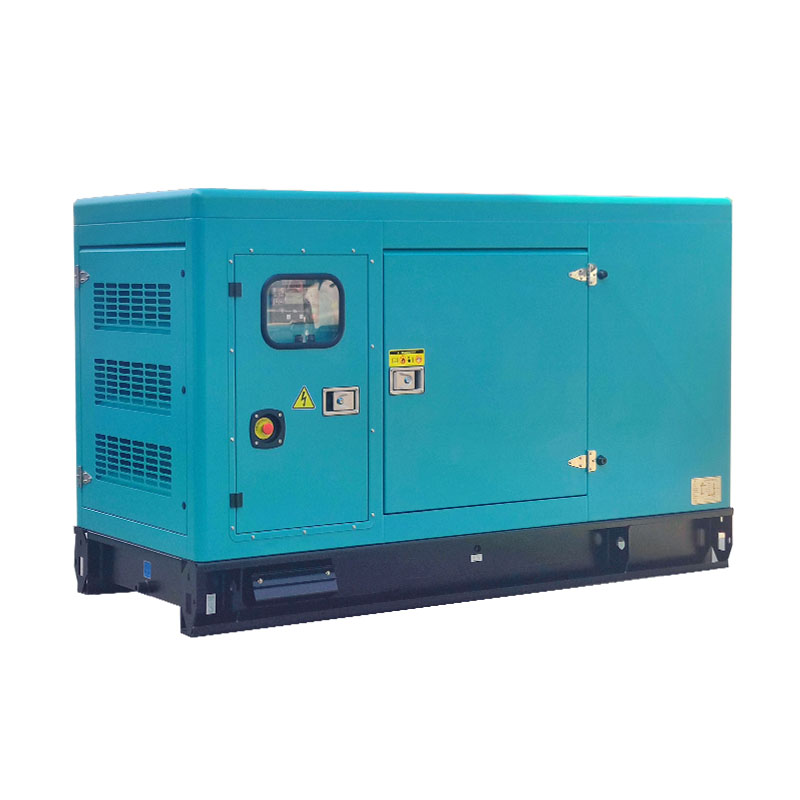

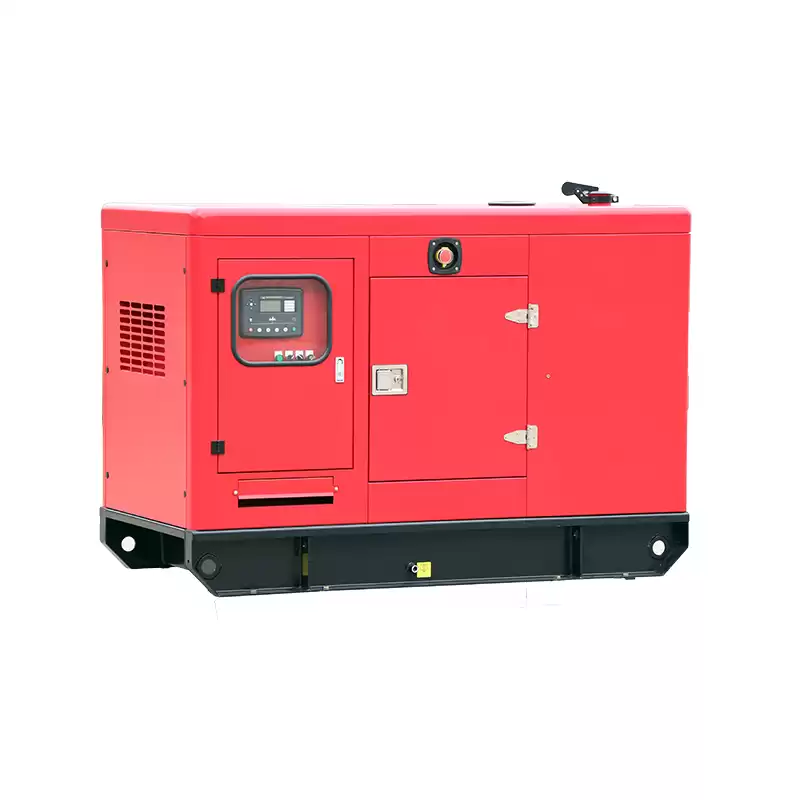

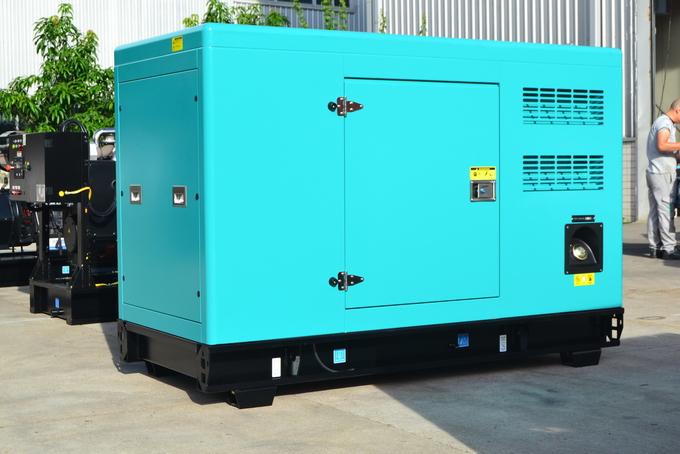

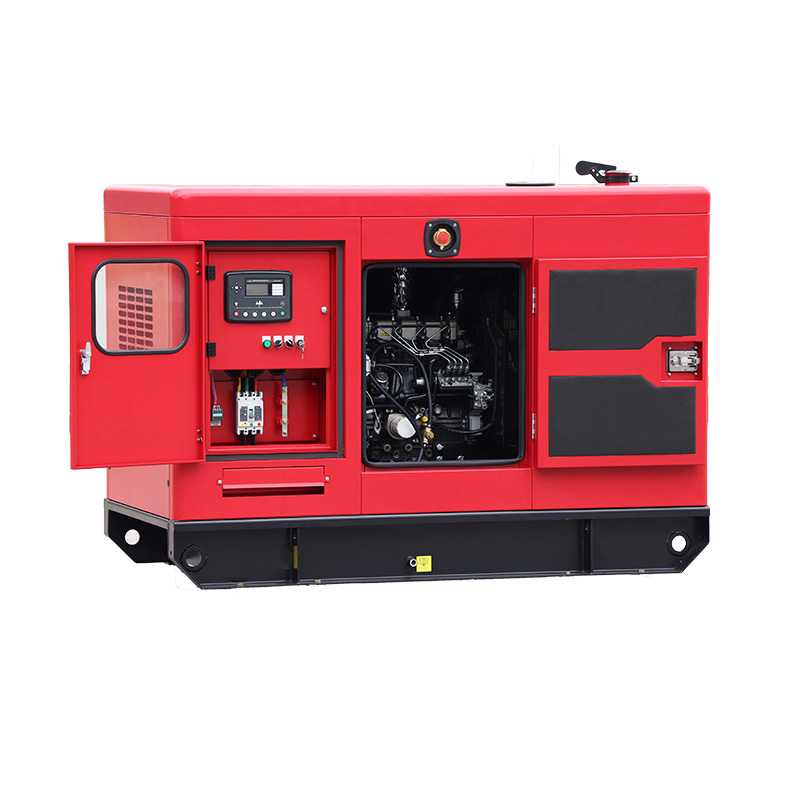

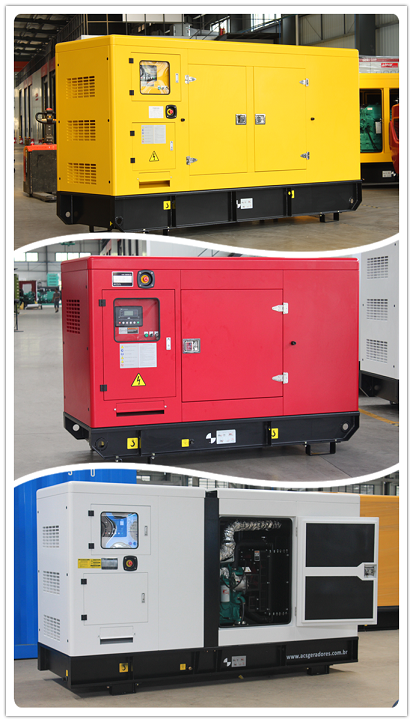

Deutz Silent Diesel Generator Photos

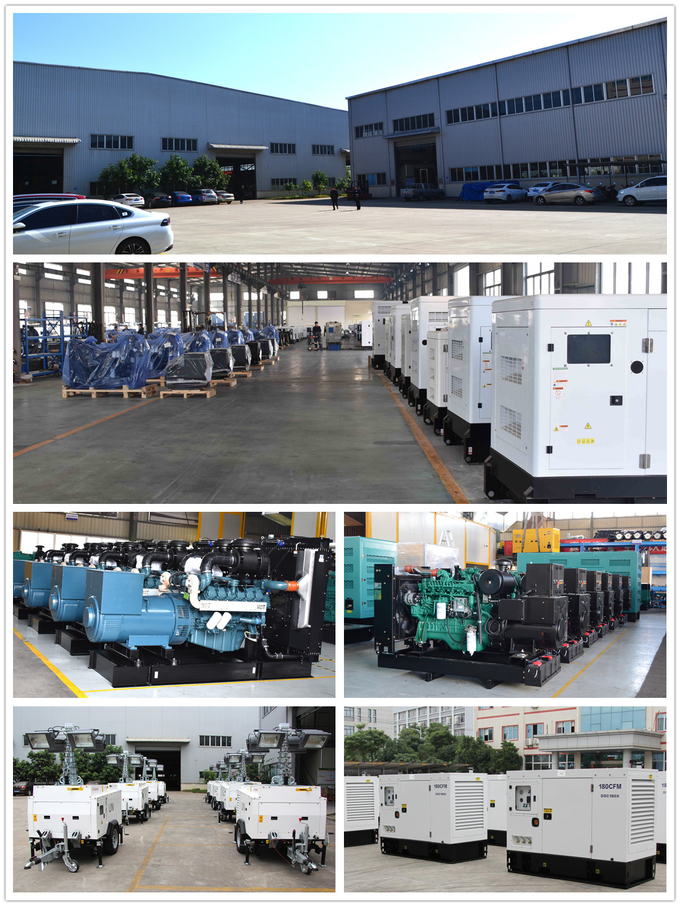

AI POWER FACTORY
Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators including Cummins, Perkins, Deutz famous engine, MTU from Germany, Doosan from South Korea, Stamford, LeroySomer, and Marathon for our industrial diesel generator sets, marine generator, movable generator, lighting towers, generator spare parts and reefer container generator. Those products are featured by personalization, intelligence, environmental protection and high quality. They are widely used in buildings, hospitals, banks, mine, ports, construction, data center, power station and high voltage projects.
FAQ
1. What is your warranty period?
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
4.What’s your delivery time?
A:Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
