20KW On Grid Solar System for Commercial & Industrial Use
This 20kw Grid-tie solar system is mainly composed of photovoltaic modules, hybrid inverters, support systems, batteries and so on. After the hybrid solar system is installed, it can be connected to the grid for self-consumption first, and the excess power can be stored in the battery.
If you have any questions regarding this product, we're here to help. Don't get lost in the nitty gritty details. With more than 10 years experience, our solar specialists are ready for designing for your solar power in any time.
20KW On
Grid Solar System Components List
|
Item
|
Module
|
Description
|
Quantity
|
1
|
Mono Solar Panel
|
Mono 380w solar panel
|
54pcs
|
2
|

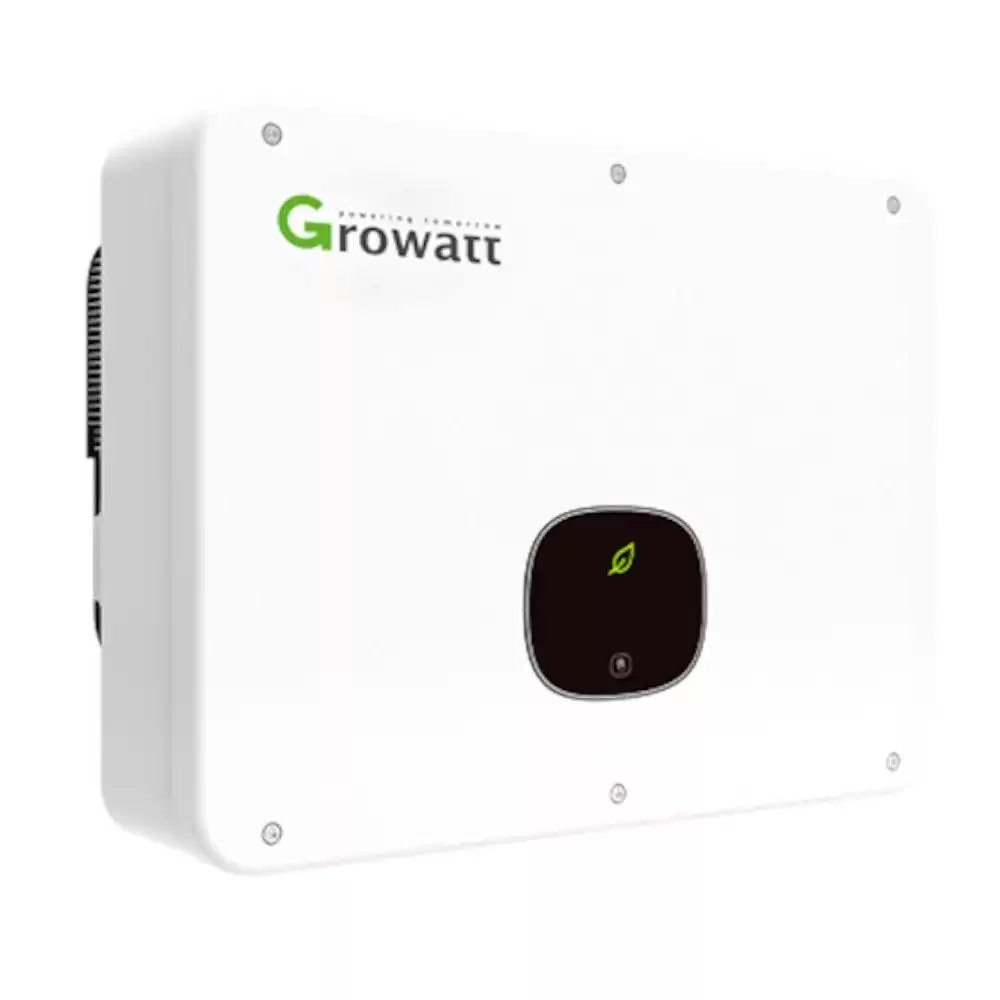

On Grid Inverter
|
Rated Output PV Power: 20KW
Output voltage:3W+N+PE 220/380VAC,230/400VAC,240/415VAC 50/60Hz
|
1pc
|
3
|
PV Cables
|
PV 4mm²
|
800m
|
4
|
Mounting System
(including all parts)
|
Roof/Ground
|
1set
|
5
|
MC4 connector
|
Rated Current:30A
Rated Voltage: 1000DVC
|
20pairs
|
20KW Solar System On Grid Diagram
