20KW Portable Charging Station Stacked Storage Battery
1.Product Introduction:
1. High Efficiency Power Management:
- Boasting a high input power factor, this charger maximizes energy utilization, reducing energy wastage and cost.
- Low input current harmonic ensures minimal electrical disturbances, enhancing overall performance.
2. Outstanding Performance:
- With high efficiency and excellent EMC (Electromagnetic Compatibility) performance, this charger ensures seamless operation and minimal interference with other equipment.
3. Simplified User Experience:
- Designed with simplicity in mind, this charger offers a straightforward process for installation, operation, and maintenance.
- Its high standardization degree ensures compatibility with a wide range of applications.
4. Robust Reliability:
- Engineered for durability and dependability, this charger minimizes downtime and maintenance costs.
- Its sturdy construction and stable foundation ensure consistent performance even in challenging conditions.
5. Versatile Application:
- Ideal for a wide range of industries, including transportation, industry, logistics, and more.
- Designed to meet the demanding power needs of various applications.
2.Technical Parameters：
|
Item
|
Parameter index
|
|
Input technical parameters
|
|
Input voltage
|
Three-phase five-line (A B C N PE) / three-phase four-wire (A B C PE) AC380V± 15% [Actual line system is subject to material objects]
|
|
Frequency
|
45Hz~65Hz
|
|
Input current
|
<45A
|
|
Power factor
|
≥0.9
|
|
Current distortion
|
≤5%
|
|
Output technical parameters
|
|
Maximum voltage
|
DC100V
|
|
Maximum current
|
200A
|
|
Maximum power
|
20KW
|
|
Output voltage range
|
40~100VDC
|
|
Limit the range of current adjustable
|
5A-200A
|
|
Efficiency
|
>90%
|
|
Voltage ripple
|
<3%
|
|
Current ripple
|
<3%
|
|
Voltage regulation accuracy
|
5‰
|
|
Current regulation accuracy
|
1%
|
|
Charging curve
|
BMS given
|
|
Working environment conditions
|
|
Operating ambient temperature
|
-20~45℃ regular work; 45~70℃ reduced output.
|
|
Storage temperature
|
-40~70℃
|
|
Relative humidity
|
0~95%
|
|
Altitude
|
≤2000m Full load output
|
|
Defencive function
|
|
Input protection
|
Input undervoltage, input overvoltage
|
|
Output protection
|
Output overvoltage, output short circuit, battery reverse connection
|
|
Overtemperature protection
|
Over-temperature inside the module protects shutdown.
|
|
Abnormal protection
|
Abnormal power device protection shutdown
|
|
Emergency stop protection
|
When an uncontrollable abnormality occurs, the shutdown can be forced through the emergency stop button
|
|
Interface
|
|
CAN interface
|
1 way
|
|
485 interface
|
The 7-inch touch screen can support 1 way
|
|
Human-computer interaction
|
|
Display mode
|
7-Inch touch screen、Segment code screen【Specific to the actual customized selection shall prevail】
|
|
External shape and protection
|
|
Case size
|

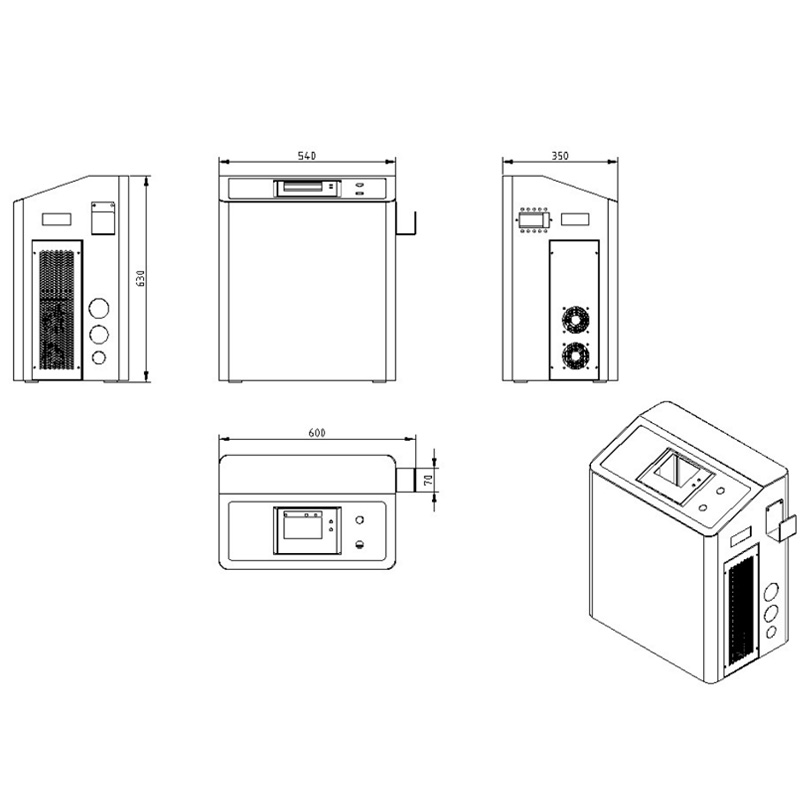

External size (host) 540 (L) 350 (W) 630 (H)
|
|
Levels of protection
|
IP21
|
|
Other
|
|
Heat dissipation mode
|
Forced air cooling
|

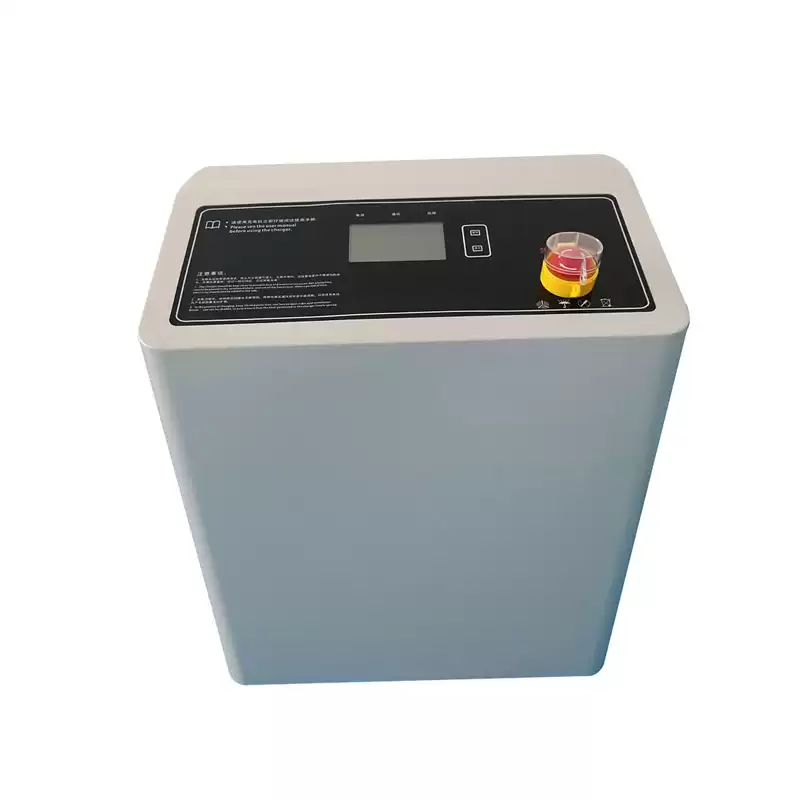

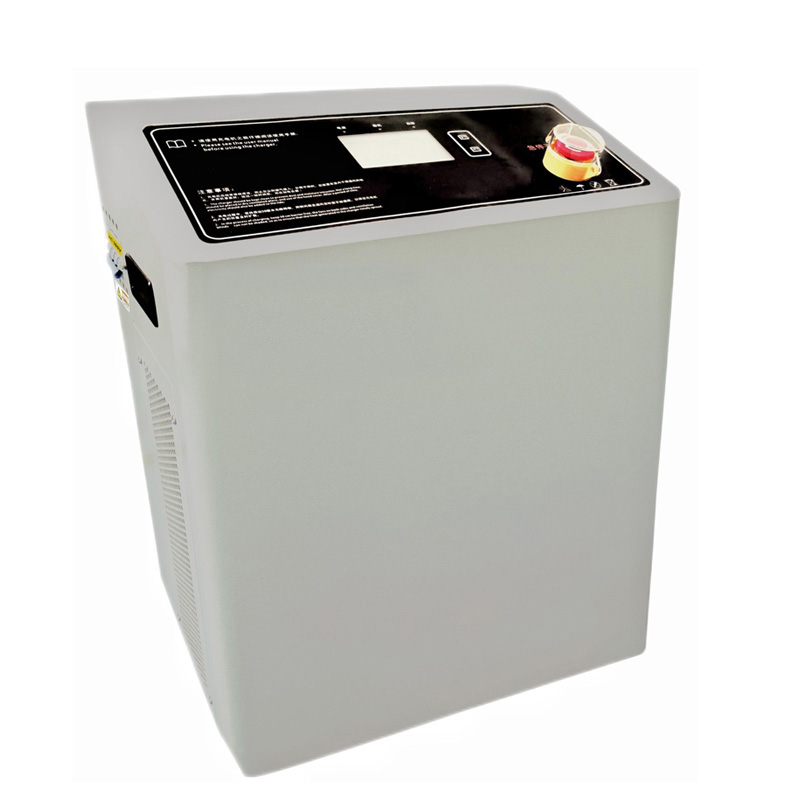

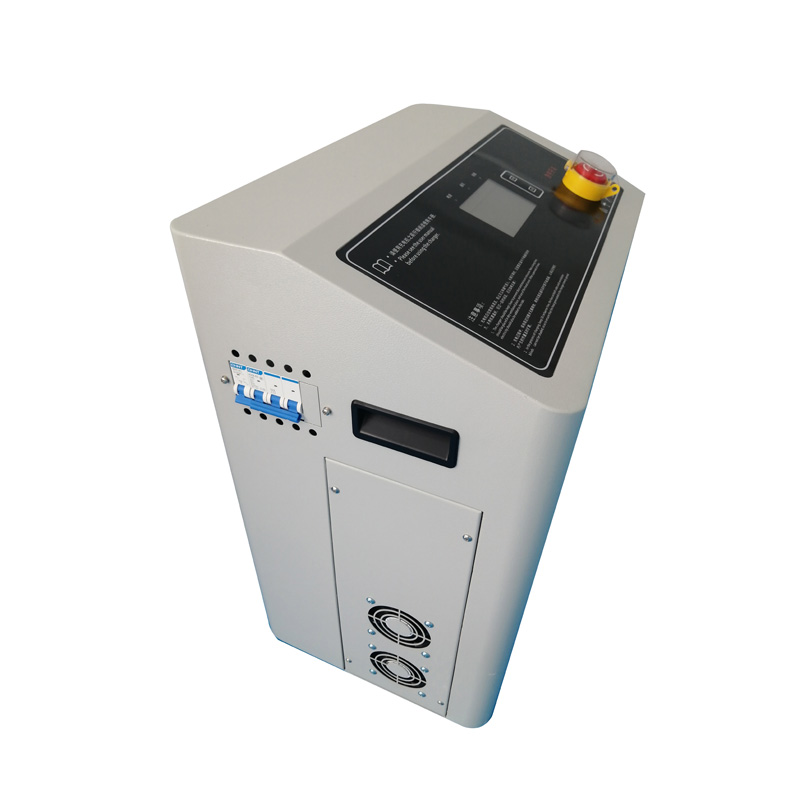

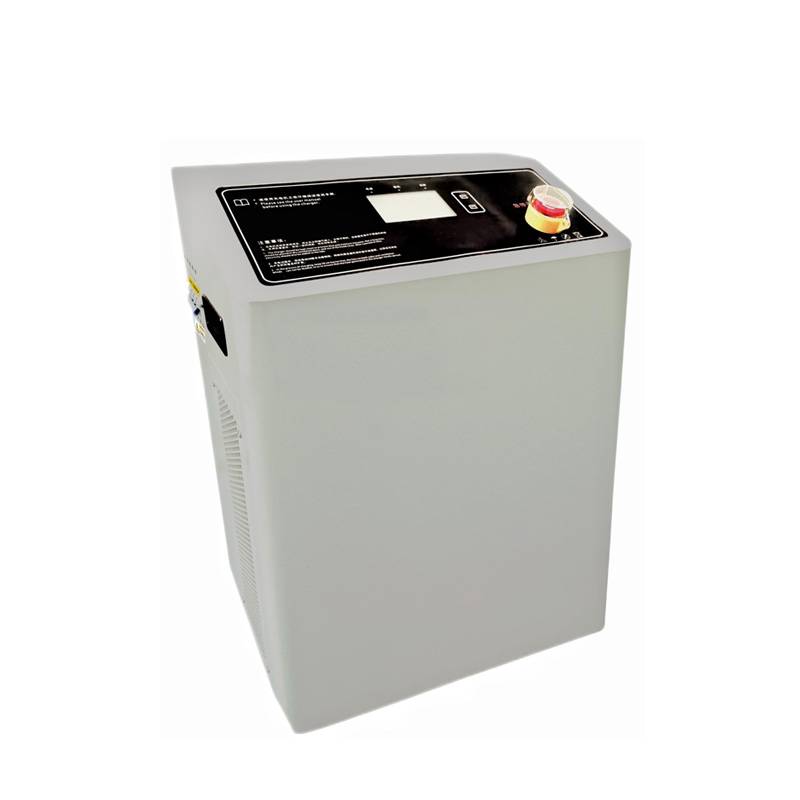

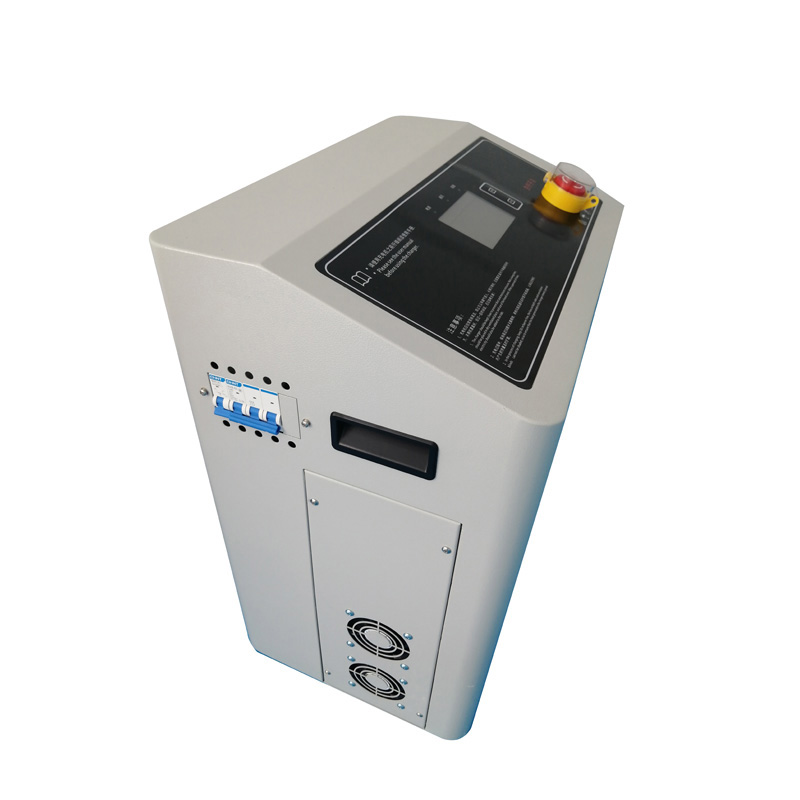

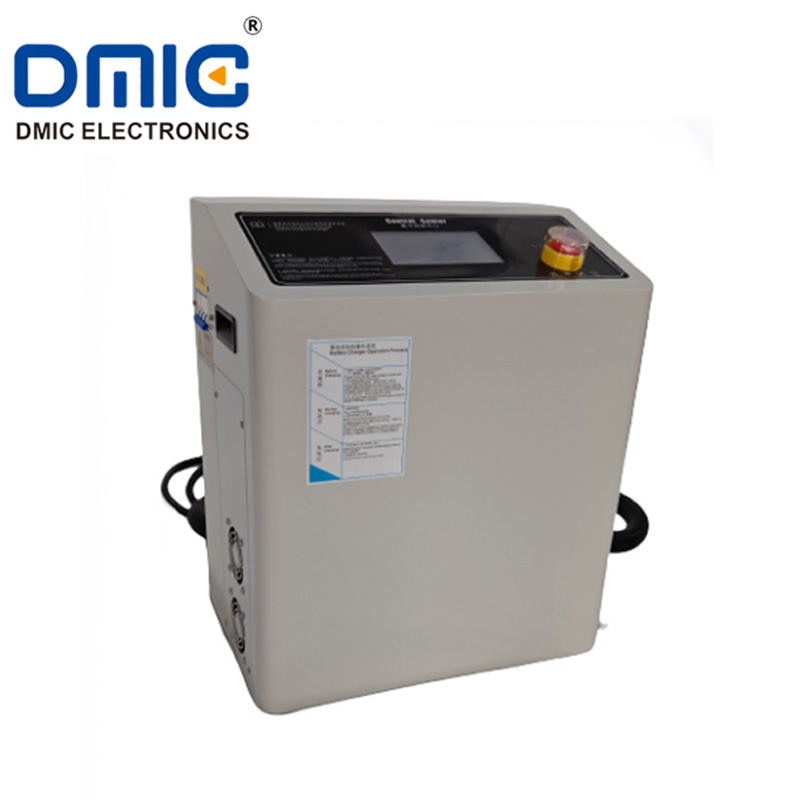

3.Picture Introduction:
4.Our Advantages:

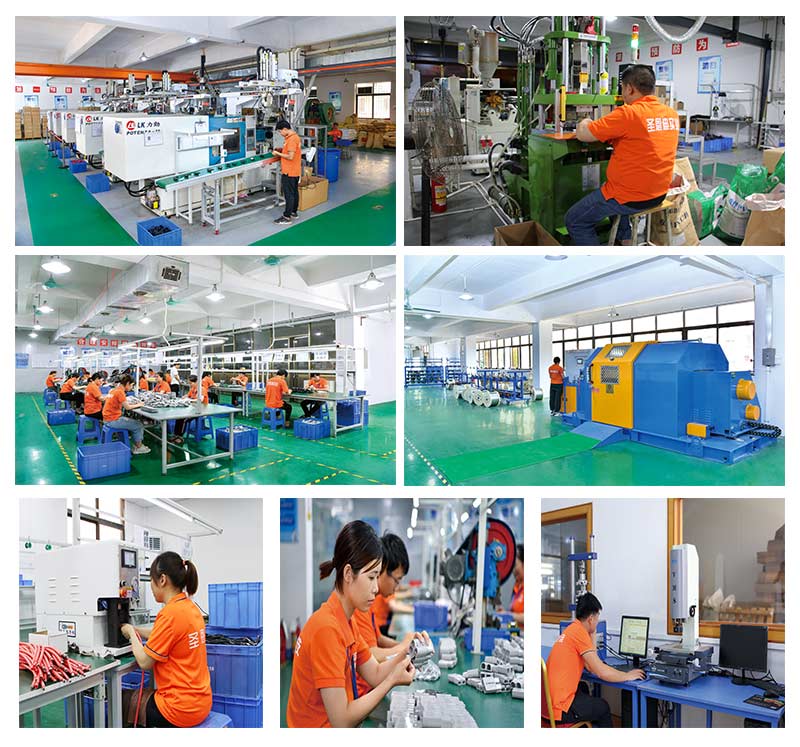

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
