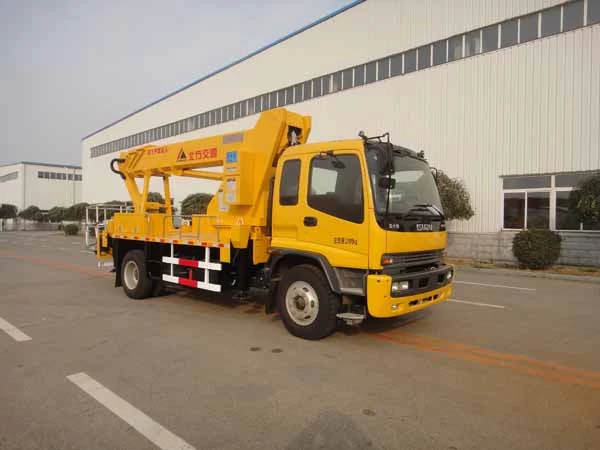

20M Isuzu High altitude operation aerial truck vehicles 20m aerial platform truck)
The special functions description of isuzu high altitude operation truck: telescopic boom high altitude operation
platform are products that service in various high-altitude operations,equipment installation,maintenance and othermobility operations at high altitude.Telescopic aerial work platform is divided into arm-mounted aerial
platforms and crank-type aerial work platforms. Mainly used in electrical maintenance, tree pruning, communication, street lamp,traffic police, highway, cable, shipbuilding, construction, landscaping, advertising,
photography, large enterprises and other industries.We also produce various kind of high-altitude operation truck with10m, 12m, 14m, 16m, 18m, 20m, 22m and 24m and so on.
Chassis/top parameter
|
Chassis model
|
ISUZU FVR
|
|
Producer
|
ISUZU TRUCKS
|
|
Overall dimension(mm)
|
8790*2370*2760
|
|
Fuel type
|
Diesel
|
|
Cabin
|
Row and a half
|
|
Wheelbase(mm)
|
4700,5000
|
|
Engine
|
I6HK1TCG40
|
|
Gearbox
|
MLD 6-SHIFT
|
|
Front/rear axle(t)
|
4.5/9
|
|
Frame(mm)
|
250
|
|
Tire
|
9.00-20,9.00R20,255/70R22.5
|
|
Emission standard
|
GB3847-2005,GB17691-2005,national IV
|
|
Other
|
**
|
Other Description
|
Tops description
|
1. It has operated device both in the cage and rotation seat,remote control the
engine start/stop, high-speed /low-speed.
2. Adopted electron-hydraulic proportional valve control arm movements,
smooth, the work arm can continuous rotating around 360°, maintaining the level
of slots by the linkage mechanism automatically.
3. When main pump break down, can control the emergency pump to down the
slot.It has night lighting.
4. It can lift weights,the truck’s lifting arm can reach in 1100mm,optional cab
with chassis.
5. Protective material:Q235 carbon steel;connection way:left and right side and
rear underrun protection both use welded connection;rear protection section
size(mm): 120*50*5;rear protective ground clearance(mm):480.
|
|
Function
Introduce
|
The truck consist of platform, telescopic cylinders, single or double ladder anti-rotation mechanism, tank chassis, legs,walking round and other parts,assembled
12m / 14m / 16m full swing three folding hydraulic arm,can rotate
360°, with one ton crane, the cages maximum load are 200kg,truck body's color is mainly
engineering yellow.
|
