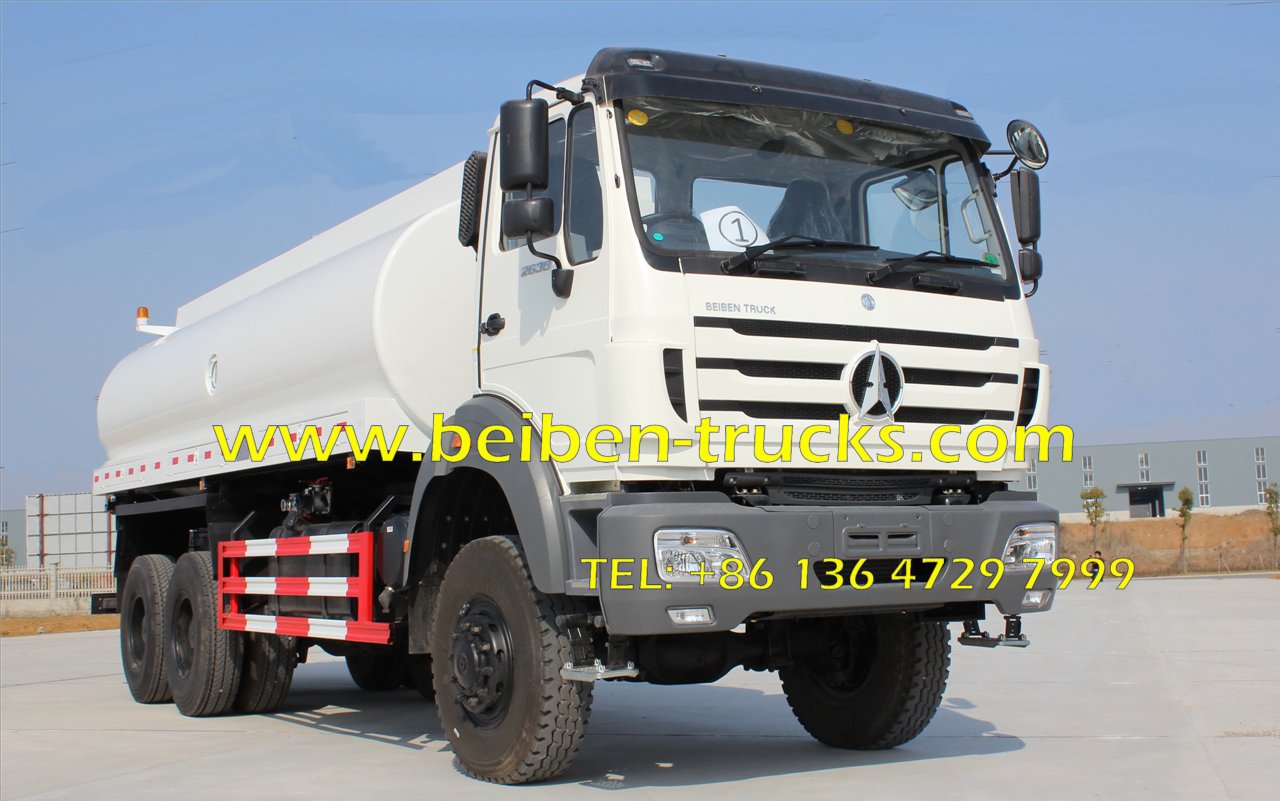

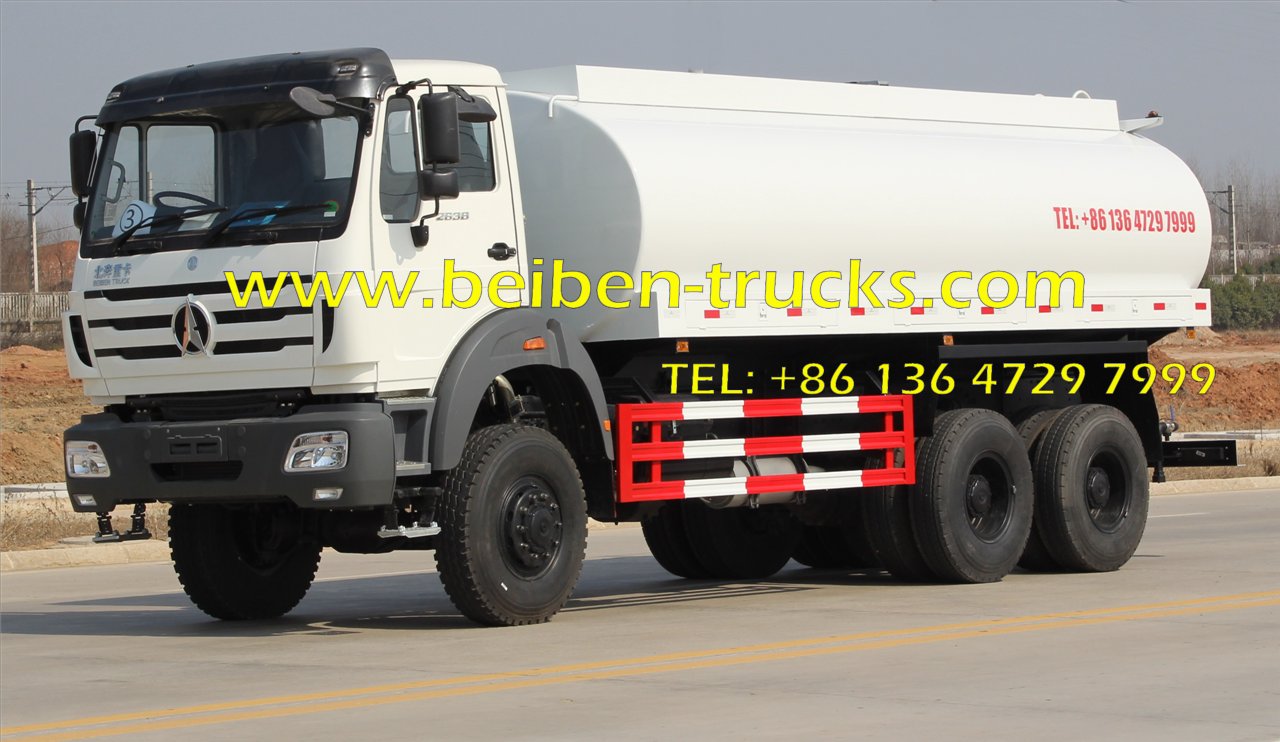

20m3 BEIBEN Water transportation stainless steel water tank truck

1.North Benz water tank truck 6x4

2.Engine: WD12.336

3.NG80 long and flat roof cabin, air conditioner

4.20000 liter tank mounted on the chassis.

5.High quality and competitive price



20m3 BEIBEN Water transportation stainless steel water tank truck



1.North Benz water tank truck 6x4

2.Engine: WD12.336

3.NG80 long and flat roof cabin, air conditioner

4.20000 liter tank mounted on the chassis.

5.High quality and competitive price



Product Description





Traction type

6X4

Driving type

Left hand driving

Dimension(Lx W xH)(unloaded)

10576×2500×3130

Approaching angle/

Departure angle(°)

26/20

Overhang(front/rear)          (mm)

1410/2666

Wheel base                   (mm)

5050+1450

Max speed                 (km/h)

90

Curb weight                 (kg)

12000

Loading Weight          (kg)

15,000-20,000

Engine

Steyr technology,

made in China

Model

WD12 336,water-cooled,four strokes,

6 cylinders in line,turbocharged,

directly injection With the exhaust valve brake

Displacement

(L)

11.596/Diesel

Bore X stroke

(mm)

126/155

Max power

(kw/rpm)

248/2200 (336hp)

Max torque

(Nm/rpm)

1350/1300-1600

Emission

EURO III

Fuel tanker            (L)

400

Clutch

Model

430 Diaphragm type

Gearbox

Model

9JS150A (Fuller)

mechanism,9gears,1reverse gear, manual,

Brake system

Service brake

Brake gap can be adjusted automatically,

double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle

and rear wheels

Steering system

Model

TAS85

Frame

Fish belly, shape, variable width, variable sections,

side beam structure

Front axle

Use Mercedes Benz Technology Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle

Use Mercedes Benz Technology Double-shoe pneumatic brake, casting, double reduction driving axles

Tyre

12.00-20 bias tyre Number of tyre:10+1 spare

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

                       Water tank

Steel quality

Q304 stainless steel

Compartment

Single

Loading valve

1

Discharge valve

1

Pump

1

Tube

10meters

Tank capacity (Liter)

20m3

Thickness of the

tanker body

the thickness of the shell is 4mm approx;

Dish ends

the thickness of the shell is 5mm approx;

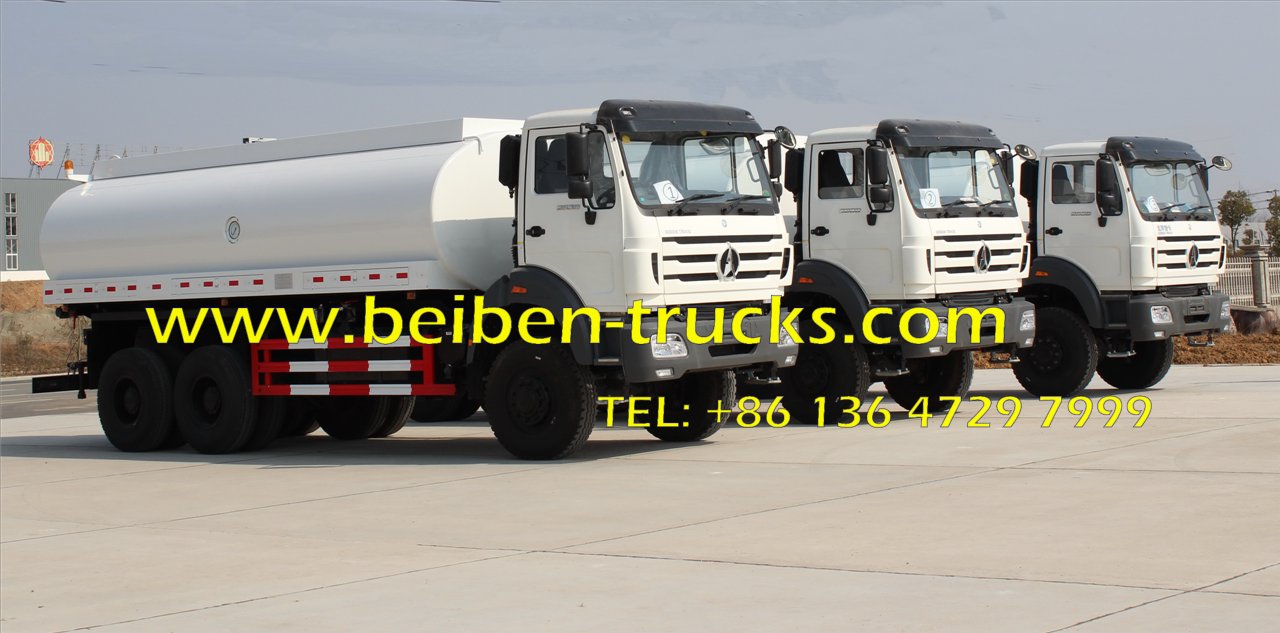

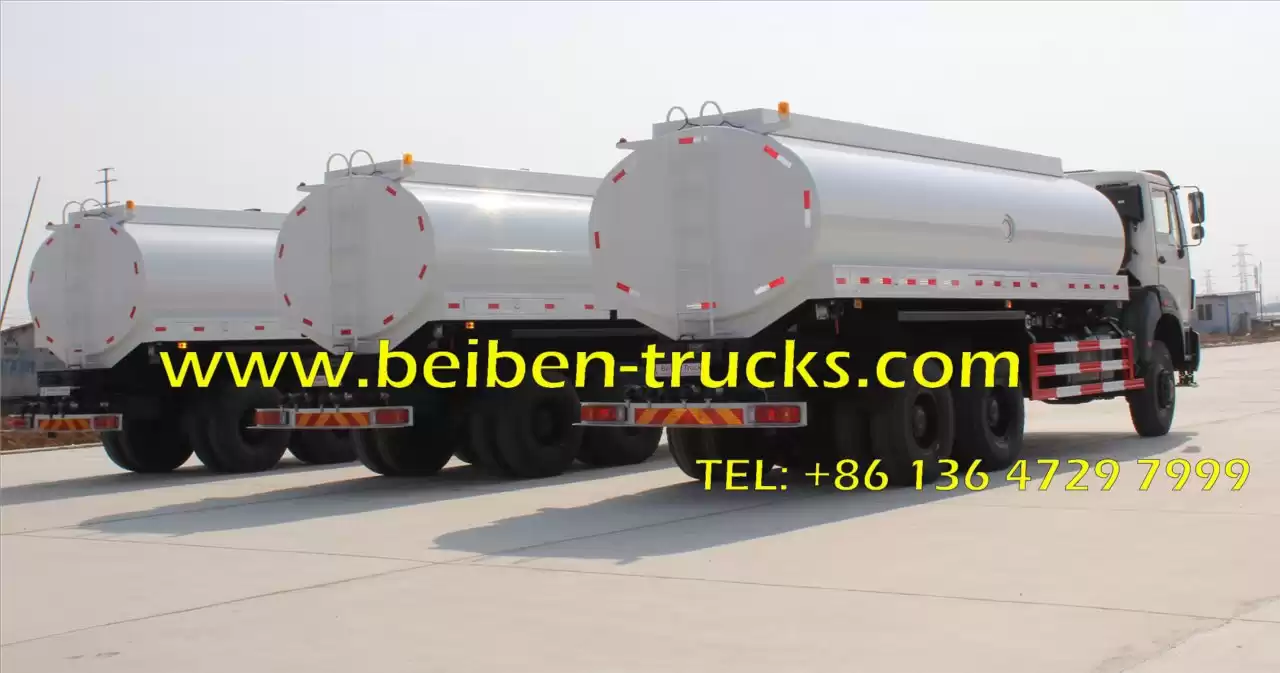

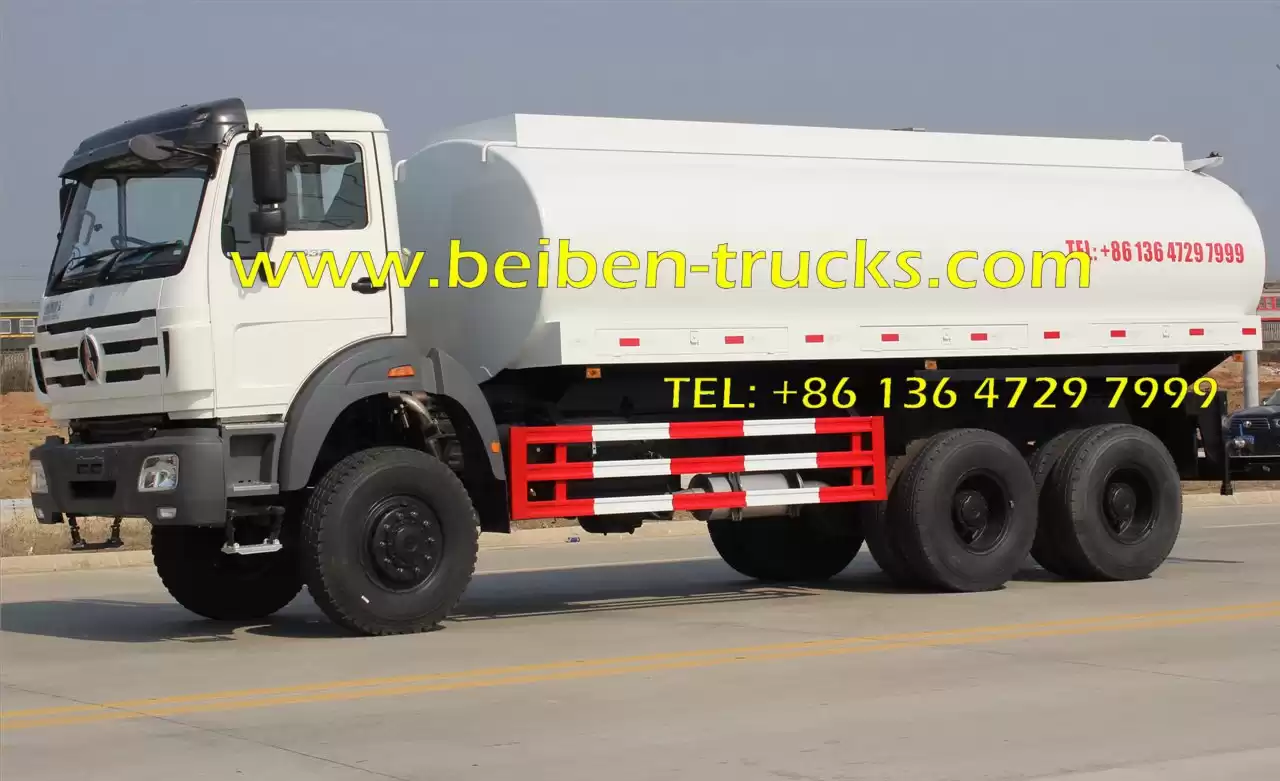

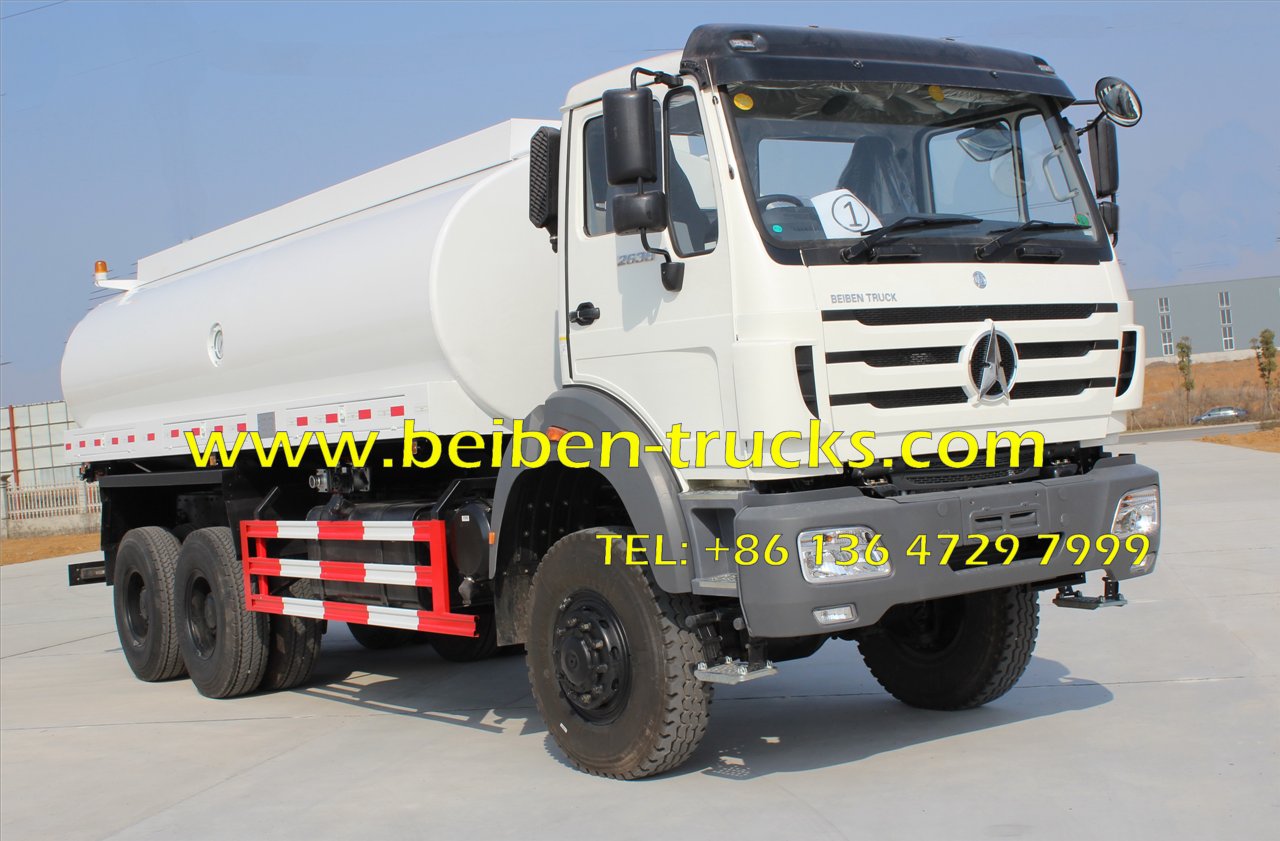

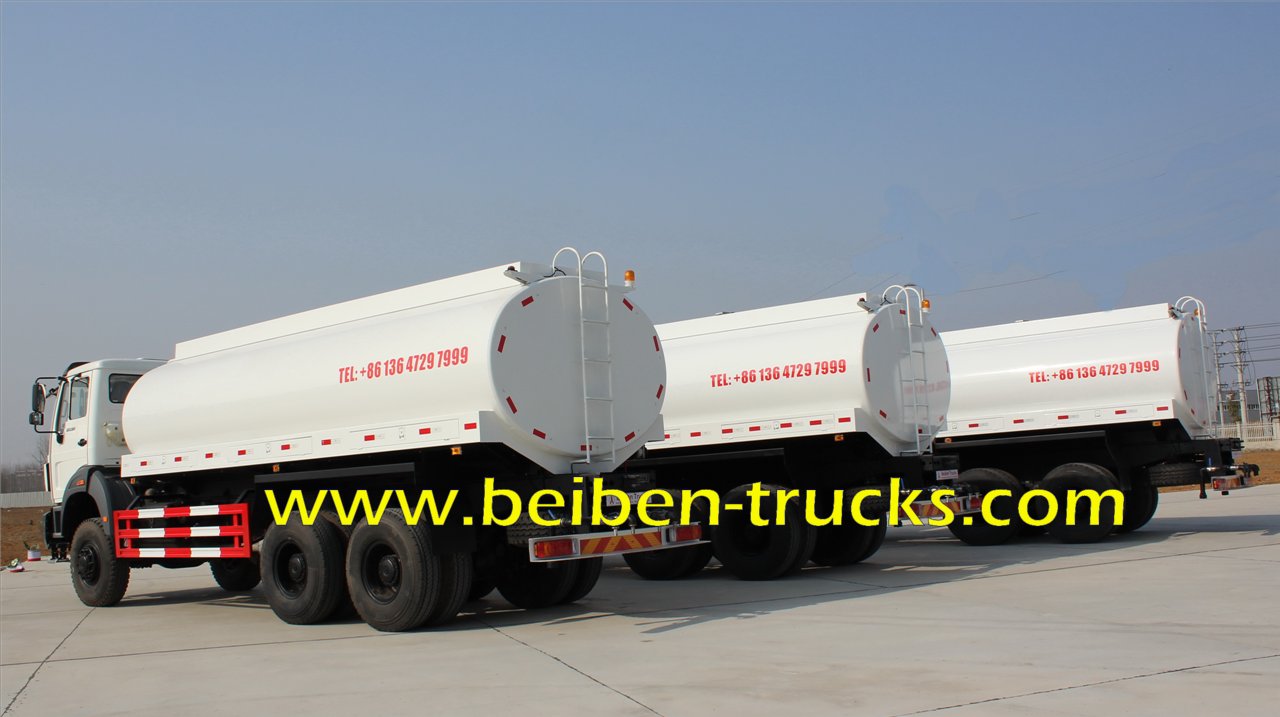

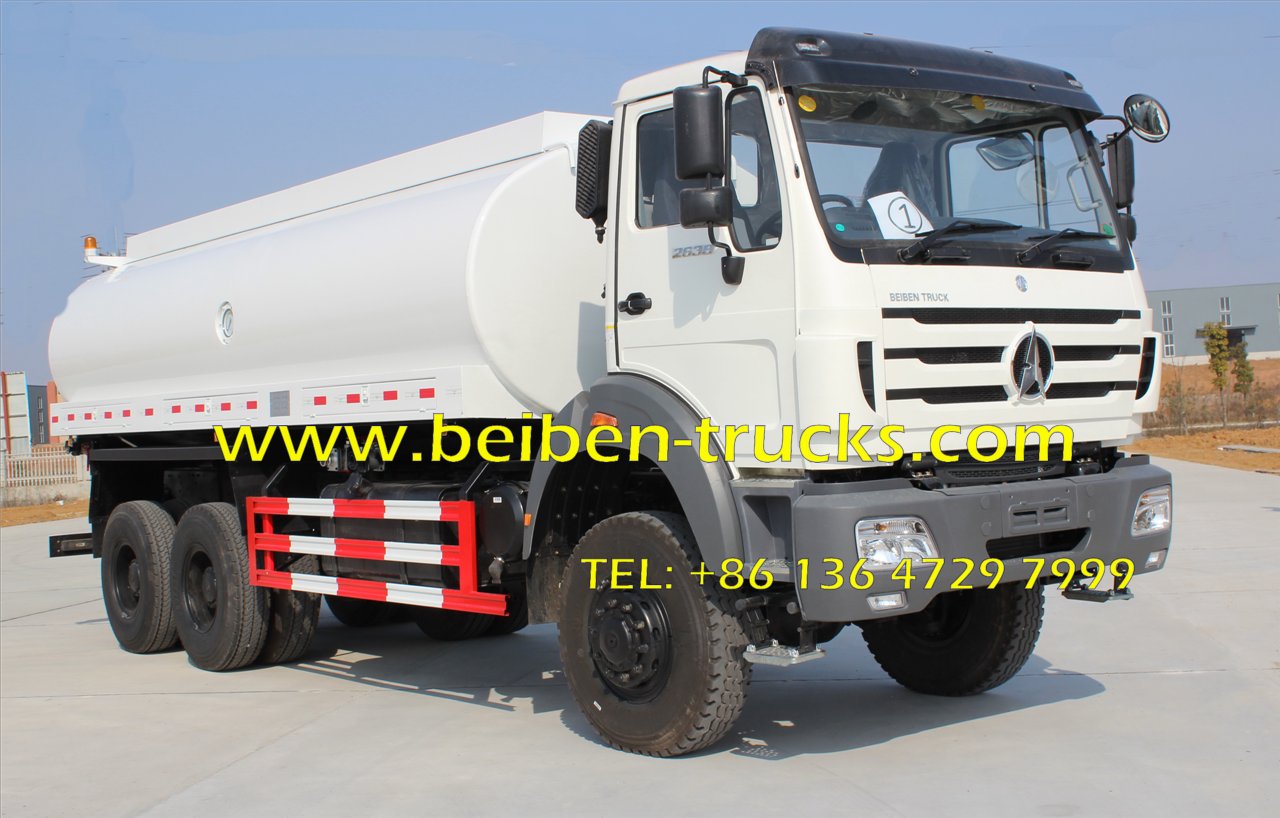

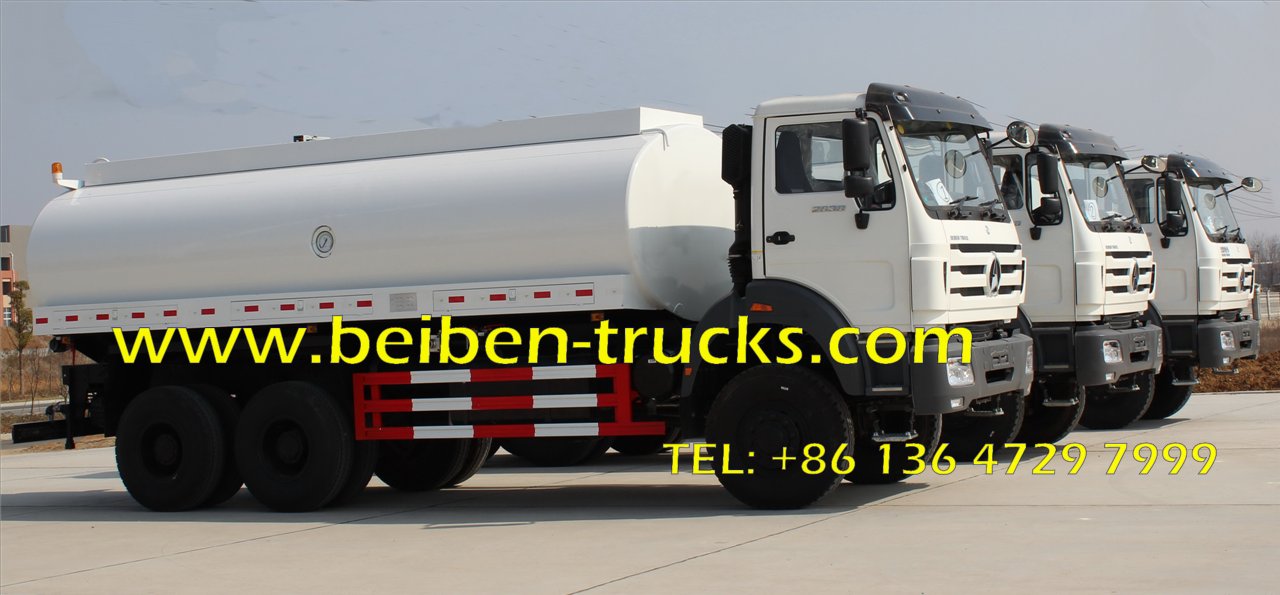

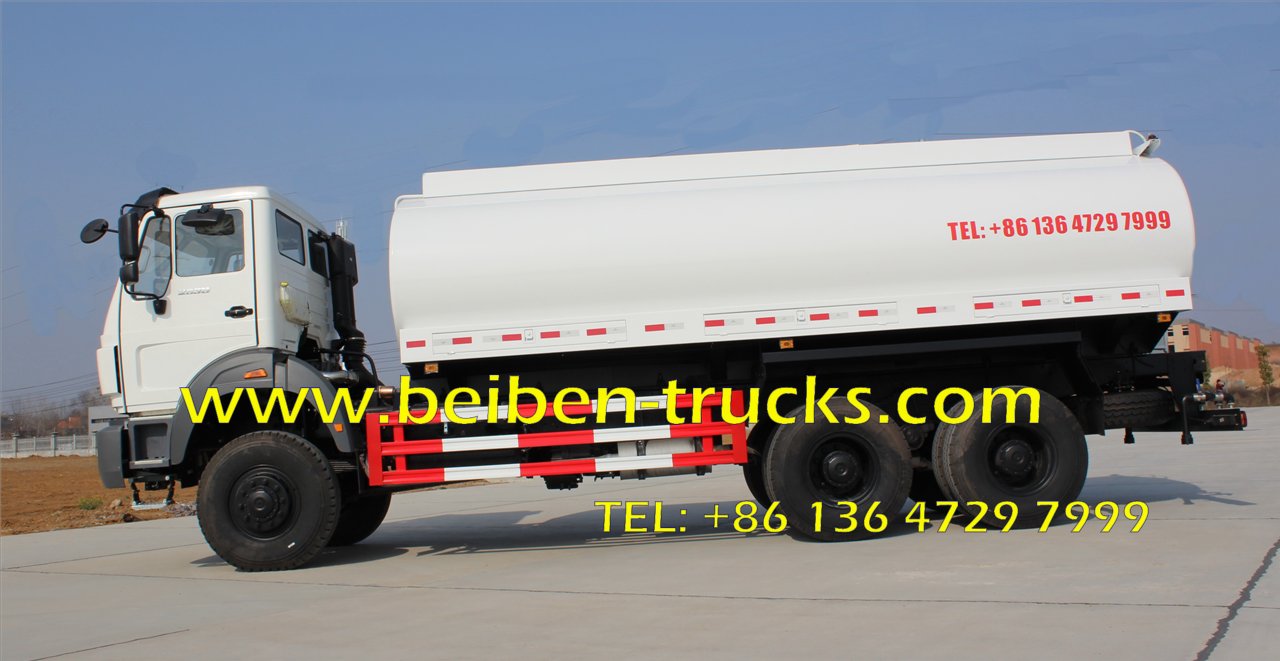

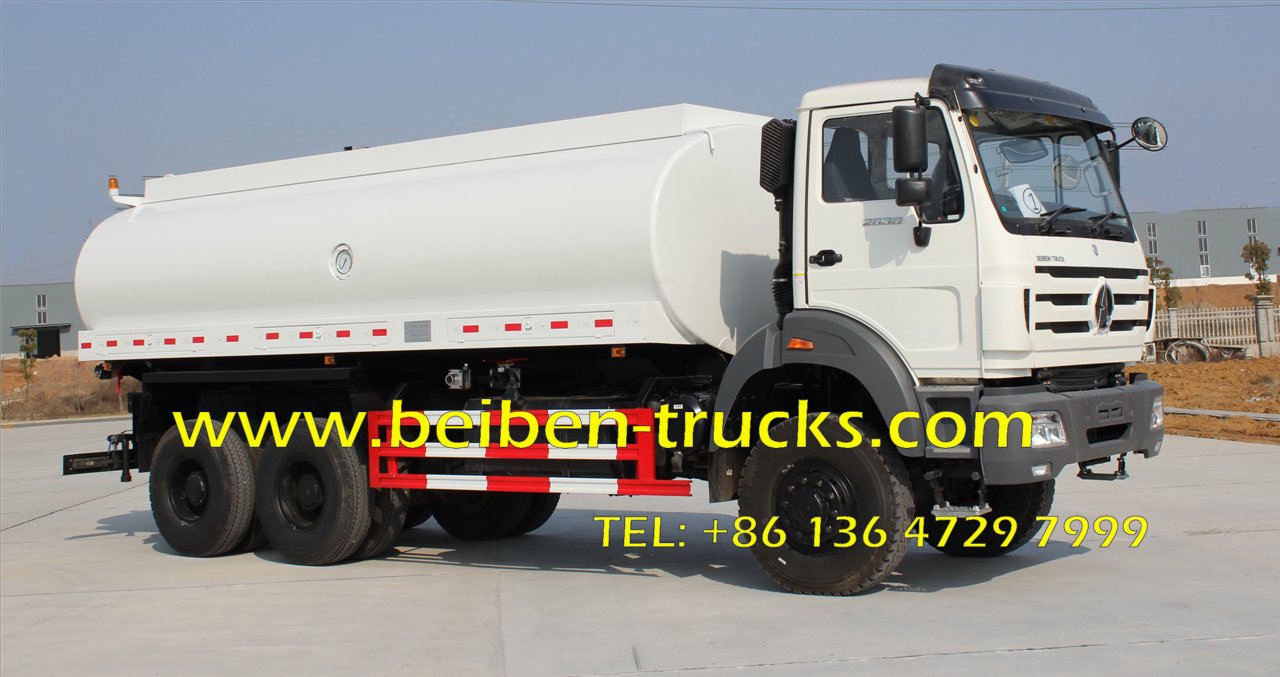

20m3 BEIBEN Water transportation stainless steel water tank truck

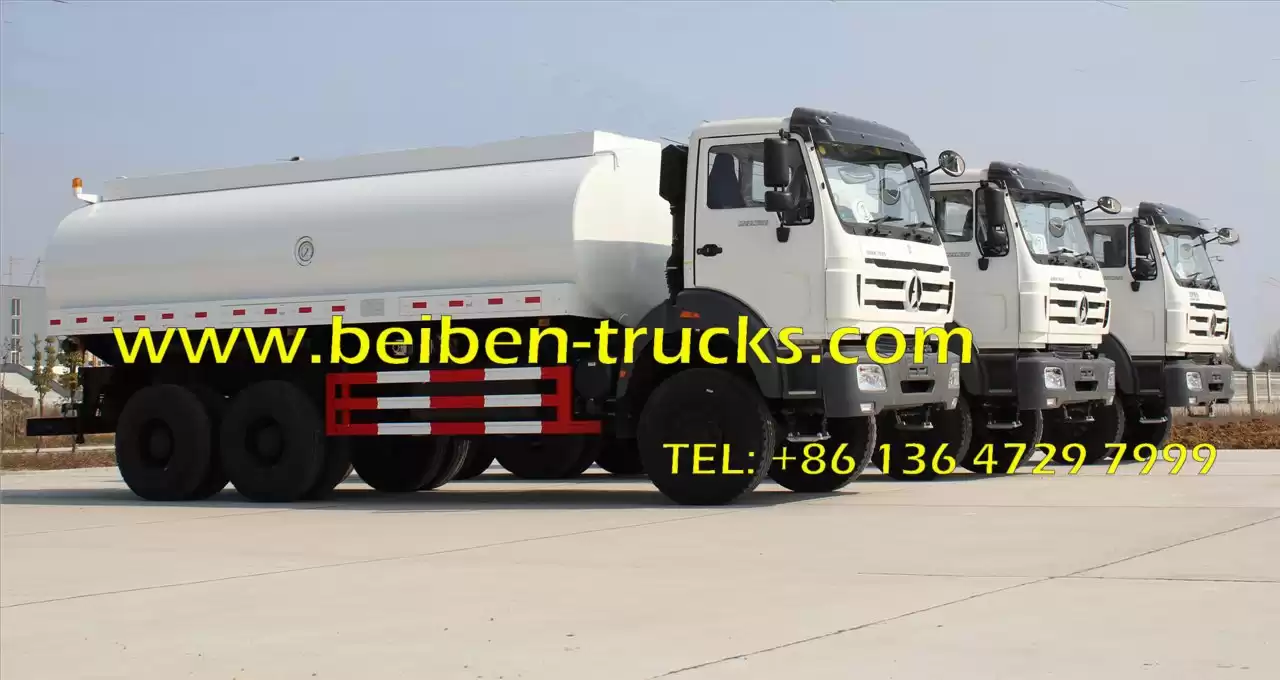

20m3 BEIBEN Water transportation stainless steel water tank truck

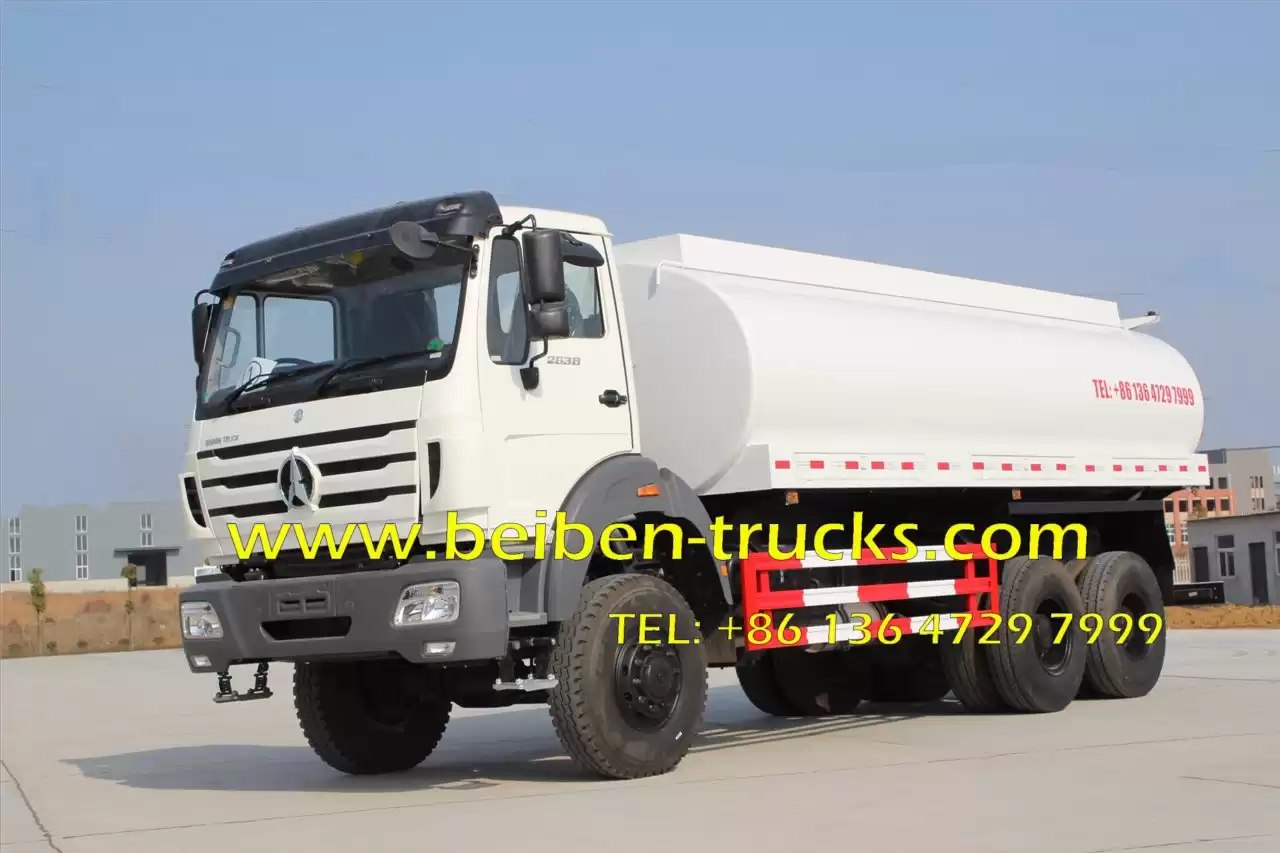

20m3 BEIBEN Water transportation stainless steel water tank truck

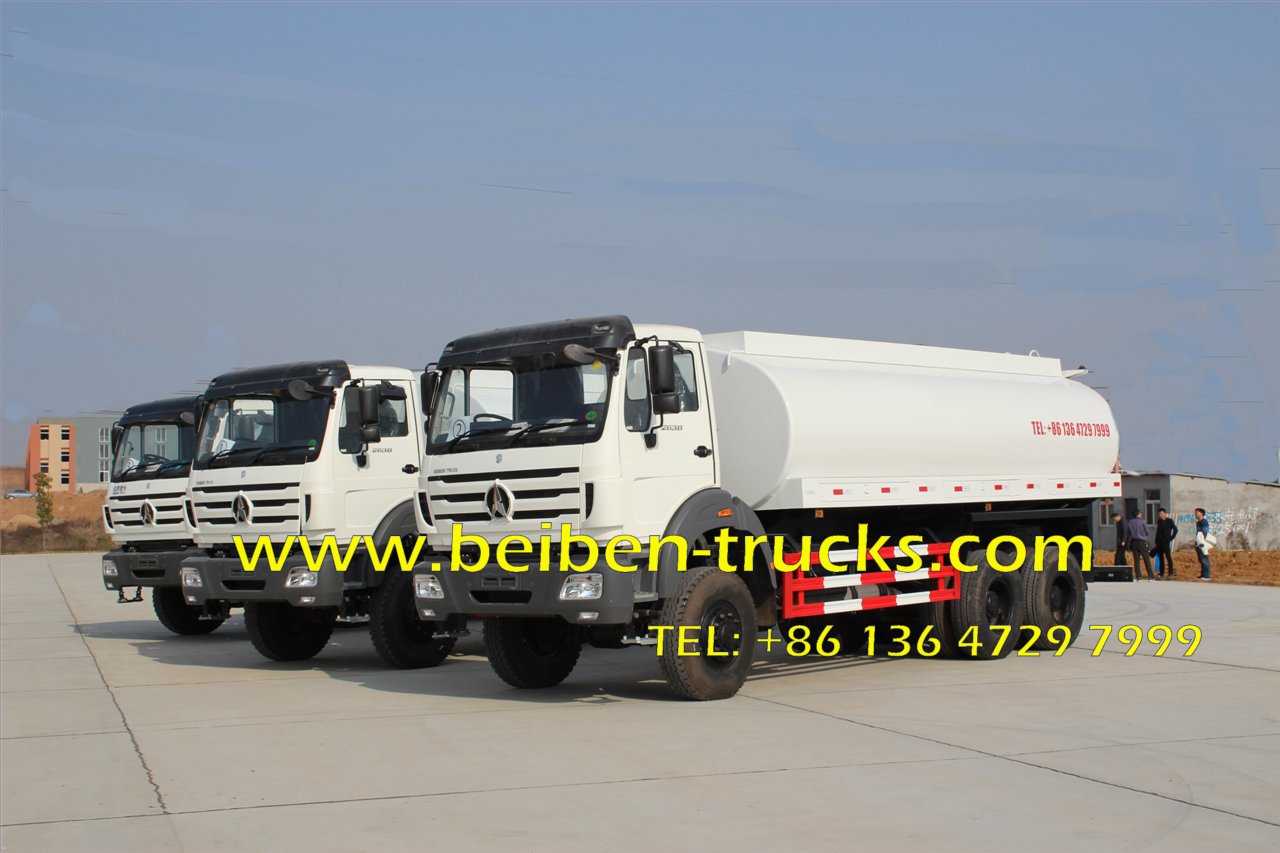

20m3 BEIBEN Water transportation stainless steel water tank truck

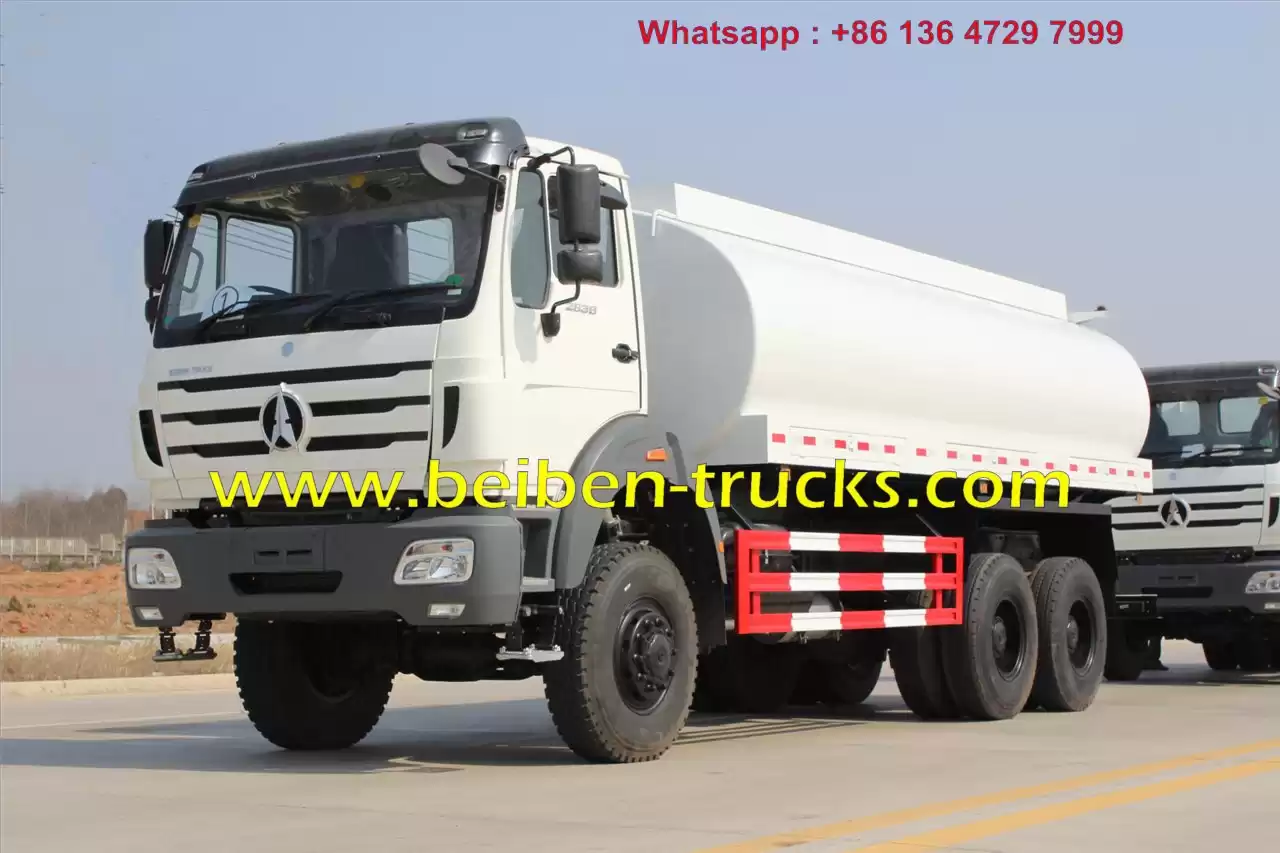

20m3 BEIBEN Water transportation stainless steel water tank truck
