Solenoids are a well known application where magnetic fields are used to create controlled magnetic force. Solenoids are used in various industries where they serve the purpose of hydraulic valves, current limiting switch, steering control of heavy machines etc.DC operated tubular solenoid which is often used as an actuator. Comprising of a metallic can, coil, soft iron cored plunger along with insulator coating and connecting wires, linear solenoids are almost noiseless.
Product Description
|

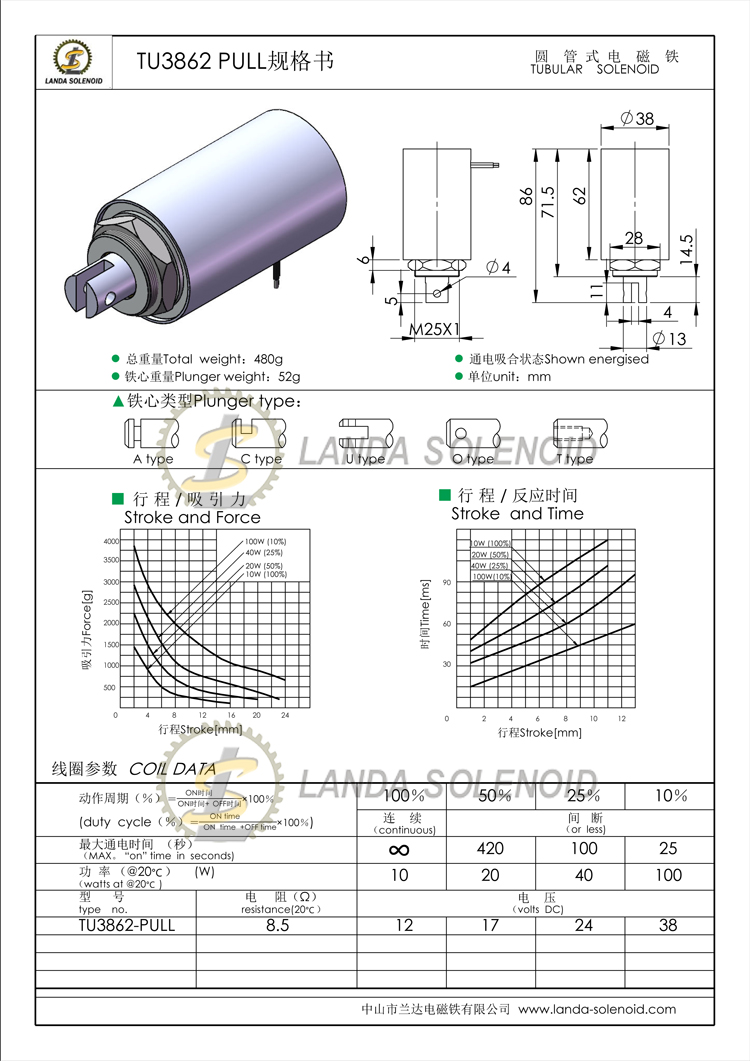

Specifications
|
|
Brand
|
Landa
|
Product Name
|
tubular push pull solenoid
|
|
Model
|
TU3862
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
10-100w
|
Force
|
0-45N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
10-100%
|
|
Stroke
|
0-25mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.48kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
–
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
D38*L62(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.
2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machiney.
3. Typically used for longer stroke, can also be designed for high force heavy duty applications.
4. Single hole mounting holes, easy to install, accepted custom as you needed.

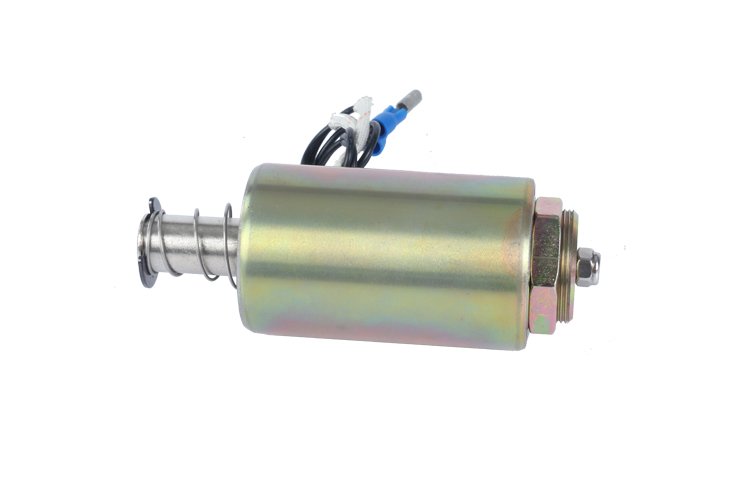

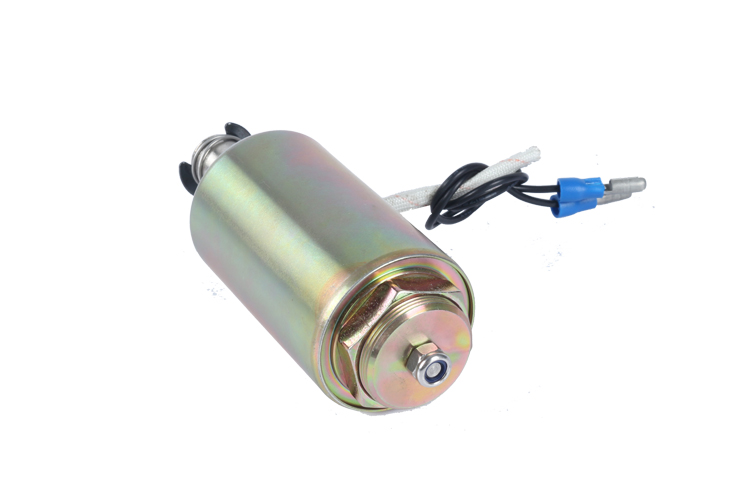

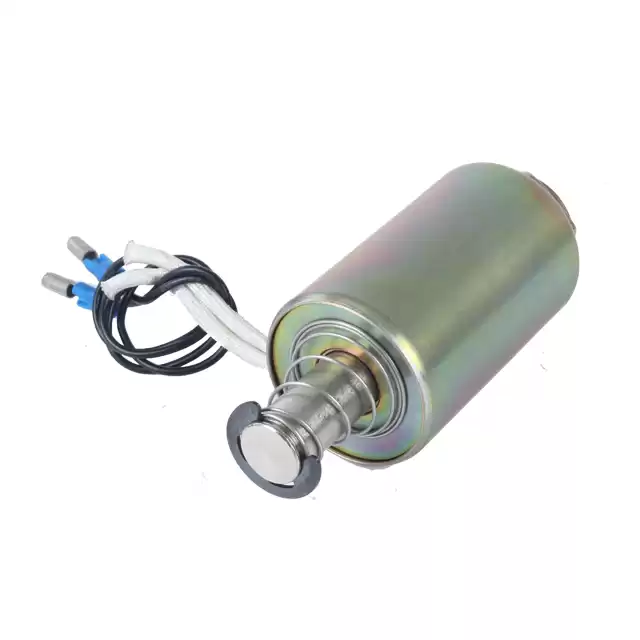

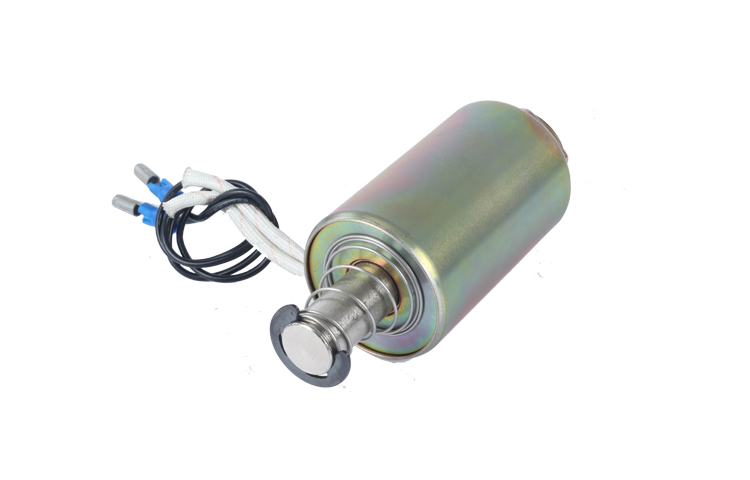

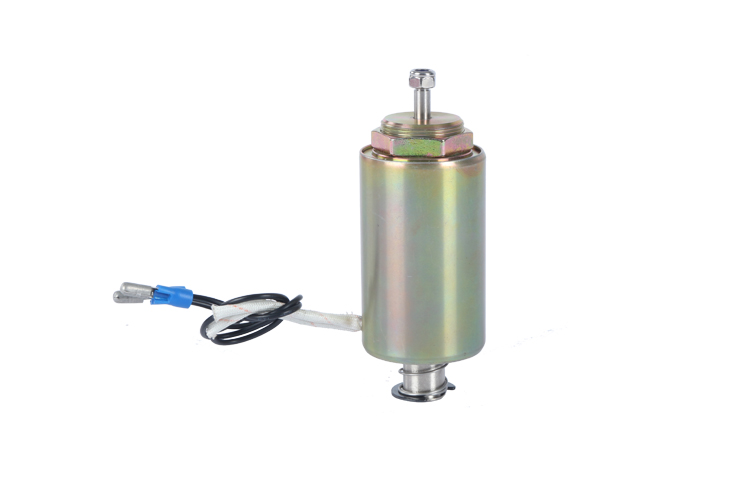

Detailed Images
