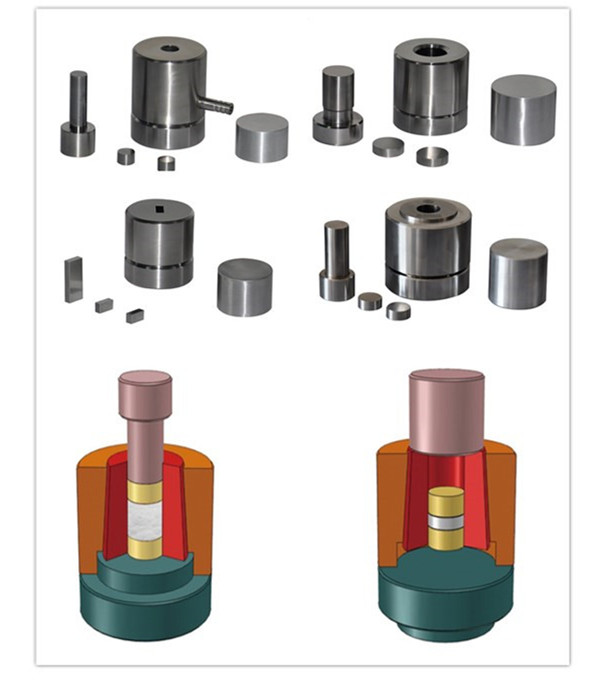

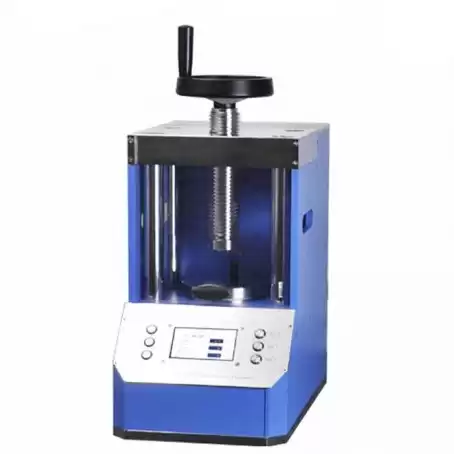

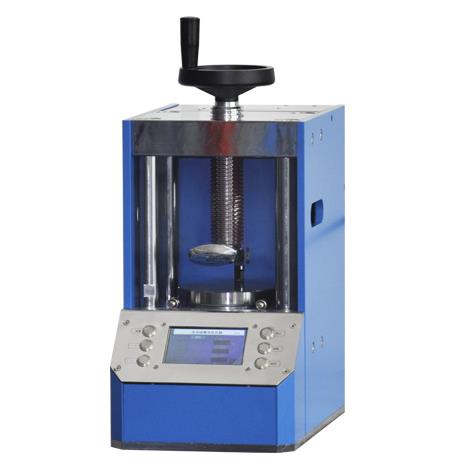

Based on the existing manual and electric powder compactors and the proposal of some college customers, our company has designed and developed a new type of automatic powder compactor to meet the requirements of the times. At present, the tablet compactor has been put into use in the market with appropriate mold accessories, which can meet the requirements of customers in powder pressure forming and is widely used It is an alternative product of the existing manual and electric tablet press, which is deeply loved by users.
Features
1. New type fully automatic, program pressurization, program pressure maintaining, automatic pressure relief, intuitive operation, beautiful appearance, etc., suitable for high-end laboratory use.
2. The automatic conversion display of mould pressure does not need manual conversion, so as to avoid the damage of mould due to operation error, and the operation is more humanized.
3. A limit protection switch is set to automatically relieve the pressure when the oil cylinder rises to the limit height, so as to avoid the damage of the machine and oil leakage caused by the over position of the oil cylinder.

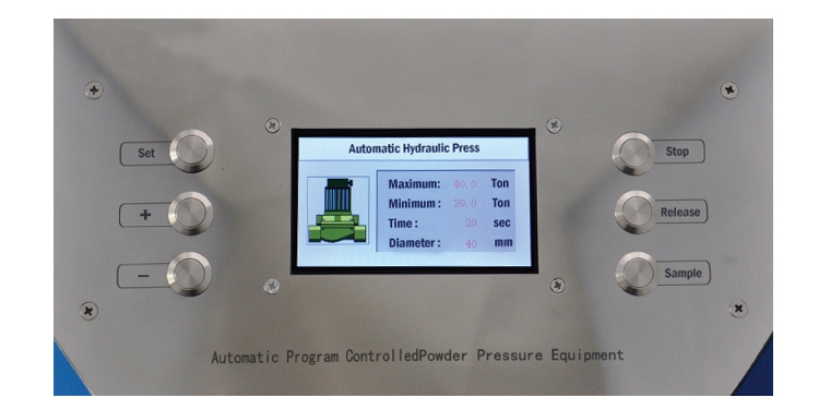

4. Large screen liquid crystal display, more intuitive operation, clearer display, convenient for user setting and operation.

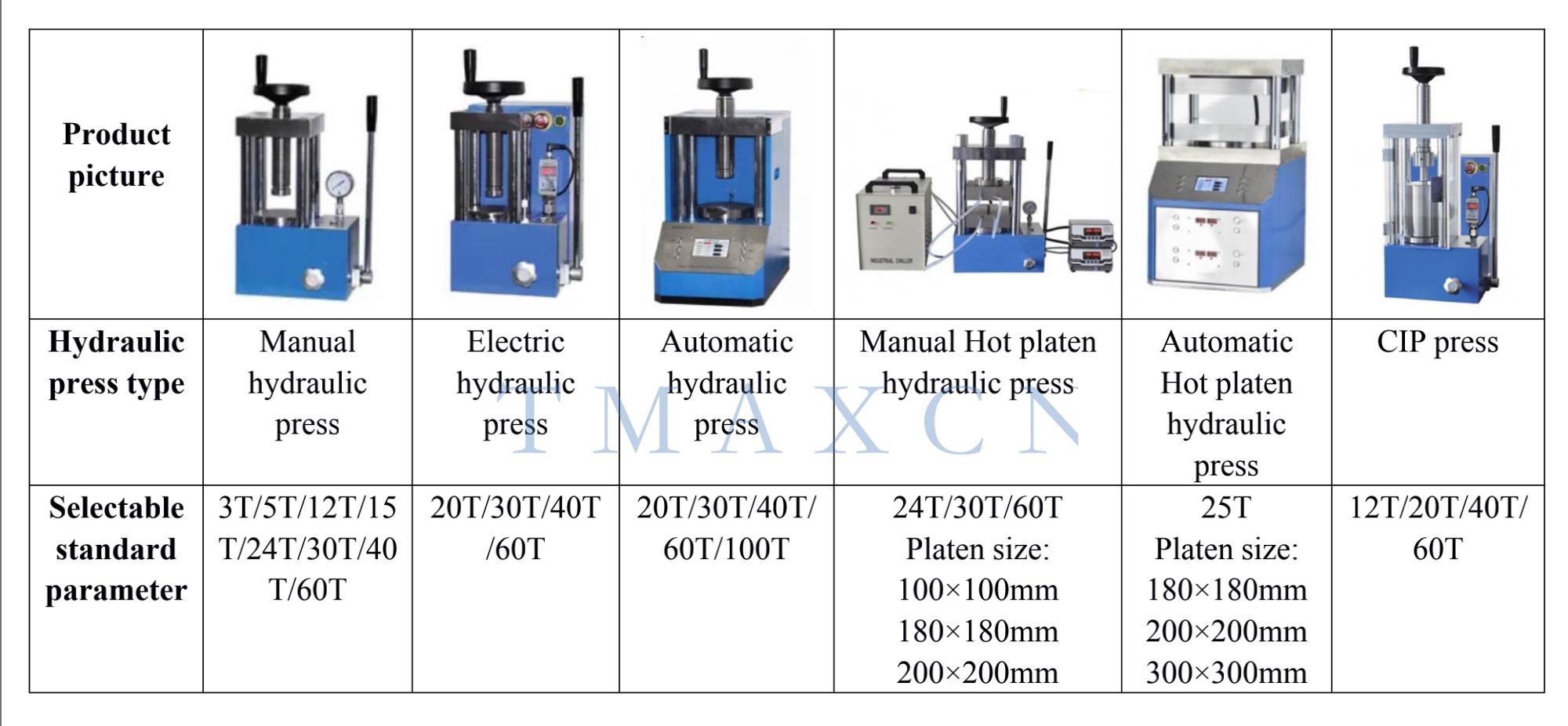

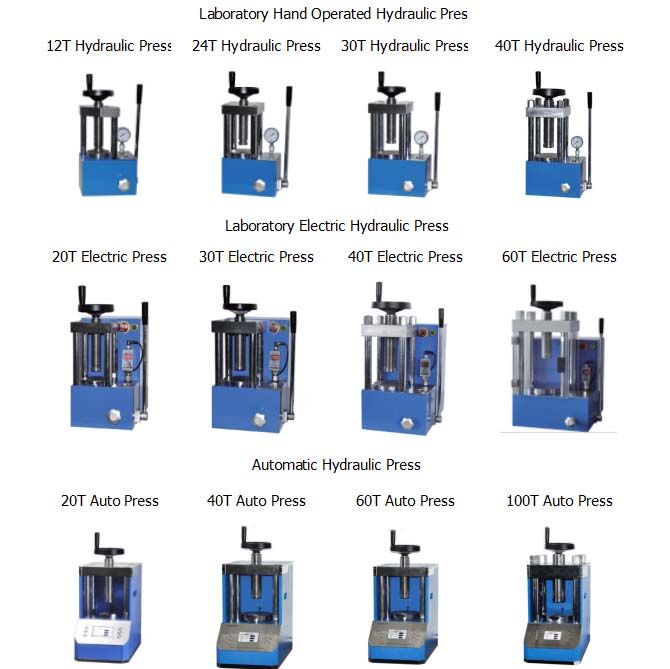

Related products:
Hydraulic Press
Technical parameter
|
Model
|
ZYP-20TS
|
ZYP-30TS
|
ZYP-40TS
|
ZYP-60TS
|
ZYP-100TS
|
|
Pressure range
|
0-20.0T
|
0-30.0T
|
0-40.0T
|
0-60.0T
|
0-100.0T
|
|
cylinder stroke
|
40mm
|
40mm
|
50mm
|
50mm
|
50mm
|
|
Display mode
|
4.3-inch LCD
|
|
Pressurization process
|
Intelligent full-automatic, program slow pressure / pressure supplement - automatic pressure maintaining - timed pressure relief
|
|
Holding time
|
0-999 seconds
|
|
Pressure conversion
|
Automatic conversion and display of die bearing pressure (MPA) program
|
|
Cylinder protection
|
When the oil cylinder rises to the limit height, the pressure will be released automatically, and the oil cylinder will be protected to prevent over position
|
|
Equipment protection
|
Steel plate protection, equipped with plexiglass protective door
|
|
Device power supply
|
220V（50Hz/60Hz）
|
|
Workspace
|
175×160mm
|
175×160mm
|
175×180mm
|
185×220mm
|
185×250mm
|
|
Outline size
|
280×460×530mm
|
280×460×530mm
|
280×460×550mm
|
300×520×580mm
|
330×580×620mm
|
|
Machine weight
|
140kg
|
140kg
|
150kg
|
180kg
|
240kg
|
