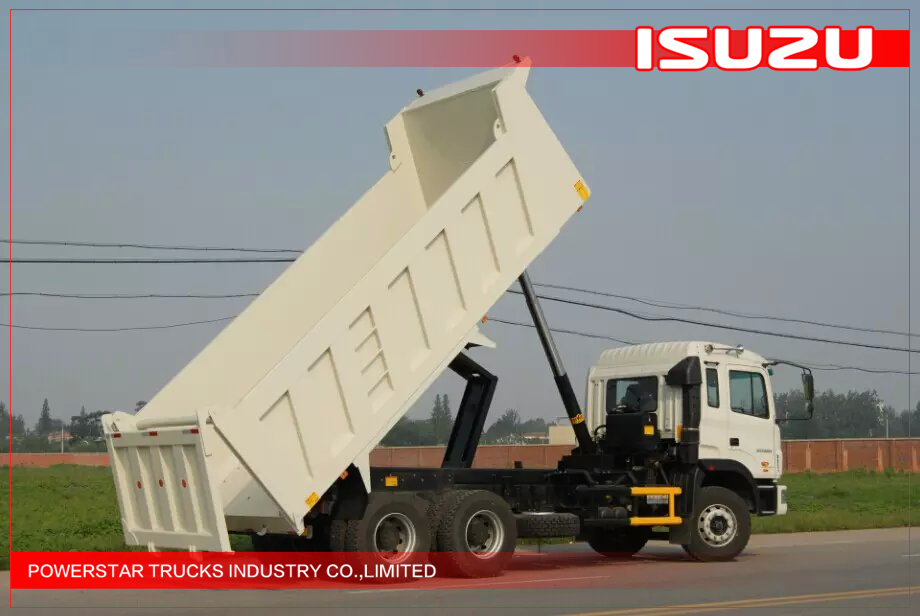

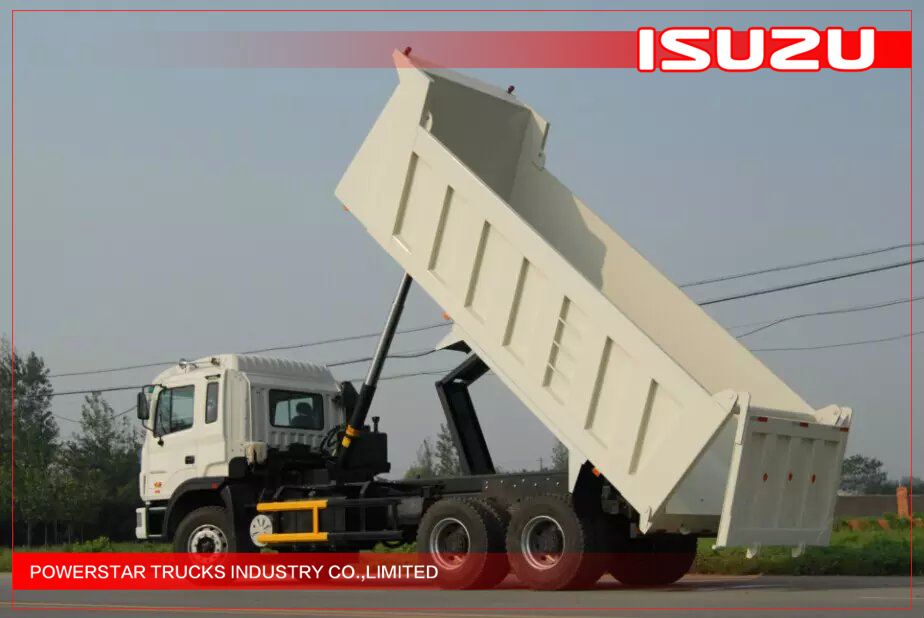

20Ton 10wheels Isuzu Chassis Heavy Tipper Trucks



 20Ton 10wheels Isuzu Chassis Heavy Tipper Trucks



Main specifications:

Model

PT3250ZX

Driving Type

6x4

Left hand drive

Weight

Kerb Weight (kg)

11780

Loading Capacity (kg)

20000 kg

Dimensions (mm)

Wheelbase

4000+1300

Overall Dimension

7580x2500x3157

Tipper Body

4500x2300x800

Cab

All-steel-welded construction, 2 seats with A/C

Engine

Model:

6HK1-TCSNG40

Cylinder in Line

6

Capacity

7800 ml

Type

Diesel, turbo charged inter-cooled

Max. Power:

206/2400 KW/RPM

Max. Torque

981/1450 N.m/RPM

Gearbox

FAST 9-shift, mechanical type, 9 forward and 1 reverse with

Tyre

11.00-20
