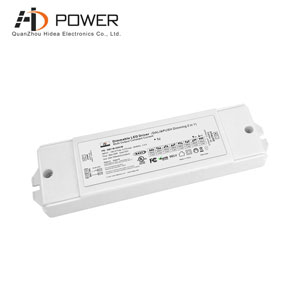

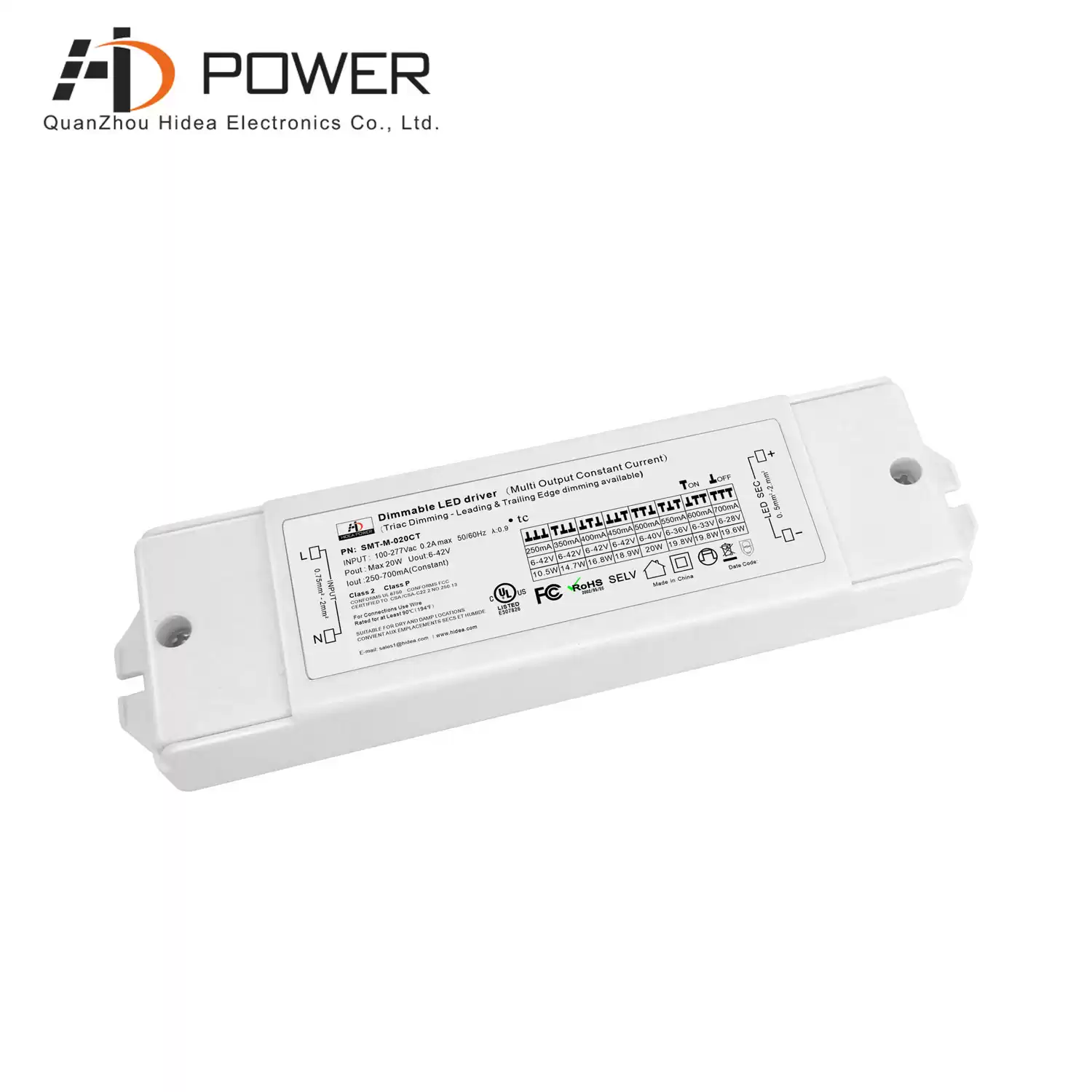

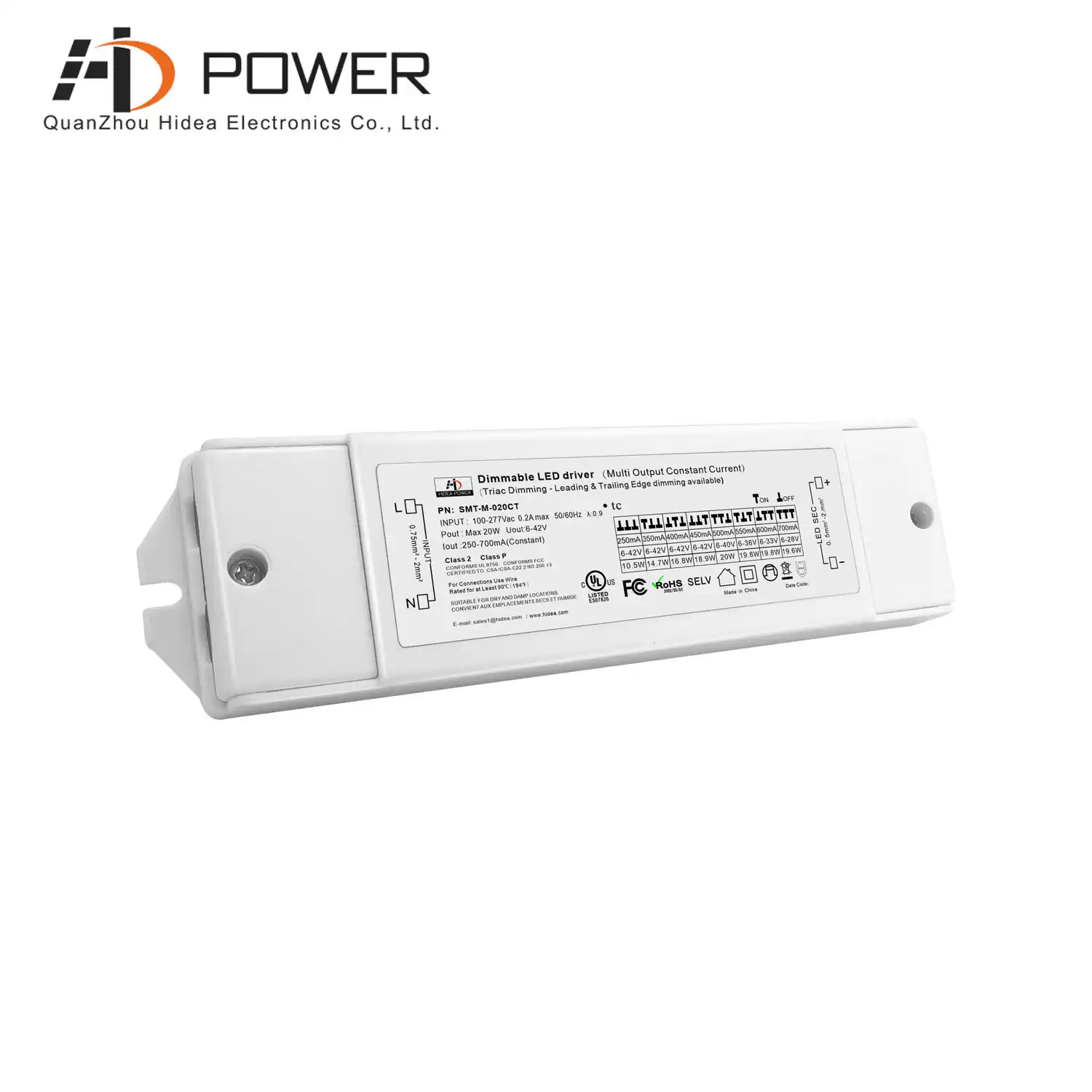

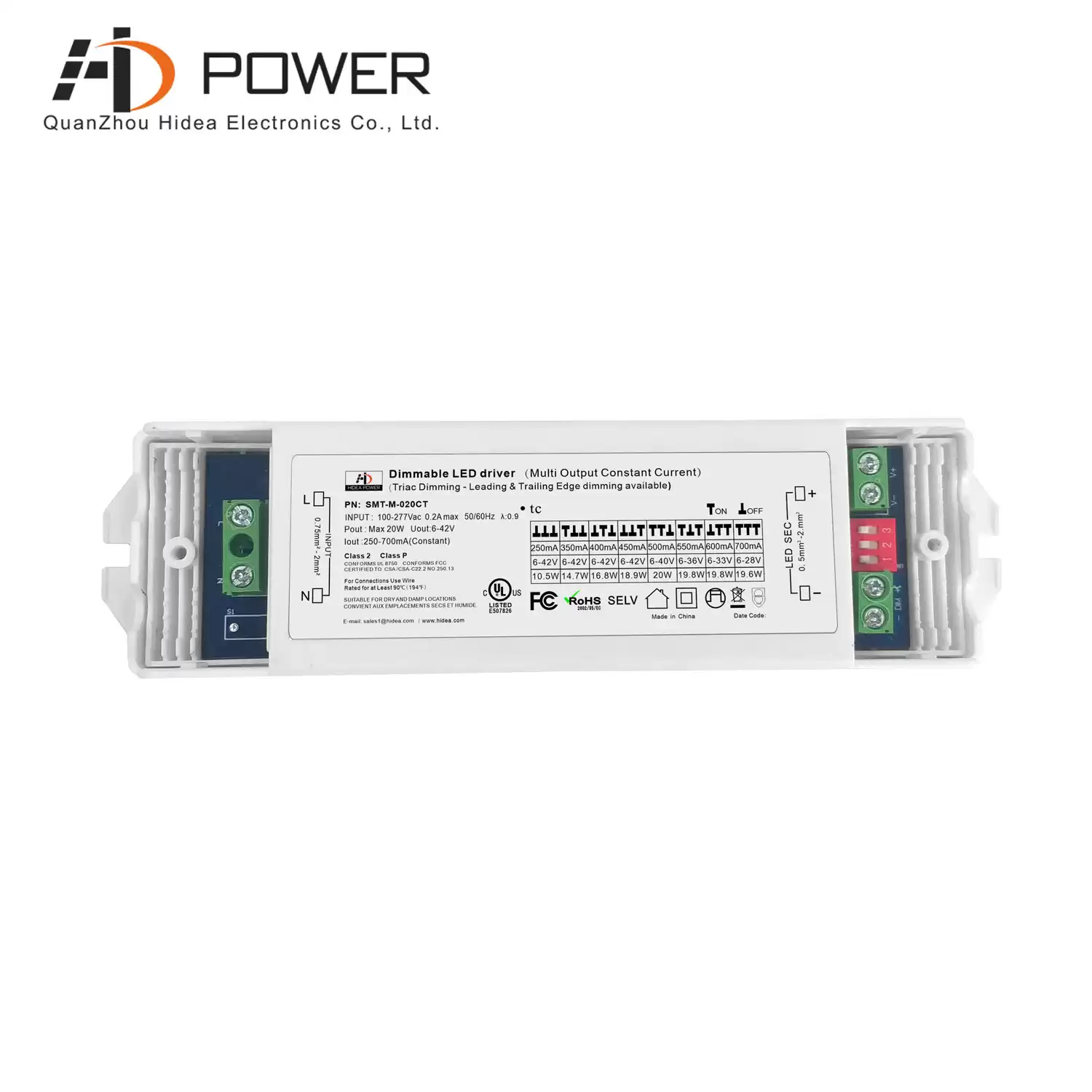

20w 350ma triac multi-current with dip switch dimmable constant current led driver price

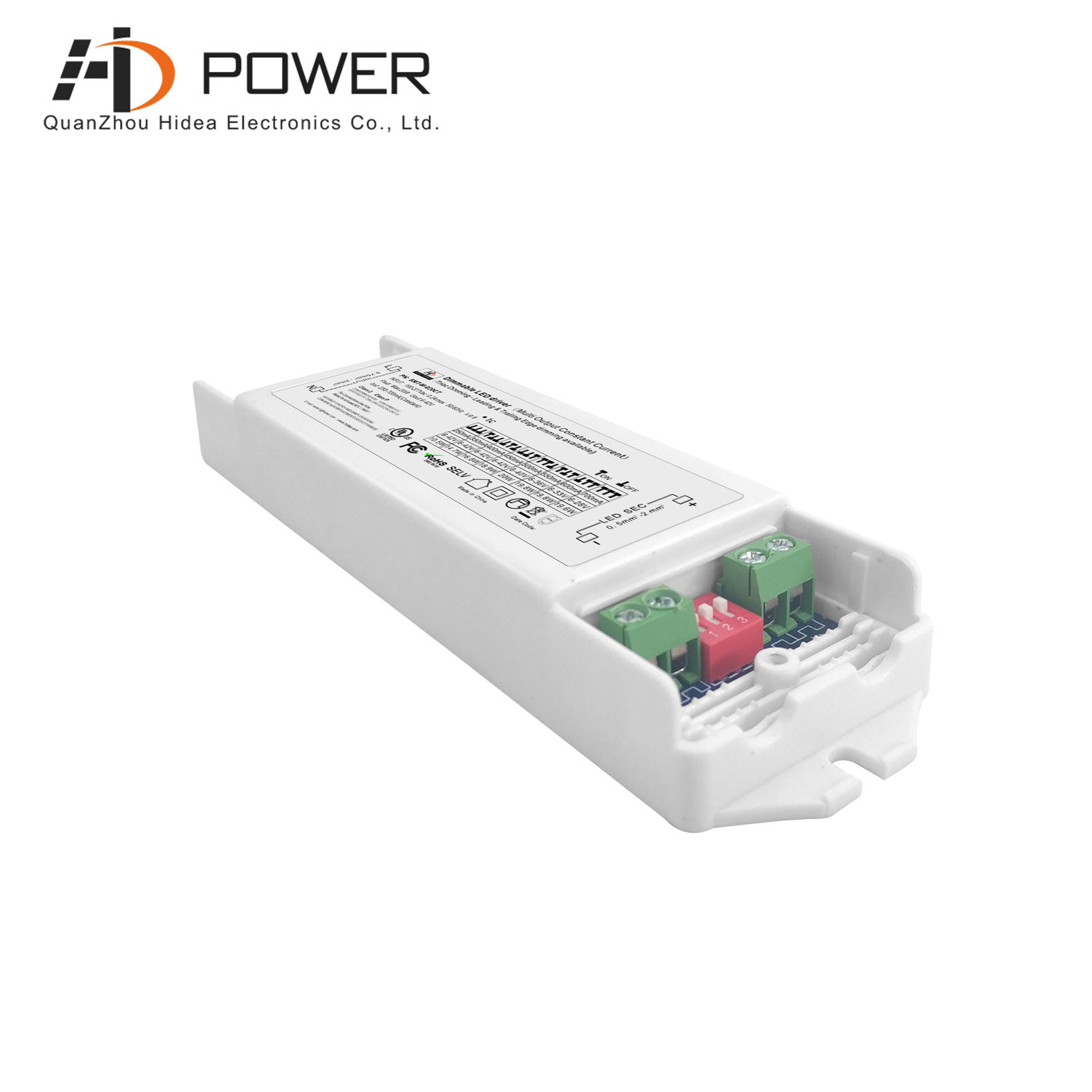

UL certified constant current triac dimmable led driver with adjustable output current DIP switch, built-in active PFC function, working efficiency up to 78%, perfectly compatible with Lithonia Lighting's 20W LED downlight to achieve smooth dimming

Size159.5*43*20mm
Output Current350mA
Shape & SizeStandard Size
Output Power(Watt)20W
Input Voltage100-277Vac
Working ModeMulti-Output Current Driver
Dimming ModeTriac Dimming
Weight150g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

20w 350ma triac multi-current with dip switch dimmable constant current led driver price

100-277vac plastic housing design ip20 Multi-current selectable led driver dimming mode is triac, natural air convection cooling, good heat dissipation, short circuit, overload protection, in line with global safety lighting laws, 7-year warranty

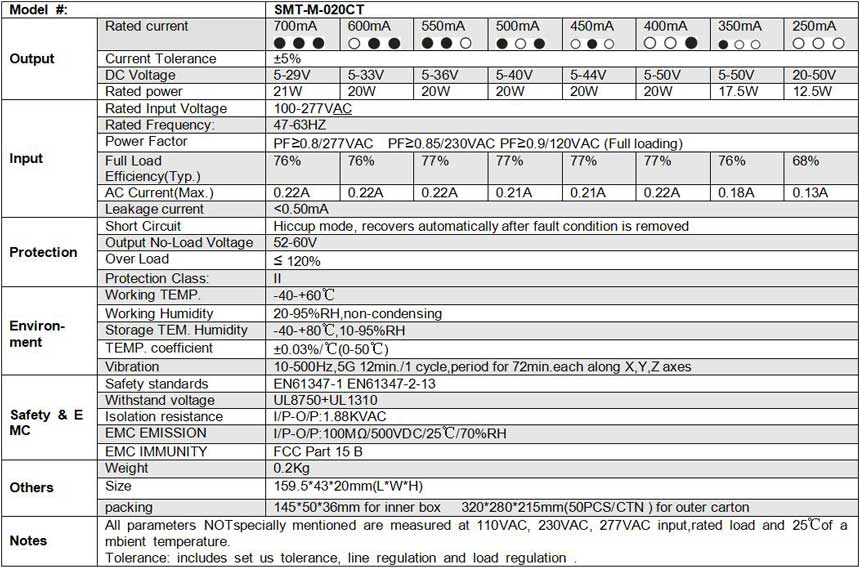

Specification

Related Products

20w dali-2 & push multi-current with dip switch dimmable led driver built-in active PFC function, plastic case design, suitable for indoor lighting projects

Mode：SMT-M-020CM

Dimming Mode : dali-2 dimming

Output Power : 20W

intput voltage：100-277Vac

Size：159.5*43*20mm（L*W*H）
