20W 6V Monocrystalline One-Piece Lamination 2-fold folding package Folding Solar Panel
Convenient Portability: The 20W 6V Monocrystalline One-Piece Lamination 2-fold Folding Package Folding Solar Panel is designed for easy portability, allowing users to carry it effortlessly and set it up anywhere.
Efficient Monocrystalline Technology: With monocrystalline solar cells, this panel offers high energy conversion efficiency, maximizing the solar energy harvested and providing reliable power output.
Compact and Foldable Design: The solar panel's 2-fold folding design makes it small and convenient to store, taking up the least amount of room when being transported and stored.

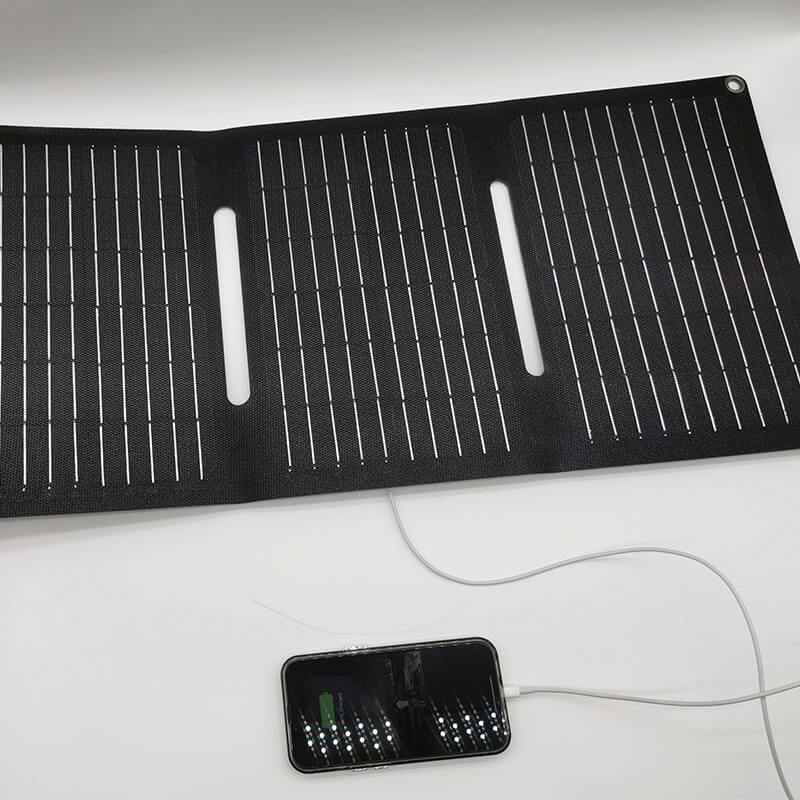

Versatile electricity Generation: In distant or off-grid situations, this foldable solar panel may generate electricity by using solar energy to charge a variety of electronics, including cellphones, cameras, GPS units, and tiny electrical devices.
Easy Setup and Use: The one-piece lamination construction simplifies the setup process, allowing users to unfold the panel and start harnessing solar energy quickly and hassle-free, making it suitable for outdoor activities, camping, hiking, and emergencies.
| Specification of Foldable Solar Panel |
| Specification |
Product name |
20W 6V Monocrystalline One-Piece Lamination 2-fold folding package |
Document number |
AJ-20W6V-2 |
| Document name |
Y-20W-2 Specification |
Version number |
A/0 |
| Electrical Performance Parameters (STC) |
| Specifications |
Unit |
Power |
Working voltage (Vm) |
Working current (Im) |
Open-circuit voltage (Voc) |
Short-circuit current (Isc) |
| AJ-595W-8 |
W |
20W |
6.6 |
3.03 |
7.92 |
3.21 |
| Power tolerance |
W |
0 ~ +3 |
| STC: AM=1.5, irradiance of 1000W / m2, Component temperature is 25℃ |
| Essential parameter |
| Unfolded size (Length & width) |
380*354mm |
Solar Cells |
12*2(1x12)/ Monocrystalline / 158mm |

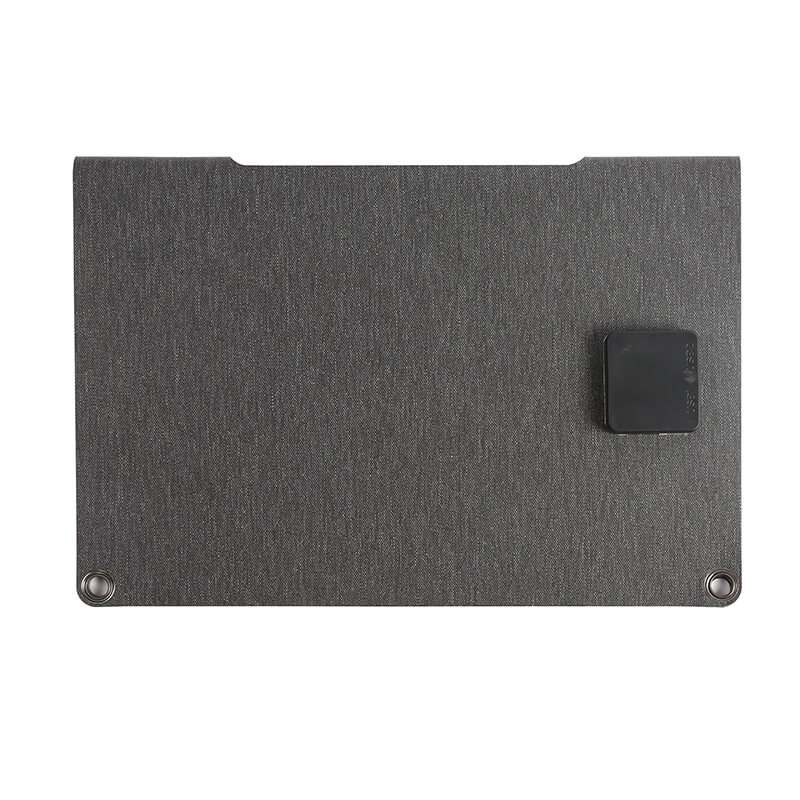

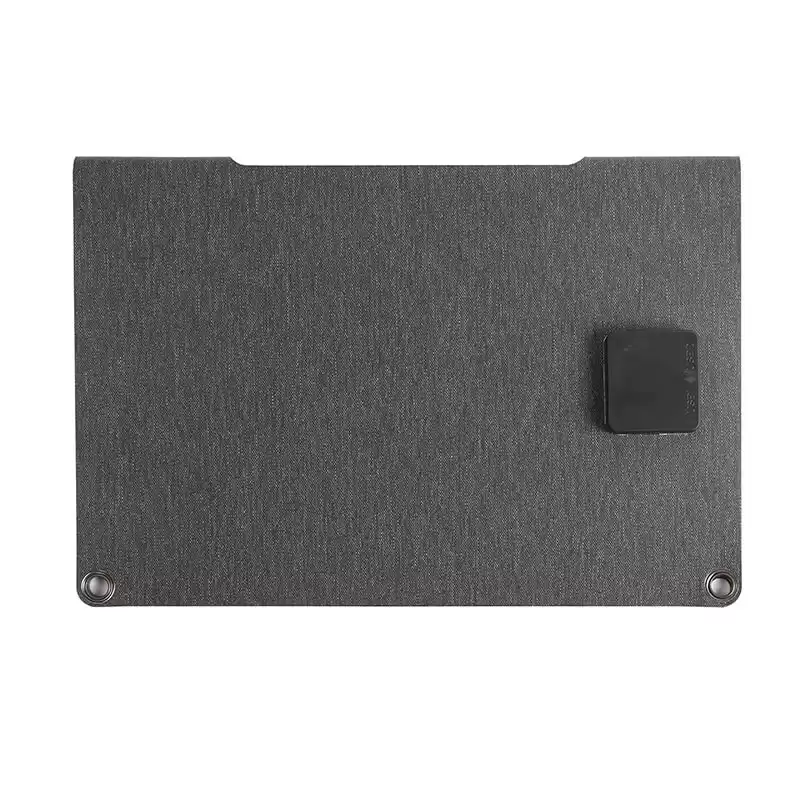

| The back material |
Waterproof cloth (Black) |
Net weight |
About 0.7kg |
| Surface material |
ETFE |
Cable specification |
Null |
| Materials |
EVA |
Packing specifications |
Carton + Pearl wool |
| Operating condition |

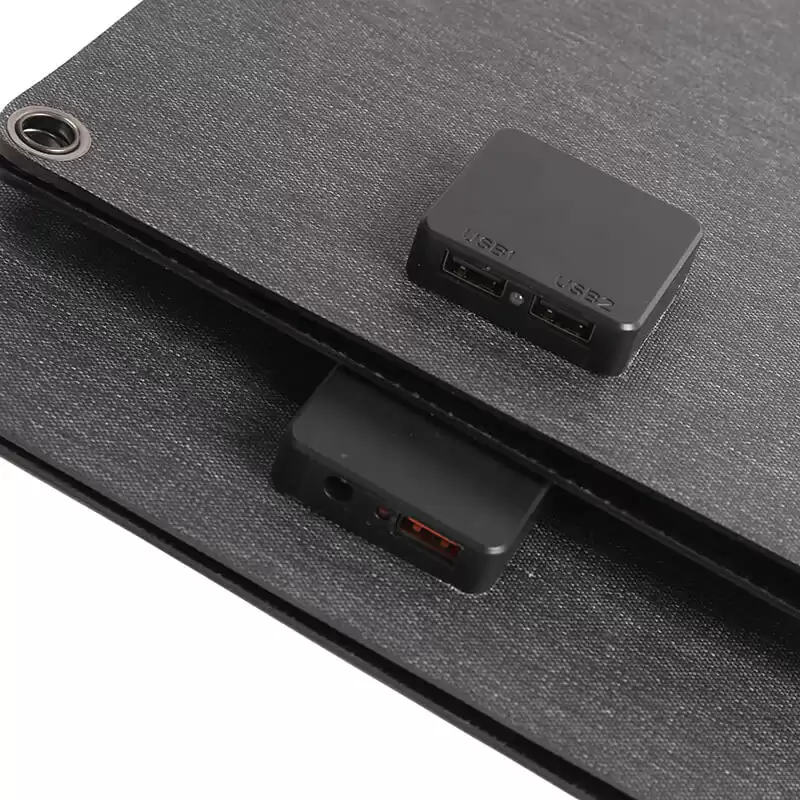

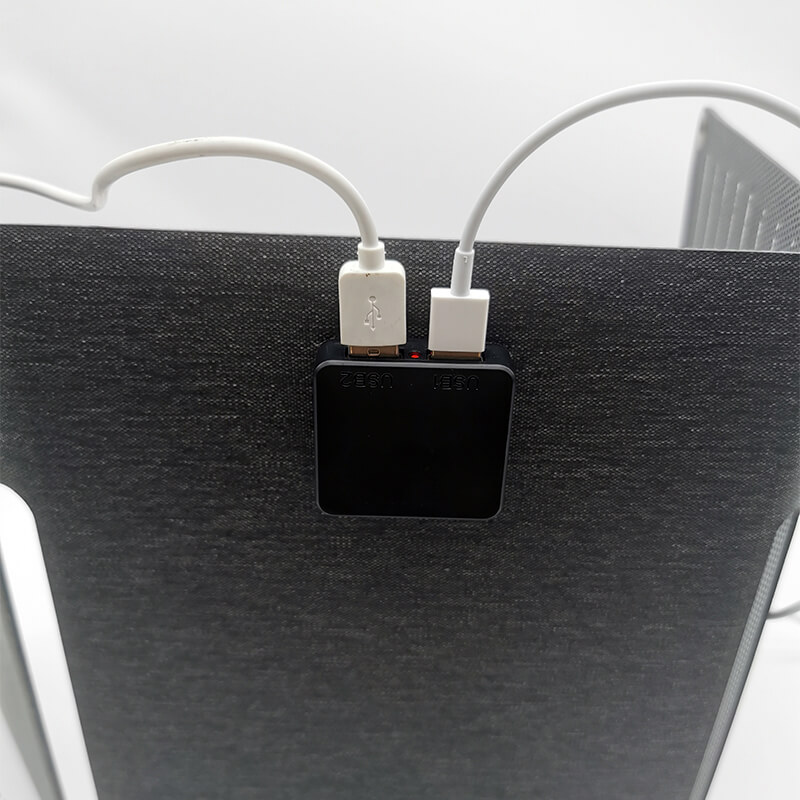

| USB1 Output（Orange） |
USB1 Output（Orange） |
| USB2 |
5V/3A Supported protocol: BC1.2, Apple, Samsung protocol QC2.0 and QC3.0 DO NOT support Apple phone low voltage reboot |
| Adapter |
Can be customized according to the customer's request |

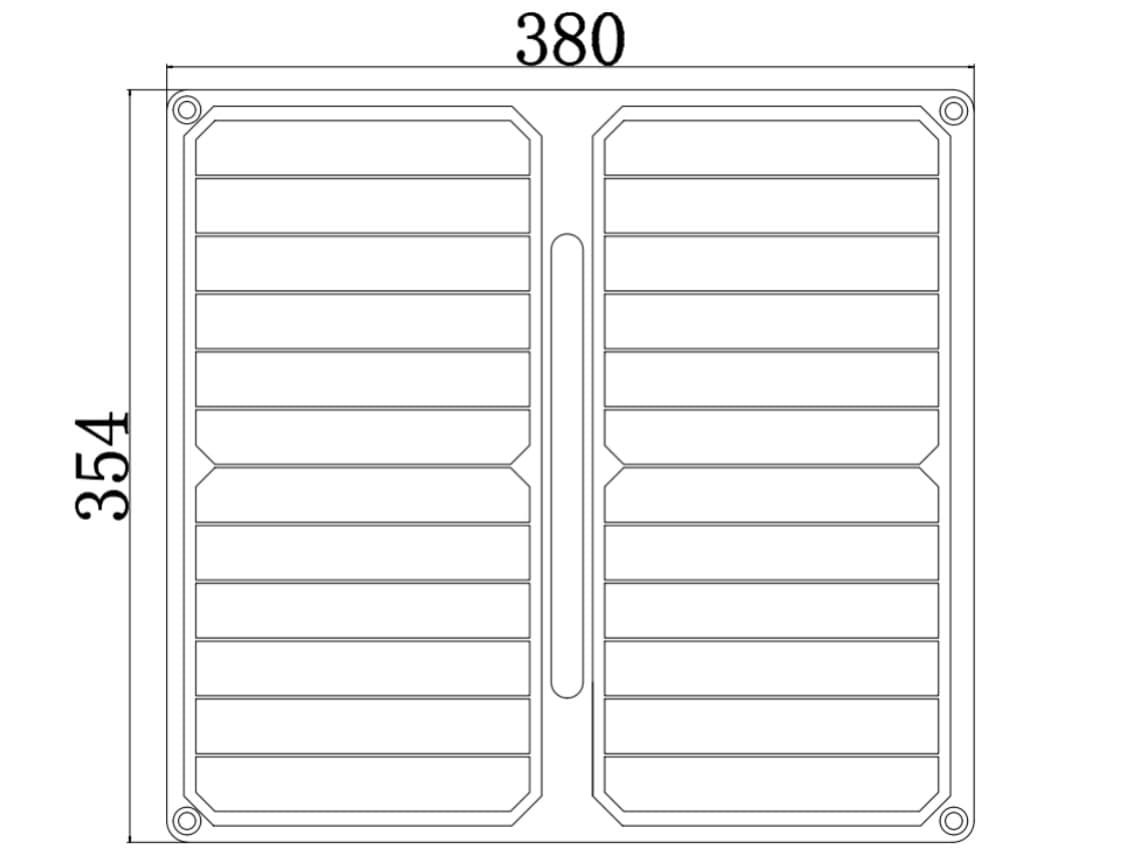

| Product Dimension |
|
|

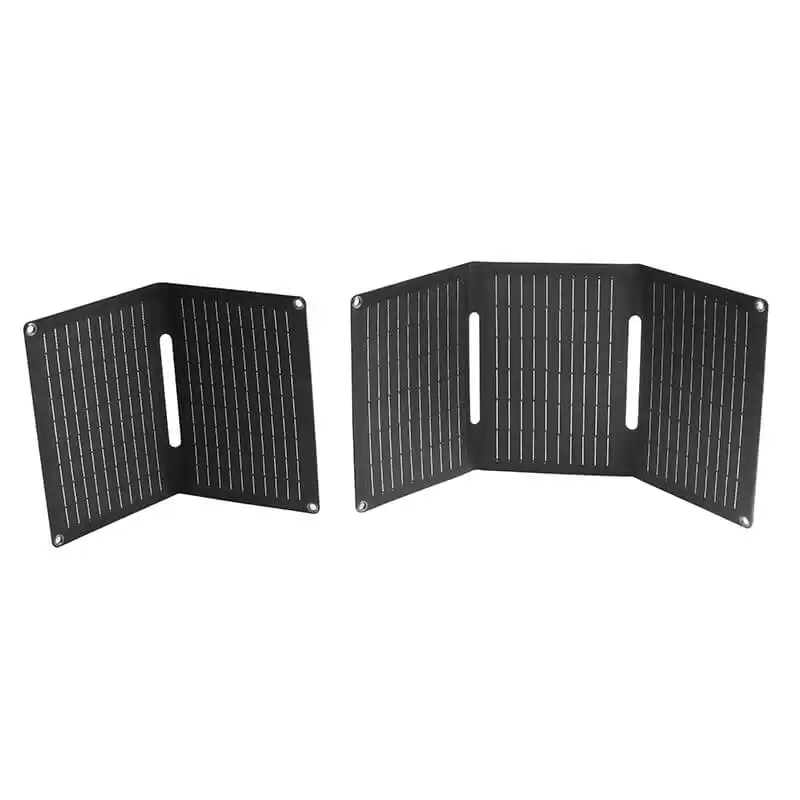

Foldable Design: The folding panel design allows for easy storage and portability, making it convenient to carry and set up in various locations.
2-Fold Folding Package: The panel can be folded into a compact size for easy transportation and storage, ideal for outdoor activities and on-the-go solar power needs.
Power Output: The 20W Monocrystalline One-Piece Lamination 2-Fold Folding Package Folding Solar Panel generates a power output of 20W, providing a convenient and efficient source of solar energy.
One-Piece Lamination: The solar panel features a one-piece lamination construction, ensuring durability and resistance to weather conditions.
Easy Setup: The folding panel design allows for quick and hassle-free setup, requiring minimal effort to start harnessing solar energy.
Versatile Application: The folding solar panel can be used to harness solar energy anywhere, making it suitable for camping, hiking, backpacking, and other outdoor adventures.
High Energy Conversion Efficiency: The monocrystalline solar cells used in the panel offer high energy conversion efficiency, maximizing the utilization of solar power.
Harness Solar Energy Anywhere: With the 20W Monocrystalline One-Piece Lamination 2-Fold Folding Package Folding Solar Panel, users can conveniently and reliably harness solar energy in any location, enabling them to power their devices and appliances while off-grid or during emergencies.
