20W Integrated Solar Advertising LED Light Box In Pole With Street Light

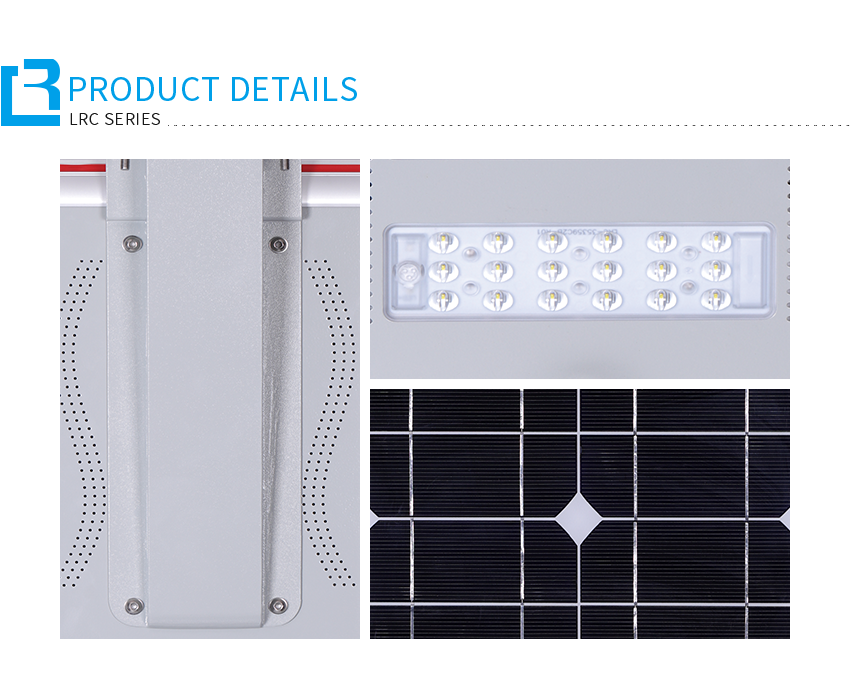

20W Integrated Solar Advertising LED Light Box In Pole With Street Light: Led Modular Thermal System Design/Battery Protection System Design/Typhoon Resistance Design/Aluminum Alloy Body Material Light Box.

Facebook Twitter Pinterest LinkedIn 分享

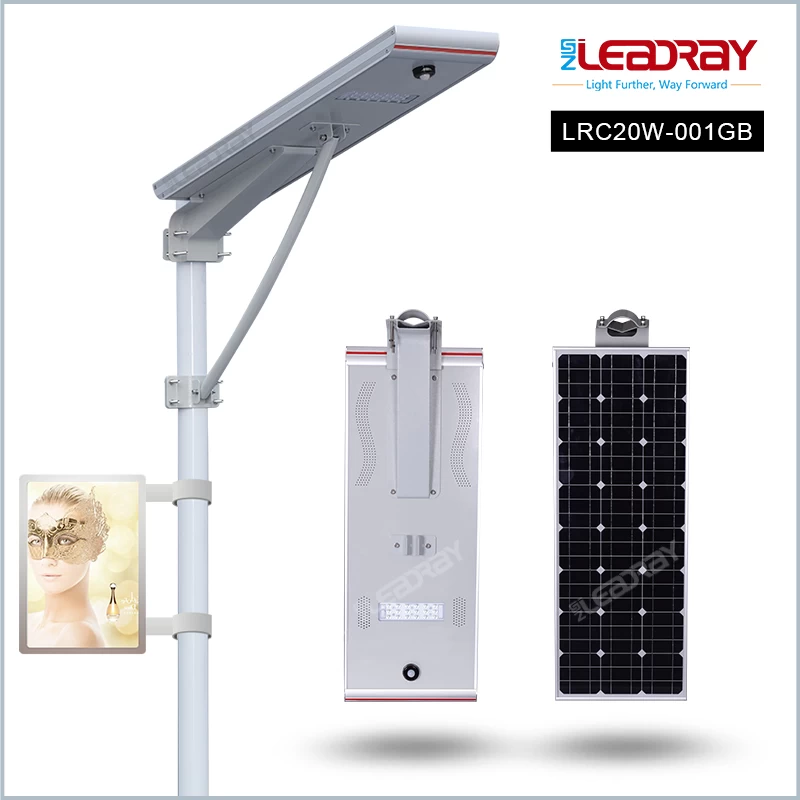

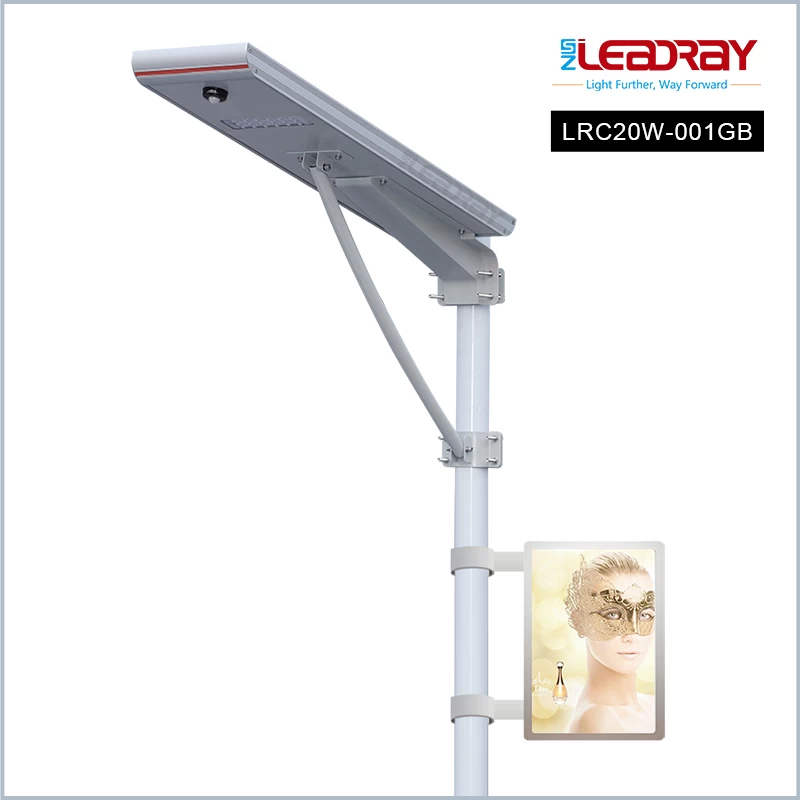

20w Integrated Solar Advertising LED Light Box in Pole with street light

20w 20w Integrated Solar Advertising LED Light Box in Pole with street light: Led Modular Thermal System Design/Battery Protection System Design/Typhoon resistance Design/Aluminum alloy body material light box

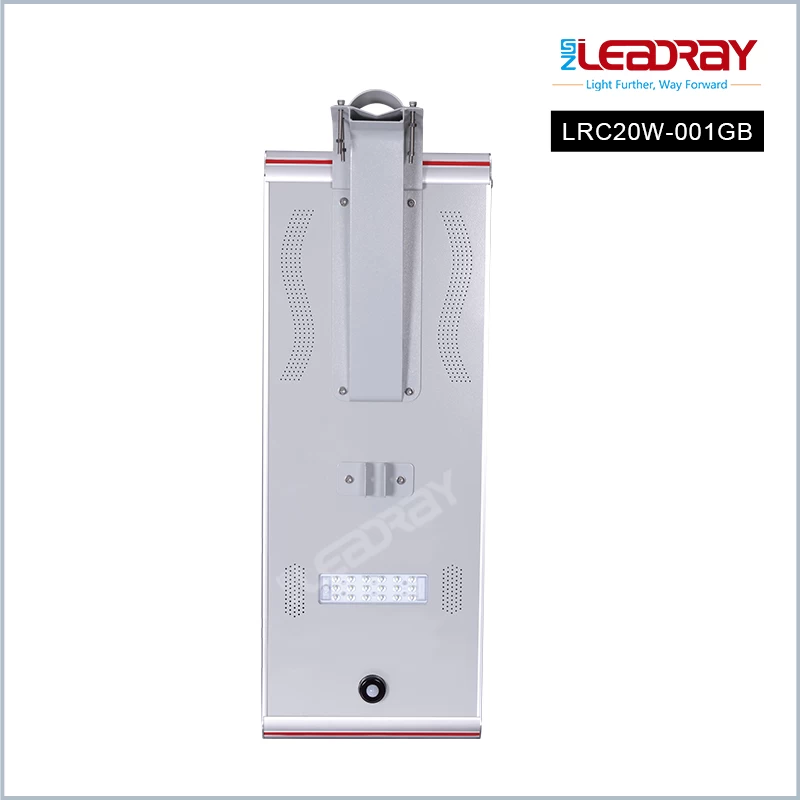

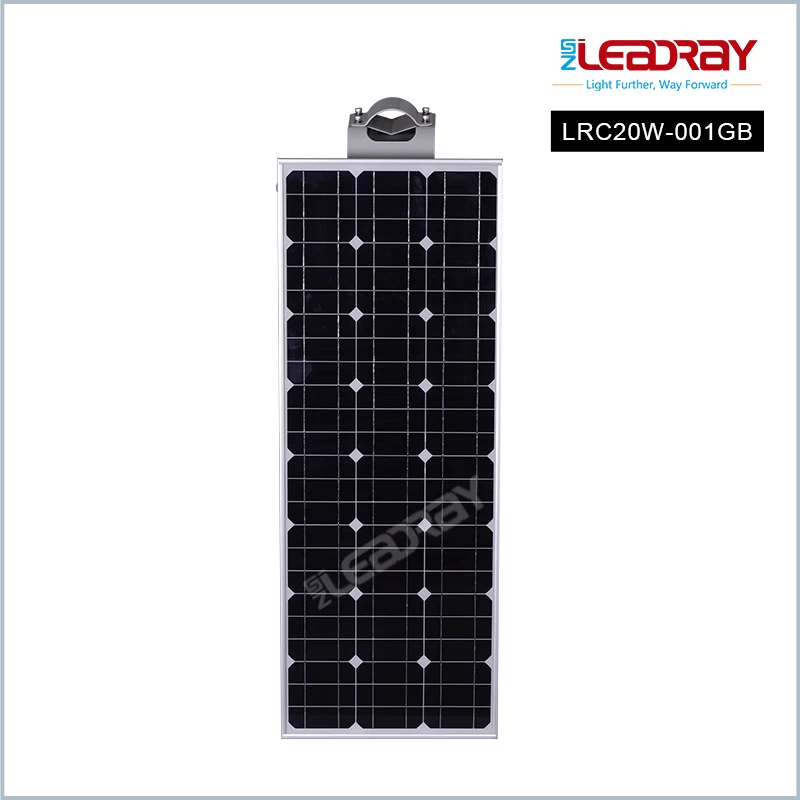

Model No: LRC20W-001GB
Solar Panel Power: 18V 80W (High efficiency monocrystalline silicon)
Battery Type: High efficiency LiFePO4 Battery
Charging time:6-8hours
Street Light System LED Brand: CREE
LED Power: 20W
Luminous Flux: 2800Lm(TYP)
Lifespan: 50,000hrs
Beam Angel: 150x70°
Charging Time: 6-8 hours
Lighting Time(Full Power): 12-14hours
Lighting Time(30% saving mode): 39 hours (3~5 rainy days)
Color temperature: 2700~6500K
Discharing temperature: -20 ℃ to +60 ℃
Charging Temperature: 0 ℃ to +60 ℃
Storage temperature: -20 ℃ to +45 ℃
Mounting Height: 4-6m
Suggested Distance Between Lights: 15-20m
Material: Superior aviation aluminum AL6063-T5
Warranty: 3-5 years

AD BOX System
Power:20w
Lumen flux:2800lm(TYP)
Working Hours:4-6hours
Mounting Height:2.5-3M

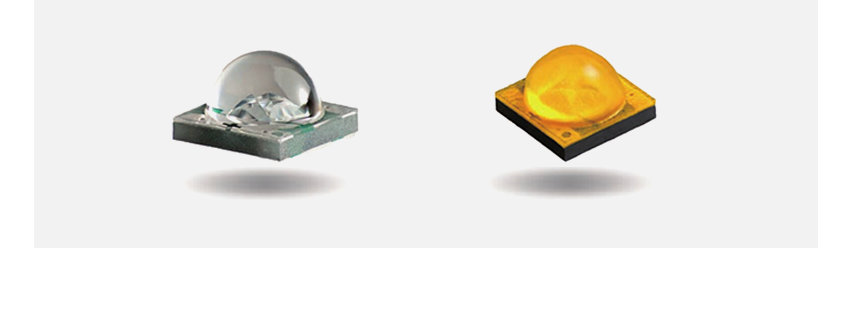

Cree® XLamp® XT-E LEDs

CREE LED without gold wire packaging, creates a first-class light source

140Lm/W, 30% brighter than other similar products

Longer working hours, 15% longer than other


Innovative Battery Protection System

Built-in LiFePO4 class A battery, single cell with PTC Over charging & over discharging protection

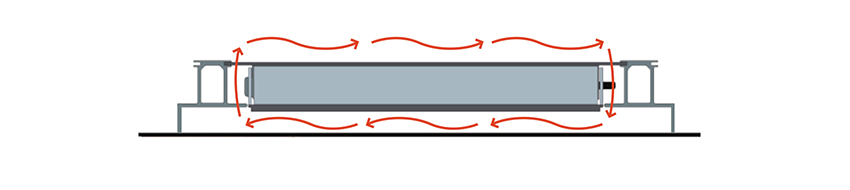

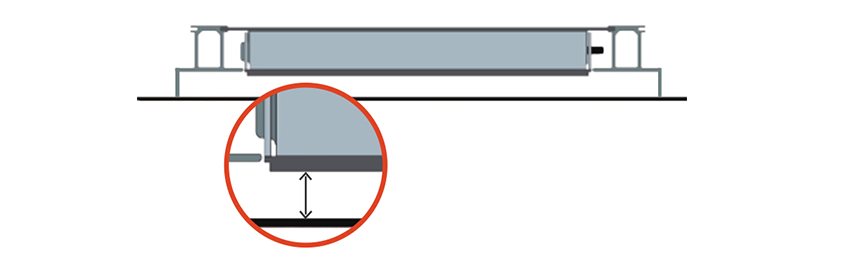

Original separate design with 5mm gap between battery and solar panel





Air convection & thermal system design, More air flows and better heat dissipation
