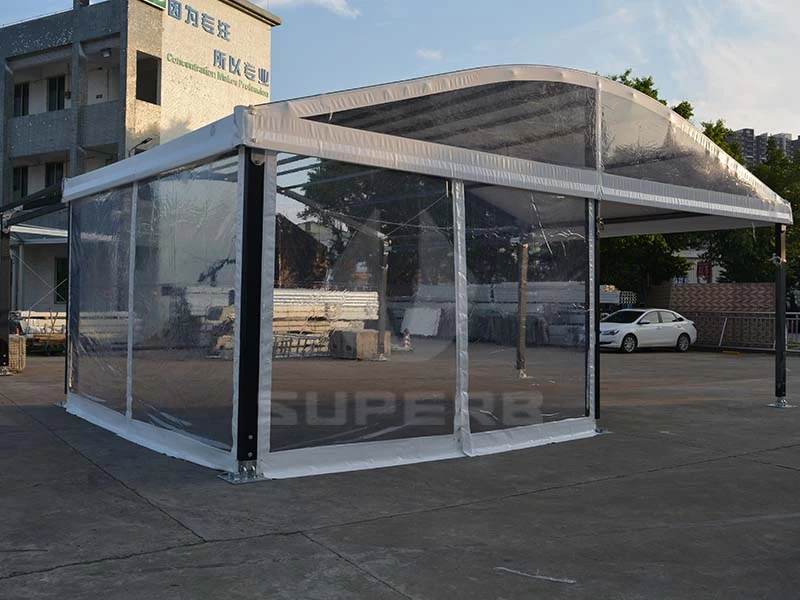

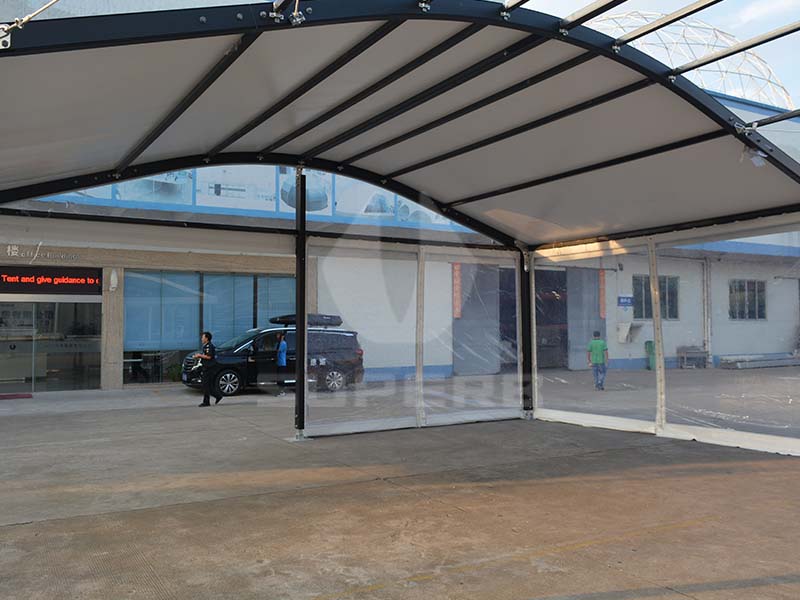

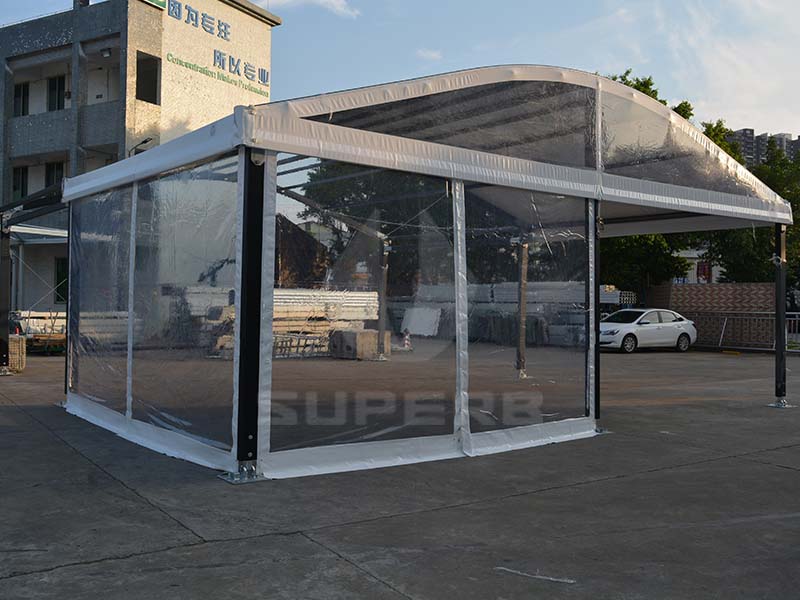

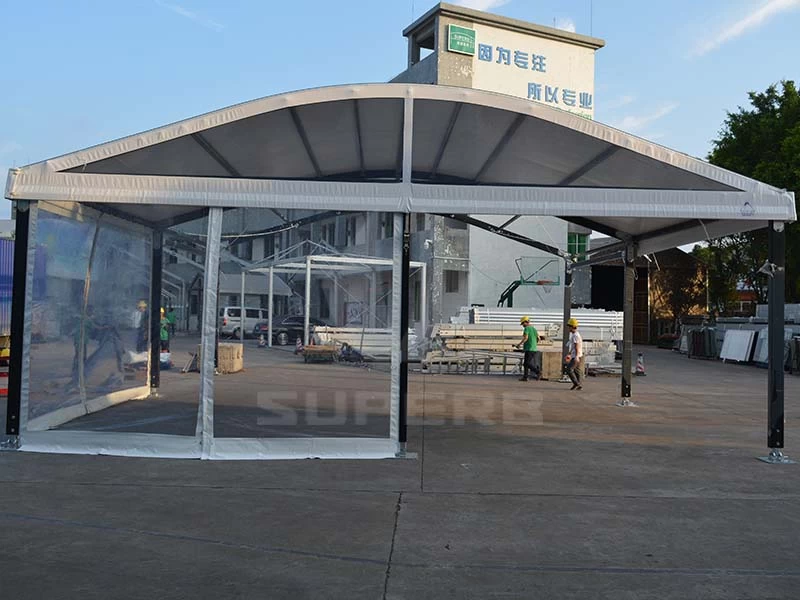

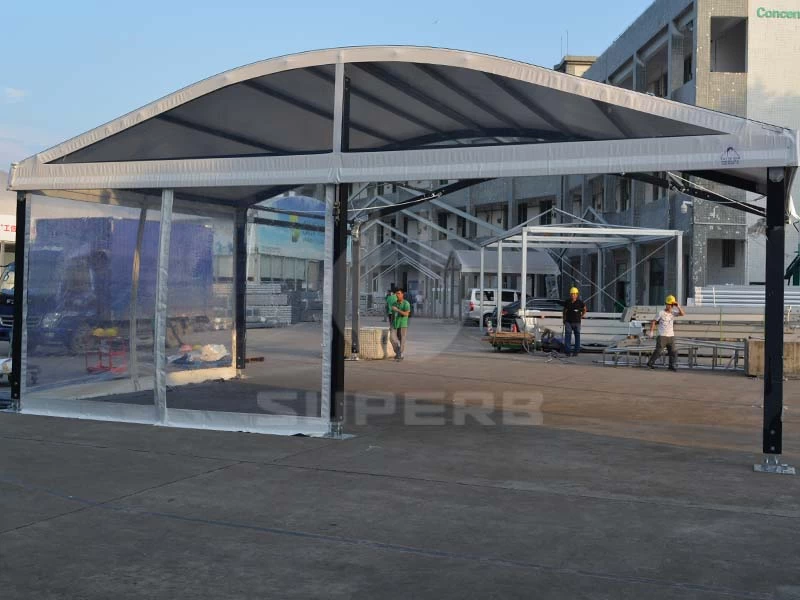

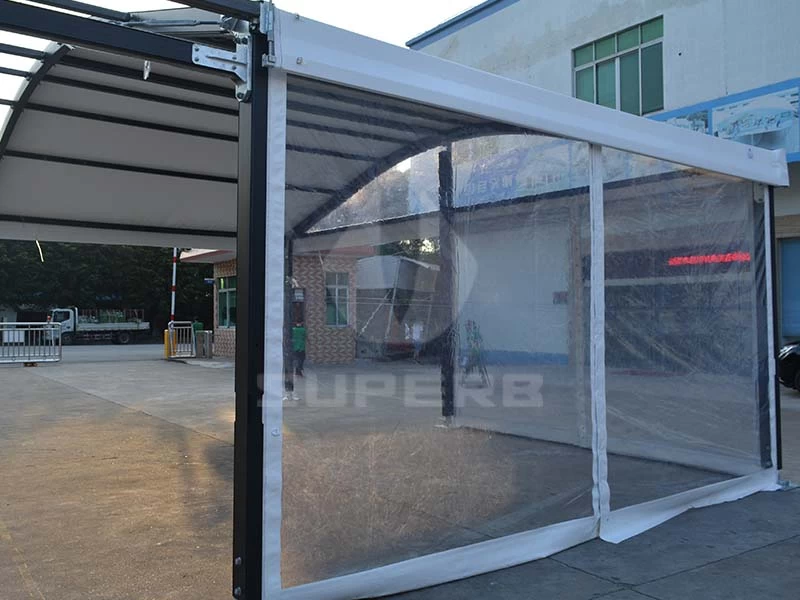

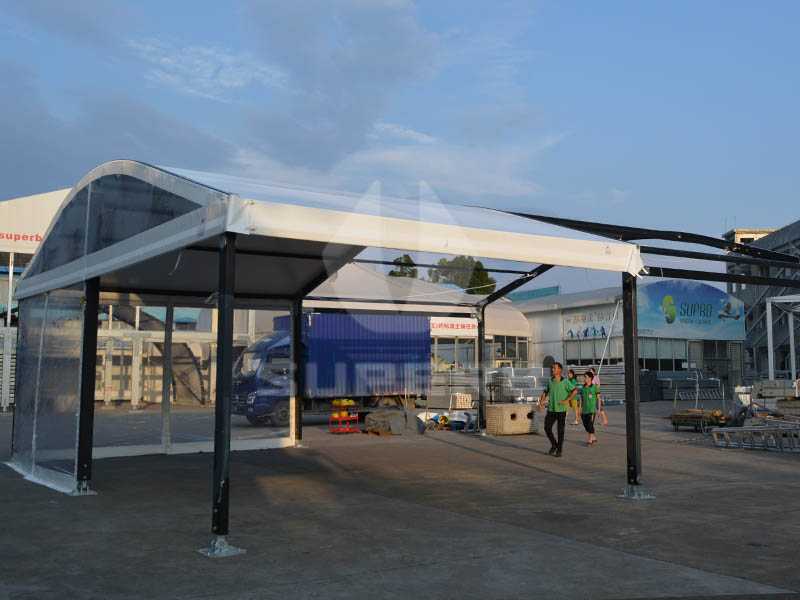

20x20 custom frame marquee tents for sale
1.Fashionable and beautiful with graceful arc roof lines. Widely used for royal and top grade events & activities accompanied with glass or ABS Hard Walls.
2.Elegant design with roof extensions on both long sides helps to keep the interior side of the tent dry and clean in heavy rain & wind situation (with/without sidewalls).
3.Easy to integrate heating and A/C
4.A variety of accessories available for customization
5.No exterior guy ropes or staking required.
The specification of frame tent:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
BS10/4-5AT
|
10
|
3.9
|
4.9
|
5
|
18°
|
9.2
|
100
|
|
BS15/4-5AT
|
15
|
3.9
|
5.7
|
5
|
18°
|
9.2
|
100
|
|
BS20/4-5AT
|
20
|
3.9
|
6.5
|
5
|
18°
|
9.2
|
100
|
|
BS25/4-5AT
|
25
|
3.9
|
7.3
|
5
|
18°
|
11.2
|
100
|
|
Main frame Profile
|
204x120x4mm（4-Channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The accessories of frame tent:
