20x30 Commercial Canopy Tents For Sale
20x30 Commercial Canopy Tents's feature:
1. Special polygon roof design.
2. Large inside space, suitable for top grade event or playground and expo.
3. Roof and gable vent is available.
4. Relocatable, easy to install, dismantle and transport.
5. Easy to integrate heating and A/C
20x30 Canopy Tent 's available sizes:
● Clear span available from 20m to 40m.
● Length: adjustable by 5m unit.
20x30 Canopy Tent 's features:
● Special polygon roof design.
● Large inside space, suitable for top grade event or exhibition.
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space can be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
● Full line accessories available.

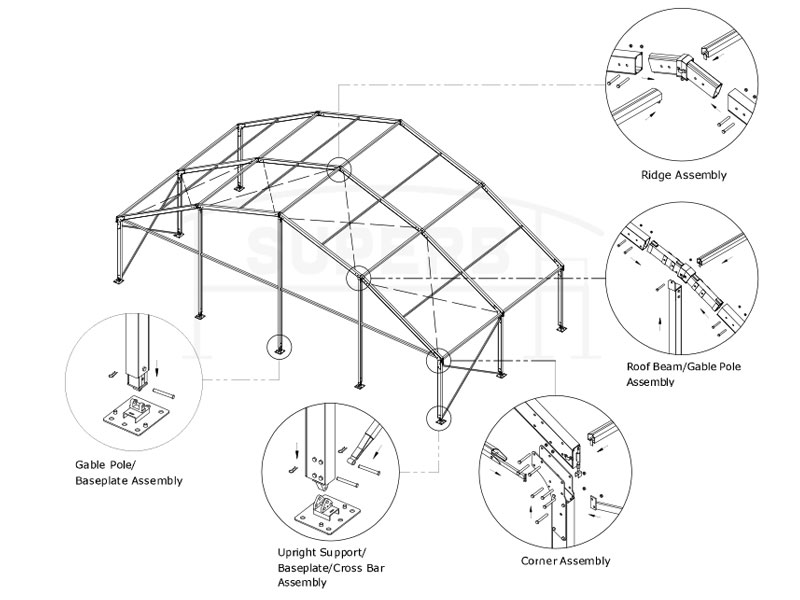

20x30 Canopy Tent 's frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
20x30 Canopy Tent 's cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
The Specification of 20x30 Canopy Tent :
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS20/4-5
|
20
|
3.9
|
|
5
|
|
100
|
|
LS25/4-5
|
25
|
3.9
|
|
5
|
|
100
|
|
LS30/4-5
|
30
|
3.9
|
|
5
|
|
100
|
|
Main frame Profile
|
256x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The accessories of 20x30 Canopy Tent :
