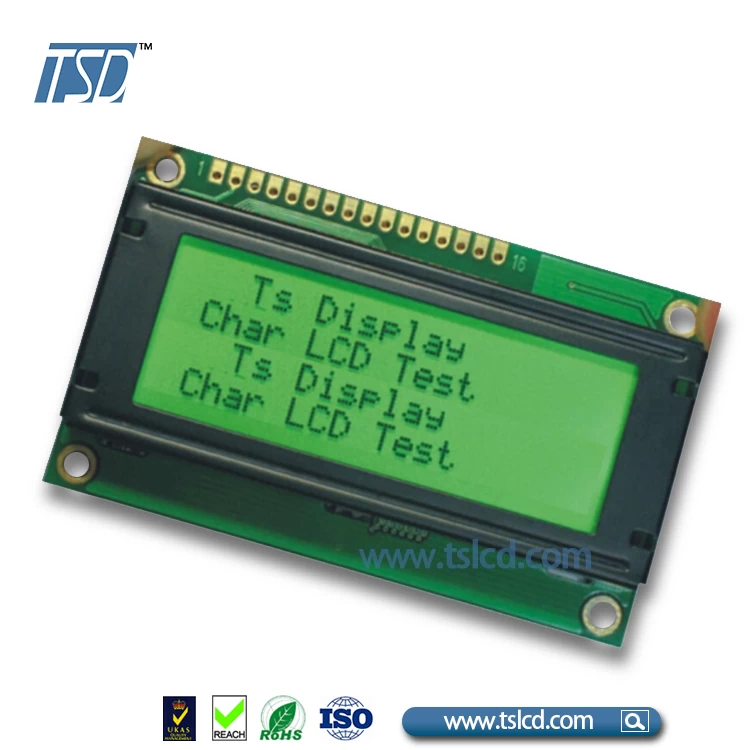

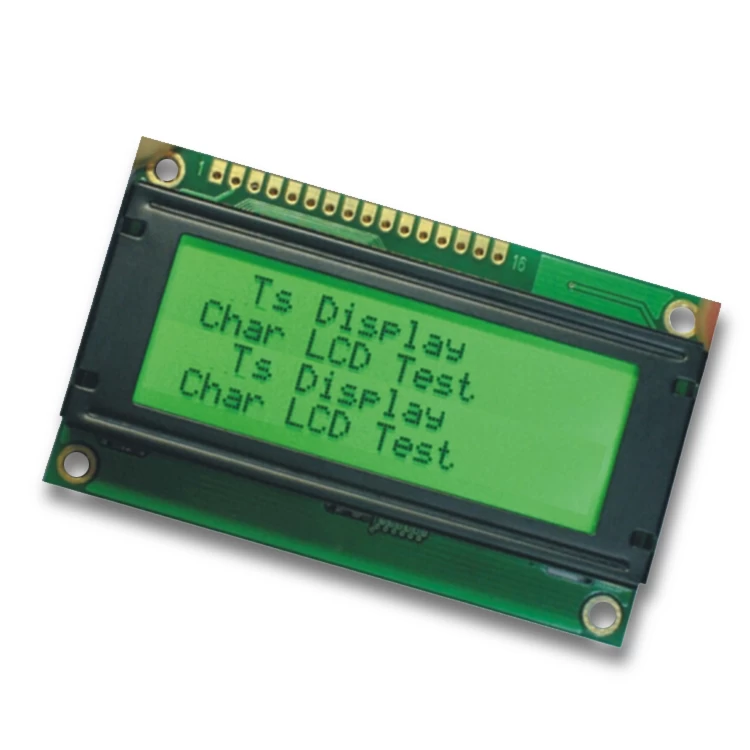

20x4 lcd module

20x4 character lcd module

STN-YG/ STN-blue, FSTN

with backlight

various backlight colors

Facebook Twitter Pinterest LinkedIn 分享
<
Item Spec.
Display Character 20x4 character
Description 20x4 lcd alphanumeric display
Display type STN-YG ,  transflective, positive
Operating voltage 5.0v
Logic voltage 5.0v
Drive mode 1/16 DUTY, 1/5 BIAS
Backlight white/side  5.0v
Operating voltage 3.3v, VDP=21.8v
Outline 98.0x60.0x14.2mm
View Area 76.0x25.8mm
Active Area 70.4x20.8mm
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C
Backlight color Yellow green/ customized
